Product Description

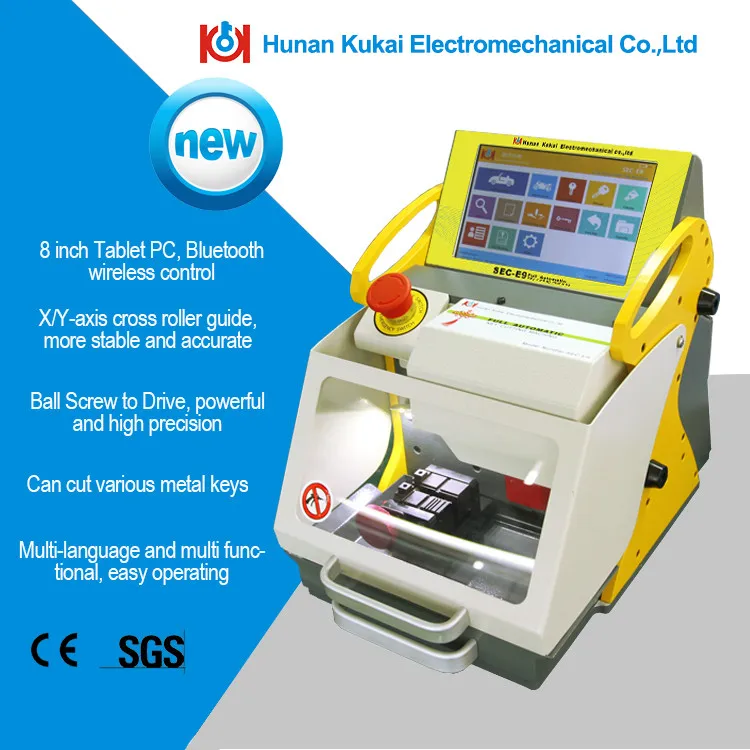

SEC-E9 Computerized Electronic Automobile Key Cutting Machine

SEC-E9 is a all-in-one key cutting and duplicating machine. Its embedded 7-inch touch screen eases the machine use dramatically. Thanks to the built-in decoder and key reading capability, it's the machine that is suitable for key duplicating as well as creating key from bitting.

About SEC-E9


1. Embedded 7 inch LCD Touch Screen --- Tilting from 30° to 84°
2. Equipped with decoder and cutter --- duplicating and cutting keys quickly and easily
3. Replaceable clamp --- can be changed according to the cut keys
4. Automatic key measurement --- measuring key thickness, key tip position and key center position
5. Wide and brighter LED light --- easily operating at night
6. Faster cut speed --- 4 levels of cutting speed are provided for your choice
7. Portable --- easily operating outdoors
8. 24V voltage ---- making key cutting quickly and stably.


Specification


Product name: SEC-E9 Fully Automated Key Cutting Machine
Product No.: SEC-E9
Dimension: 255(W) * 360(H) * 340(D)mm
Weight: 24KG
Resolution: XY: 0.005mm  Z: 0.0015mm
Spindle Revolution: 16000+rpm
Temperature: 0- 40°
Humidity: 10-90%
Usage : The duplicating and cutting of automobile keys and domestic keys.




Advantage:

1.    Can cut a new key by bitting number, when original key is lost.
2.    Can directly search key bitting number by key code. No need to search from Instacode.
3.    Can cut various types of keys, including veritcal milling, flat milling, internal milling and external milling.
4.    Can cut most kinds of keys, including automobile keys, dimple keys, tubular keys, and single-sided domestic keys.
5.    Tibbe keys and LDV keys are available to cut
6.   Can shift five languages directly, including English, French, German, Italian and Portuguese
7.    Spanish can be added according to your needs.
8.   Have CE certificate
9.   Free software updates and upgrades.


 There are six kinds of key clamps for SEC-E9 Key cutting machine as below. You just need to install the corresponding clamps for different key types, no software is needed when replacing the clamps. Automabile key clamp is included in the standard specification.


SN-CP-JJ-01 :  Automobile Key Clamp Suitable for automobile/car/vehicle keys



SN-CP-JJ-02 :  Dimple Key Clamp Suitable for dimple house keys
(Dimple key cutting also requires dimple decoder and cutter)


SN-CP-JJ-03 : Single Standard Key Clamp Suitable for Single standard house keys


SN-CP-JJ-04 : Tubular Key Clamp Suitable for tubular house keys


SN-CP-JJ-05 :  LDV(F019) Clamp Suitable for LDV car keys


SN-CP-JJ-06 : F021 Tibbe Clamp Suitable for Fort and Jaguar keys

Details
Specification Size 255(W) x 325(H)x 340(D)mm
DC Motor Power 27W
Resolution XY-0.005mm, Z-0.00125
Weight24Kg

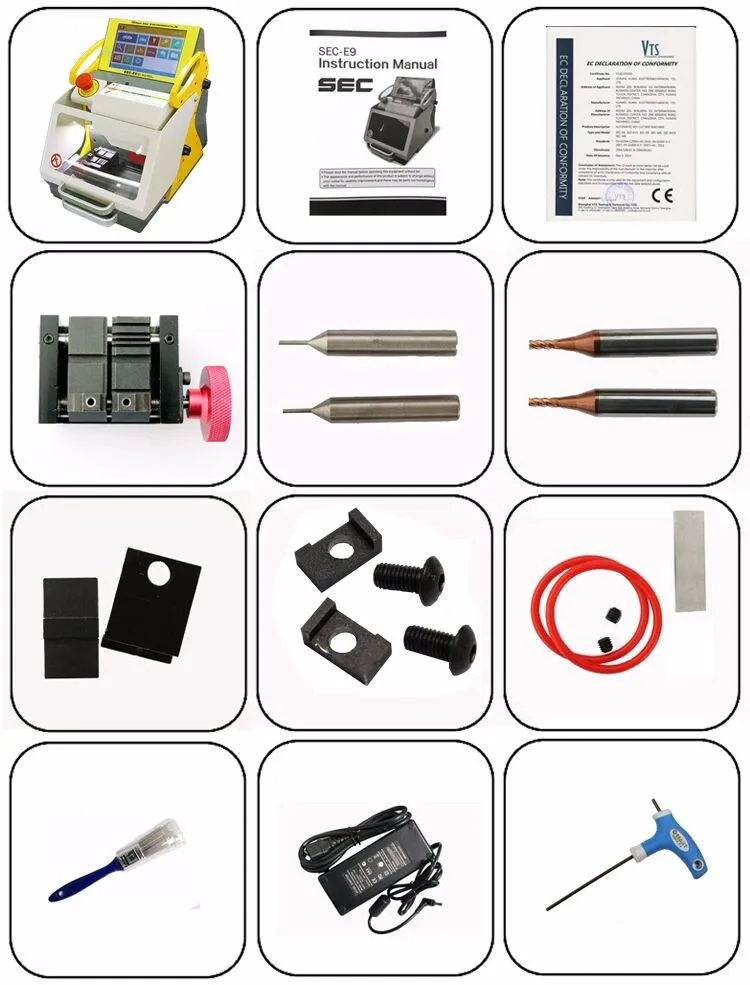

Packaging including

 1x ADAPER (24V5A)

1x POWER CABLE

2x CUTTER

2x PROBE

1x T-WRENCH

2x BOLT (m5)

1x STOPPER

2x STANDARD STOPPER

1x automotive key Clamp

2x AUXILIARY CLAMP

INSTRUCTION MANUAL
