Product Name：X100 PAD2 Car Key Programmer Special Functions Expert Update Version of X100 PAD

Product Type：X100 PAD2

Product Category：Car Key Programmer

View Count：

Product Description

XTOOL X-100 PAD 2 Special Functions Expert

X-100 PAD 2 Features:

Key Programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software)

Specifications:

Operating System: Android 4.4.4
Memory: 1GB RAM，16GB Flash
CPU Quad Core, 1.6 GHz
Display 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
Battery: 4000mAh, 7.4V
WIFI WIFI 2.4Ghz
Bluetooth 100 Meters
Power Voltage: 12V
Power Consumption: 29.6W
Operating Temperature: -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension: (L*W*H): 240*177*30mm
More details:

Layout of X-100 PAD 2
x100 PAD2 Layout
①　USB Type C Port: Compatible with HDMI TV port
②　Power Button: Power on or off
③　DC Charging port: Battery charging
④　DB15 Port: Supports wired connection with car by the cable
X100 PAD2 Pic
①　Earphone jacket
②　USB 2.0 Port: data synchronization with PC
③　Mini HDMI Port

1 (2) 1.1 10. XTOOL-Original-X100-Pad2-Auto-Key-Programmer-Supporting-EPB-EPS-OBD2-Odometer-OilRst-TPMS-TPS-X100

HTB1kr7lNpXXXXazXFXXq6xXFXXXX HTB1bSAtNpXXXXXPXpXXq6xXFXXX3 HTB17RMfNpXXXXXuXVXXq6xXFXXXx HTB1TfcuNpXXXXb_XXXXq6xXFXXXV

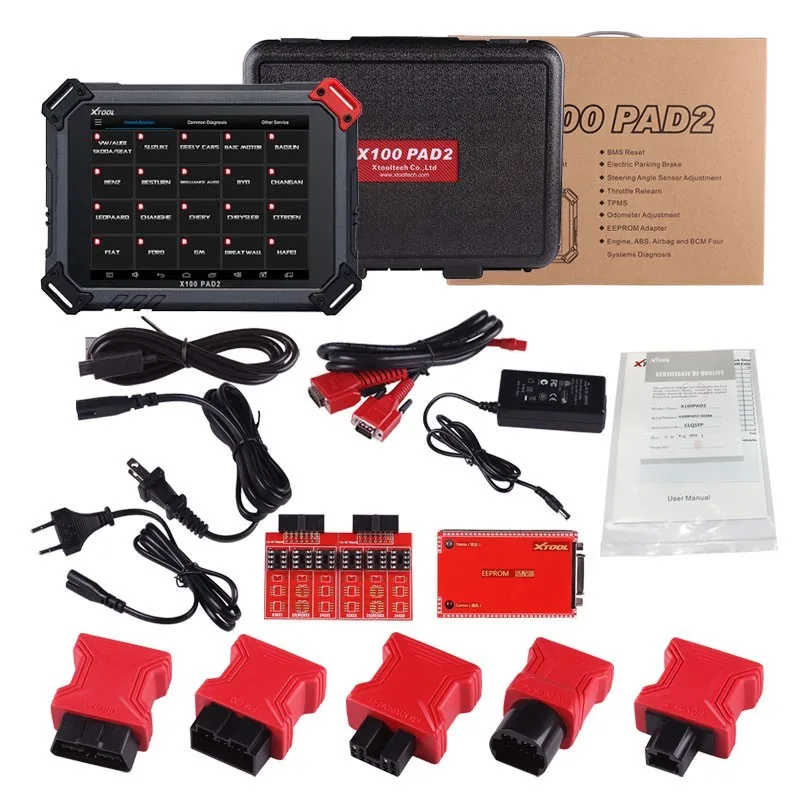

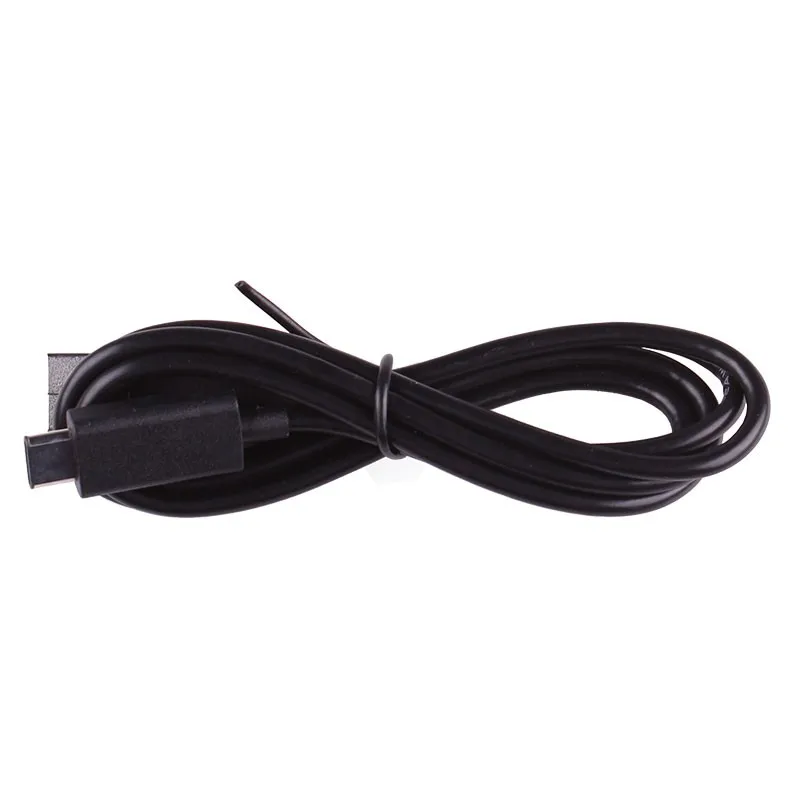

Package List:

HTB1EbP9NpXXXXcSXVXXq6xXFXXX2

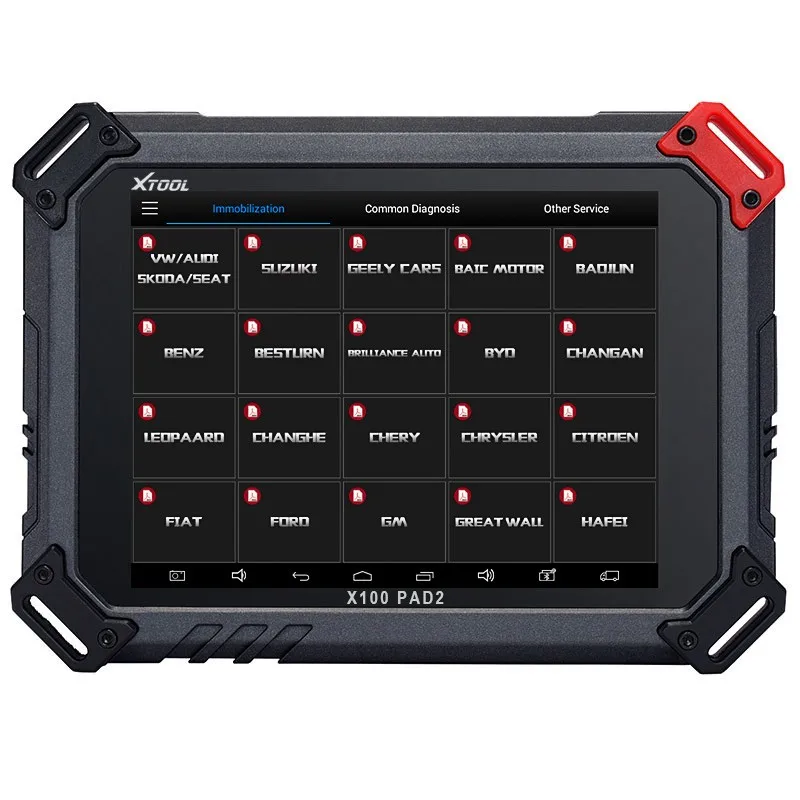

Front View of X-100 PAD 2

X100 PAD2 Front

Back View of X-100 PAD 2

X100 PAD2 Back Side

X-100 PAD2 Exploded Diagram
X-100 PAD2 Exploded Diagram
Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use PC for registration.

X100 PAD2 Registration

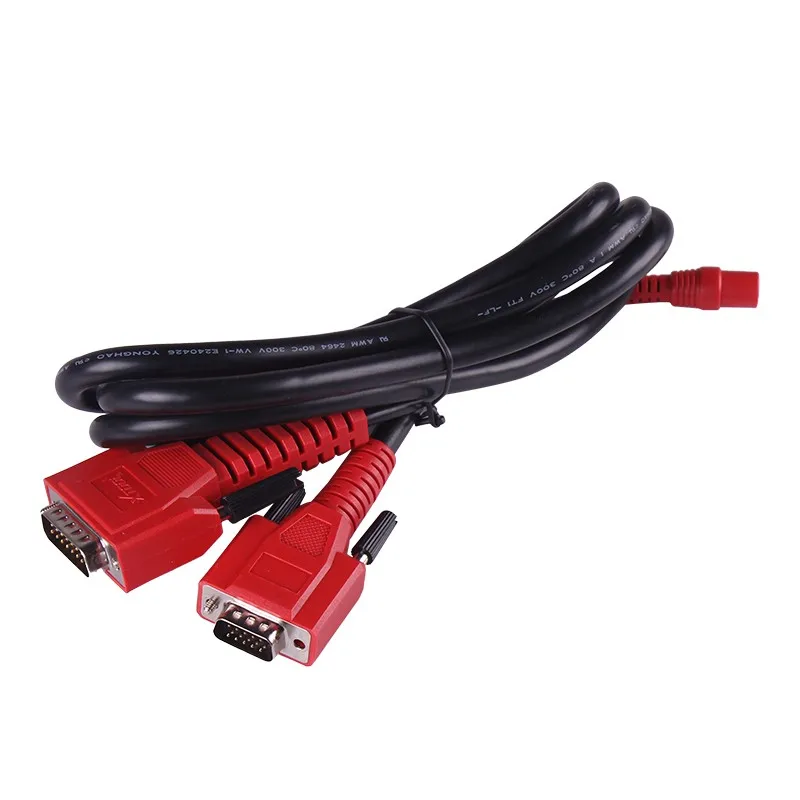

Connect to vehicle directly with cable
X100 PAD2 Connect to Car via Cable
Diagnosis interface for choosing vehicles’ model

X100 PAD2 Diagnosis interface for choosing vehicles’ model

You can choose your area before you start

X100 PAD2 Software
Each area will contain the all the brand this device can do, here is thelist:
America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota
China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

X100 PAD2 Software

Remote access, which is perfect for training, demonstration and even remote diagnosis.

X100 PAD2 Remote Access

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars.
They will be really happy knowing what kinds of problems have been fixed for their cars.

X100 PAD2 PDF

Key Programming Features:

1.New keys programming

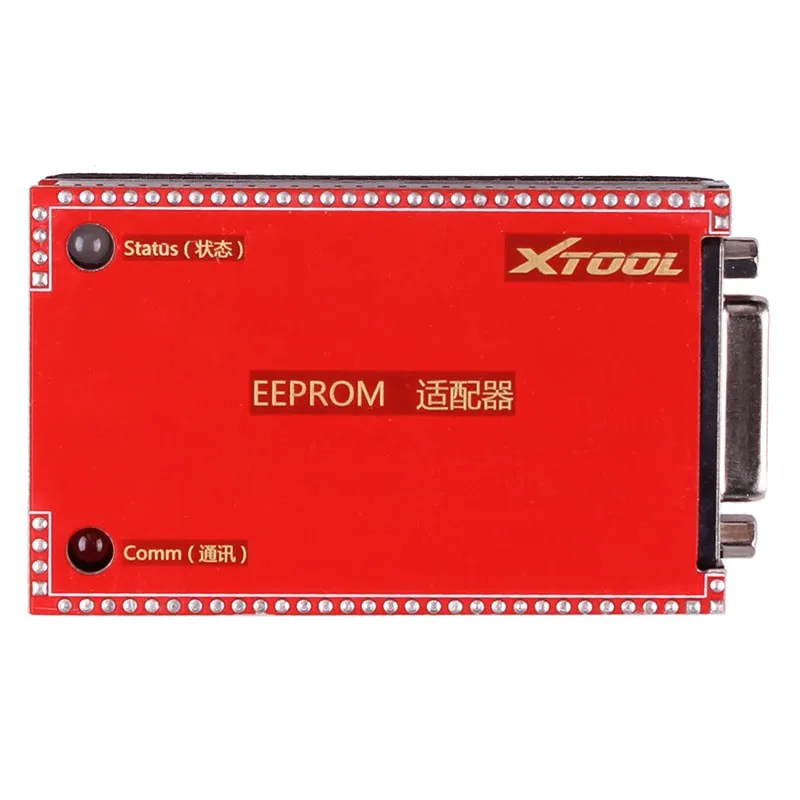

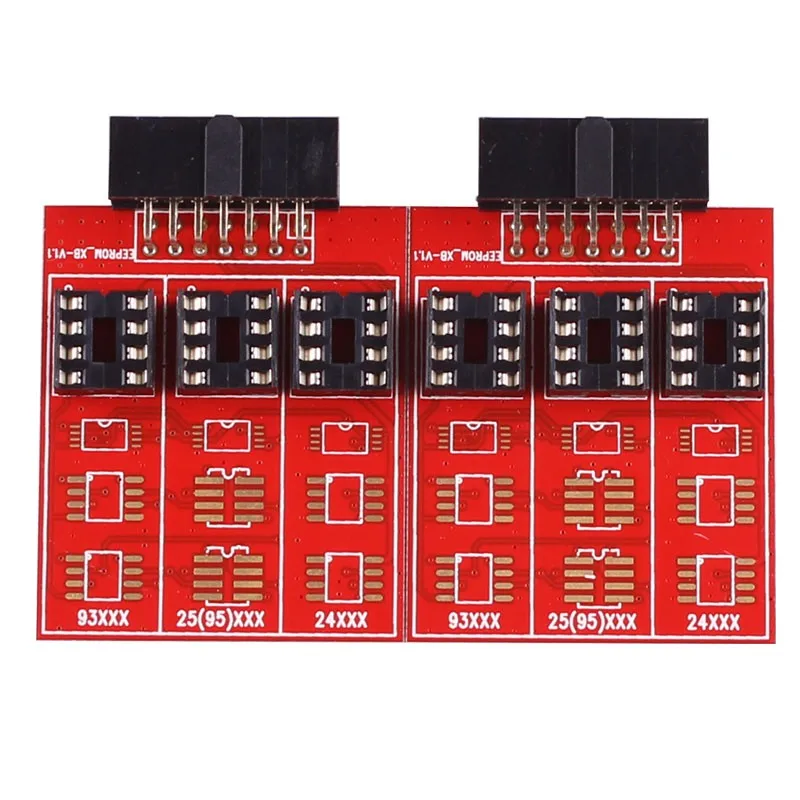

2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
2.Reads keys from immobilizer's memory
3.New immobilizer programming
4.Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6.New remote controller programming
7.With full and strong database for the most important vehicle makes
