Product Description



2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes

Lonsdor K518ISE, the English version of Lonsdor K518, is an universal key programmer for all makes from Europe, America, Asia and China, also it can perform odometer adjustment for some makes. Its nice features are built-in Volkswagen 4th 5th adapter & RFID transponder reader / writer, program Toyota/Lexus smart key all key lost via OBD and free BMW FEM key programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is specialized on Volvo, Maserati, Ferrari, Lamborghini, Bentley, Nissan etc. Lonsdor K518ISE is free update online and no token limitation.

Lonsdor K518ISE Main Functions & Features:

Immobilization
Odometer adjustment
Built-in Volkswagen 4th 5th adapter
Built-in Chip & remote detection module.
Free BMW FEM key programming
Program Toyota/Lexus smart key all key lost via OBD
Lonsdor K518 Key Programmer Special Features:

Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BMW CAS3/CAS3+/CAS3++: direct OBD programming
BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New Ford: smart key programming
Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.



Lonsdor K518 Highlights:

1.The best car diagnostic tool based on Android
2.WIFI networking ensures software upgrading more convenient
3.No need to plug memory card,or connect the computer with data cable,more flexible in online upgrading,updating and activating.
4.With USB-B2.0 standard connector,OBD-II test cable integrated with the diagnostic connector function of the adapter.
5.Diagnostic speed greatly accelerated,work efficiency improved,better time saving.
6.7 inches high brightness,high definition color IPS capacitive screen
7.3800mAh prolymer battery
8.Support external memory expansion,better within 32G
9.Built-in professional,poerful operation assistant system

Lonsdor K518ISE Newest Update Info:

Free update 2017 Buick GL8 smart key programming
Fiat ottimo toothless knob key programming via OBD update time [Nov.15,2017]
Free update Rolls-Royce Wraith,Ghost Key Programming [Nov.10,2017]
Free update:2016-Ford Kuga 49 chip smart key programming Without PIN code[Nov.7,2017]

Free Update(Oct.27,2017)
BMW FEM/BDC series key programming

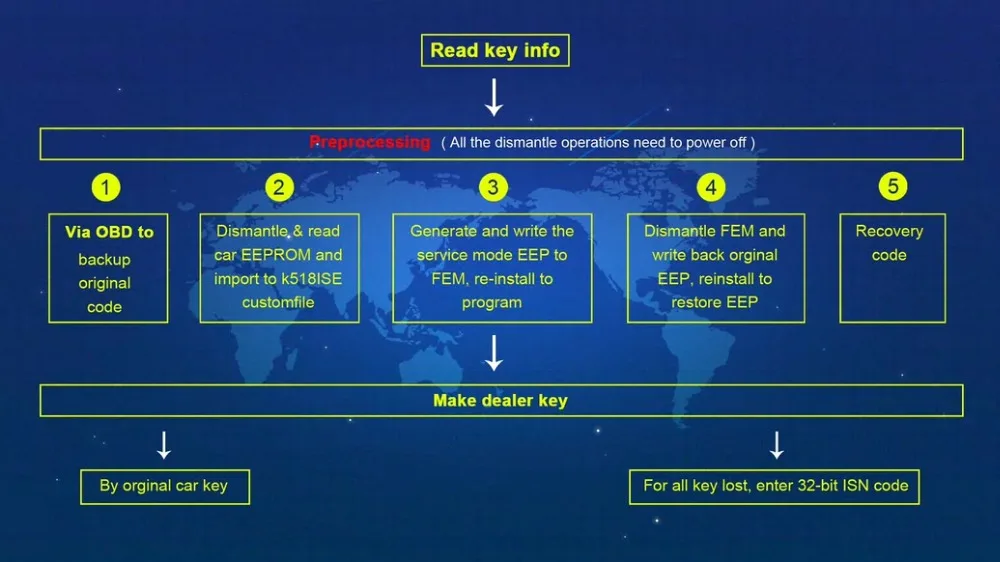

How to use Lonsdor K518ISE program BMW FEM BDC key even all key lost
CAS4 Enable/Disable Key



Free update for 2017 Ford Taurus key programming by OBD without pin code (2017-10-19)
Free update for 2017-Ford New Mondeo smart key programming (2017-10-18)
Free update BMW FEM Key Programming. No need open authorization. No need token(2017-10)
Fiat Ottimo Yue Yue/Flying Cheung smart key programming(2017-07-07)

(2017-04-19)
--[ World First] Add  Mazda Angkesaila smart key program(2017);
--Adding Nissan key system (4 Digit Pin Code) ;
--Adding Nissan remote system ;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) ;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Qashqai(after 2015);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Q5;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support X-TRAIL(before 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Kroraina;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support QX60(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support teana-vip(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Cima(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support JX35(after 2013);
Lonsdor K518  Immobilization Car List:

Check the detailed functions and car list here
Europe:
Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG,
Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,
Borgward

America:
Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury

Asia:
Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki,
Toyota, Shigaoka Queen

China:
Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car
models are included)

Odometer Adjustment Car List:
VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia...
More high-end cars will be updated very soon.

Note: K518ISE is still under rapid upgrading, more functions will be released soon, please refer to official website www.lonsdor.com, you can “One key update” for the latest version by yourself.
Toyota/Lexus smart key all key lost via OBD

Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator 4 in 1 Set (optional)

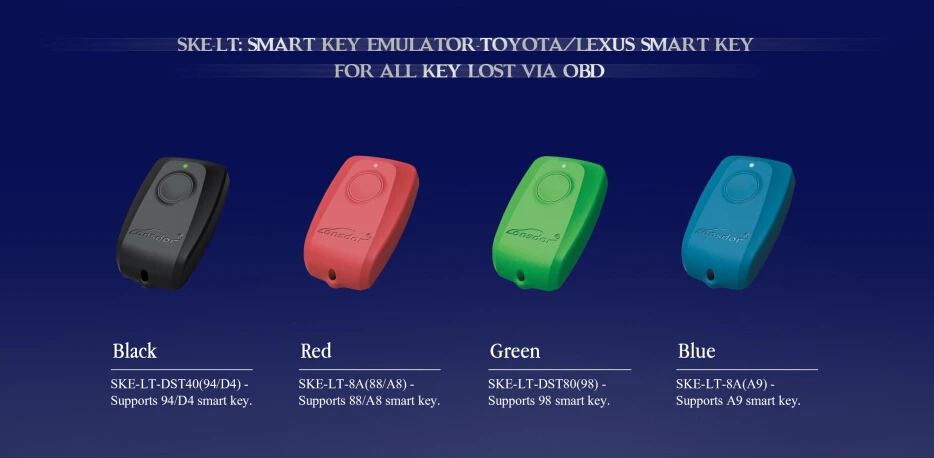

SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD.
Black:  SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.

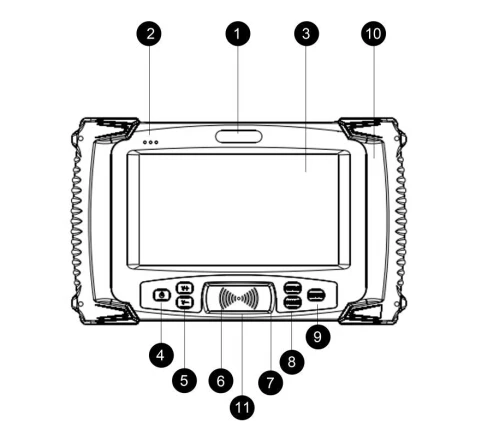

Lonsdor K518ISE Main Unit Appearance:

1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screen shot: press power button and volume down button together

K518ISE Top View:

                                           1.Power socket                                                                       2.SD card slot
                                           3.DB25 port                                                                             4.USB port

KPROG Adapter Appearance:

KPROG Adapter Front View:
1.Trademarks
2.Three-color indicator: Red:power light  Blue:data light  Yellow:comm status light
3.Simple horn seat:to connect with 20pin cable

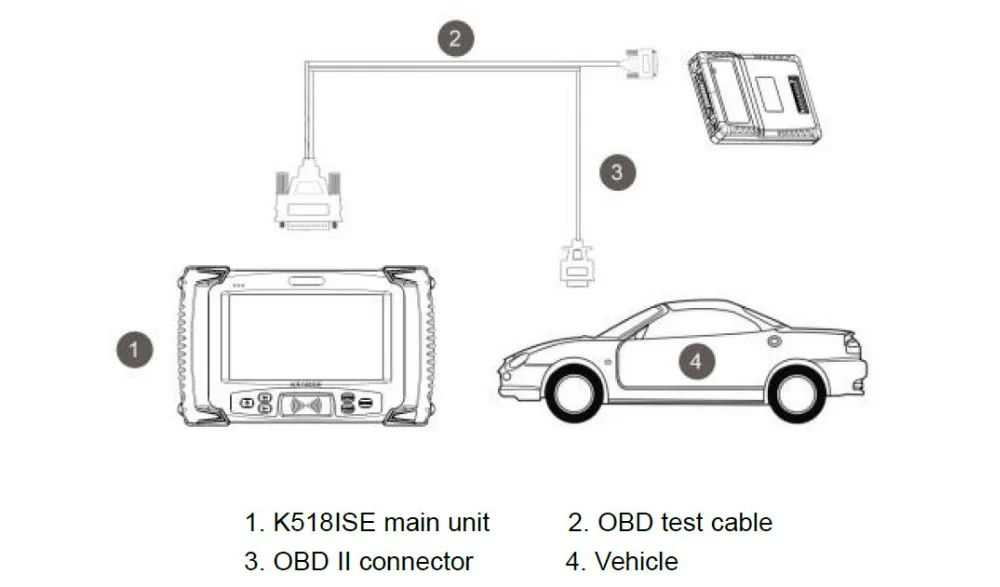

Lonsdor K518ISE Connection Picture:

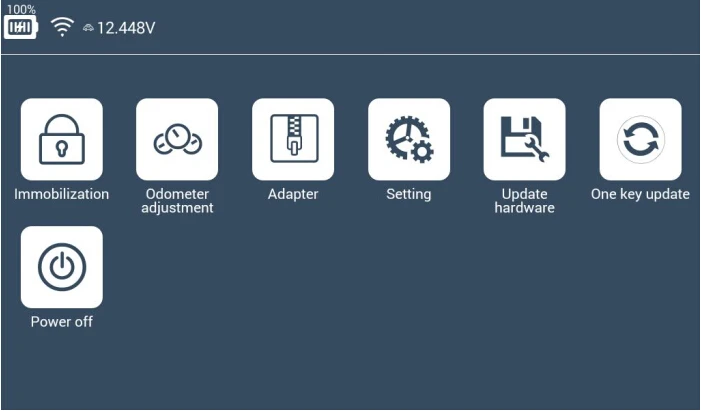

Lonsdor K518ISE Main interface:

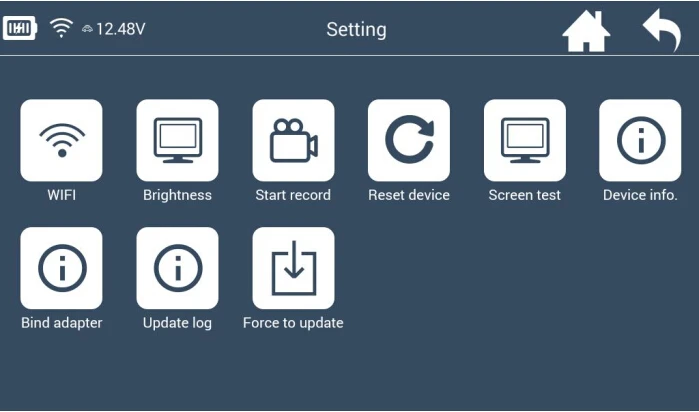

Lonsdor K518ISE Setting interface:



KPROG Adapter UP View
Power socket
DB15 port
USB port

Functional accessories:
RN-01 board:read & write CEM data
E-01 board:read & write EEPROM data
FS-01 board:read & write KVM data
20P cable:connect adapter with function accessories
*The 3 extra connector s are for Honda(3-pin),Hyundai/Kia(10-pin) And Kia(20 pin) respectively.

Lonsdor K518ISE Connection Picture:





How to Use Lonsdor K518ISE?

Here I take the Toyota/Lexus smart key all key lost as example.
1) Binding
   1.Go to the “Bind emulator key” function;
   2.Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
   3.Following the system direction and click “OK” to start binding;
   4.After binding completed, the system will indicate “Binding successful”.

Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the”One key update” for latest news.
2)  Backup EEPROM data
Connect K518ISE with car OBD port, enter into “Backup immodata” to back up the data.

3)  Make emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.

4)  Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.
Precaution
1.”Bind emulator key” can identify the SKE emulator key binding state;
2.SKE emulator key need to bind K518ISE host and can bind only for one time;
3.When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

More detail pleas view our official website: K518ISE programs Toyota/Lexus smart key all key lost via OBD

How to update Lonsdor K518ISE:

There are 3 ways to update the system,and after you connect the k518ise to the network,it will updated to the latest version automatically.
One key update:quickly update the new added or modified functions.
APK update:this is used when the APK is updated.
Force to update:this is used when the device is faulty or to retrieve data.

Londor K518ISE Adaptor Binding:

Please note that KPROG adapter must be bound to K518ISE before using, here is the binding process:
Step 1. Connect adapter to K518ISE with mainline
Step 2. Connect K518ISE with 12V power supply
Step 3. Enter into “Setting”
Step 4. Click “Bind adapter”
Step 5. Click “OK” to complete

Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the”One key update” for latest news

How to Register Lonsdor K518ISE best key programmer?

After system updating, you need go to registration&activation.
For new user,
Click on Registration,
Input: user name(email), name(min 2 char), password(min 6 char), email verification code
Click on YES
Lonsdor K518ISE registration completes
(if interrupted after registration is done, you will go to the System update–Registered user to proceed).
Then go to Activation confirmation to continue.

How to ActivateLonsdor K518ISE car key programmer tool?

After confirming activation, it will go thepassword Setup interface
set 6-digit numbers as your startup password information verification by Lonsdor
(5-30 minutes, you can check the progress by clicking “Refresh” )
re-enter the password to verify
get the notification that verification successful
the whole process before using the device is complete.

The most important note:
1. User name must be workable email address, so that you can receive the verification codefrom Lonsdor by email.
2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former will generally only used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.

3. The account will be bound to the corresponding device for life, other accounts can not log in your device and your account can not log
in an registered or activated device either. 4. An account can be used to bind multiple new devices.

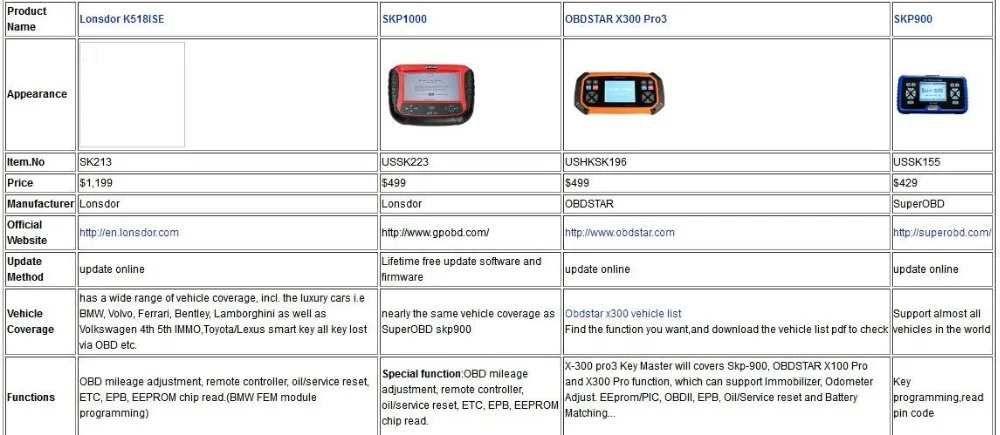

Lonsdor K518ISE vs. SKP1000 vs. OBDSTAR X300 Pro3 vs. SKP900



Lonsdor K518ISE Technical Parameter:

RFID:                                                        Support 125KHz ASK,134.2KHz FSK
CPU:                                                         ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display:                                                   1024*600,7 inch IPS capacitive
Memory:                                                    eMMC 8G RAM 1G
Battery Capacity:                                     3800 mAh
Power Supply:                                         DC12V 1A
Power port:                                               5.5x2.1mm
OBD Port:                                                 OBD-II
Comm Port:                                              USB 2.0-type B
OBDII Protocols:                                      ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG:                                                    Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance:          10m

Lonsdor K518ISE Customers Reviews:

So far I have tried on four vehicles, tried on a h system Toyota failed completely to talk to car, tried on 2007 dodge ram would not talk
to it either, tried on bmw 2008 cas3++ would talk to car but canot read isn id.woks beutif on nisn prox. I also used it on 2018 bmw x5
it lost keys it did talk to car givin key positions. car too new, no key available walked away.

Lonsodr K518 Programmer FAQs:

Q: Will it read pin code on US sold Hyundai and kia smart system?
A: K518 can work on Hyundai and kia smart system with 47, 8A chip, for 46 chip, you have to collect the copy password firstly then to calculate the pin code.

Q:2017 Ford Escape smart key
A: 2017 Ford Escape smart key works on 49 chip.


Lonsdor K518 Customers Feedback:

Nissan prox works great.
2018 bmw x5 lost keys it did talk to car giving key positions
Dodge RAM1500 and Journey works
Mitsubishi ASX 2013 - year add key works.
Cadillac ESCALADE 2017 smart key works
Works on a part of Vag all keys lost 2010-, supports 4th Immo system 202AD key. In another words, as long as the 4th IMMO can be read out data successfully by 202AD.

Not work:
- Toyota h system not work
- bmw 2008 cas3++ would talk to car but cannot read isn id.

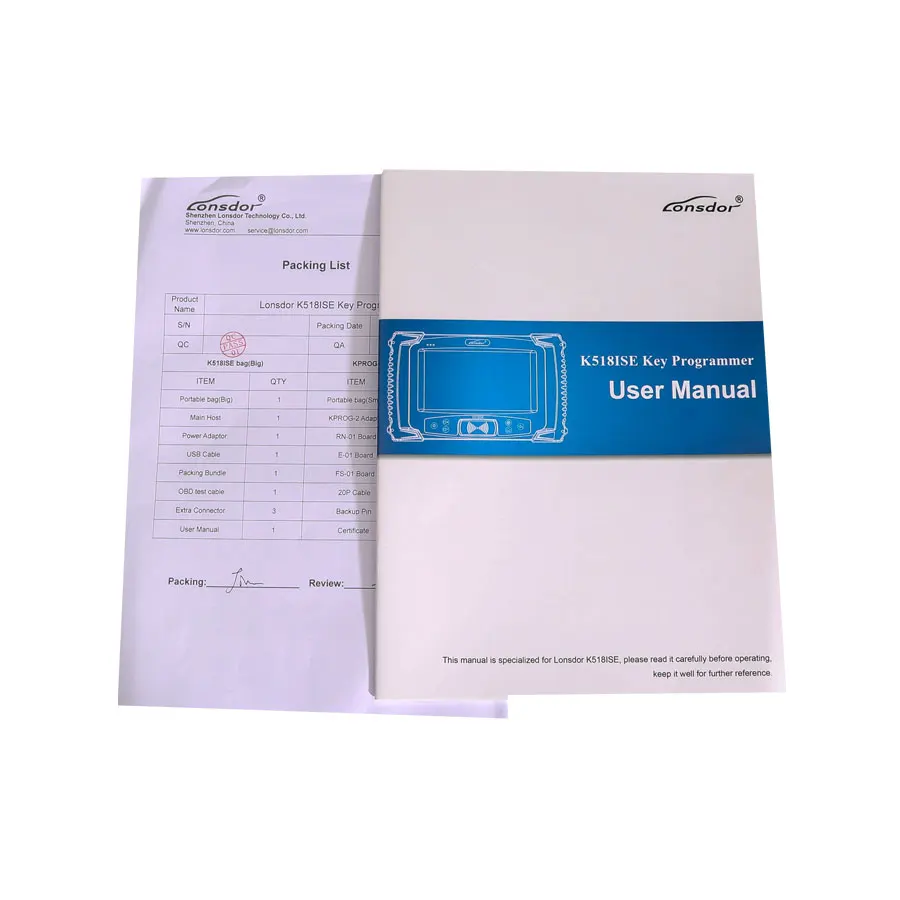

Lonsdor K518ISE Package List:

1* Portable Bag(big)
1*Main Host
1*Power Adaptor
1*USB Cable
1*Packing Bundle
1*OBD Test Cable
1*Extra Connector
1*User Manual
1*Portable Bag(small)
1*KPROG Adapter
1*RN-01 Board
1*E-01 Board
1*FS-01 Board
1*20P Cable

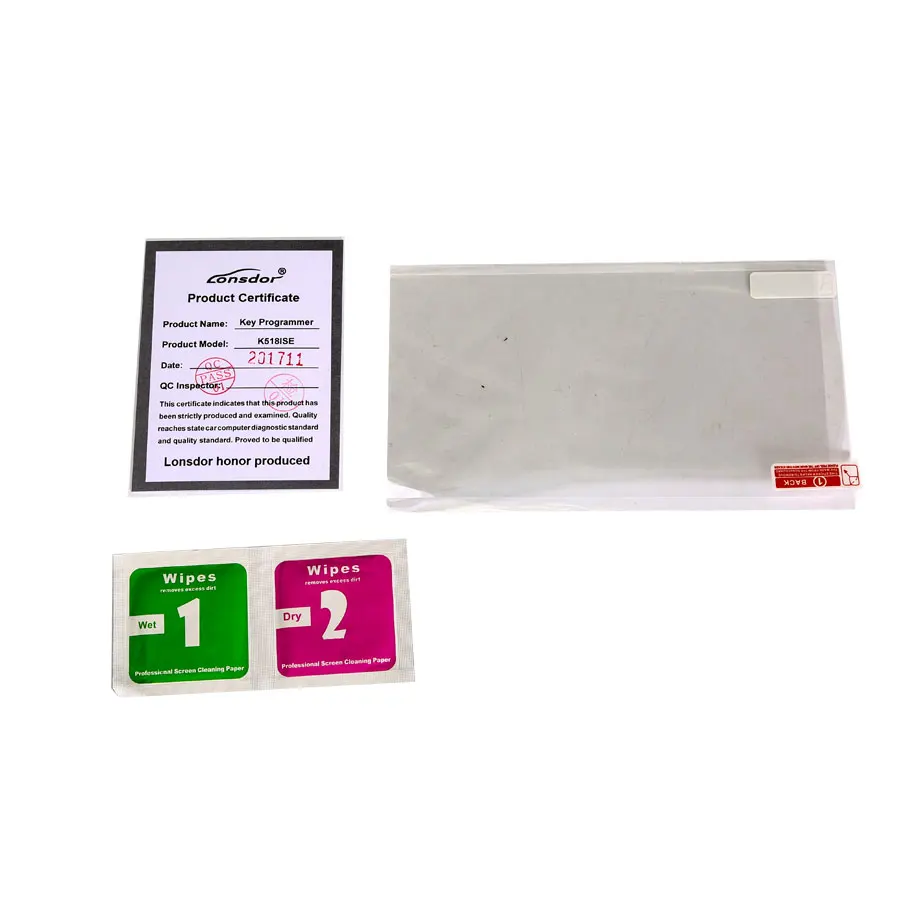

5*Backup Pin
1*Certificate
4pc x smart key emulator (optional)
