Product Description

Auro OtoSys IM600 Diagnostic Key Programming ECU Coding Tool Same as Autel MX808IM Free Update online For 1 year

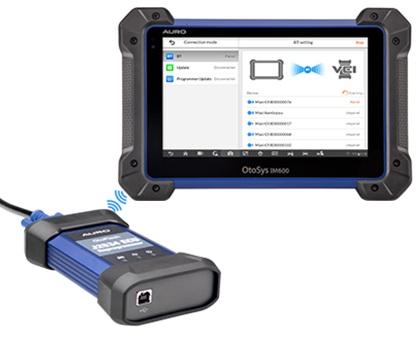

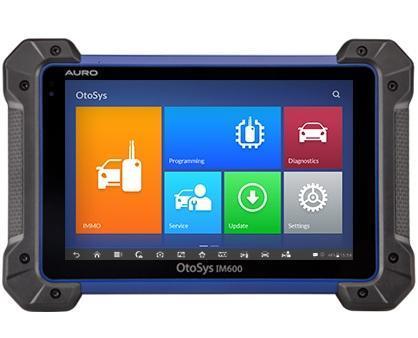

Auro presents the OtoSys IM600 as the most advanced and smart key programming tool that combines the most powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet. With the included key programmer UP400, OtoSys IM600 is destined to be the unprecedented key programming tool that you ever wanted!

Top Features of OtoSys IM600:
Support IMMO functions for over 80 worldwide makes and models.
Equipped with UP400 to support PIN/CS read, transponder read/write/identification, MCU/EEPROM chip read/write and IMMO ECU Reset/Adaption.
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.
Complete capabilities for codes, live data, actuation tests, adaptations.
Displays live data in text, graph, analog and digital gauge for easy data review and analysis.
Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
Quick access for more than twelve common service functions including Oil reset, EPB, DPF, BMS, SAS, TPMS and more.
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
Remote technical support for convenient demonstration, training and increased customer satisfaction.
Print out recorded data anytime and anywhere with Wi-Fi technology.
Automatic Wi-Fi updates available in new software releases.
auro-otosys-im600-scanner-7
auro-otosys-im600-scanner-9
Official website: www.aurodiag.com
Update Online: 1 Year for Free
Language: English

Built with both busy technicians and professional locksmith in mind, Auro comes up with in the innovative Smart Mode and Expert Mode solution in one tool. With the help of the automated and guided Smart Mode, busy technicans can now confidently work with OEM and aftermarket keys and fobs. While the professional locksmith are still open to the choice of jumping between the functions they desire with the Expert Mode.
●Over 80 worldwide vehicle coverage
●Smart Mode for guided and automated key learning
●Expert Mode for advanced key learning functions, uncluding:
Read PIN/CS
Read PIN/CS (All Keys Lost)
IMMO ECU Reset/Adaption
IMMO ECU Reflash/Coding
Remote Learning
Backup/restore EEPROM data
Backup/restore IMMO data
BMW FEM/BDC Key Learning and Adaption
Audi Q5/A4/A5 2015-2017 Read PIN/CS
Reliable Programming Tool

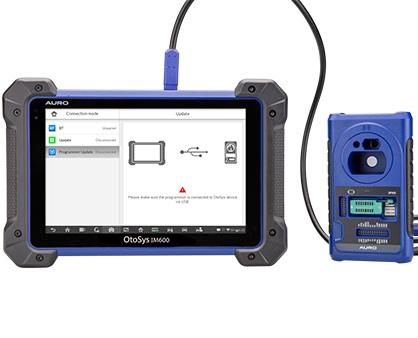

Equipped with the competent key programmer UP400, the OtoSys IM600 is a reliable key and chip programming tool that covers most of the aftermarket keys and fobs as well as MCU & EEPROM chips.
●Key read/write
●MCU & EEPROM chips read/write
●IC card read/write
●Remote control frequency detect
●Mercedes infrared key read/write
IM600 Advanced Service Functions:
The OtoSys IM600 offers time-saving shorcuts to access all the commom service functions with one touch of the screen.
●Direct access to complete service functions including:
●Relearn parking brake pad after replacement (EPB)
●Support forced DPF regeneration and adjusting injectors (DPF)
●Reset Steering angle sensor (SAS)
●Reset service mileage and service intervals (Oil Reset)
●Support TPMS sensor relearn (TPMS)
●Support battery registration and reset (BMS)
and more

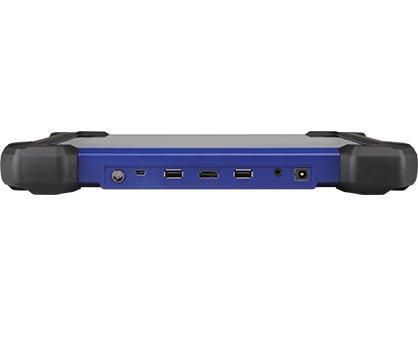

Auro OtoSys IM600 Specification:
Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos hex-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity Wi-Fi (802.11 a/b/g/n/ac)
USB 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear) 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio input/output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 300 mm (11.81”) x 220.0 mm (8.66”) x 50.0 mm (1.97”)
Weight NW: 1.42 kg (3.13 lb.)
GW: 8.655 kg (19.08 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765-4, K/L-Line,
Flashing Code,SAE-J1850 VPW, SAE-J1850PWM,
CAN ISO11898, Highspeed, Middlespeed,
Lowspeed and Singlewire CAN,GM UART,UART
Echo Byte Protocol,Honda Diag-H Protocol, TP2.0,
TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN

Comparison:

NOTE: otosys-im100-yes This function is supported.     otosys-im100-no This function is not supported.
Special Declaration:
Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release

 OtoSys IM100  OtoSys IM600
IMMO
Smart Mode (Guided and Automated Key Learning Function) otosys-im100-yes otosys-im100-yes
Auto Detect Make/Model/Year/System otosys-im100-yes otosys-im100-yes
Read PIN/CS otosys-im100-yes otosys-im100-yes
Read PIN/CS (All Keys Lost) otosys-im100-yes otosys-im100-yes
Key Learning otosys-im100-yes otosys-im100-yes
IMMO ECU Reset/Adaption otosys-im100-yes otosys-im100-yes
IMMO ECU Refresh/Coding otosys-im100-yes otosys-im100-yes
Remote Learning otosys-im100-yes otosys-im100-yes
AUDI Q5/A4/A5 2015-2017 Read PIN/CS otosys-im100-no otosys-im100-yes
BMW FEM/BDC Key Learning and Adaption otosys-im100-yes otosys-im100-yes
Mercedes Key Learning otosys-im100-no otosys-im100-yes
Programming
EEPROM Read/Write otosys-im100-yes otosys-im100-yes
MCU Read/Write Basic Advanced
Key Programming otosys-im100-yes otosys-im100-yes
IC Card Read/Write otosys-im100-no otosys-im100-yes
Mercedes Infrared Key Read/Write otosys-im100-no otosys-im100-yes
Remote Frequency Detect otosys-im100-no otosys-im100-yes
OE-Level Diagnostics
All Systems for Over 80 Makes and Models otosys-im100-yes otosys-im100-yes
OtoFlash (J2534 ECU Reprogrammer) otosys-im100-no otosys-im100-yes
Advanced Service Functions
Oil Serive Reset otosys-im100-yes otosys-im100-yes
Parking Brake Pad Relearn After Replacement otosys-im100-yes otosys-im100-yes
Steering Angle Sensor Relearn otosys-im100-yes otosys-im100-yes
Battery Registration and Reset otosys-im100-yes otosys-im100-yes
Diesel Particulate Filter Regeneration otosys-im100-yes otosys-im100-yes
Tire Pressure Monitoring System otosys-im100-yes otosys-im100-yes
ECU Coding otosys-im100-no otosys-im100-yes
VW/Audi Component Protection otosys-im100-no otosys-im100-yes
Complete Service Functions otosys-im100-no otosys-im100-yes
Tool Features
Built-in Rechargeable Li-ion Battery 5000 mAh 15000 mAh
Internet Updatable Wi-Fi Wi-Fi
Multilingual Support otosys-im100-yes otosys-im100-yes
Limited One Year Warranty otosys-im100-yes otosys-im100-yes
Touchscreen 7-inch 10.1-inch
Memory 32 GB 64 GB
Processor Quad-core processor Hexa-core processor
Camera otosys-im100-no 8.0 Megapixel
Resolution 1024x600 1920x1200

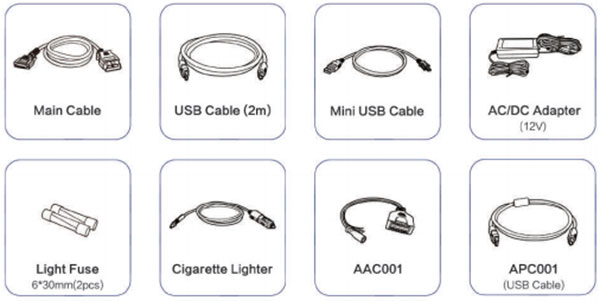

Package List:

1pc x OtoSys IM600 main unit
1pc x Main cable
1pc x USB External Power Adaptor
1pc x Mini USB Cable
1pc x AAC001 Adapter
1pc x APA002 Adapter
1pc x AC/DC Adapter
1pc x APA101 Adapter
1pc x APA103 Adapter
1pc x APA104 Adapter
1pc x APA105 Adapter
1pc x APA106 Adapter
1pc x APA107 Adapter
1pc x APB101+APD101 Adapter
1pc x APB102 Adapter
1pc x APB104 Adapter
1pc x APB105 Adapter
1pc x APB106 Adapter
1pc x APB107 Adapter
1pc x APB108 Adapter
1pc x APC001 Adapter
1pc x Cigarette Lighter
1pc x Light Fuse
