EasyKeyMaker Honda Key Programmer Supports Honda/Acura Including All Keys Lost
1. Functions
The device is for registering key by OBDII. Cover all Honda/Acura equipped with OBDII-16 socket. Support both transponder key and smart key registration in the following scenarios:
1)Add key
2)All keys lost
3)Replace IMMOBI
4)Replace ECM/PCM
5)Replace MPCS/MICU/IMOES
6)Replace smart entry
7)Replace key knob
8)Remote learning
2. Highlights
1)Easy to use. Register keys full automatically. User just turns ignition ON/OFF.
2)Register keys fast. Finish registration in minutes.
3)Small package and easy to carry. Can be hold in one hand.
3. Technical Specifications
1)Voltage & Current Requirements:8V – 18V DC (12V nominal) at 4 Amps (maximum)
2)Vehicle Protocols
* DIAGH
* CAN
* ISO-9141
* ISO-14230
3)Vehicle Connection:Molded DLC
4)Dimensions H:22mm (0.87in) W:54mm (2.13in) L:76mm (2.99in)
5)Weight:50g (1.76oz)
6)Environmental Operating: -20ºC to 45ºC (-4ºF to 113ºF) at 15% to 85% RH non-condensing

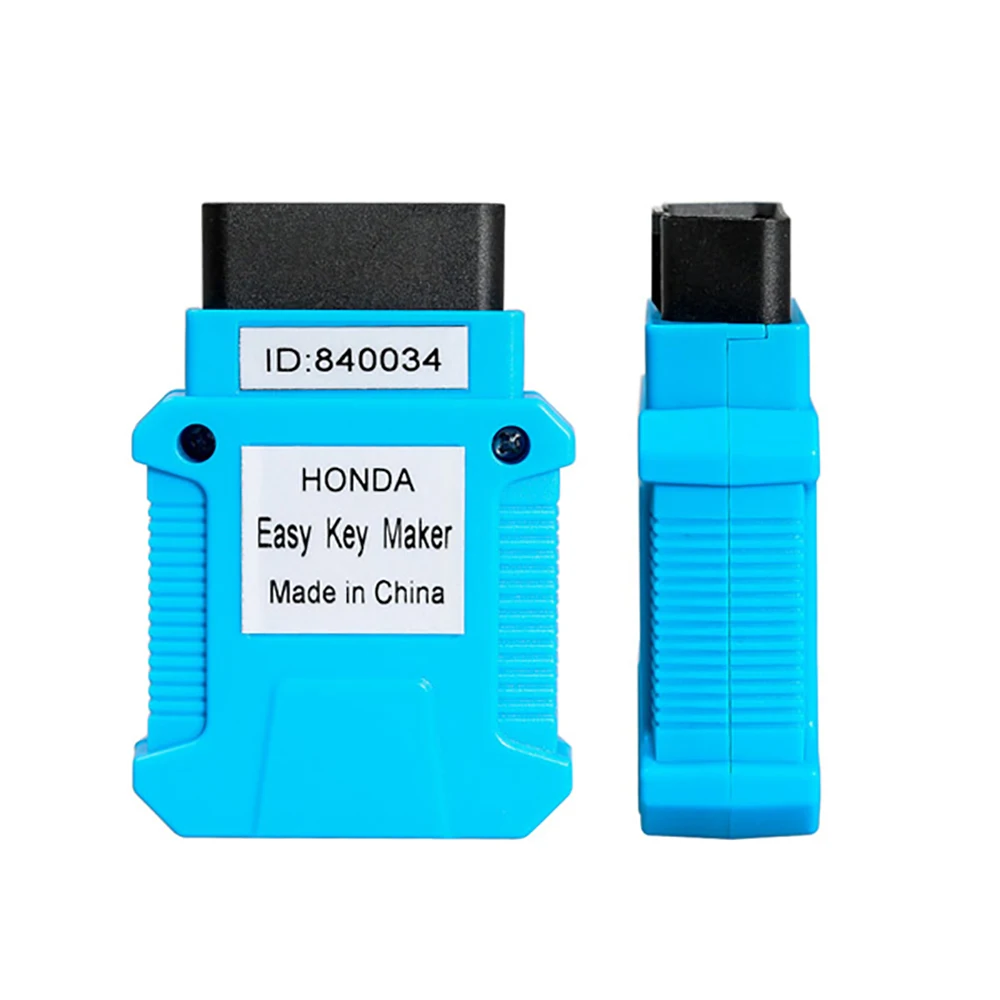

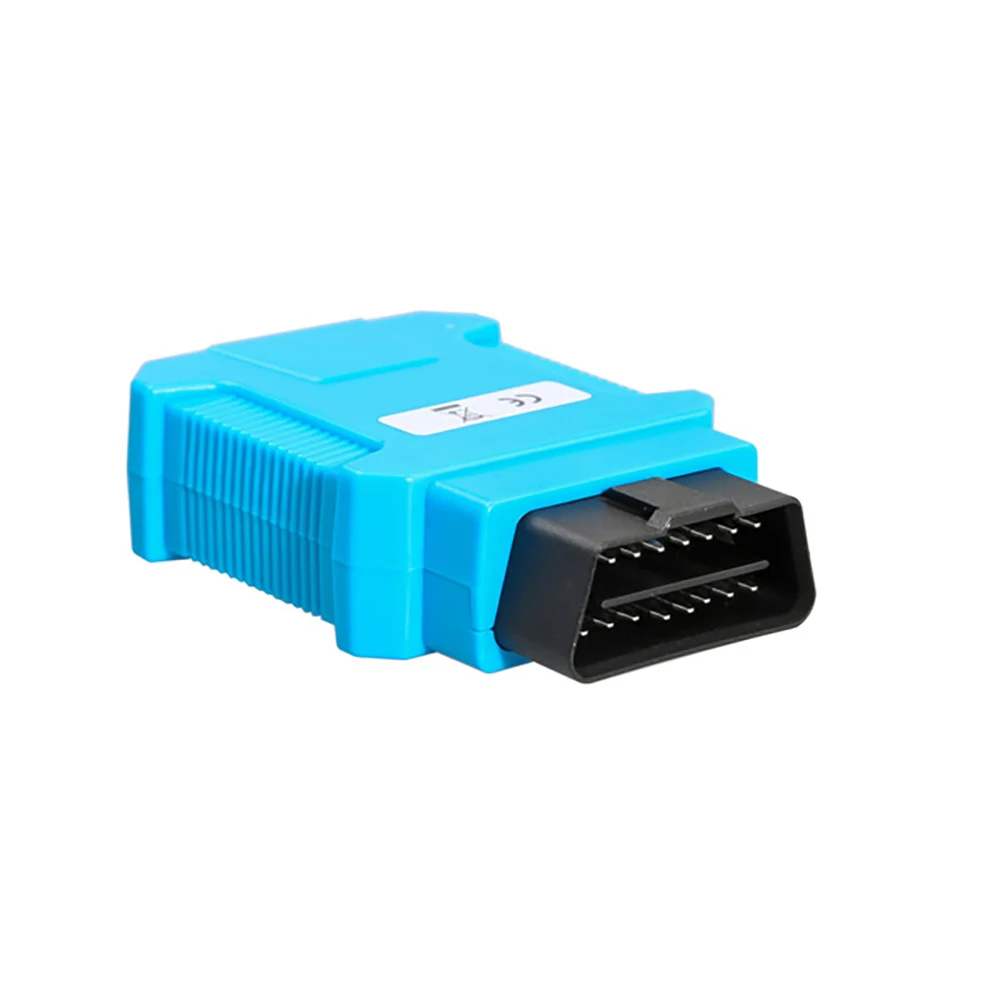

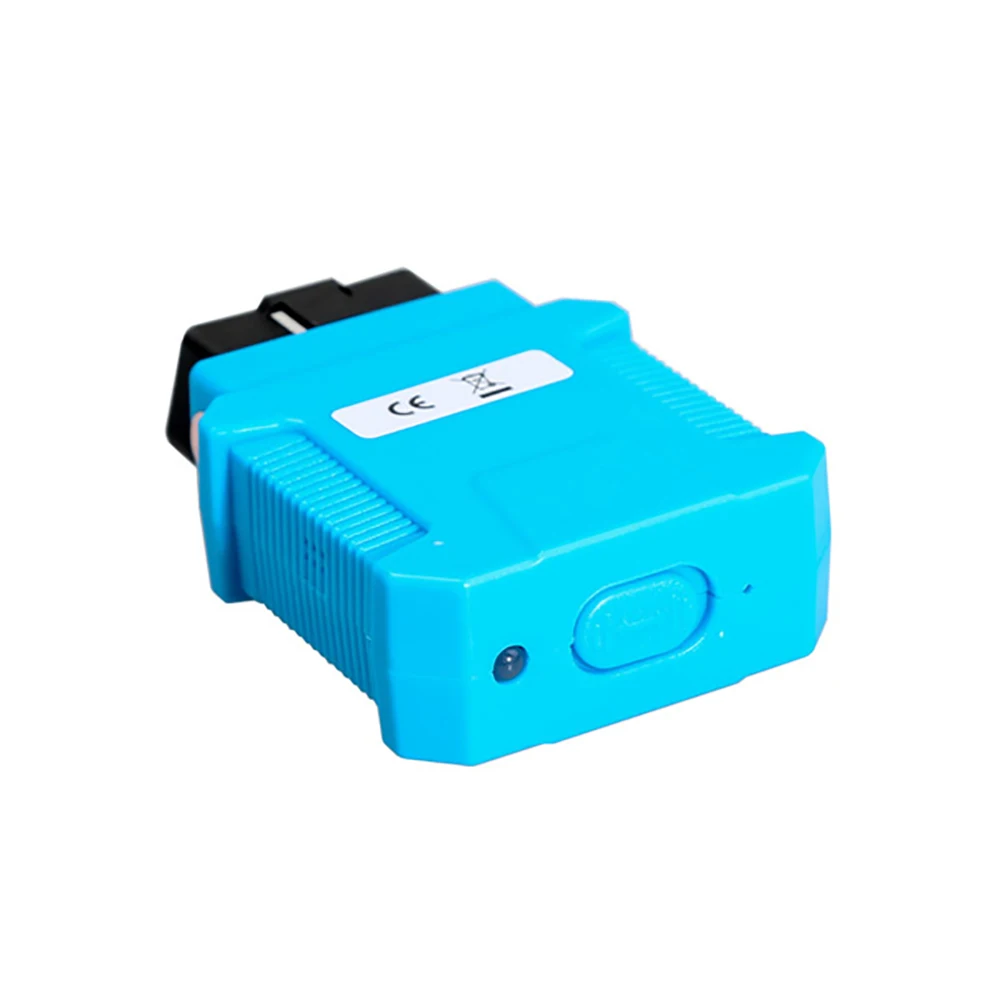

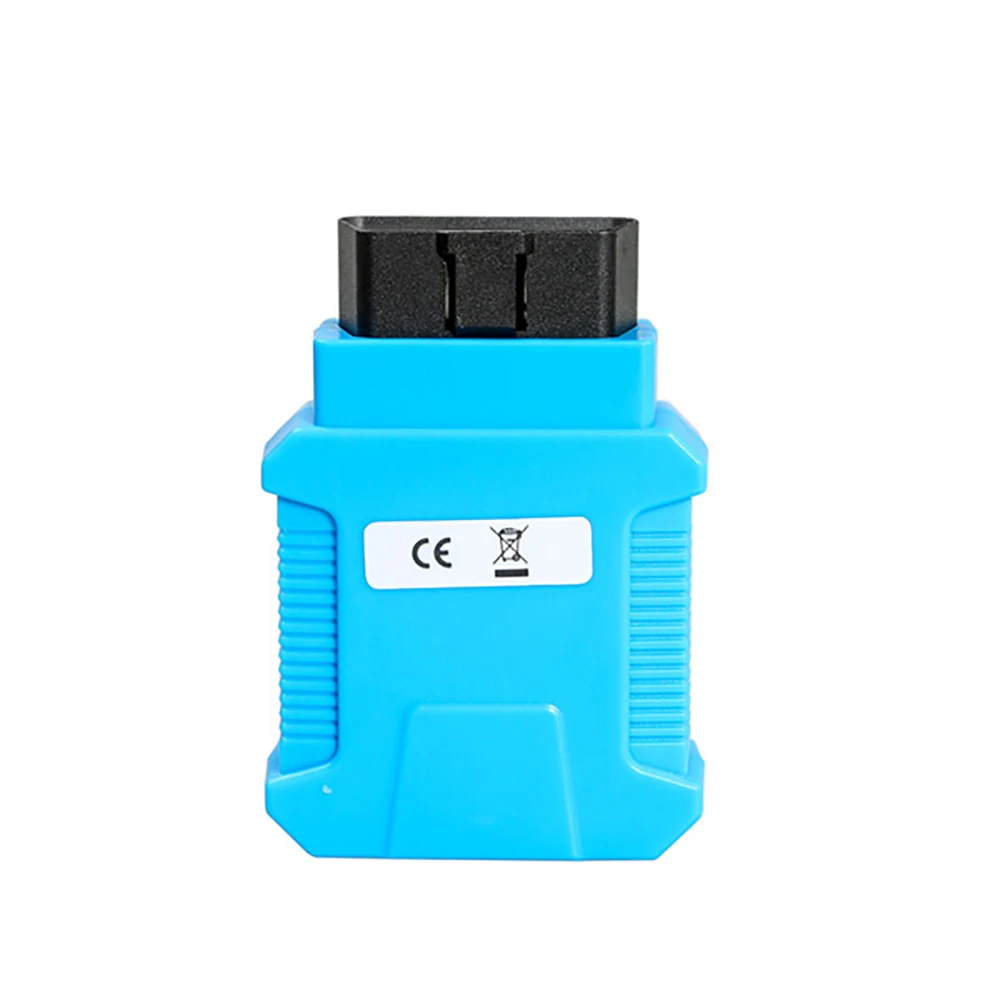

4. Appearance Detail
EasyKeyMaker Honda Key Programmer
1)Key Type Switch
IMMO: Transponder key
SMRT: Smart key
2)LED Status Indicators
ON: Power ON
OFF: Power OFF
3)Buzzer
* Long beep once "Di—" (Beep ON continuous for 3 seconds)
* Long beep periodically with "Di—"(Beep ON for 1 second and OFF for 1 second, and repeat)
* Short beep periodically with "Di" (Beep ON for 100 milliseconds, OFF for 900 milliseconds, and repeat)
* Short beep periodically with "Di, Di" (Beep ON for 100 milliseconds, OFF for 100 milliseconds, ON for 100 milliseconds, OFF for 700 milliseconds, and repeat)
* Short beep periodically with " Di, Di, Di" (Beep ON for 100 milliseconds, OFF for 100 milliseconds, ON for 100 milliseconds, OFF for 100 milliseconds, ON for 100 milliseconds, OFF for 500 milliseconds, and repeat)
Package includes:
1pc x EasyKeyMaker Honda Key Programmer Brief Introduction
Package includes:
1pc x LONSDOR JLR IMMO
1pc x USB cable
