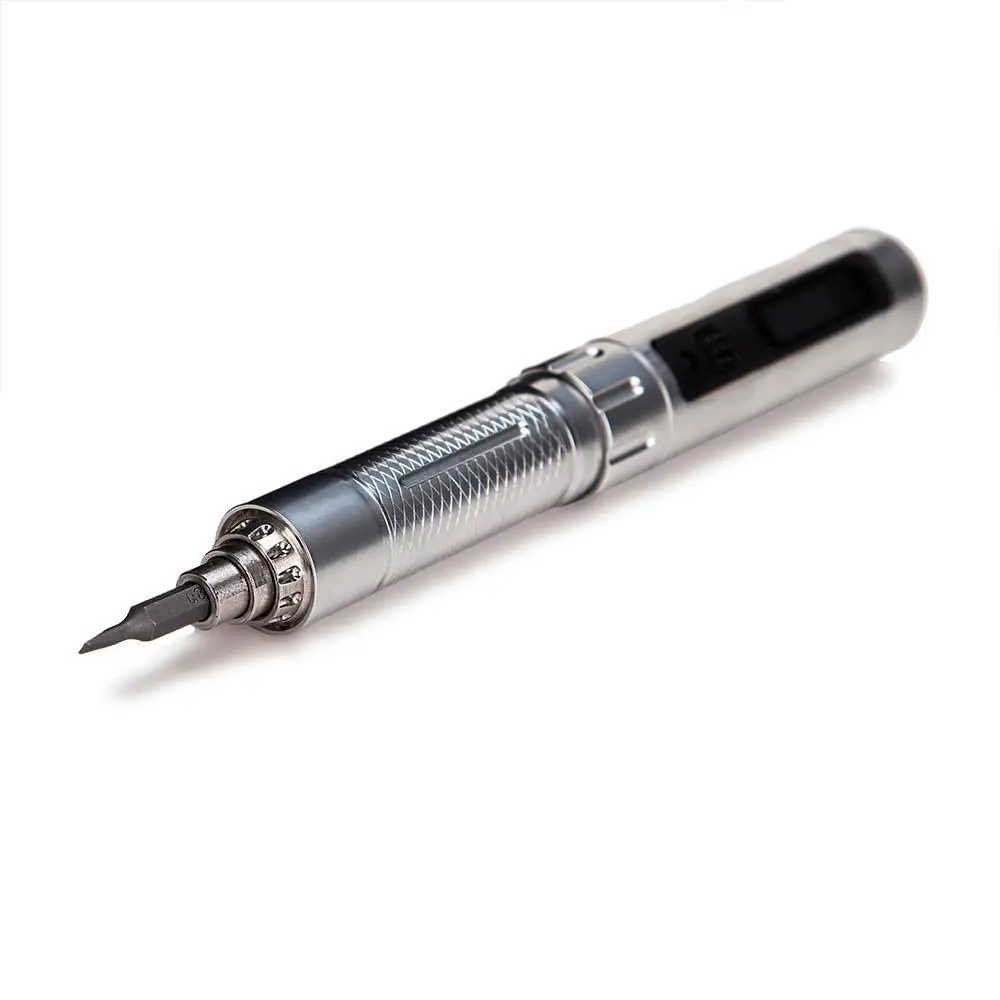

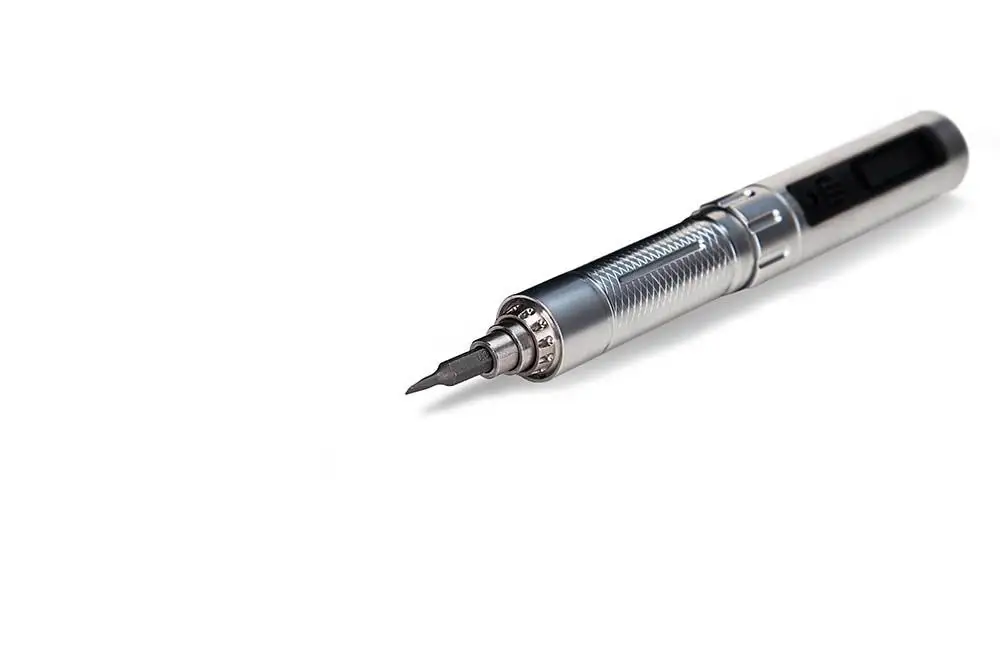

ES120 Mini Electric Screwdriver

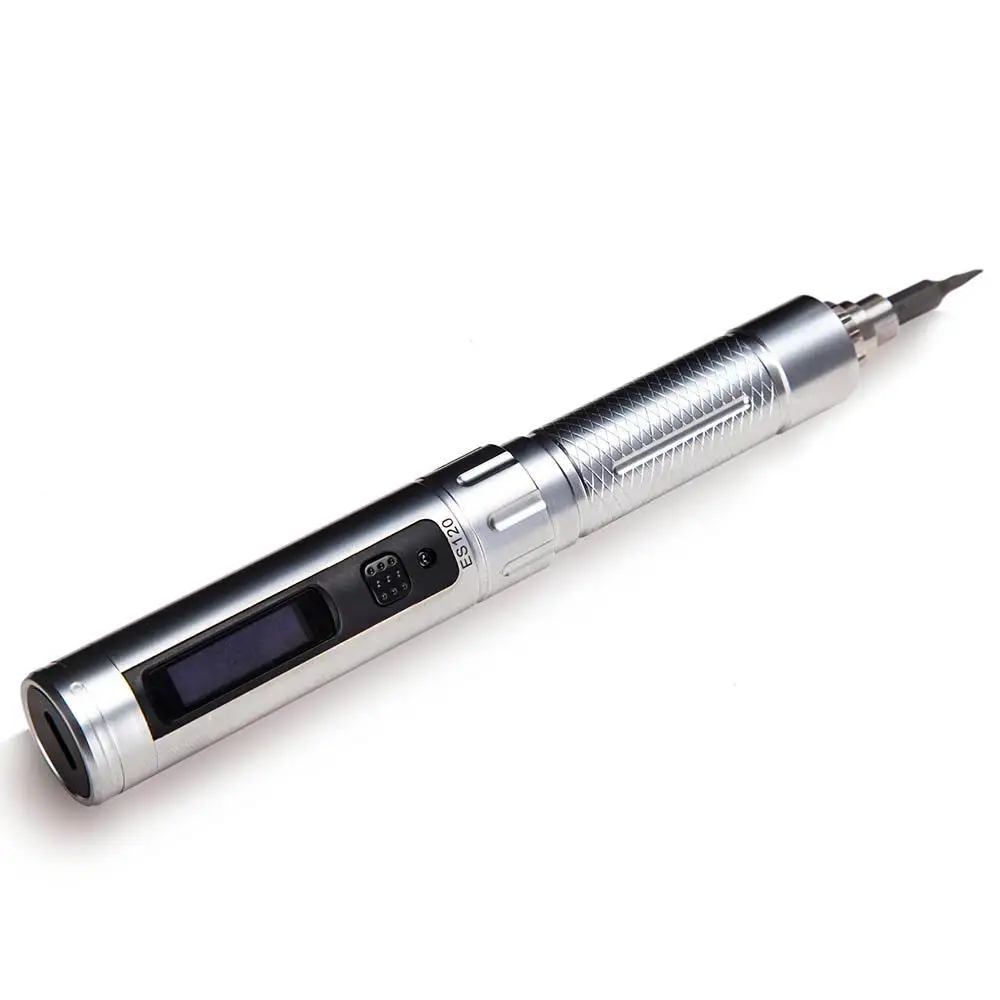

ES120 Mini Electric Screwdriver has set a new standard for electric screwdrivers. It is an electric screwdriver with a compact structure, smart and exquisite appearance, as well as the function of motion control recognition.

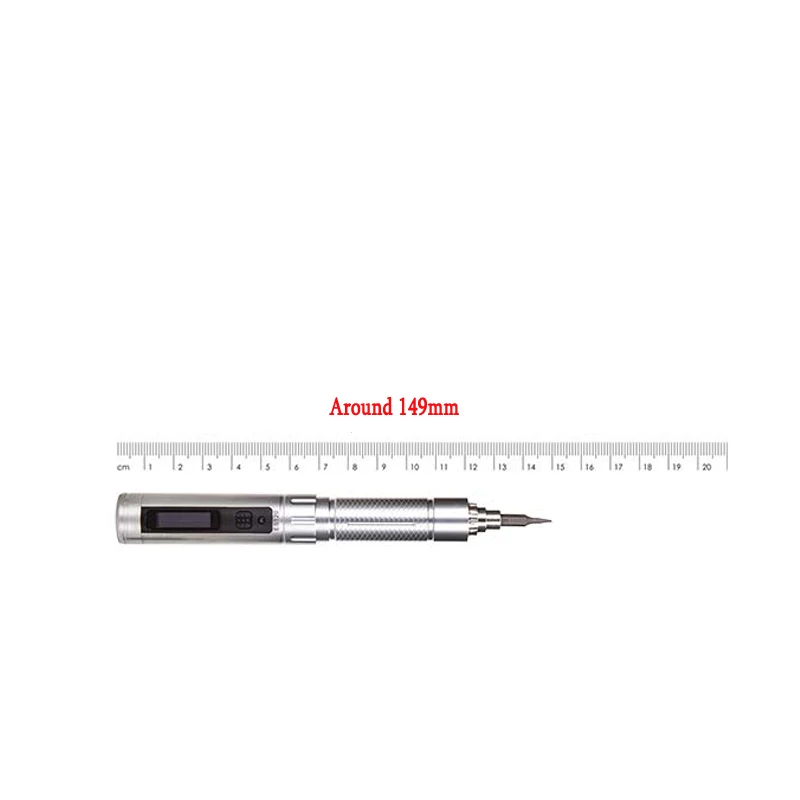

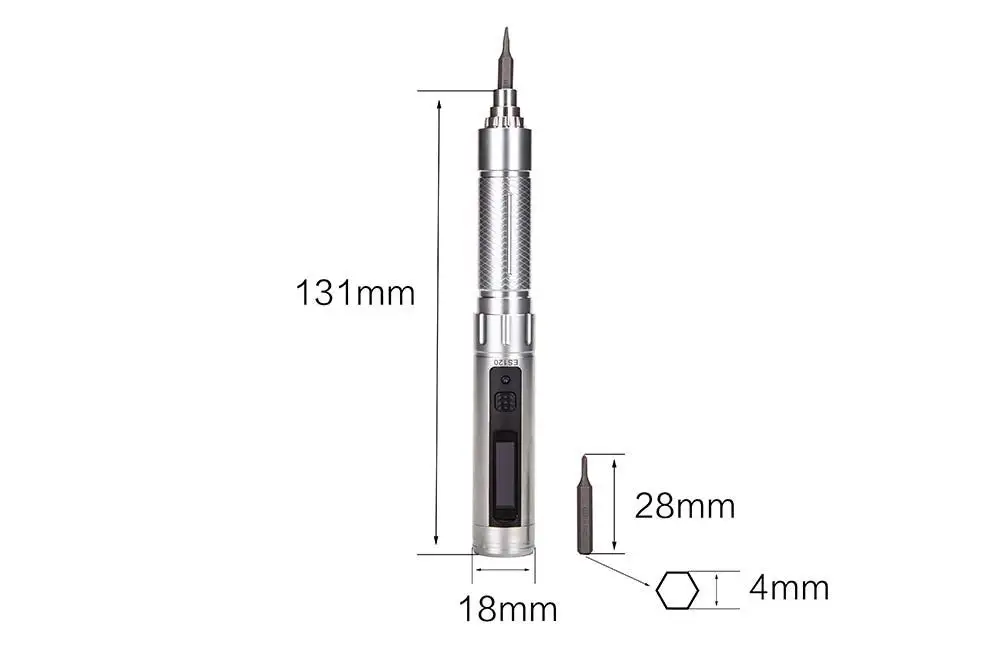

It has only the length of a Parker pen, while endowed with a comfortable design for holding, and a set of highly energy-efficient accessories. Through an OLED screen, the device displays parameters and rotation modes of motion-control recognition. Under these help, you are able to easily complete the disassembling and assembling of your digital devices.

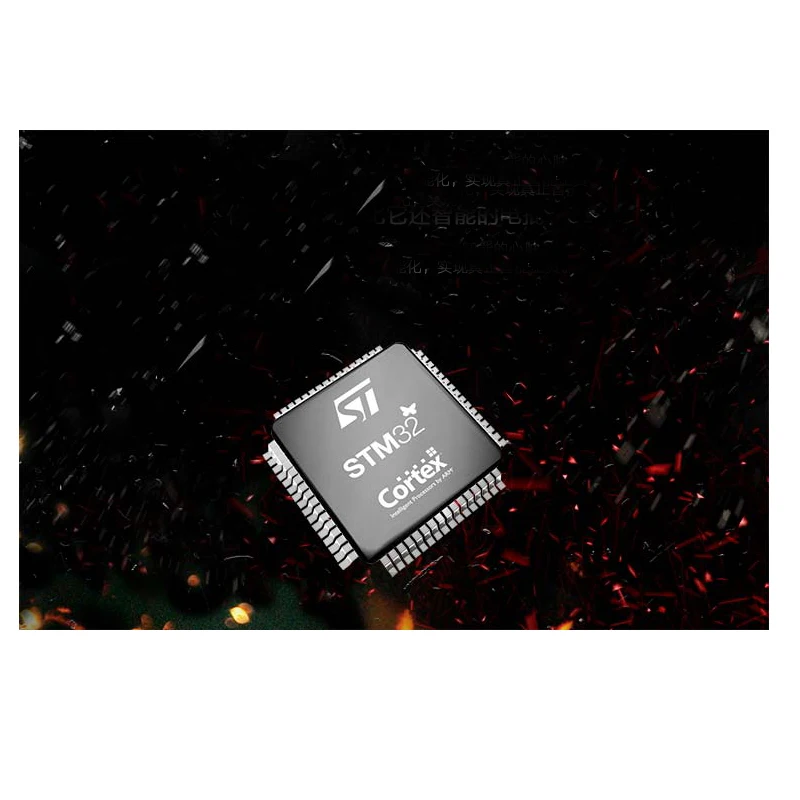

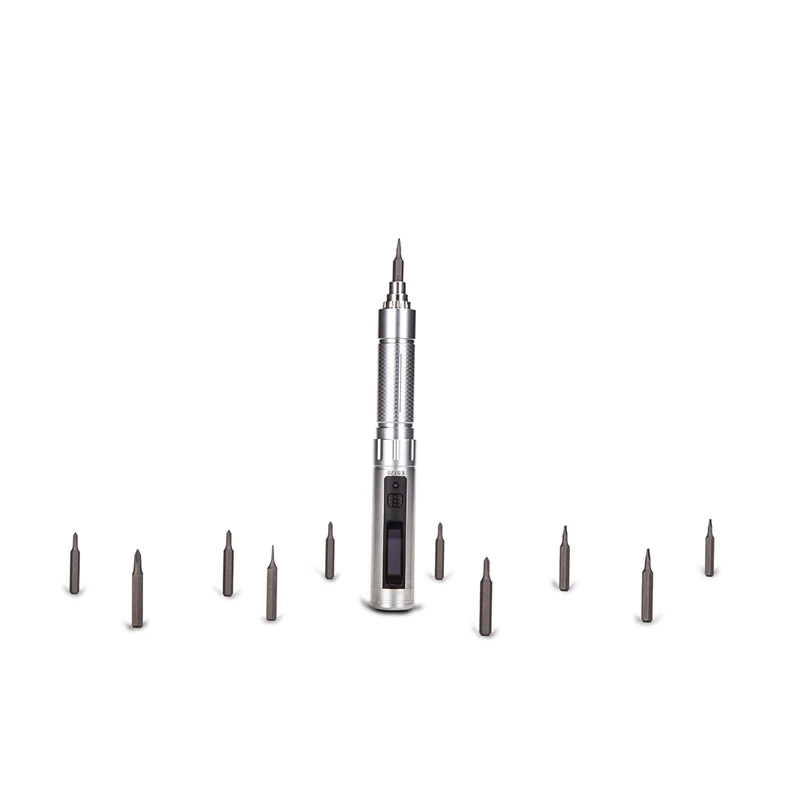

ES120 includes a planetary gearbox and a high-speed electric motor, with excellent support from the STM32 embedded micro-processor and angular velocity sensor. It operates at a voltage range of DC3V to 5V, and with various hexagonal screwdriver bits, the device helps you with fast disengaging and engaging of electronic products.
Performance Parameters Hardware Parameters
Operation Voltage 3-5V Body Material 304 Stainless steel/Copper alloy
No-load Speed About 270rpm Screen 16*96 OLED
Electronic Torque 2.8kgf.cm
Battery 300mAh 10440 Lithium-ion battery
Maximum

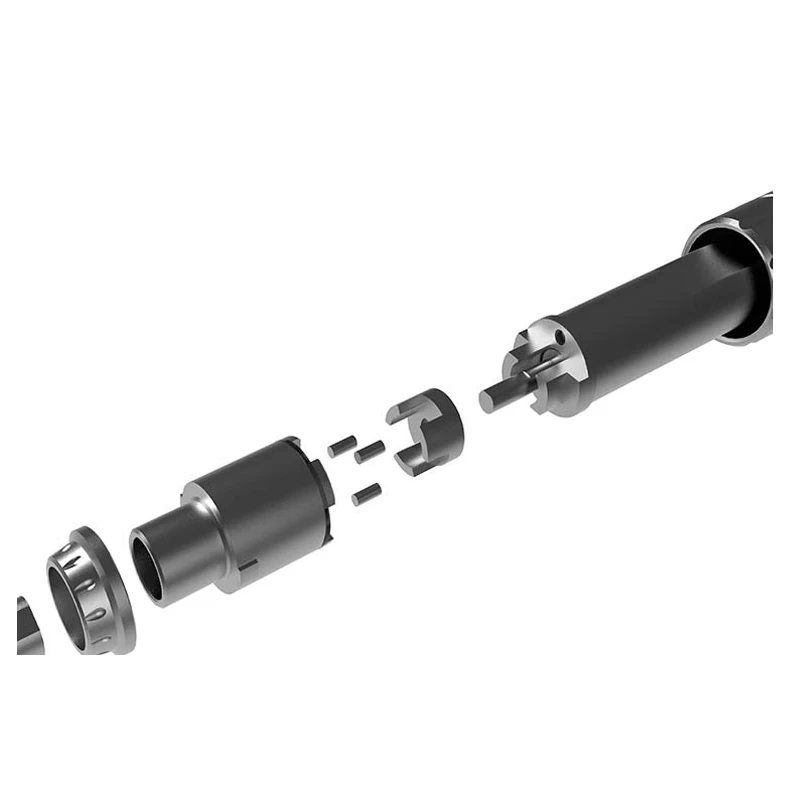

Torque 30kgf.cm (manual mode) Rotor Bidirectional overrunning clutch
Screwdriver Bit 4M hexagon Gearbox 1:144 Integrated planetary gearbox
Charging Time 45min Motor 25,000 rpm brush motor
Running Time 30min (full power) Main Chip STM32

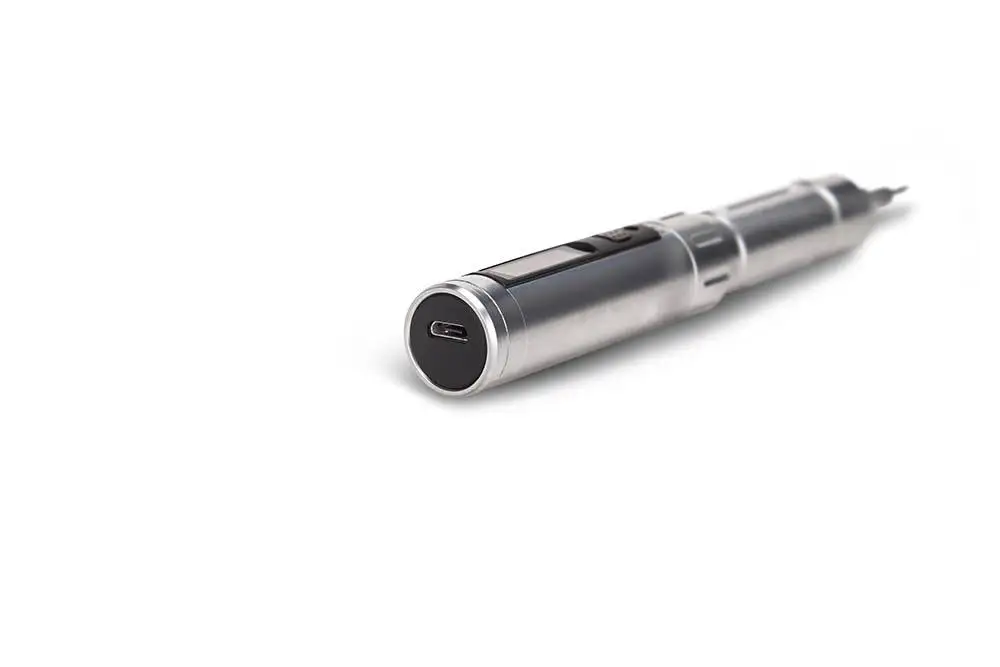

Charging Mode Micro USB 5V Input Sensor Angular velocity sensor
Smart Functions
1. Battery low voltage reminder, low voltage protection mode;
2. User ustomized configuration parameters (such as torsion, torque, etc);
3. Open source application layer.
Package Included
1X ES120 Motion Control Electric Screwdriver
1X PH00 Screwdriver
1x SL2.0 Screwdriver

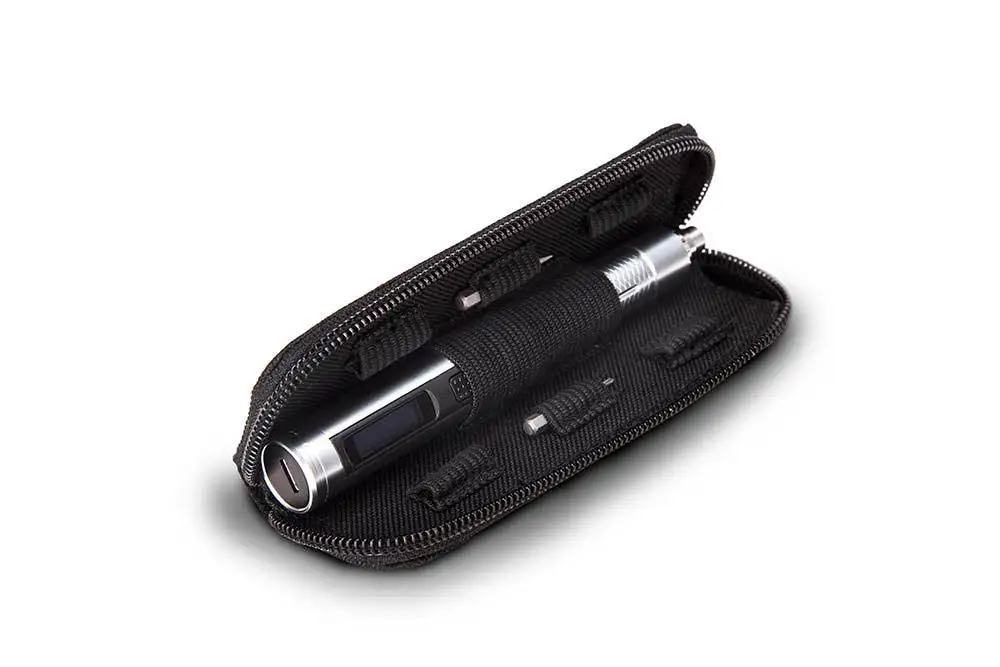

1X Portable Pouch
