Product Name:Mercedes Benz 38Pin Connector
Product Type:Mercedes Benz 38Pin Connector
Product Category:OBD2 Connector
View Count:
Product Description

Mercedes Benz 38Pin Connector

Description:

Works on all Mercedes Benz vehicles with a 38 PIN diagnostic connector.

Specifications:

1.Cable definition:

Pin-out Diagram
OBDII Connector(Female) ---- BENZ 38Pins Connector
4+5----------------------------------1(Signal Ground)
7------------------------------------------15(K Line)
16-----------------------------------------3(Power)

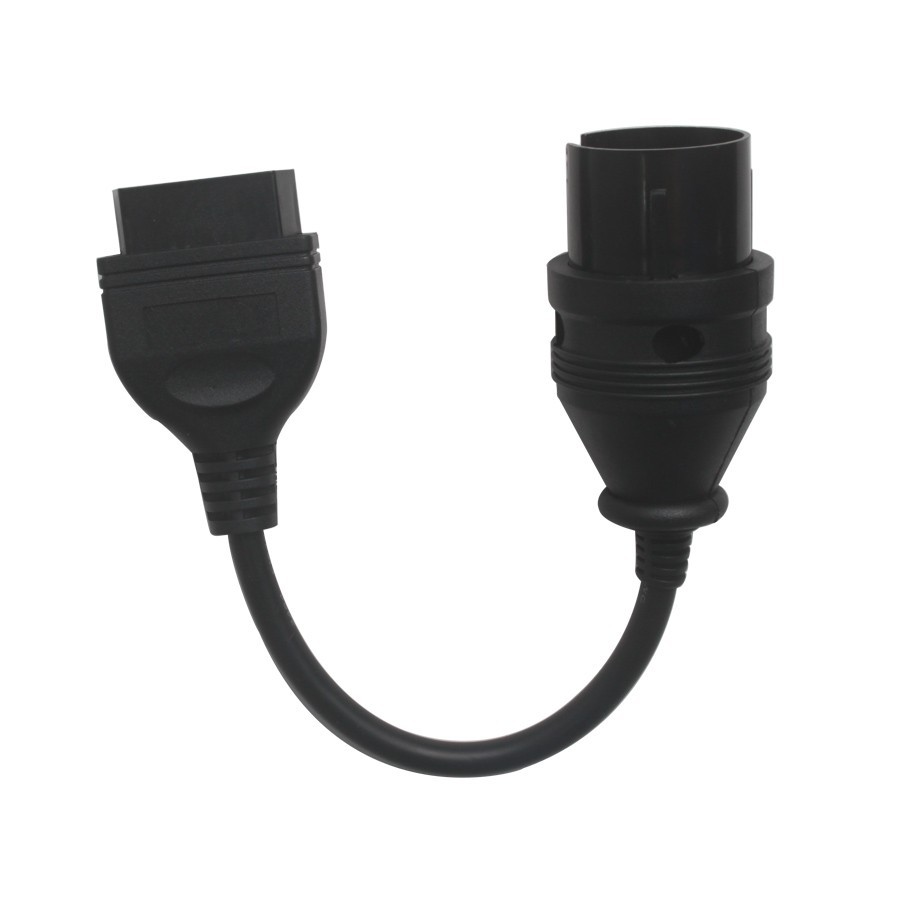

 mercedes-benz-38pin-connector-new-1mercedes-benz-38pin-connector-new-2
