Product Name:True RMS Digital Multimeter transistor tester capacitor tester automotive electrical capacitance meter temp diode
Product Type:ANENG AN8009
Product Category:Oscilloscope
View Count:
Product Description

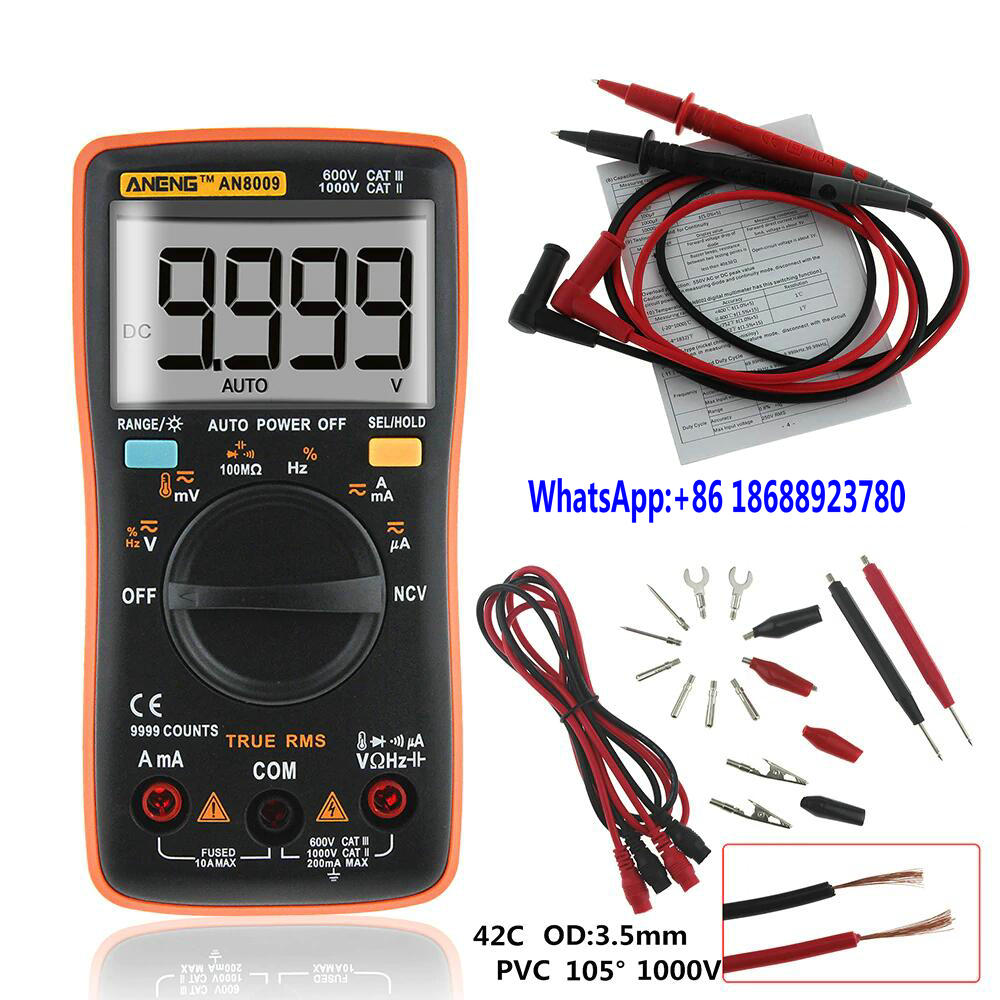

ANENG AN8009 is one of the first 9999 count, auto-range digital multimeter. This product is battery-powered with true-rms, LED display and backlight.


Digital multimeter model can measure AC / DC voltage, DC Current, Resistance, Continuity, Diodes, Transistor hFE and so on. Portable, and easy to use. It can service well in fielf of maintenance of auto, electrical engineering and teachig lab, ect.
Features:
With large overview backlit LCD display, date can be shown clearly.
Backlight can make display easy to read in the dark condition.
Small size, portable with a pouch, you can take it to anywhere you need it.
Compact ergonomic design, looks very nice.
One-handed operation perfect choice for carry-on measuring.
Allows for various electrical tests including Resistance, DC/AC Voltage and Current tests with a simple switch.
Easy to work, auto ranging accurately measures with self-calibration chip to make sure the accuracy and stability.

Specifications:
Brand Name: ANENG
Model Number: AN8009
Operating Temperature: 0 - 40 °
Operating Humidity: ≤75%RH
Storage Condition: -20~60°
Storage Humidity: ≤80%RH
DIY Supplies: Electrical
Operating Mode: Auto/Manual Ranging
Measuring Inductance Range: no
Measuring Temperature Range:  -20~1000 C/-4F-1832F
Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF
Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V
Measuring Current Range:60mA/600mA/10A
Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/999.9M
Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/200
DC/AC Voltage(mV): 9.999mV/99.99mV
DC/AC Voltage(V): 999.9mV/9.999V/99.99V/750ACV(999.9DCV)
DC/AC Current (mA&A): 999.9mA/9.999A
DC/AC Current (uA): 99.99μA/999.9μA
Display Type: Digital Display
Diode Test: Yes
Continuity: Yes
Duty Cycle: 1%-99%
Sample Rate: 3 times per second
Power: 2 * 1.5V AAA batteries(Not Included)

Package included:
1 x Multimeter
1 x Test lead+temperature sensor
1 x User Manual
1 x Storage bag
1 x 16pc Test probe
