Product Name:Hantek DSO 1202B 200MHz 25GSa/s Handheld Digital Oscilloscope 5.6 TFT Display
Product Type:DSO1202B
Product Category:Oscilloscope
View Count:
Product Description

Hantek DSO 1202B 200MHz 25GSa/s Handheld Digital Oscilloscope 5.6" TFT Display


Specifications
1. Feature
200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
Automatic cursor tracking measurements.
XY Mode.
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass/Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface; support removeable disk;  LAN Option, easy to control by PC or long-distance.
Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.

2. Hardware Specificatons
Model DSO1202B
Bandwidth 200MHz
Channel 2
Real-Sample Rate 1GSa/s
Equivalent Sample Rate 25GSa/s
Record Length 1M
Rish time ≤1.7ns
Timebase Accuracy ±50ppm
Time Base Range 2ns/div-40s/div
Input Impandance  1MΩ
VOLTS/DIV Range 2mV/div- 5V/div
A/D Converter 8bit
Position Range ±50V(5V/div), ±40V(2V/div- 500mV/div), ±2V(200mV/div- 50mV/div), ±400mV(20mV/div- 2mV/div)

DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.

Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2
Math +, -, x, ÷, FFT, Invert
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors: T;
Reciprocal of T in Hertz (1/ΔT);

Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean,
Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF

DMM Max. Resolution 6,000 Counts
Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.6"TFT 16K Color Display, 640*480 dots
Size 245mm x 163mm x 52mm
Weight 1.3KG(Without Package)
Standard Probe PP200x2

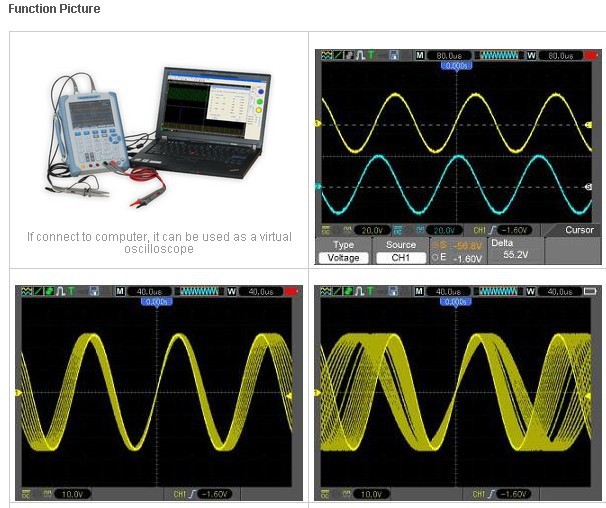

3.Function Picture

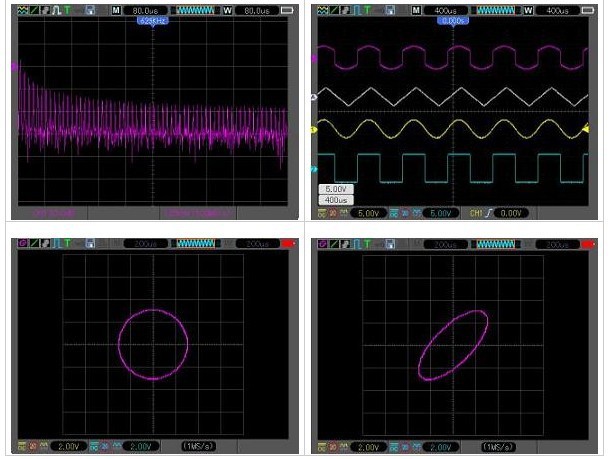

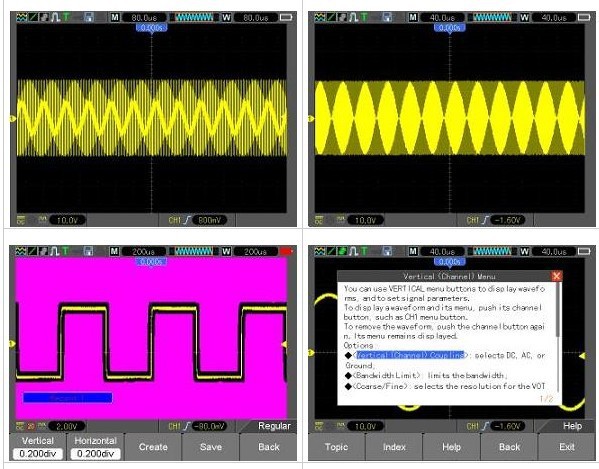

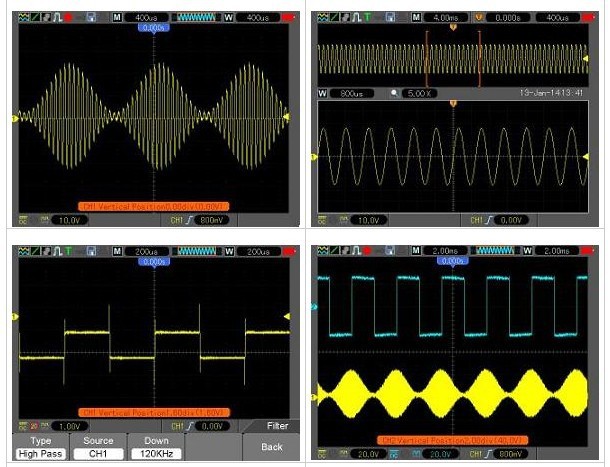

1202B 41202B 51202B 61202B 7

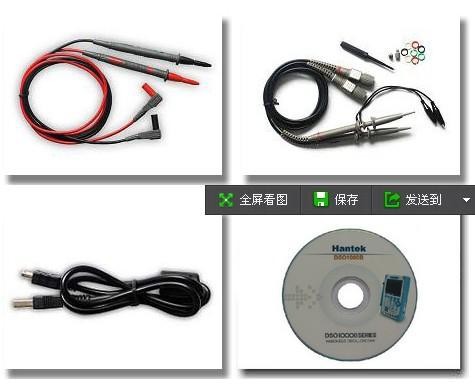

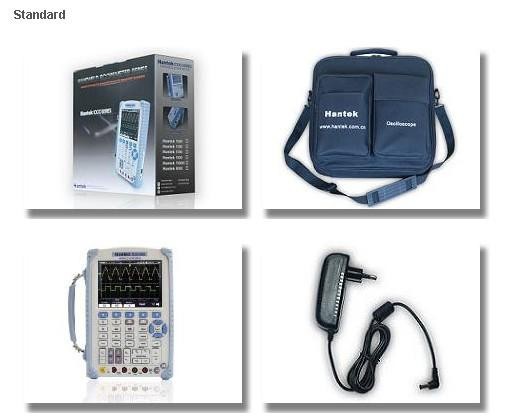

Accessories




1202B 11202B 21202B 3
