Product Name:EM420A Digital Multimeter Voltage Measurement Current AC/DC Battery Analysis Instruments
Product Type:EM420A Digital Multimeter
Product Category:Popular Garage Tools
View Count:
Product Description

All-Sun Digital Multimeter Continuity Diode Transistor Battery Tester Temp. Measuring Current

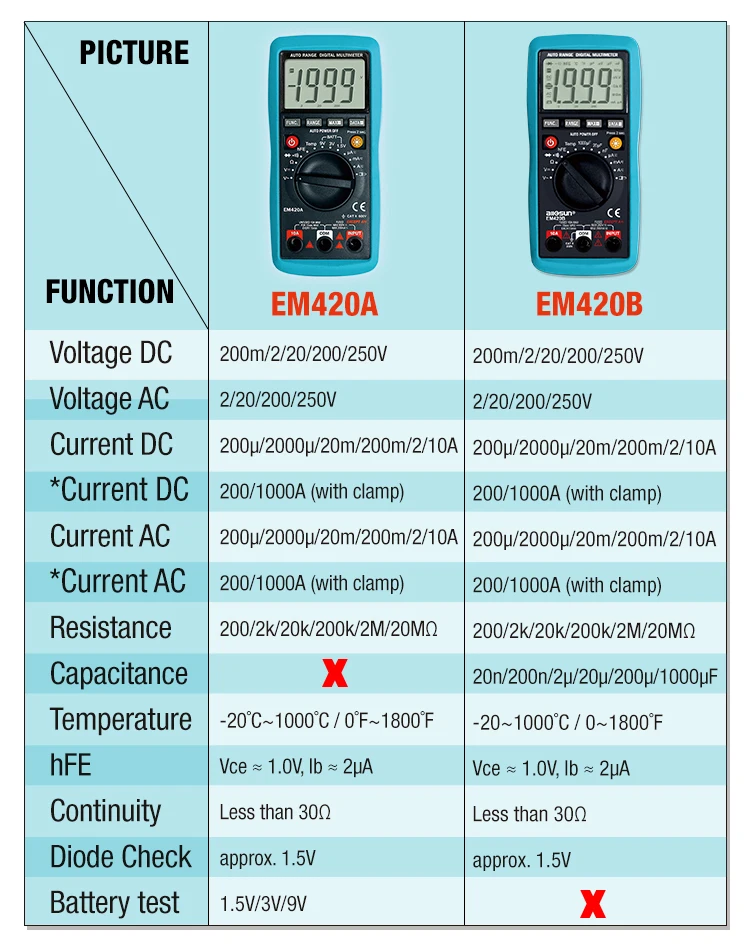

DUIBI(2)



EM420A  introduction

EM420B introduction








AC/DC Analysis Instruments EM420A

Note :

This package does not include batteries.
Due to new rules of China Post Air, parcels must not include batteries,
otherwise it will not get through the custom.

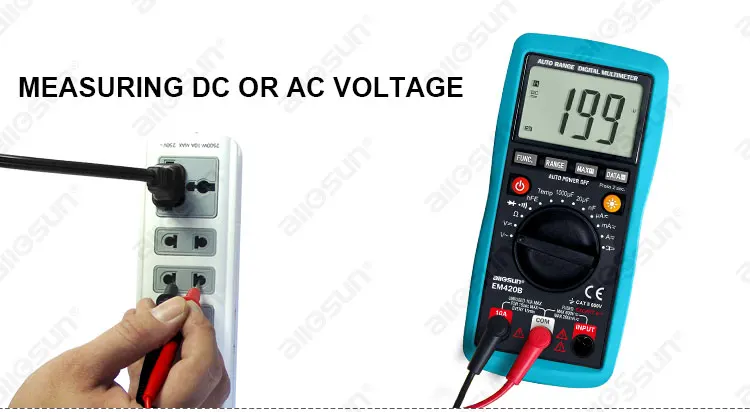

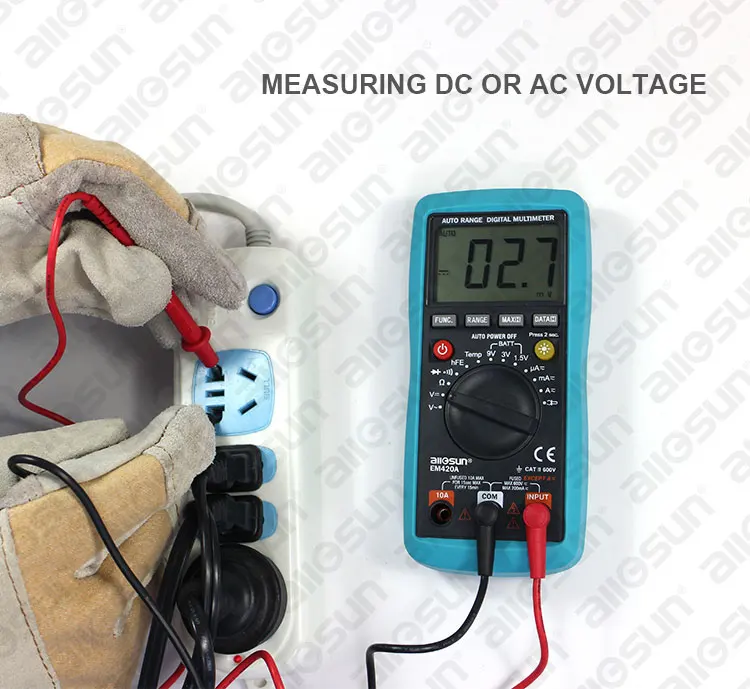

It is a compact 3 1/2 digits digital multimeter for measuring DC and AC voltage
DC and AC current, resistance, temperature, diode, transistor, continuity and battery.

It has polarity indication, data hold, MAX mode, overrange indication and auto power off.

It is easy to operate and is ideal instrument tool.

Features:

1. Max.1000A AC/DC current measurement with current clamp 3 1/2-digit
   backlight LCD which has a max. reading 1999
2. Manual/auto range mode
3. Maximum value hold mode
4. Autoatic polarity indication
5. Data-hold mode
6. Overload protection
7. Low battery indication
8. Low power consumption


Specification:

Voltage DC: 200m/2/20/200/250V
Voltage AC: 2/20/200/250V

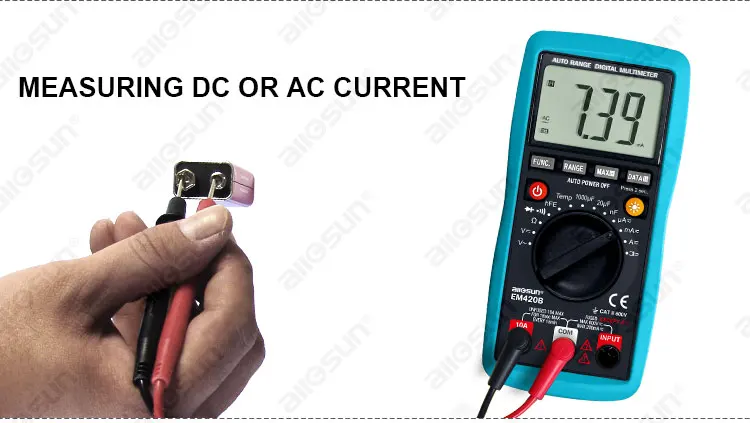

Current DC: 200u/2000u/20m/200m/2/10A
Current DC: 200/1000A(with clamp)
Current AC: 200u/2000u/20m/200m/2/10A
Current AC: 200/1000A(with clamp)

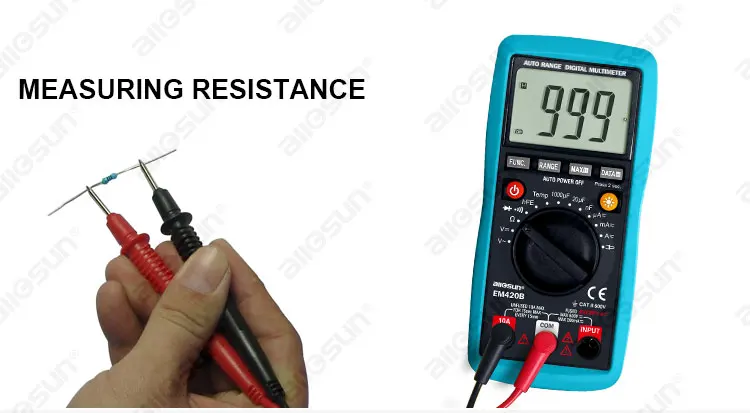

Resistance: 200Ω/2k/20k/200k/2M/20MΩ

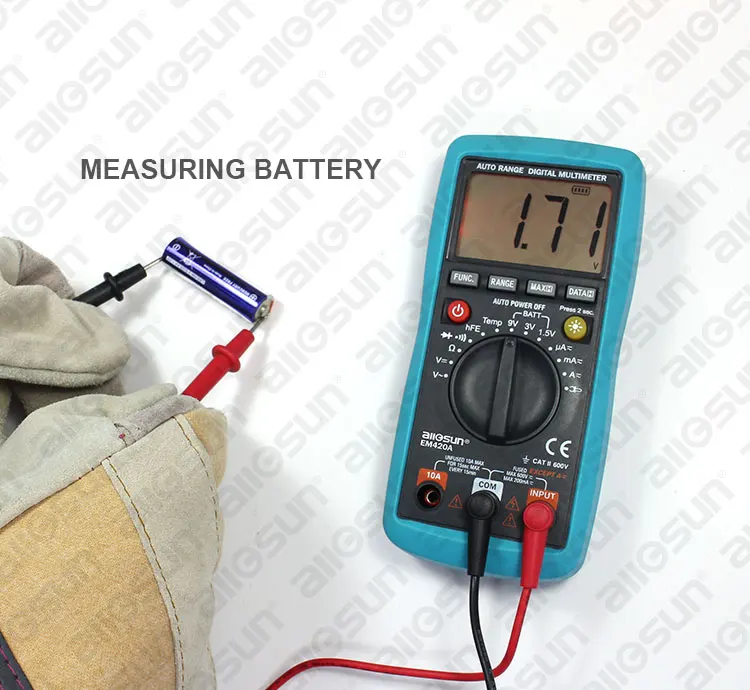

Battery Range: 1.5V/3V/9V/12V
Temperature: -20~1000℃ /0~1800℉
hFE: Vce approx.1.0V, Ib approx. 2uA
Continuity: Less than 30Ω

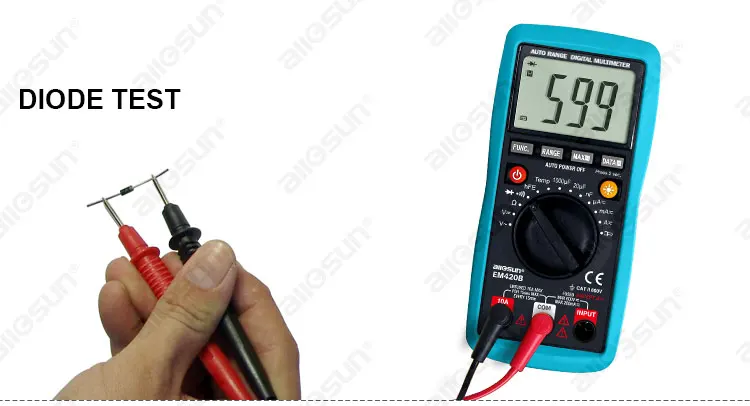

Diode Check: approx.1.5V
Display: LCD,1999 counts, updates 2-3 times /sec
Overrange Indication: "OL" shown on the display
Negative Polarity Indication: "-"shown on the display

Power Supply: 1.5V AAA or equivalent, 3 pieces
Operating Temperature: 0-40℃, <75% RH
Storage Temperature: -10-50℃, <85% RH
Battery: 1.5VAAA or equivalent, 3 pieces ( Package Not include)
Dimensions (W×L×T): 75×158×35 mm
Weight: 200g
