Product Name:Double rod cylinder pressure gauge
Product Type:Double rod cylinder pressure gauge
Product Category:Popular Garage Tools
View Count:
Product Description

New Rapid Type Pressure Gauge Tester Kit Motor Auto Petrol Gas Engine Cylinder Compression Gauge Tester Tool Car Diagnostic Tool

Features:
- Can be quickly set to your motor / car, get accurate readings in valves, piston rings, cylinder bores or head gaskets.

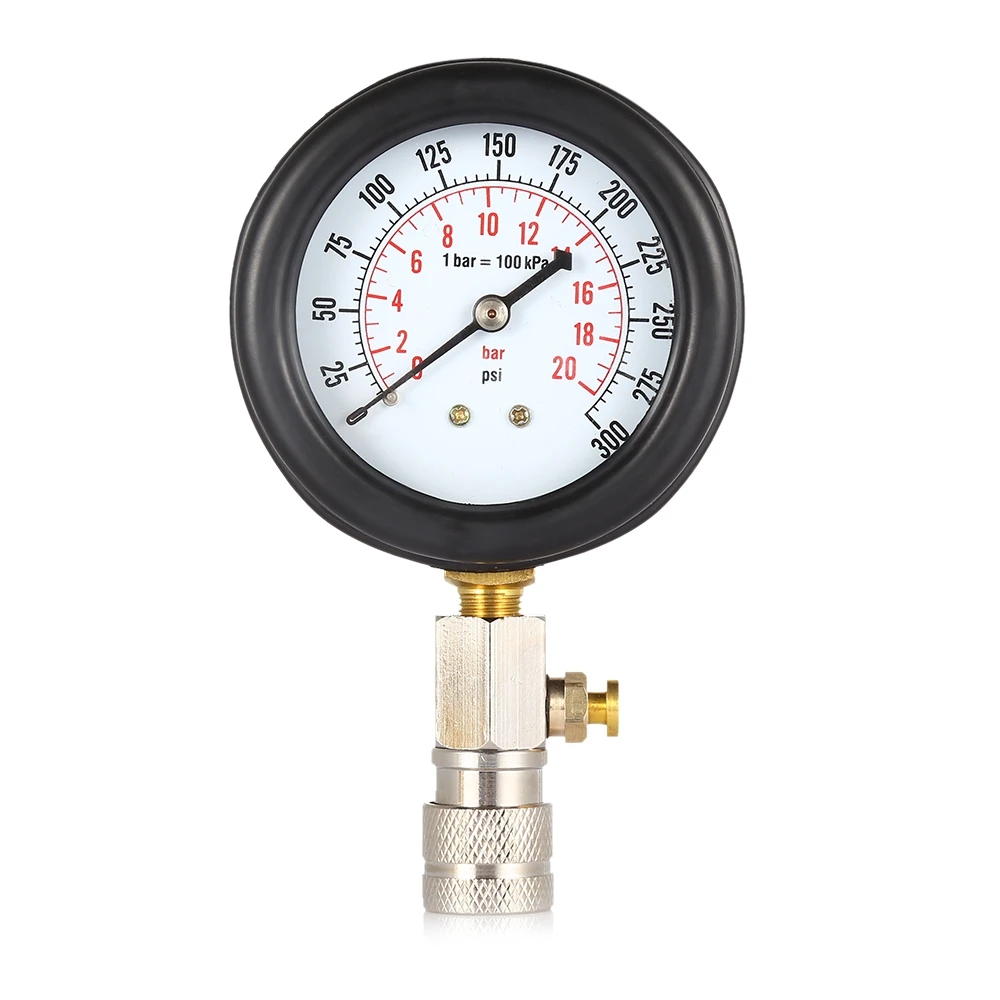

- Manometer with two test pressure: 0 - 300 PSI / 0 - 21 kg / cm2.
- Drain valve with full copper nickel plating, anti-oxidation and corrosion.
- M10 thread is suitable for motorcycles, M12 / M14 / M18 threads are suitable for car.
- With rubber protection to prevent scratches.
- Come with 2 rubber cones that don't need to be threaded into the head, can test the compression on almost any engine.

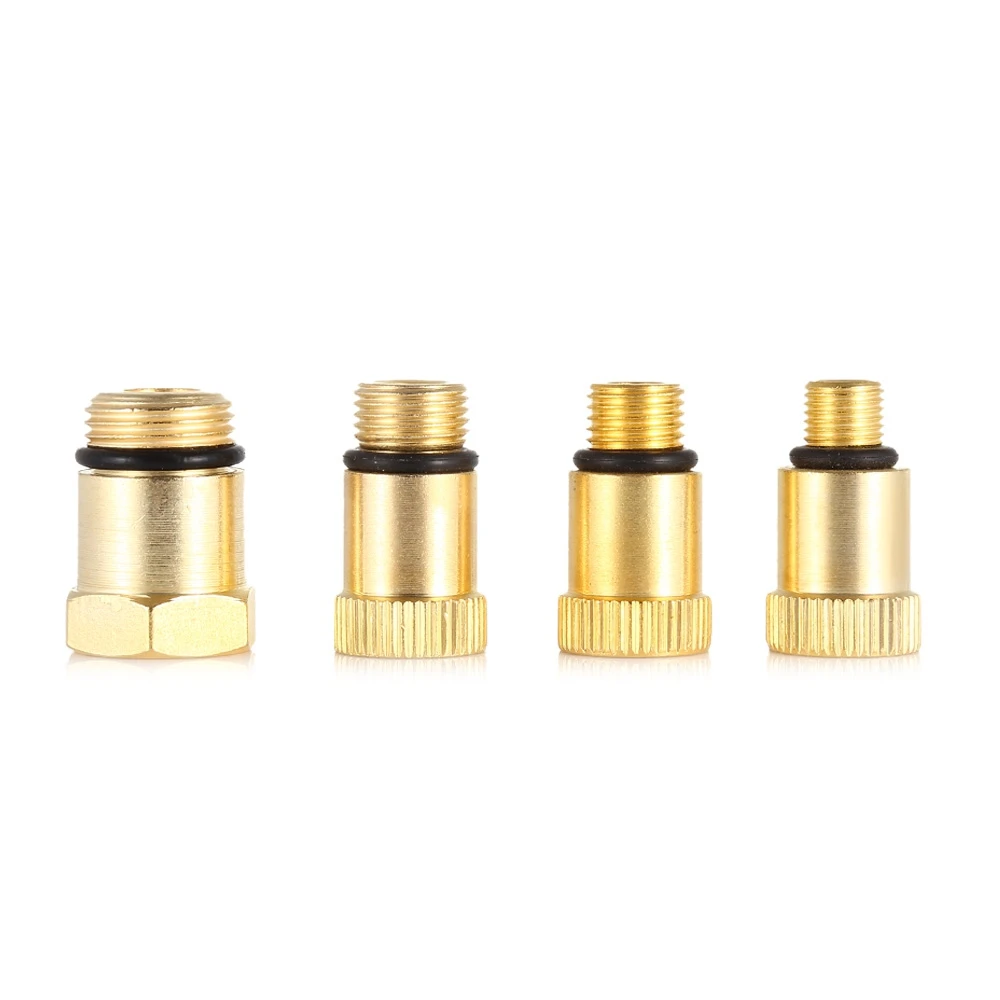

- Pressure gauge diameter: 75mm, four thread size: M10 x 1.0mm, M12 x 1.25mm, M14 x 1.25mm, M18 x 1.5mm.

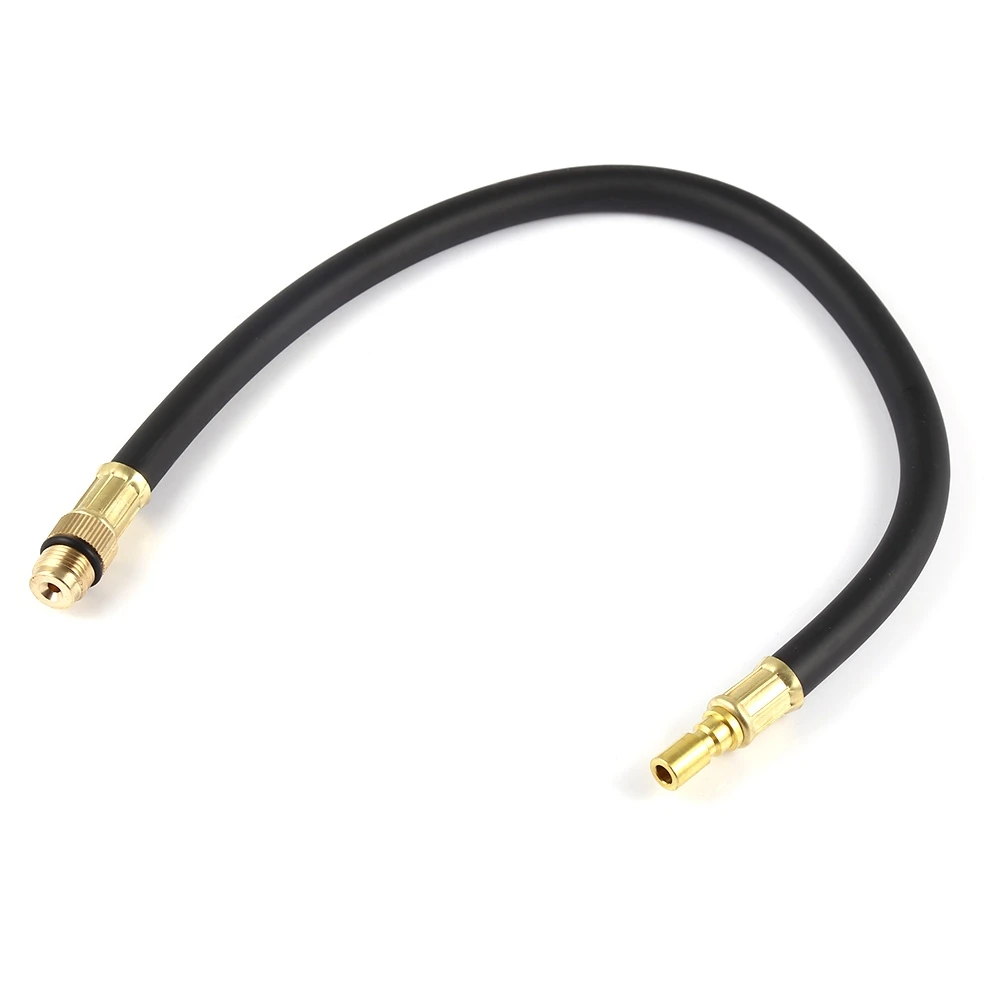

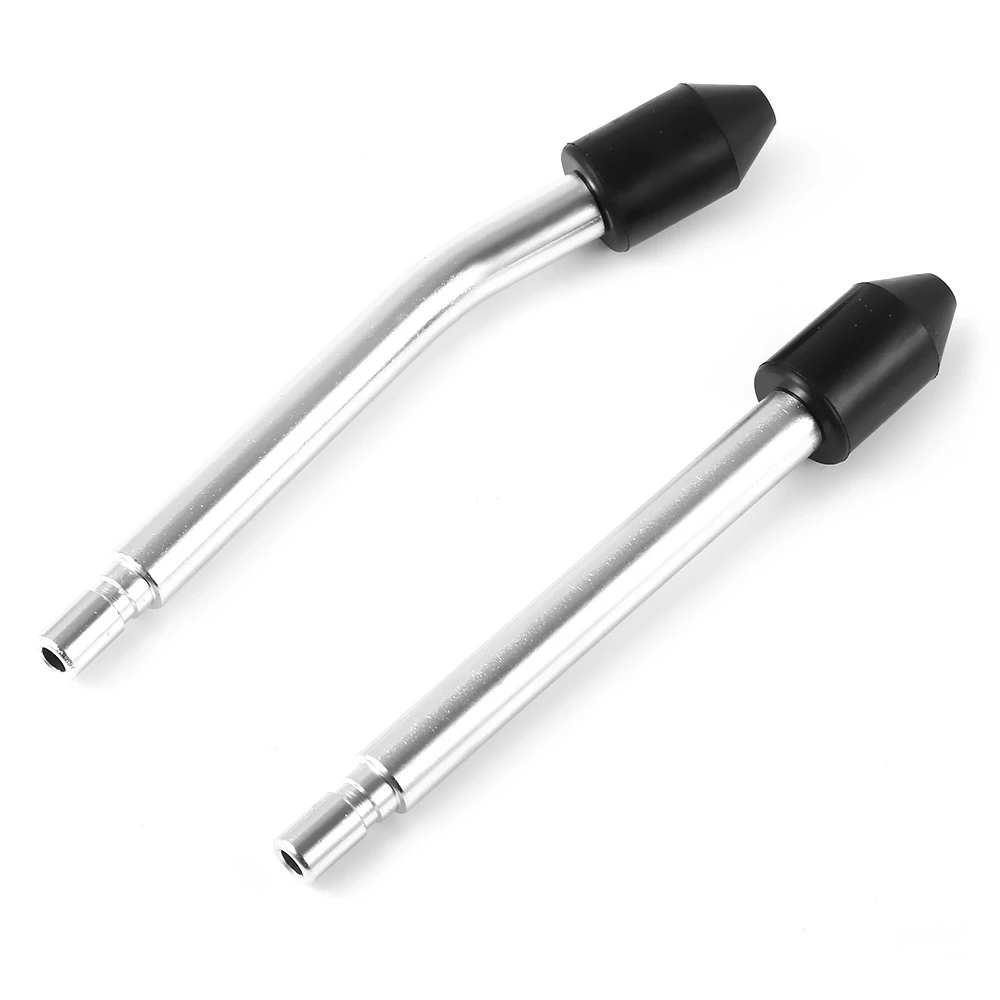

- Hose overall length: 430mm, pressure tube length: 150mm, angled pressure tube length: 160mm.

20170313174253_7663520170313174253_5238720170313174253_6385020170313174253_1349120170313174253_6228220170313174253_6903920170313174253_79971









Features: Durable,High accuracy,Portable,Quick reading
  Test Unit/Mode: Bar,PSI
  Material: Metal,Rubber
  Color: Black
  Special function: Get accurate readings
Package weight: 1.032 kg
  Product size (L x W x H): 12.50 x 7.50 x 3.50 cm / 4.92 x 2.95 x 1.38 inches
  Package size (L x W x H): 30.00 x 20.00 x 6.00 cm / 11.81 x 7.87 x 2.36 inches

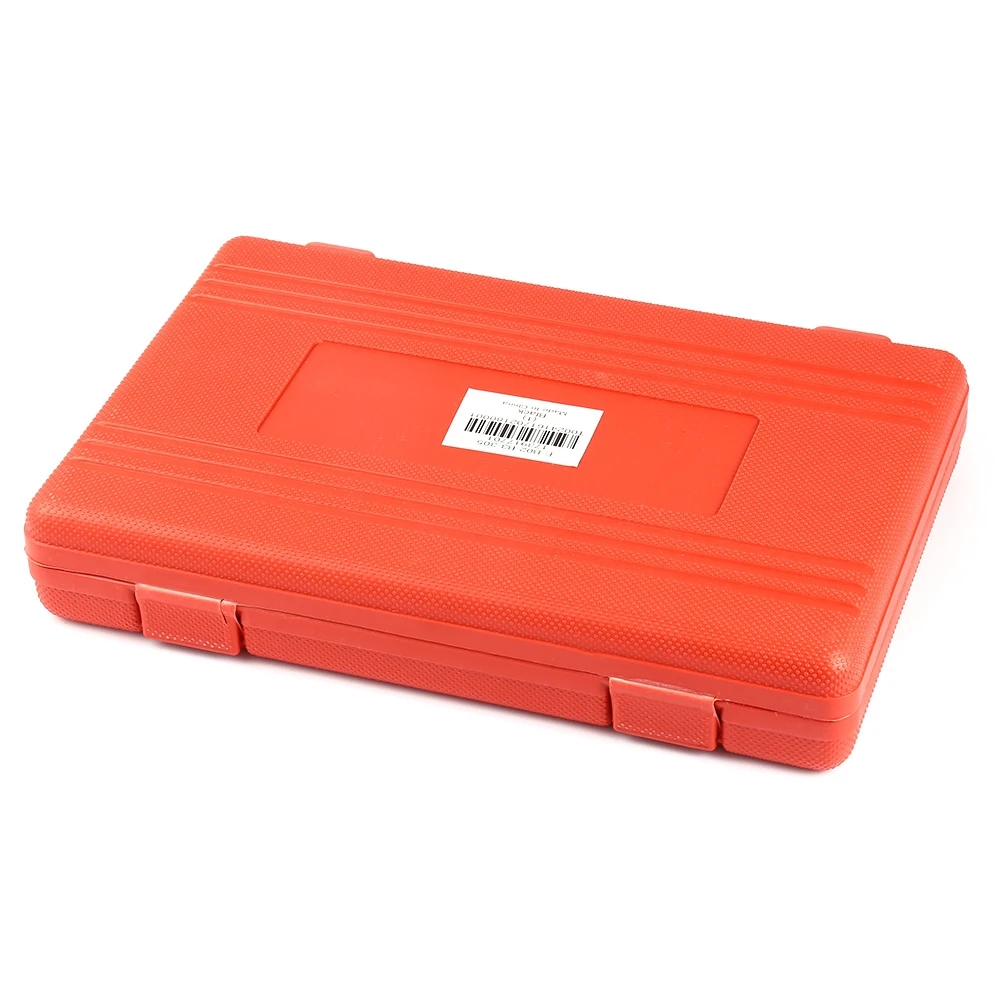

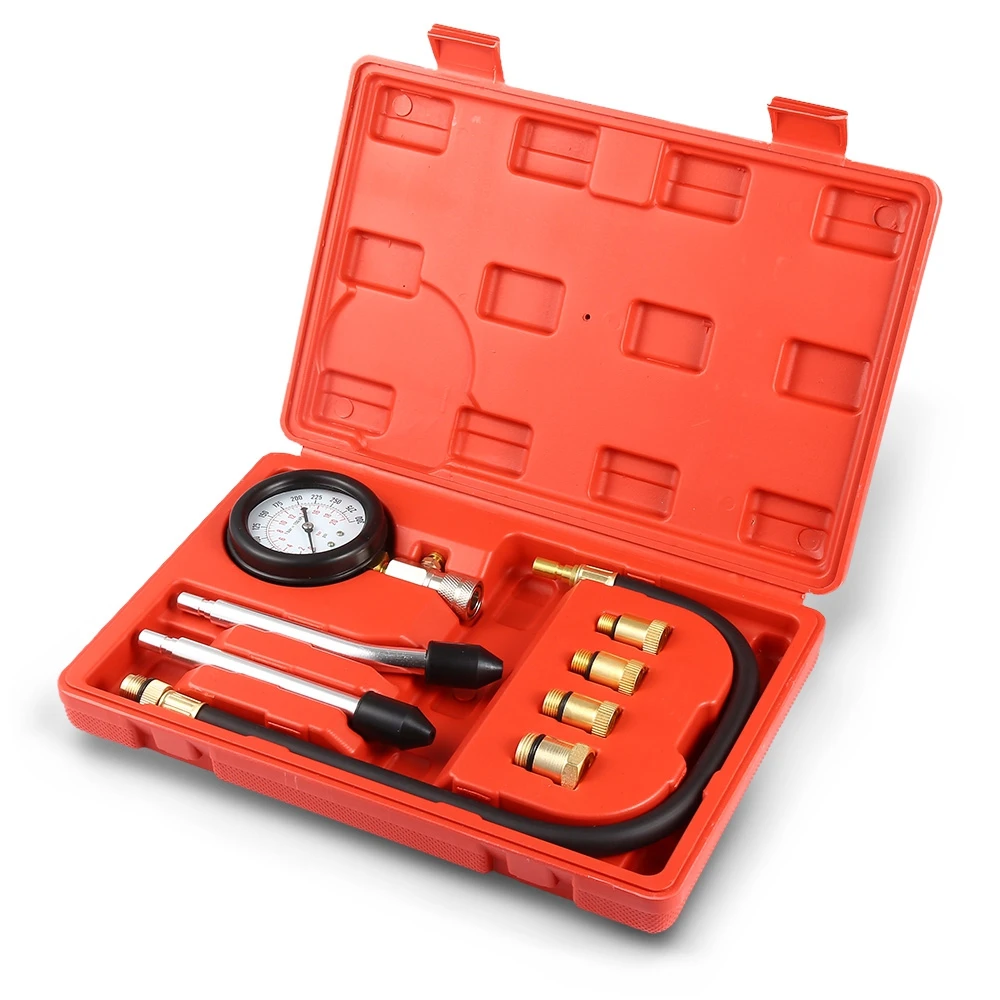

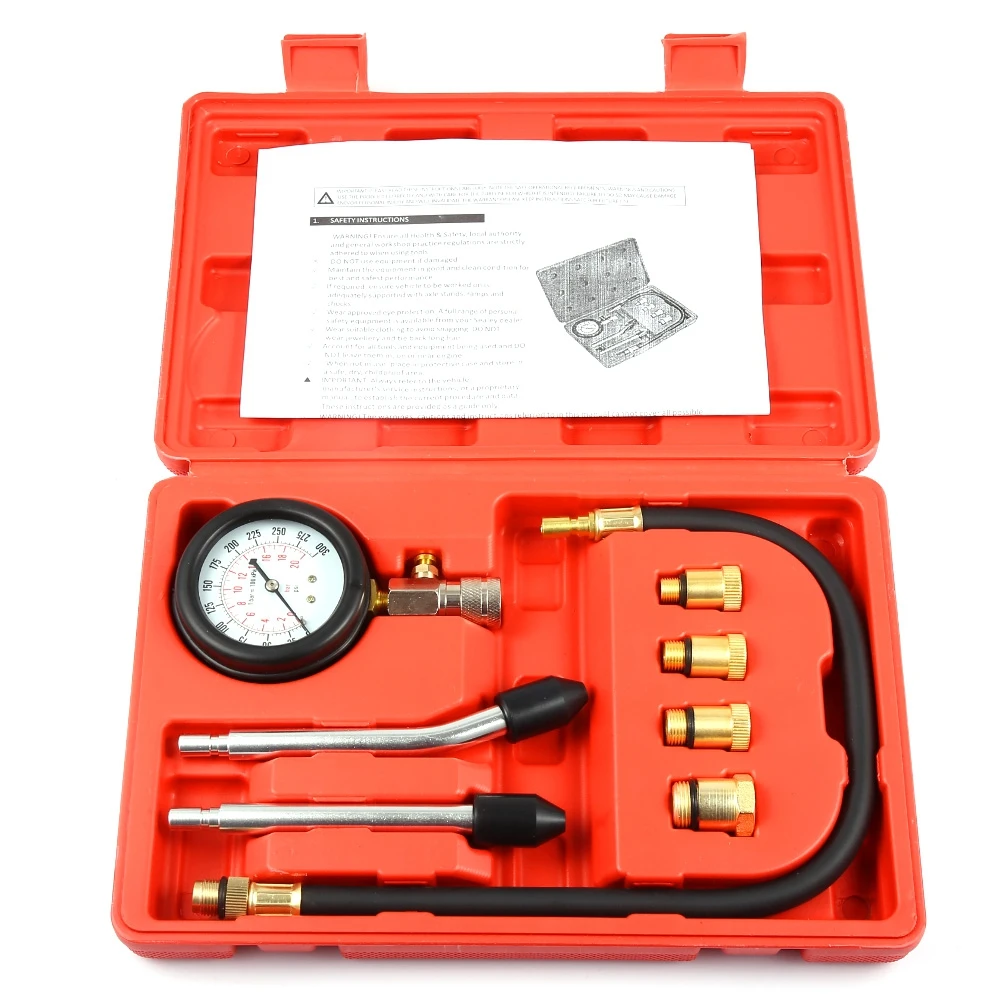

Package Contents: 1 x Compression Tester, 1 x Hose, 4 x Thread, 1 x Straight Line Pressure Pipe, 1 x Angled Pressure Pipe, 1 x Plastic Case ( Red )
