Product Name:Common Rail injector Tester Kit,CRI200 Support magnetic and piezo injector test+SH60 common rail nozzle injector Tester
Product Type:Common Rail injector Tester Kit
Product Category:Popular Garage Tools
View Count:
Product Description

new type CRI200 High pressure common rail injector tester Support magnetic and piezo injectors

We have the user manual in Russian language,if you need it,please contact me without hesitation.

DSCF36321_

Brief introduction

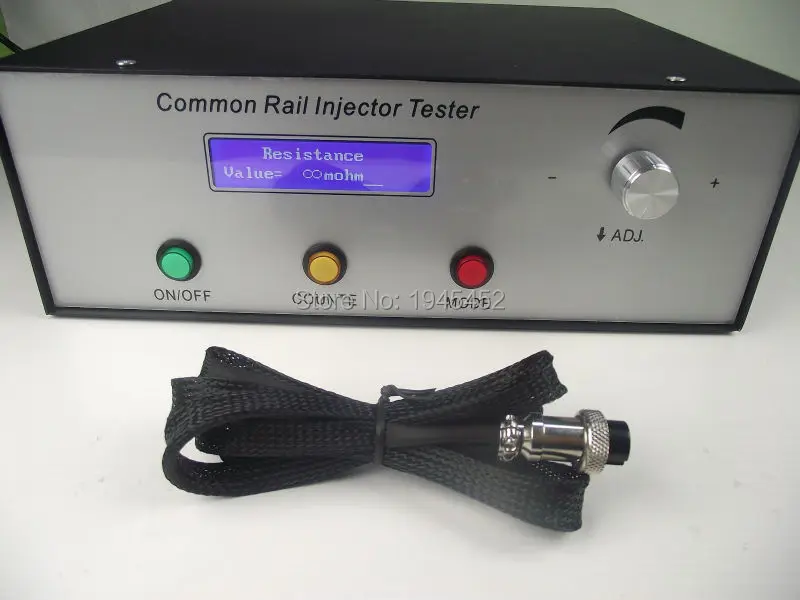

CRI200 high pressure common rail injector tester function is used to drive common rail injector, while providing for Bossch,  for Densso, for Delpphi and other common rail injector control signal to drive the high pressure common rail injector to work, drive signal parameters can be carried out by the user according to their actual situation, and can be saved grouped for easy maintenance personnel to high pressure common rail injector in working condition to judge different conditions and maintenance.Support test  injector resistance
Technical Parameters:

1.Produce Model:    Common Rail Injector Tester
2.Testing Range:  atomization, pilot, emission and full load condition.
3.Test Injectors:   Used Test  for BOsSCH,  for   DENnSO,  for    DELPHhI, for   PIZEO, for   DENSsO2
4.Injector conditions:  CL ,VL , VE , LL ,TL, U1,U2
5.Pulse width: 100 ~ 3000uS;
6.Injection frequency: 1 ~ 30Hz
7.injector counting time: 0-2000 times
8.Working Voltage: AC220V/AC110V
9.Working Temperature:    -30C°——70C°

As show below:

 HTB1mI6.KpXXXXaVXXXXq6xXFXXXm

               DSCF3607

DSCF3320HTB1bi6NKpXXXXcjXVXXq6xXFXXXt

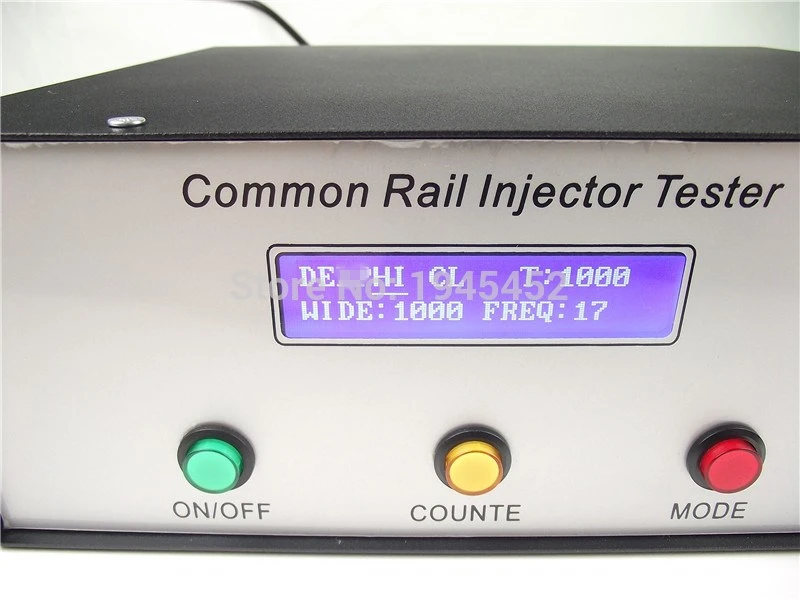

Display interface:



HTB12qfRKpXXXXa2XVXXq6xXFXXXS



1.Select the type of injector:

for BOSSCH  DENSSO  DELPPHI  PIZEO DENSSO2

2.Current Injector conditions:

CL, VL,VE,LL,TL,U1 ,U2

3.the injector count method:

    T: according to the number of counts;

4.injector counting time:

T: 0-2000 times

5. injection signs: icon display indicates the beginning of the injector fuel injection;

6.pulse width: 100 ~ 3000uS;

7.injection frequency: 1 ~ 30Hz

8.the count flag: Icon display indicates the injector start counting;

How to test a injector by  this kit

1.Frist open the box and put out the S60H

DSCF3602

DSCF3607

2. Assembly the S60H,As the follow picture

DSCF3619

3. Put out the CRI200

DSCF3620

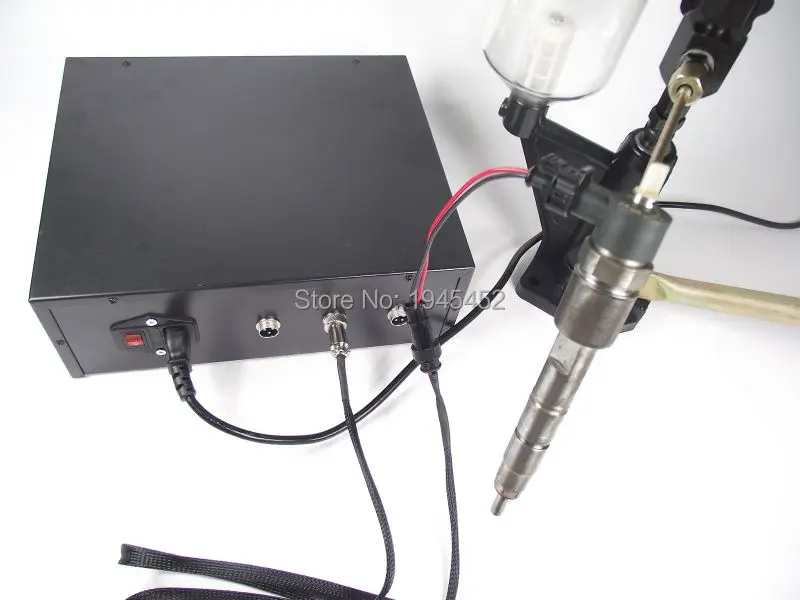

4. Connect the cable of the injector, as show in the picture is Bosch injector

DSCF3625



5. Finish connect the cable,and open the power button

DSCF3627

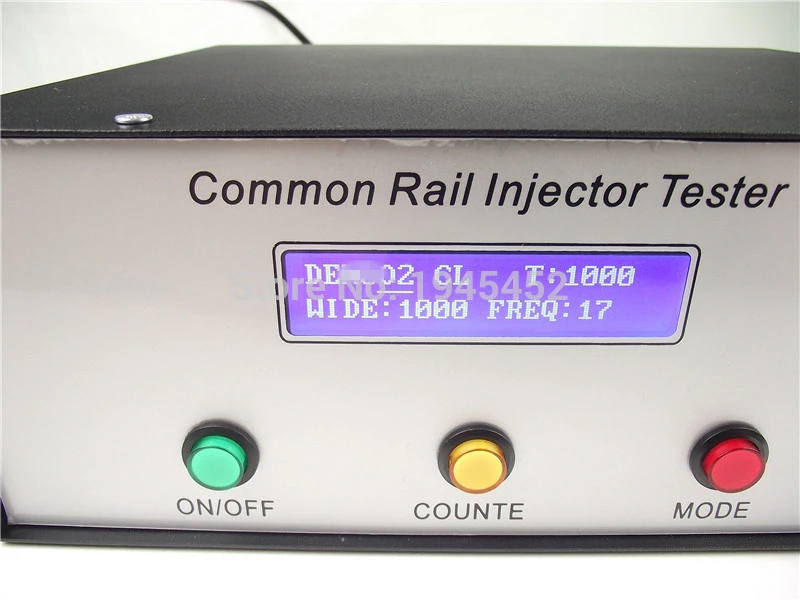

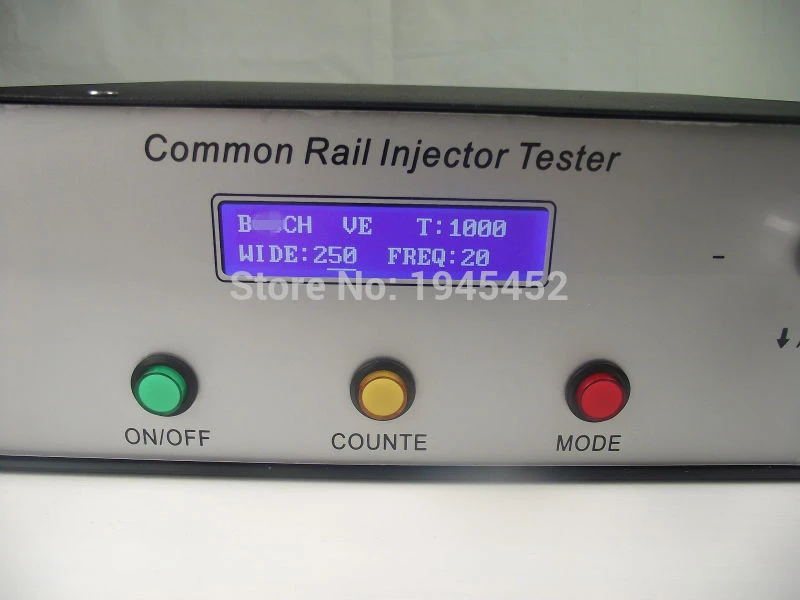

6.  The CRI200 interface

HTB16ciXOVXXXXaraXXXq6xXFXXX7

7.  Selcet the injector by turn left or right ADJ button  ,and select the work Mode by MODE button

8.then press the S60H handle ,and the fuel pressure will increase, when get the enough

fuel pressure  ,then press ON/OFF button  or COUNTE button at CRI200,  then the injector will  start shot.



HTB1SKPJKpXXXXaPaXXXq6xXFXXXD

PIZEO MODE:









DSCF3341

what's the meaning of the work Mode



CL Cleaning Injector
LT Leak test
VL Full load test
TL Emissions / medium speed test
LL Idle test
VE Pre-injection test
U1,U2 Custom condition



How to use counte function

 Press down the ADJ  button, select the crusor at  T:1000 , then turn right or left the ADJ button to turn up or turn down the counte vaule,

then press the COUNTE botton ,the injector will work  counte times,then stop.



HTB1T9nMKpXXXXc0XVXXq6xXFXXXC















The Back of the interface





DSCF3325

1.   Electromagnetic injector :  2PIN interface

2.   Piezo injector   :   4PIN interface

3.   Count switch terminal   :   3PIN interfa
