Product Name:CT200 Petrol Car Motorcycle Injector Ultrasonic Cleaner Injection Tester
Product Type:CT200
Product Category:Popular Garage Tools
View Count:
Product Description

CT200 Petrol Car Motorcycle Injector Ultrasonic Cleaner Injection Tester

This latest generation ultrasonic injector cleaner upgrade version for CT100. We can clean and test both petrol car and motorcycle injector with this machine.(motorcycle support HONDA YAMAHA SUZUKI SANYANG only)


C42883A7FB3AA7C69229A8452010040E
3EE34C55058851308F8F305C3D744800



real photo

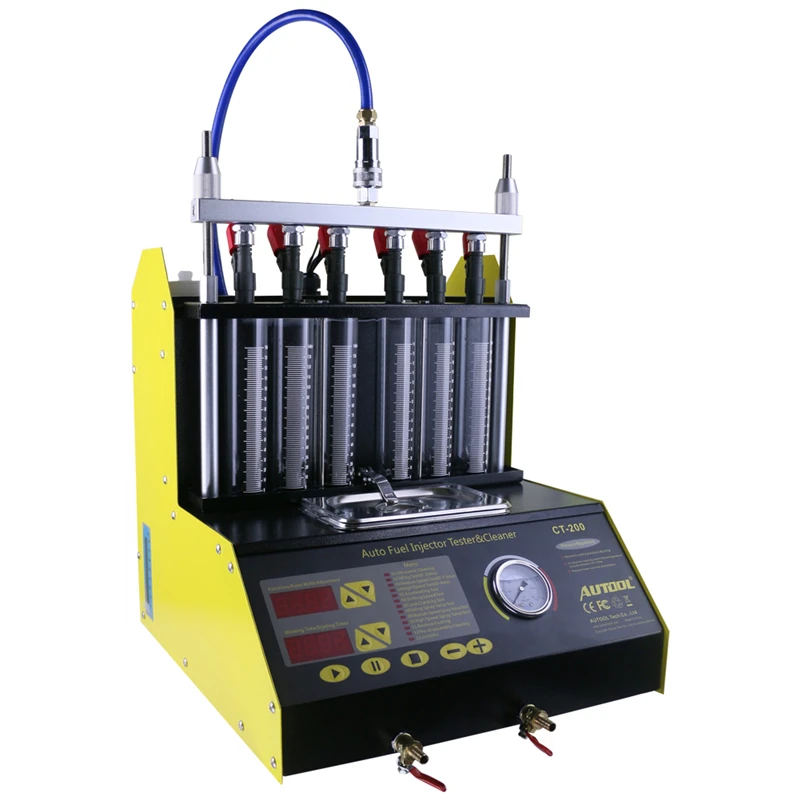

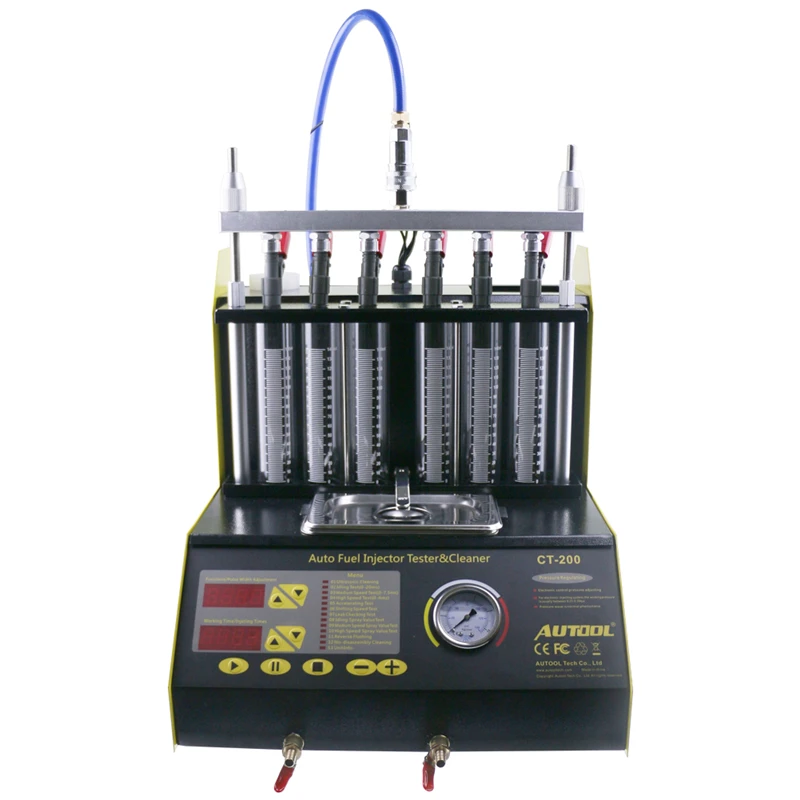

0D97FC04F0CBAC0889DBE6B21A246D9E94A456B40C186BDF6F3754D8F1DA8C2CC42883A7FB3AA7C69229A8452010040E11AF28AA415D147E8B1FDDC47FF981A29648FDB3F7E4E045E431DB1555A63E93









ct200_01ct200_02ct200_03ct200_04ct200_05ct200_06ct200_07




Support Model:
Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen,
Dacia,Dadi,Daewoo,Daihatsu,Demo,Fiat,Ford,GM,Holden,
Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,
Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,
Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW,Yamaha


We can even clean fuel system, throttle valve without disassembly via CT200 (but need additional accessories,if u need,contact me)
It is good at remove carbon from your fuel system, testing leaking ,Uniformity,inbreathe about injectors

LESS THAN 2% OF INJECTORS FAIL DUE TO MECHANICAL FAILURE. THEY JUST GET CLOGGED WITH DIRT THAT COMES THROUGH THE FUEL SYSTEM.

How about clean injectors completely?let it reborn!

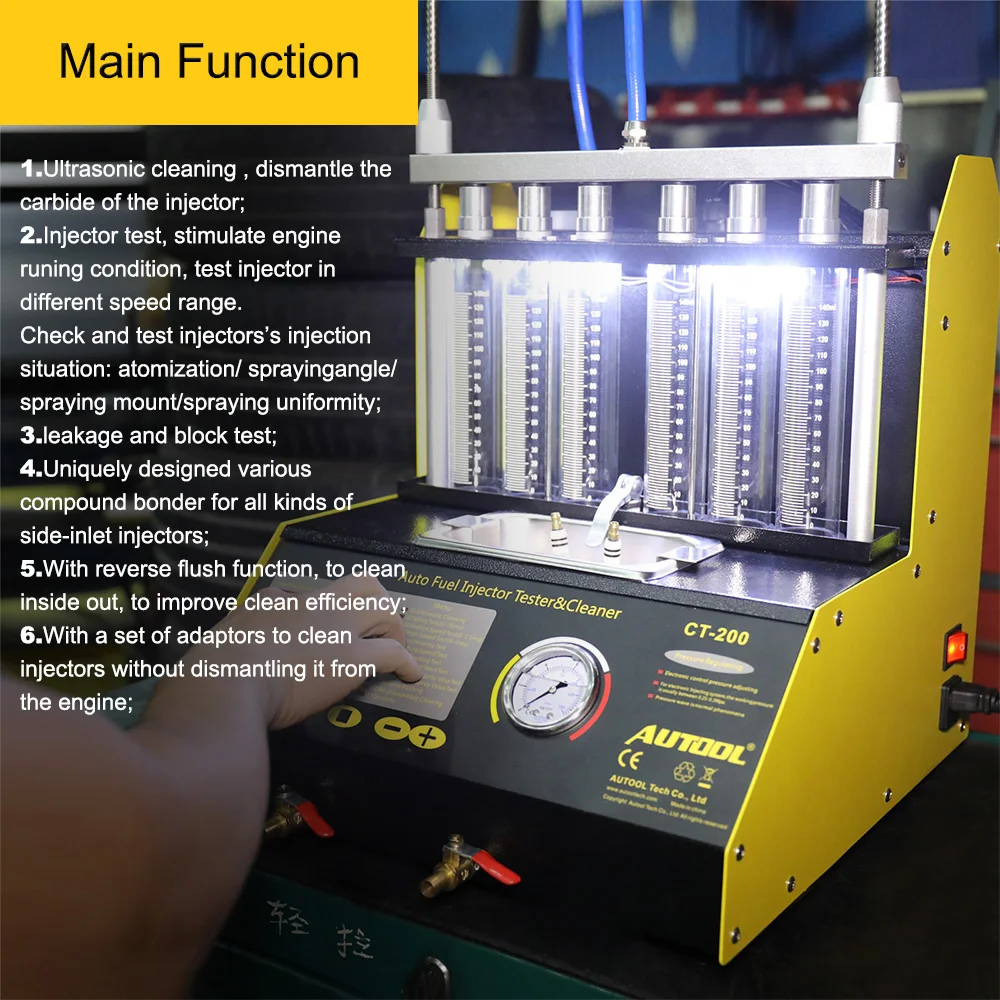

Main Function:
A Cleanning petrol injector with ultrasonic

B Cleanning spark plug:Put spark plug into cleaning tank ,input clean fluid and begin clean

C Testing injector injection in different situation, check leaking and blocking

E Cleanning and test motorcycle injector,testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)


The CT200 cleaning machine how to work:
1 Clean injector's outside with gasoline or cleaning liquid before open machine
2 Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3 Turn on ultrasonic system,pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4 Fixed injectors on main machine
5 Testing injectors for resistance, shorts, and current draw
6 Performing leak test, spray pattern, and flow rate testing on flow bench.
7 The injectors are now returned to the flow bench for retesting of all functions.

FEATURES:
1. LED display;

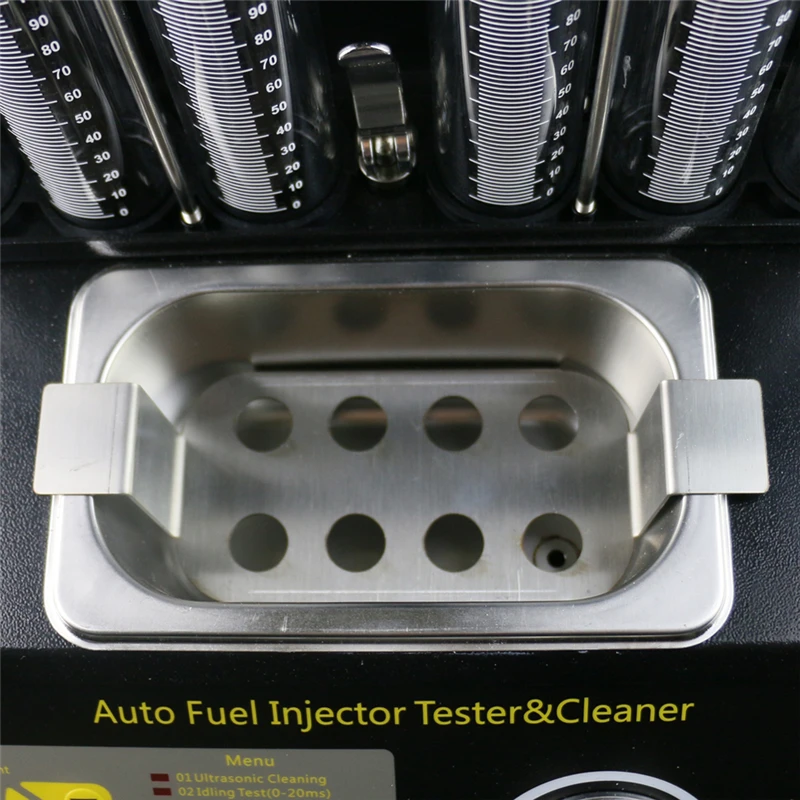

2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4. Equip with high quality SIEMENS pump, make it endurable;
5. Discharging fluid more quickly, add 2 value in front of machine.

Working Condition:
Power supply: AC220V/AC110V±10%
Frequency: 50HZ±0.5
Humidity:<85%
Environment Temperature:  10°C~40°C
Magnetic Field:  <400A/m
Spark and fire is prohibited.

Specifications:
Fuel Tank Capacity: 2000 ml
Capacity of Measuring Cylinder: 125 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
Spark and fire is prohibited.

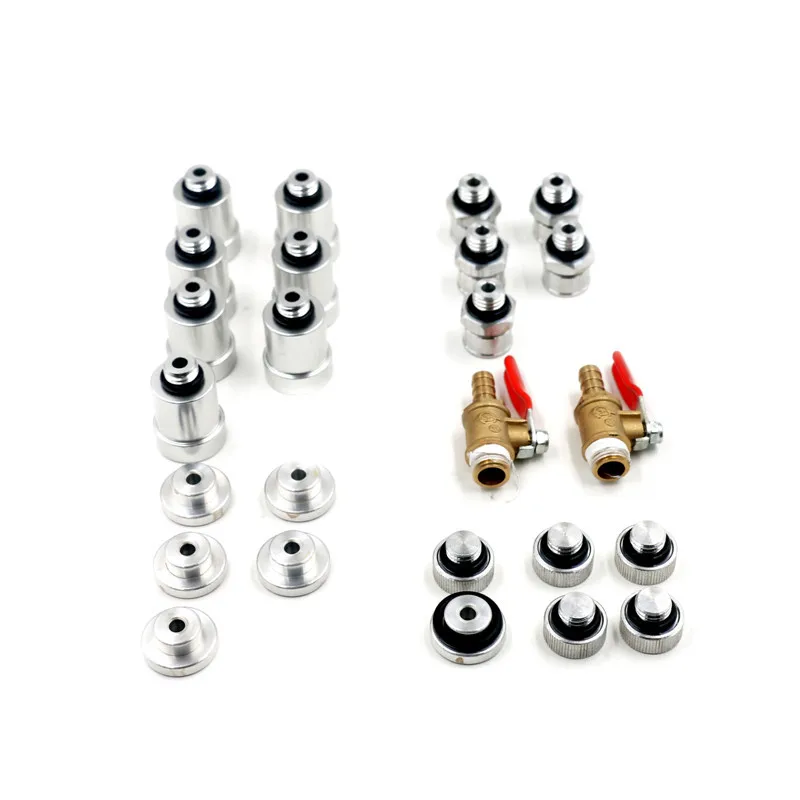

Package include:
1 x CT200 Unit
2 x Valve (for discharging fluid from machine tank)
6 x Adapter for fixing injector on machine
6 x linkage
6 x Blocker for block distributor
1 x Distributor Kits

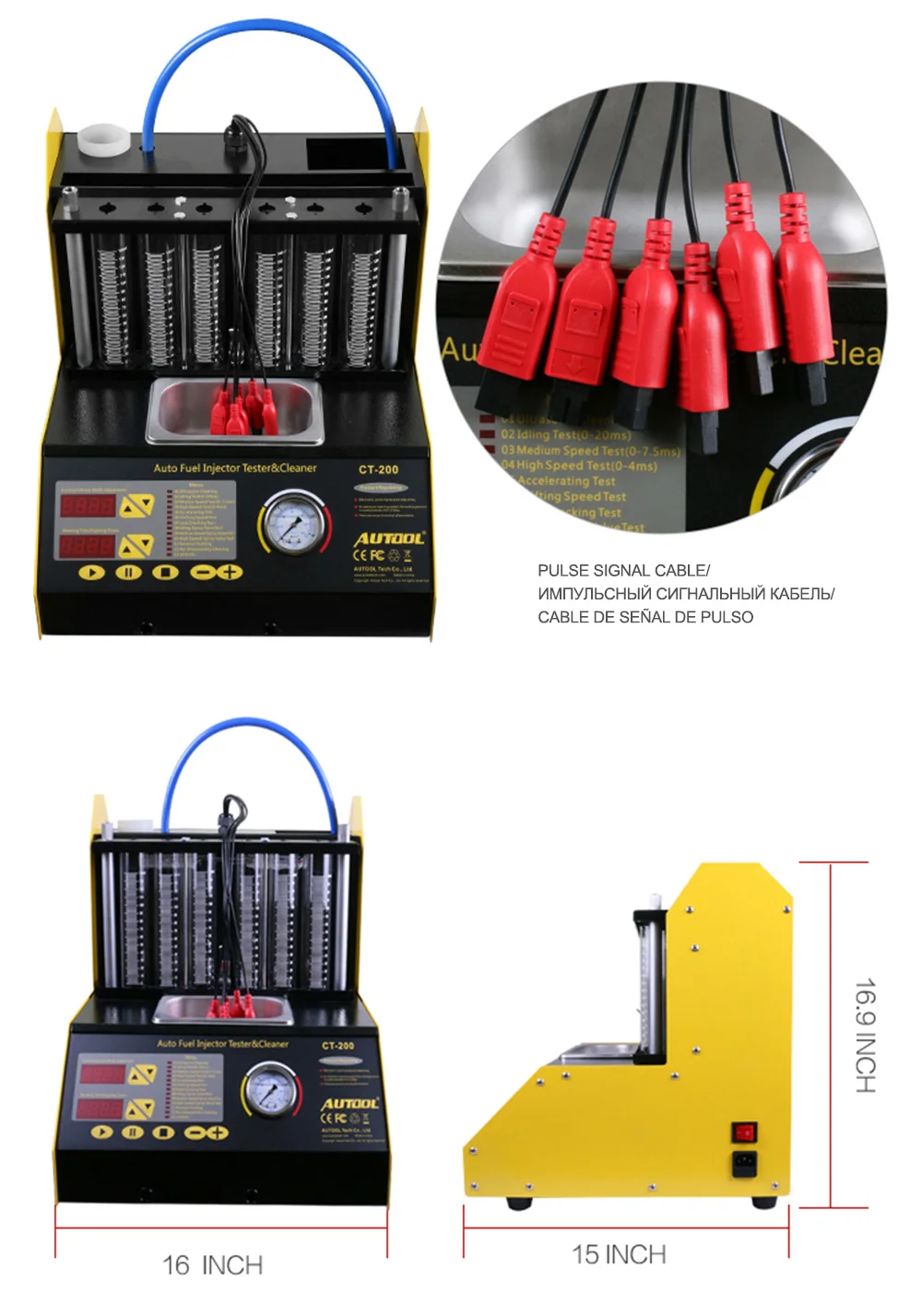

1 x Impulse cable for providing power to open injector
1 x Manual(English)
