Product Name:Launch TLT240SBA Hydraulic Car Hoist 4 Tons Double Cylinder Luxurious With CE Certificate
Product Type:Launch TLT240SBA
Product Category:Popular Garage Tools
View Count:
Product Description

Launch Hydraulic Car Hoist TLT240SBA 4 Tons Double Cylinder Luxurious With CE Certificate Top One Quanity In China

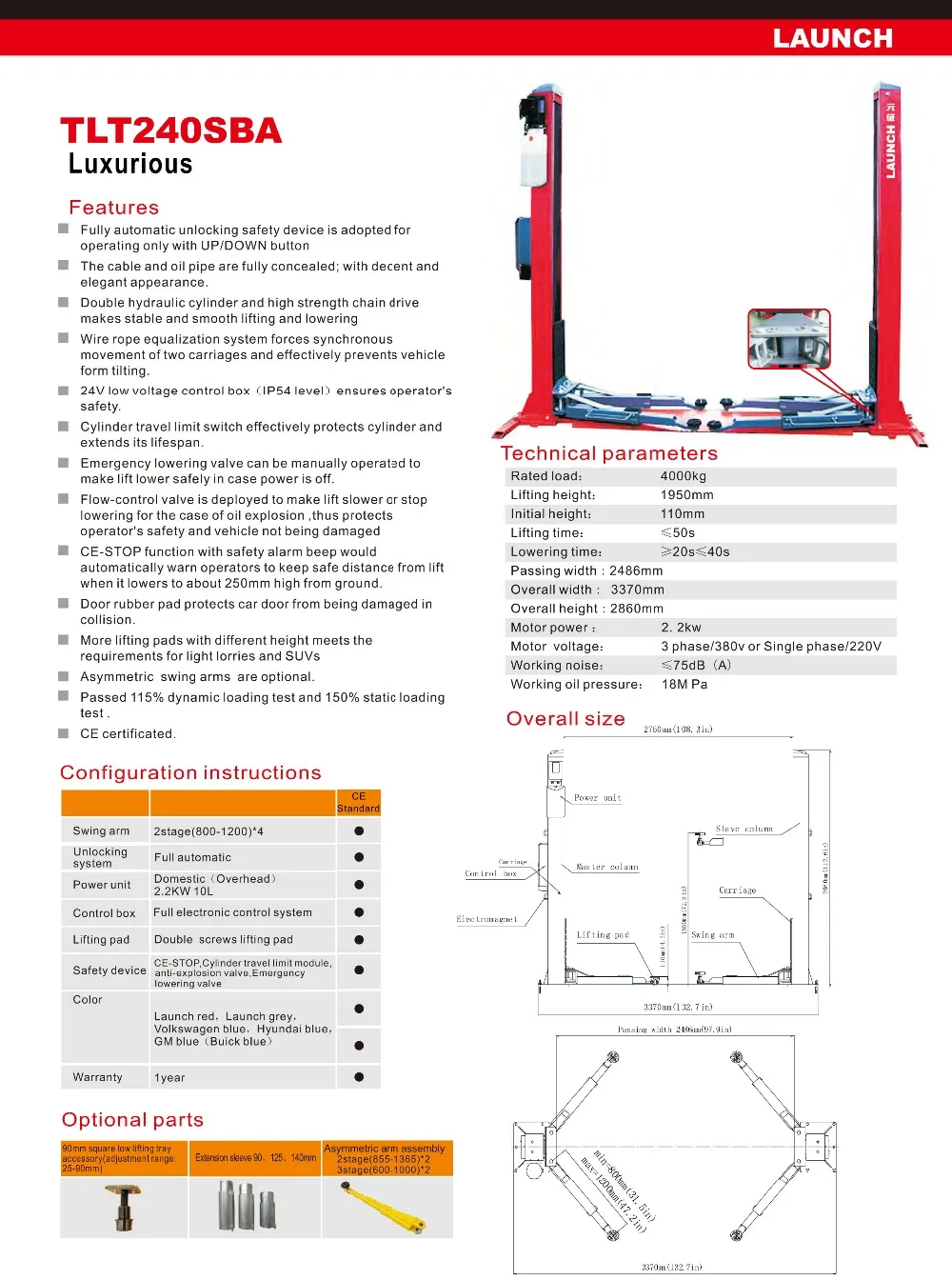

TLT240SBA Launch Lift's Catalogue-10





Functions and Features

 Fully  automatic unlocking safety device is adopted for operating only with UP/DOWN button.

The cable and oil pipe are fully concealed, with decent and elegant appearance.

Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

24V low voltage control box( IP54 LEVE) ensures operator`s safety.

Cylinder travel limit switch effectively protects cylinder and extends its lifespan.

Emergency lowering valve can be manually operated to make lift lower safetly in case power is off.

Flow-control valve is deployed to make lift slower or stop lowering for the case of oil pipe explosion, thus protects operator`s safety and vehicle not being damaged.

CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.

 Door rubber pad protects car door from being damaged in collision.

More lifting pads with different height meets the requirements for light lorries and SUVs.



Asymmetric arms are optional



Passed 115% dynamic loading test and 150% static loading test



CE certificated



Technical parameters



Rated load capacity:4000KG

Lifting height:1850mm

Bottom clearance:110mm

Passing width:2486mm

 Overall width: 3370kw

Motor power: 2.2kw

Overall height:3860mm

Power supply voltage:3 PHASE/380V or Single phase/220V
