Product Name:MST 90+ Professional Voltage Regulator for car ecu programming voltage stabilizer 110V/220V
Product Type:MST 90+ Professional Voltage Regulator
Product Category:Popular Garage Tools
View Count:
Product Description





Note : please don’t start the engine during the process of power charging to the vehicle to avoid damage to the device caused by adverse charging



This charger is only suitable for 12V lead-acid battery charging



Description

Automotive Programming Dedicated Power  Output Characteristics

DC voltage: 14.2V

Rated current: 120A

Rated power: 1700W

Ripple and noise: 100mVp-p



Automotive Programming Dedicated Power  Input Characteristics

Rated input voltage: 220V (+/-20%)

Frequency range: 40-60HZ

Power factor: 0.95

Efficiency: 85%



Automotive Programming Dedicated Power  Protection Features

Overload: 90-110% of rated output power

Over-voltage: 15V

Operating temperature: -40 - +70 C



Safety: UL60950, TUV EN60950-1

Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC

Insulation resistance: I/P-O/P, I/P-FG:100M Ohms, 500VDC/25 /70%RH

EMC: EN55022, EN61000

1

2:When the battery is charging over or when the charger output current is lower than 3A or,it will display BATT FULL/DISAB..When the current is restored to 3.5A,the BATT FULL/DISAB prompt disappears.



3:When the charging current is over 100A or the output voltage of the device is higher than 15V,the device will automatically disconnect the DC output and at the same time illuminate the ALARM while the WARN indicator flashes,accompanied by drops of alarm sound.The display shows"Temper High"or"Current High". When the current or voltage back to the normal range,click the FORCF START button,will stop drip alarm.



4:When the internal temperature of the device is higher than 76℃,then WARN will start and sounds an alarm. When the temperature is over 80 ℃, the "Temper High" will be displayed, and the output will be disconnected



5:When the input of the equipment is over current or over voltage,it will burn out the inner tube. Please check the input current & voltage and then use.

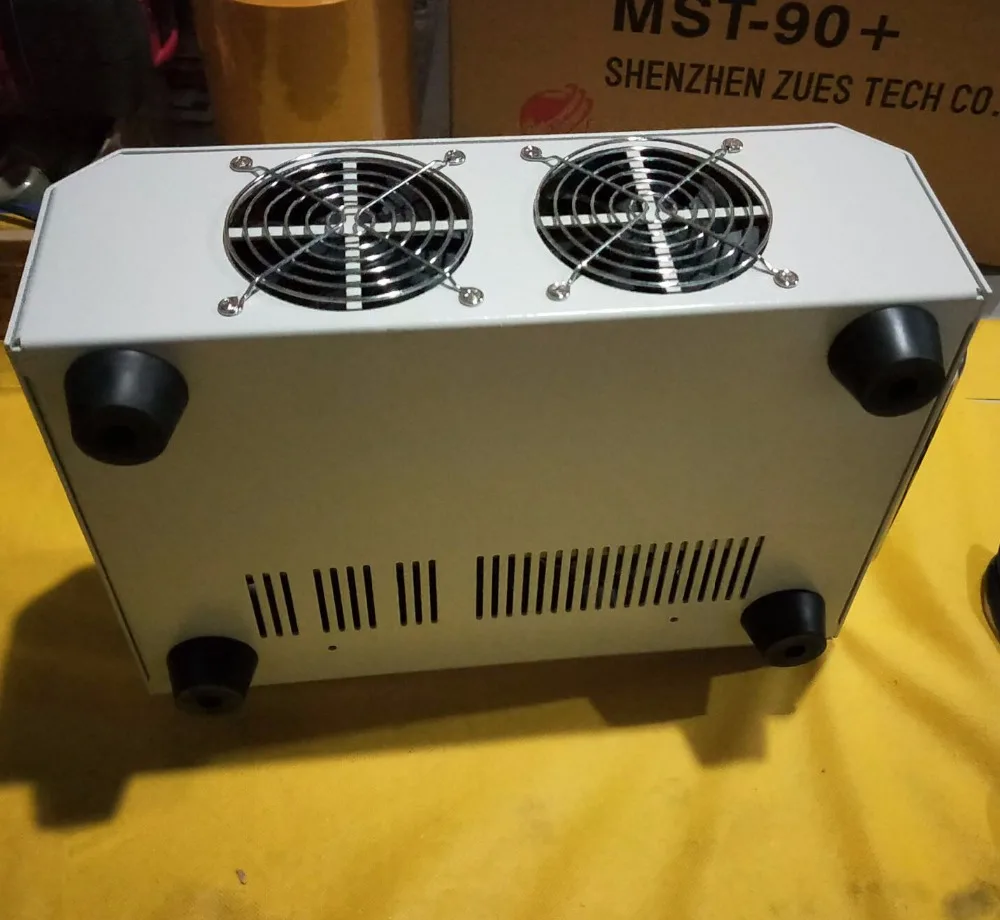

6.When the charger is turned on, the fan 1 is located at the back end of the machine,and the fan 2 can start at the same time.Ensure that the charger does not stop working and damage due to overheating.



Note:

1: Please use 10A or above of the power supply socket connected to the equipment. Please abide by the general rules of the safe use of electricity. A power supply socket with a ground wire must be used.

2:Verify that the connection between the positive and negative poles is correct when connecting the clip cable to the battery or vehicle.

3: After charging the wire into the connector, please tighten the right and ensure that the connection is reliable and then turn on the power switch.

4: The machine has high pressure, non professionals do not operate, so as not to shock.

5:This charger is only suitable for 12V lead-acid battery charging.



Automotive Power Processor Regulator MST 90+ 14V/100 Supply For Car ECU Programming Voltage

Applicable models: V-olvo, Porsche, V-olkswagen, A-udi, B-MW, M-ercedes-Benz, G-eneral Motors Etc.




Protection Features

1. P-FG: 1.5KVAC
2. Over-voltage: 15V
3. Working temperature: -40 - +85
4. Safety: UL60950, TUV EN60950-1
5. EMC: Complies with EN55022, EN61000
6. Withstand voltage: I / P-O / P: 3KVAC I /
7. Overload: 90-110% of rated output power
8. Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH




Characteristics

Input

-Efficiency: 85%
-Power Factor: 0.95
-Frequency range: 40-60HZ
-Rated input voltage: 220V (+/-20%)


Output:

-DC voltage: 14.5V
-Rated current: 0-100A
-Rated maximum power: 1500W
-Ripple and noise: 100mVp-p

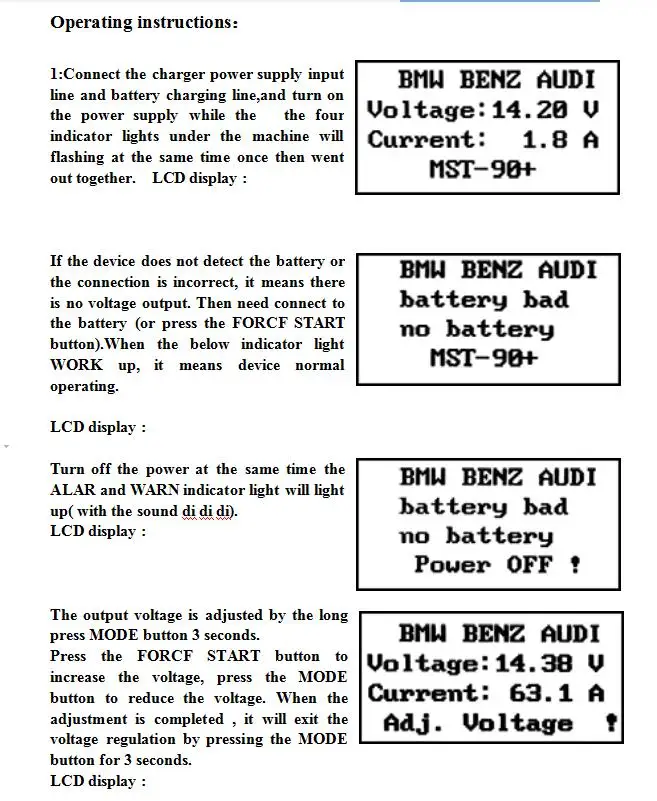

Operating Instructions

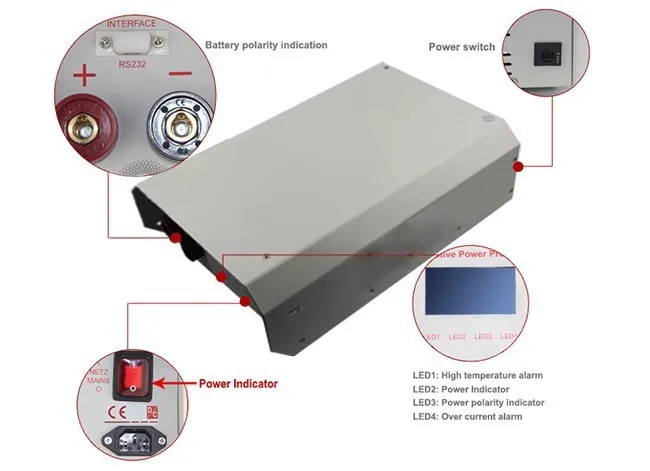

1. Connect power input line and battery charging wires, open power(LED1 will light) Display window will display normal charging voltage and current. And light LED2

2. Don’t charge over-discharger battery show voltage down 8V, will show (Battery bad)

3. When battery charge full, charger will cut-off in-put and show(charge end)

4. When charging current over 100A or charger out-put voltahe over 15V, this charger will cut-off out-put and light LED3, show(large charging) or (high voltahe)

5. When charger’s temperature over 60 degrees celsius, LED4(Yellow light) will light and open cooling fan at the same time.

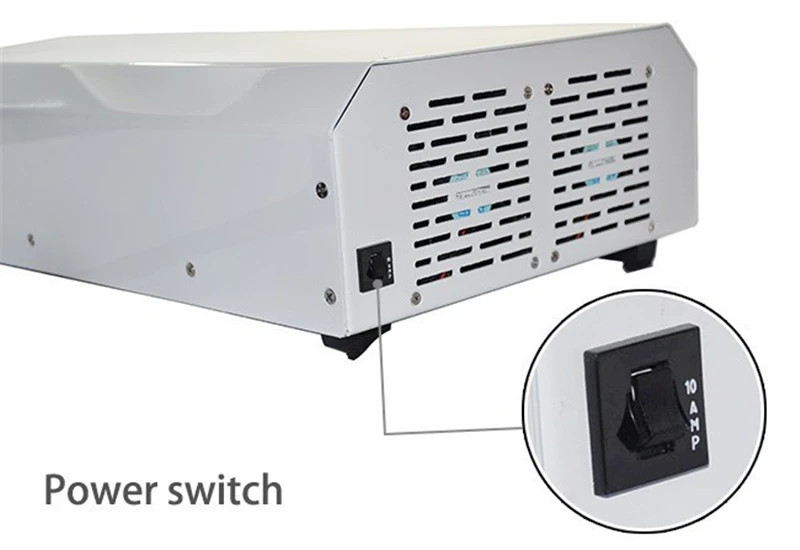

6. When charger input have problem of over-current, over-voltage, high temperature, breaker will automatic pop-ip, user need press in breaker and cheak whether circuit have problem.


Notice

1. Please use piwer socket over 10A

2. After connect charging wire, please screw tight tum right and screw tight.

Please confirm the connection is NO problem before turn on power.

3. Don’t operate charger when the power ON



Attention: It is prohibited to start the engine when charging!!!
