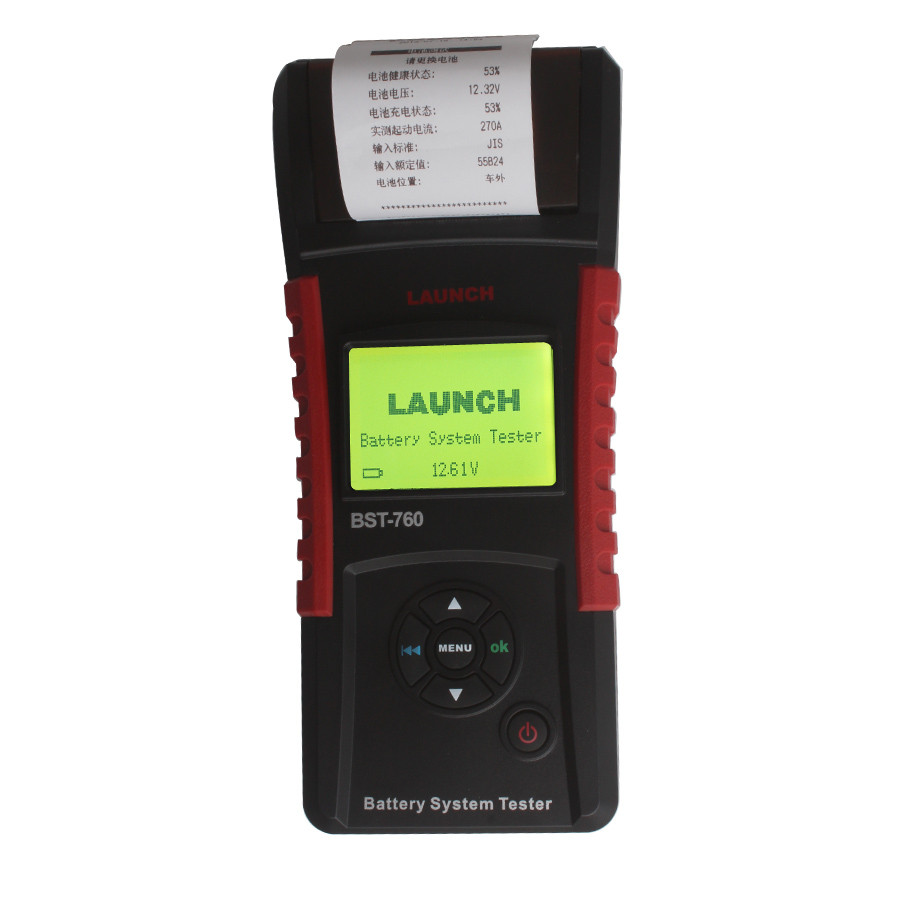

Launch BST - 760 Battery Tester in Mainland China
HighLights:
1. Languages: English, Russian,Chinese simplified, Chinese Traditional
2. Product Principle: The world's most advanced conductance test technology
3. Scope: Suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects
Product Advantage
Simple, secure , fast , and accurate display test results ( the test takes about 3 seconds)
Eight lines with backlight LCD display and humane language prompted interface
Does not emit light , no heat , no discharge , no spark , no operating dangerous
Configuration 0-900A AC and DC current clamp
Built - in thermal printer
Can store 100 groups of test results
Automatic temperature compensation function
With ripple voltage test function
Powerful auxiliary functions
Multi- language menu display
Replaceable test lines
Dedicated Kelvin test clip
Advanced Functionality
Applicable to a variety of models, all kinds of batteries , and a variety of system mode
Directly detected in the car , do not need to remove the battery
Directly test the battery of the loss of electricity , bad cell battery
Testable starting / charging current
Advanced Starter / Alternator Detection
Powerful Auxiliary Functions
View / Print
Ammeter Function
Thermometer
QC mode
License plate number input function
Time and time format Adjustment
User information input
Display backlight brightness adjustment function
Print sharpness adjustment
Standby power function
Test Criteria and Scope
CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )
BCI 100-2000 ( international battery Committee standards )
CA 100-2000 (0 ℃ when the effective starting current rating)
MCA 100-2000 ( ships standard effective starting current rating , 0 ℃ )
JIS 26A17 - 245H52 ( Japanese Industrial Standard)
Standard DIN 100-1400 ( German Automobile Industry Committee )
The IEC 100-1400 ( International Electrotechnical Commission standard )
EN 100-2000 ( European Automobile Manufacturers Association standards )
SAE 100-2000 ( U.S. Engineers Standard)
GB 100-1400 ( Chinese National Standard )
The Main Parameters
1 Shell ABS anti-acid plastic , soft rubber TPU corrosion-resistant package,two-color molding
2 128 * 64 dot matrix , large backlit display screen (3 inches ) adjustable brightness LCD display
3 The configuration of the 0-900A AC and DC current clamp
4 Built-in thermal printer , the test results can be printed out at any time
5 Can store 100 groups of test results data , ready at any time to view and print any of a group of test data
6 Test standards , including the most commonly used battery standard,such as CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
7 Operating Temperature: -20-60 ℃ (-4-140 ℉)
Launch BST - 760 Battery Tester Function:
760 has 2 battery:one is used on the host, it can be tested without battery but have not backup power supply function.the other battery is used on current clamp.
The backup power supply function is the 15th auxiliary function. Some luxury vehicle ECU Power can't be cut.If the power failure,it will be locked. So when change storage-battery for luxury vehicle,760 can supply power to ECU.
