Product Description

Best Quality Tech2 for GM Diagnostic Scanner For GM/SAAB/OPEL/SUZUKI/ISUZU/Holden

Top 4 Reasons to Get Best Quality Tech2 for GM:

1. Multi-langauge: English, Italian, French, Portuguese, German, Spainish, Korean, Japanese, Thai, Chinese
2. Update: via 32MB Software Card, when there is newer version, you can just buy new card to update
Tech2 for GM Software Version:
GM           English 32.007
SAAB       English 148
OPEL      English 165 (Support Cars from 1997-2014)
Holden    English 149 (Support Cars from 1999-2013)
SUZUKI  English 01.210.020
ISUZU     English  K line 11.53
                                 CAN line 107.021
3. Support Car Models: GM, SAAB, Opel, Suzuki, Isuzu, Holden
4. Year Coverage of Diagnosis: From 1992 to 2013, With Help of Tis2000 Software, It Can Do Programming for Cars Before Year 2007

Notice:
1. It Can Only Support GM Cars, No Trucks
2. One Device Has One 32MB Card As Default, If You Want More, Please Buy Additional 32MB Memory Card
3. Customer may get confused which GM TECH2 to choose, as we have 5 different kinds on sale, to make it clear
If you want GM Tech2 with carton box to save shipping cost, please try this Carton Package Tech2 Diagnostic Tool for GM
For the rest 4 kinds, just from different factory, normally the one with higher price quality is better too.

Tech2 for GM Connection with Candi interface Picture

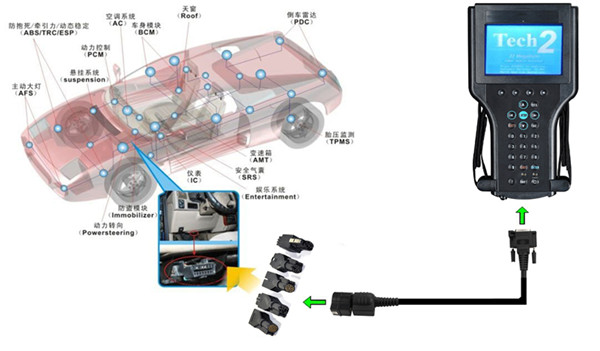

Tech 2 for GM Connection without Candi interface picture

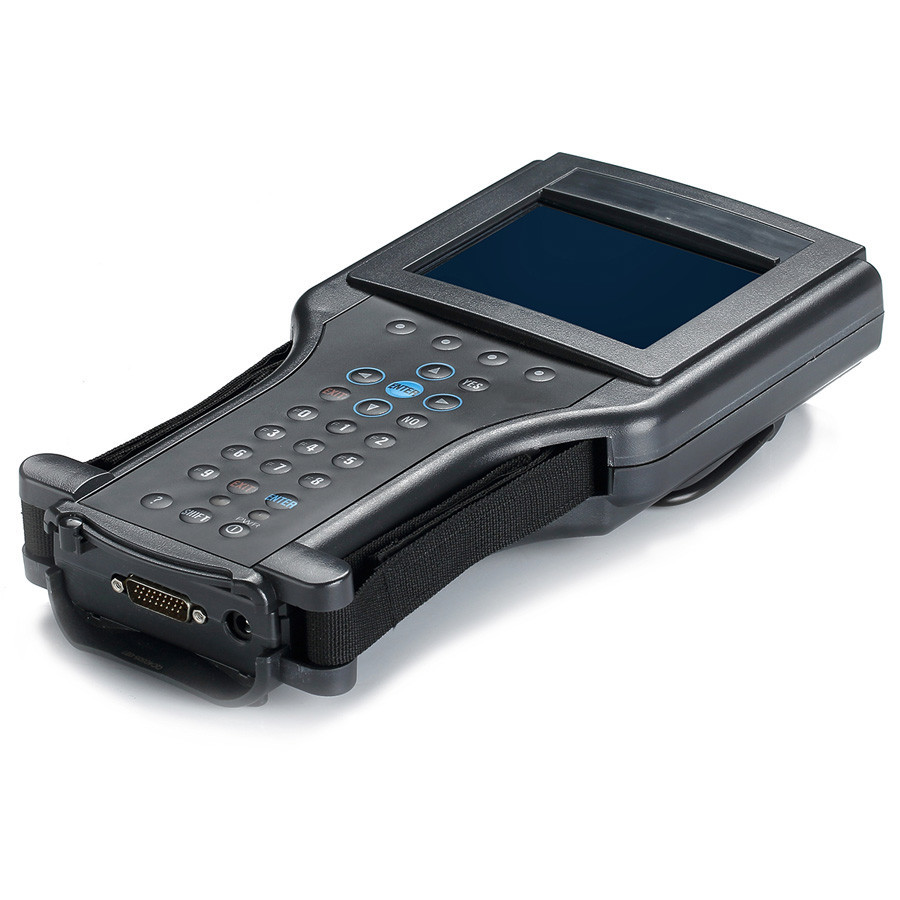

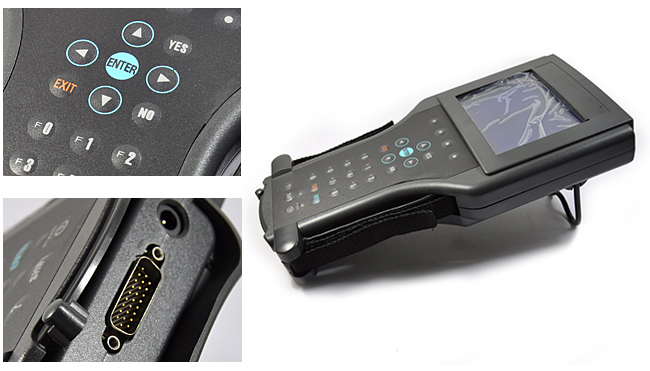

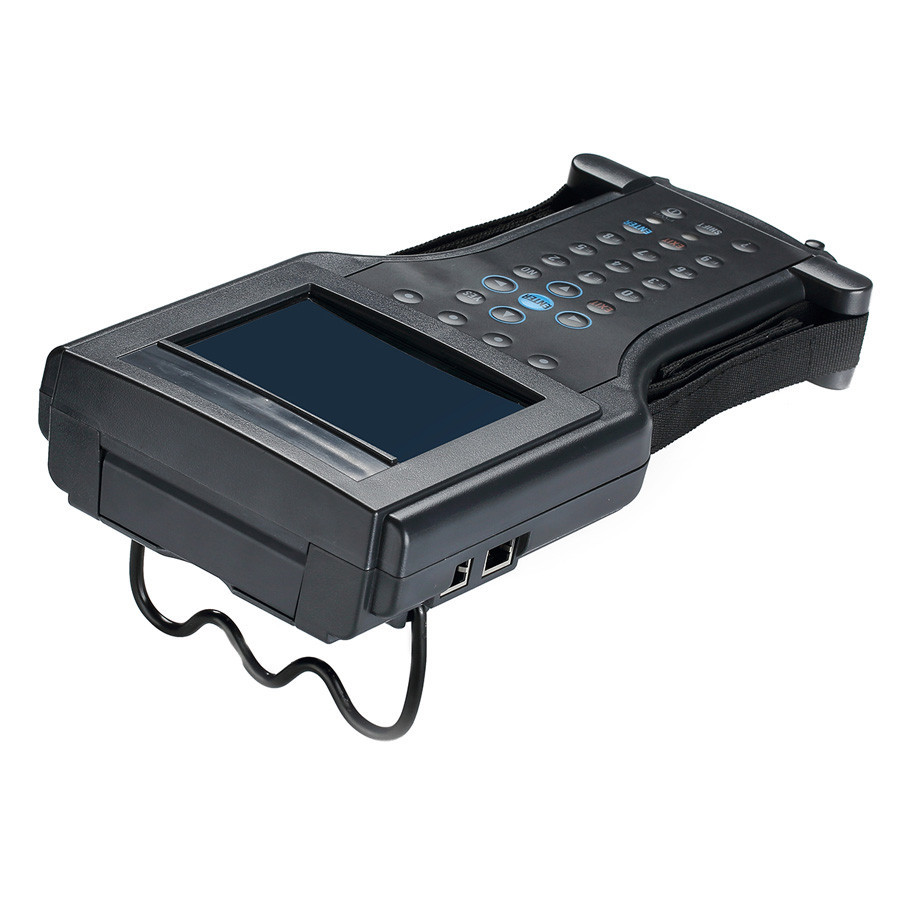

Tech2 for GM Description:

The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2011.
Car model supported: GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN

Tech2 for GM Specification:

1) Dimensions: 12
2) Microprocessor: 32 bit,16 MHz

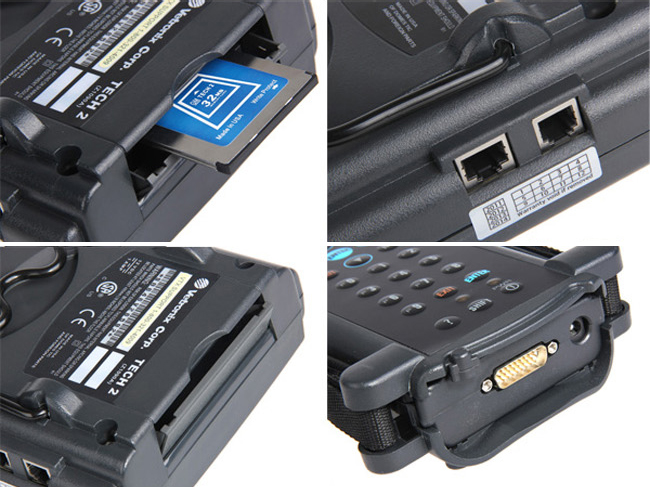

3) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
4) Communications: Integral RS232 communication port.

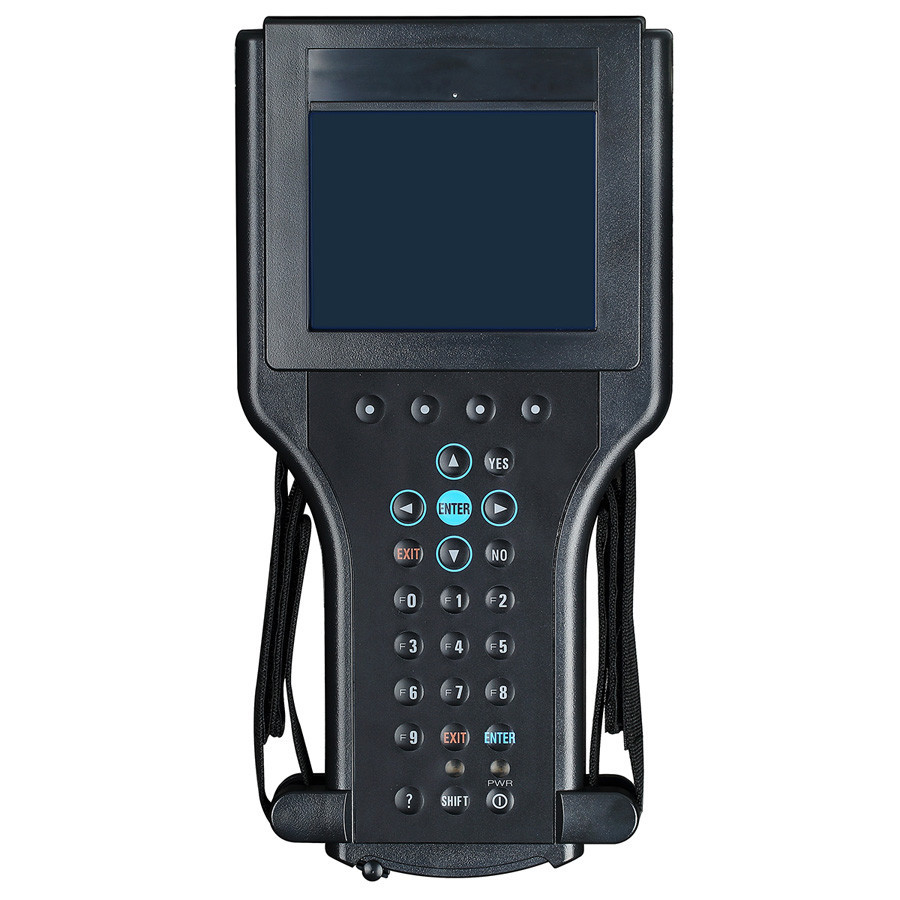

5) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

Tech2 for GM Features

1) Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2) Support for on-board diagnostics on all GM systems 1992 thru 2011.
3) Removable hardware modules provide insurance against scan tool obsolescence.
4) Large, easy-to-read backlit screen.
5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

The Following GM Vehicles Utilize The CAN Interface

05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

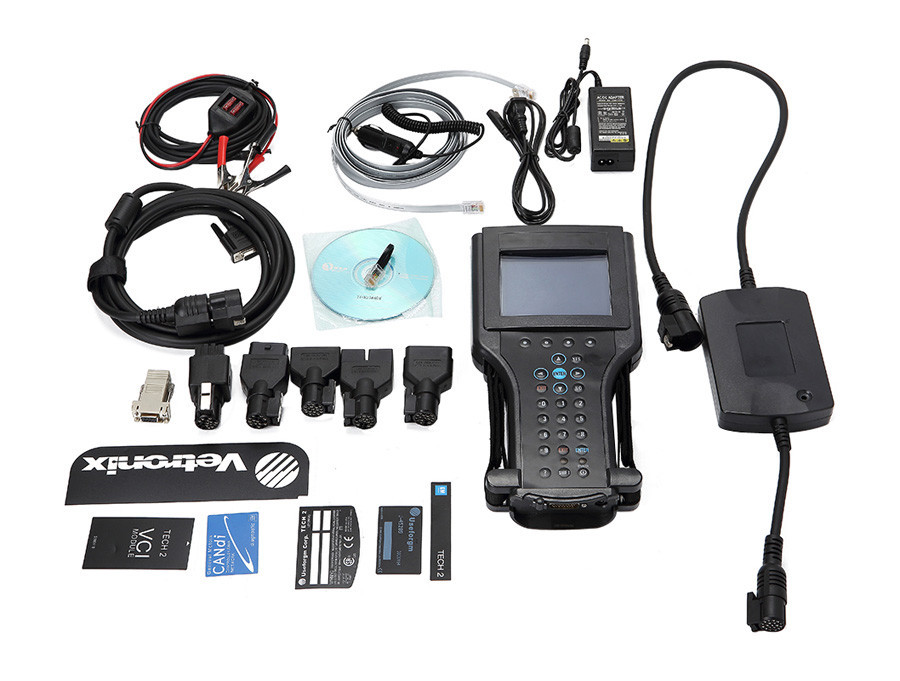

Tech2 for GM Package List:

Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications
CAN diagnostic interface module(Candi) and instruction sheet download (199.2 kb)
RS232 cable and user manual
RS232-DB9 adapter
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable

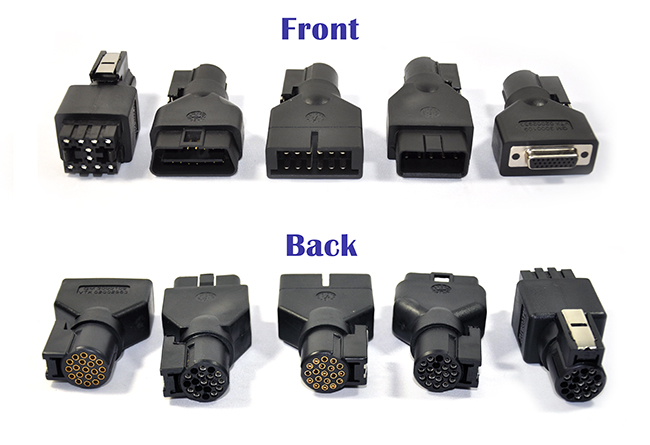

SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable

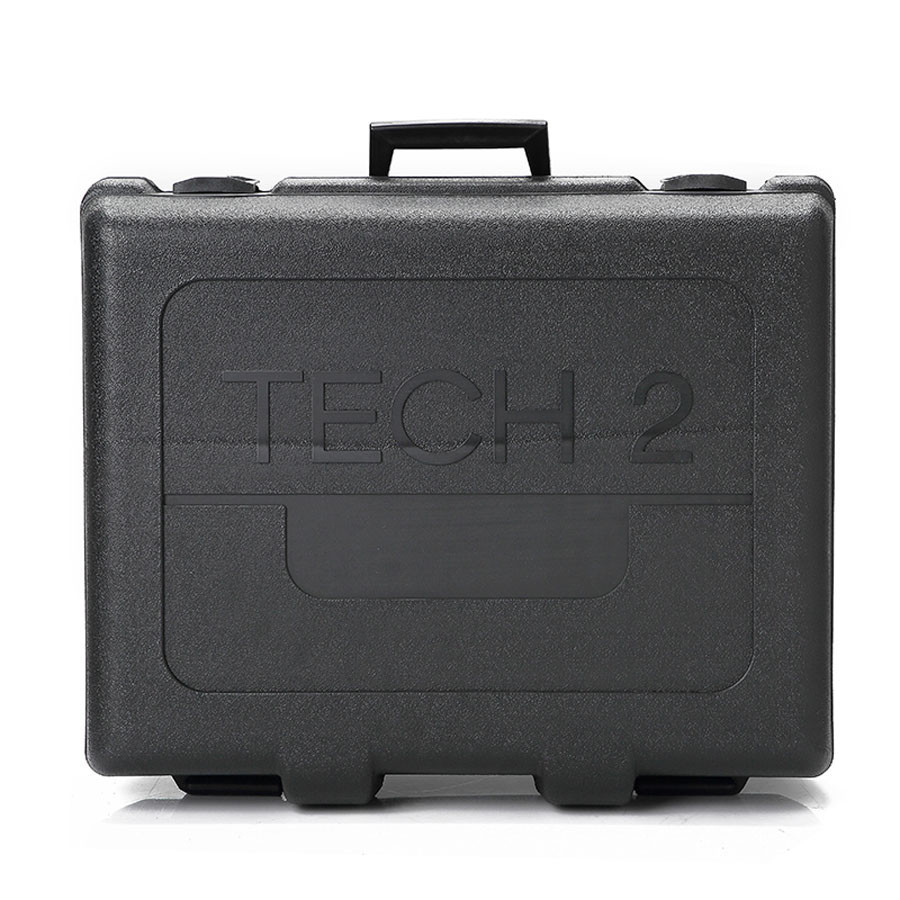

Storage Case
TIS 2000 CD

Tech2 for GM FAQ:

Q1: Does Tech2 for GM Support Coding?
A1: Yes, it does, but you need to buy an additional TIS2000, TIS2000 support cars programming until 2007 year.

Q2: Can TECH2 support key coding and electronic control unit programming for all OPEL and Isuzu?
A2: Tech 2 for GM diagnostic scanner can't support key programming; as for electronic control unit programming, you need to additionally buy a GM TECH2 and a TIS2000, but TIS2000 only support GM and Opel, not support Isuzu.

Q3: TECH2 for GM contains Saturn software?
A3: yes, Saturn software is included in the GM software English and support from 1991 to 2010 year.

Q4: Is TECH2 for GM available on my Cadillac year 1996?
A4: Yes, it works with Cadillac.

Q5: Does Tech2 for GM work with Australian Holden 1998?
A5: Tech2 for GM diagnostic scanner is only compatible with North American Holden, and our software for Holden only work with Holden from 1999-2012.
