Product Description

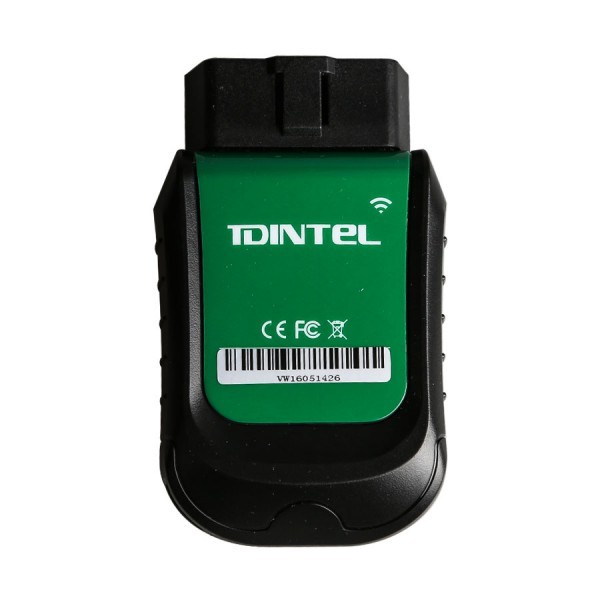

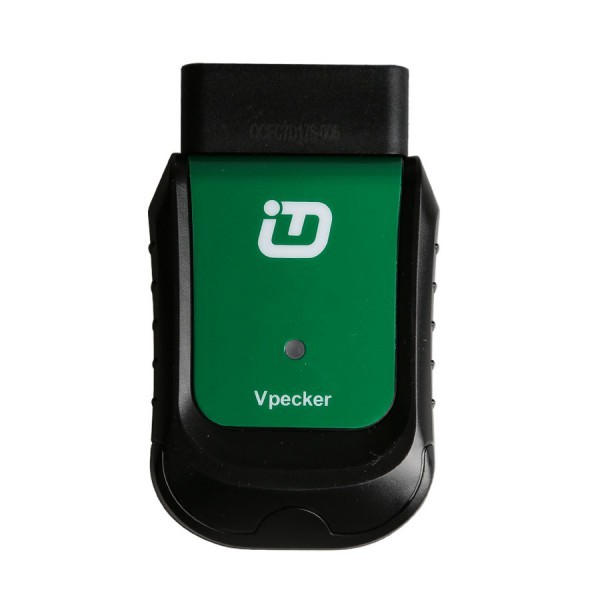

Powerful VPECKER Easydiag Wireless OBDII Full Version Diagnostic Tool V8.2 Support Wifi with Special Function

Top 11 Reasons to Buy VPECKER Easydiag:

1. Languages avaliable: Supporting 25 languages, including Italian, Chinese (Simplified), English, Chinese (Traditional), Japanese, German, Russian, French, Spanish, Portuguese, Polish,Turkish, Dutch, Hungarian, Korean, Czech, Arabic, Indonesian, Persian, Thai, Vietnamese, Finnish, Swedish, Romanian, Bosnian, etc.
2. Complete function capability including live data, ECU programming and so many others.
3. Unparalleled OBDII functionalities-support ALL 5 OBDII protocols and ALL 10 test modes.
4. Automatic Wi-Fi updates available in new software releases. Wi-Fi internet capability allows for wireless access throughout the workshop.
5. Can check out the year and model of the vehicles automatically and quickly.
6. Can work stably in high and low temperature environment, and work well.
7. The genuine Windows XP~10 operating systems allows for more stable performances, better compatibility and expandability
8. Extremely easy-to-use with touch-screen operation and intuitive operation in the windows.
9. Software support online update.
10. Hardware architecture uses a new design with multiple protection, interference and stability. Built-in overvoltage protection module is applied, in order to protect scanner and vehicle against accidental damage during checking.
11.Extensive vehicle coverage for more than 70 US domestic, Europea, Asia, Australia and Chinese vehicles makes.

VPECKER Easydiag Newly Released Software:

Region Name Version Update Information
EUROPE LANDROVER V13.0 1. Update the database to 2015
2. Add special functions for main system, the detail see the function list.
EUROPE JAGUAR V13.0 1. Update the database to 2016.
2. Add special functions for main system, the detail see the function list.
EUROPE PORSCHE V13.0 1. Update Cayenne to 2015.
PRO SUBARUPRO V18.1 Fix the bugs for TPMS.
PRO TOYOTAPRO V12.2 Fixed the bugs to support AVANZA before 2011.
ASIA TOYOTA V12.2 Fixed the bugs to support AVANZA before 2011.
ASIA PERODUA V13.1 Fix bug for air bleeding function of ABS 9.8.1.
MSS TPMS V18.0 1.Add: BMW, FORD, HONDA, LEXUS, NISSAN, PORSHE, TOYOTA
MSS EPB V19.1 1.Add: DAEWOO, GM, OPEL, SAAB, RENAULT, VAUXHALL
MSS TPMS V19.0 1.Add: JAGUAR, LANDROVER, SUBARU
MSS EPB V20.1 1.Add: JAGUAR, LANDROVER, SUBARU

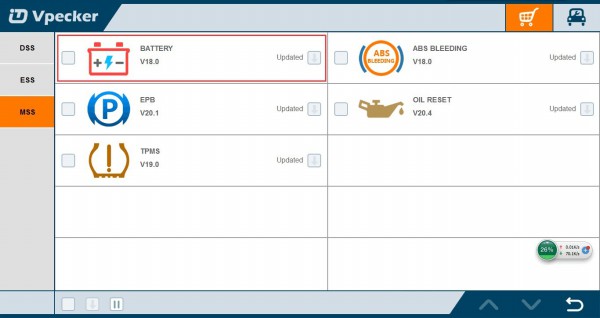

Special Function including:

Battery configuration, ABS Bleeding, EPB, Oil Reset, TPMS

Update Information:

1.Vpecker V6.9 Update Contect:
     1.Improved the communication link layer
     2.Improved the supporting for bluetooth connection
     3.Fix some display bugs

V6.9 Oil Reset Function Update

1. Vpecker Client V6.8 (Update from "Setting -> Update" )
      1. Support the BlueTooth connection. (Need Bluetooth Version VPecker Easydiag, will release soon)
      2. Optimize the WIFI connection and license checking.
      3. Optimize the production activation.
      4. Fix some display bugs

2. SUBARU PRO V18.0 in ESS (Update from "Online store")
    Covered up to 2015 models: Legacy, Outback, Forester, SUBARU XV, WRX STI, Tribeca, etc.

3. MITSUBISHI PRO V18.0 in ESS (Update from "Online store")
    Covered up to 2015 models: 380, 73 TRUCK, ADVENTURE, CHALLENGER, CHARIOT, CLIPPER, COLT, DELICA, DION, ECLIPSE, EK-WAGON, ENDEVOR, EXPRESS, GALANT, GRANDIS, L200, L300, LANCER, MAVEN, MINICA, MINICAB, MONTERO, OTTI, OUTLANDER, PAJERO, TOWNBOX, TRITON, ZINGER/FUZION, i.

4. OIL RESET V18.0 in ESS (Update from "Online store")
    Covered up to 2014 models: Citroen, Peugeot, Mini, Lincoln, Pontiac, Rover, Saturn, Vauxhall, Cadillac, Chevrolet, Chrysler, Dacia, Daewoo, Ferrari, Opel, Buick, Maserati, Saab, OLDSMOBILE, Renault, Volvo, Besturn, Acura, BYD, Holden, Dodge, Ford, Honda, Infiniti, Isuzu, Jeep, Lexus, Nissan, Romeo, Scion, Subaru, Toyota, Suzuki, etc.

Feedback:

1. What it can do more with special functions its for Toyota, Honda, Scion. But since it is original interface and software price is ok for it
2. So for now vpecker is good becuause it is even more faster then launch and original for good price, but not even close to delphi or launch because of the functions that it cannot do.
3. Tested today on Kia Cerato petrol,and finally some result, it haves options like launch idiag only one function is not there and that is brake fluid bleeding,all the rest functions are the same.
So far all cars that i have tested this one is the first one that haves some extra functions...
4.  I have tried today on VW Golf MK IV 1.9 tdi, haves a lot of functions, this time even more then launch idiag,it haves even guided function, and a lot special functions, and login, that is the first that vpecker works even better...
5. I have tested today on ASTRA J 2011 1.7 cdti wroks ok,haves special functions not a lot but ok. But it works until 2011,..
6.  BMW 530d E60 engine connect , but only read/erase fault code and live data, service reset (Tested) Vpecker can do injector cooding for a part of Toyota models.

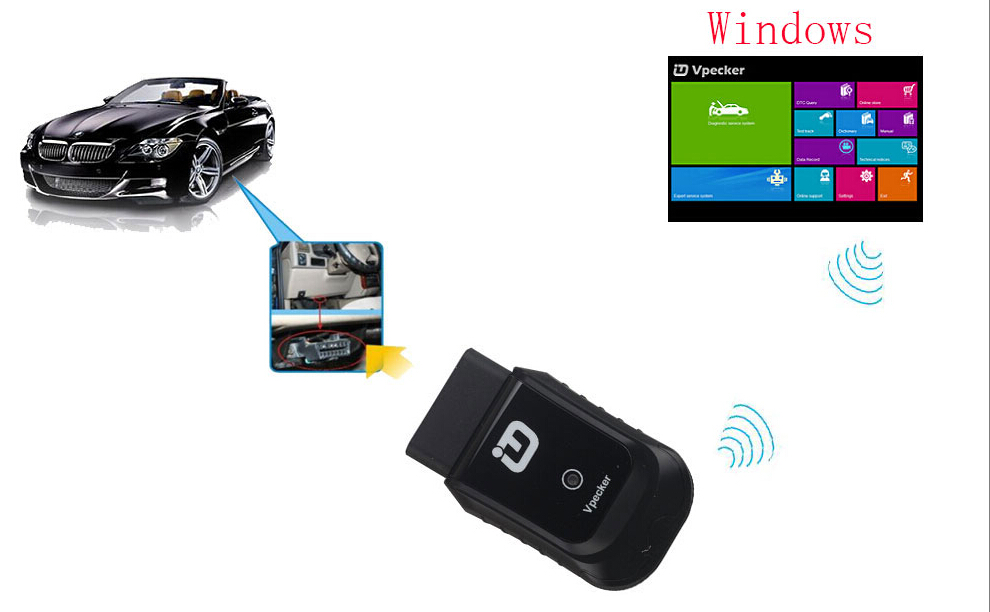

VPECKER Easydiag Connect to Pad:

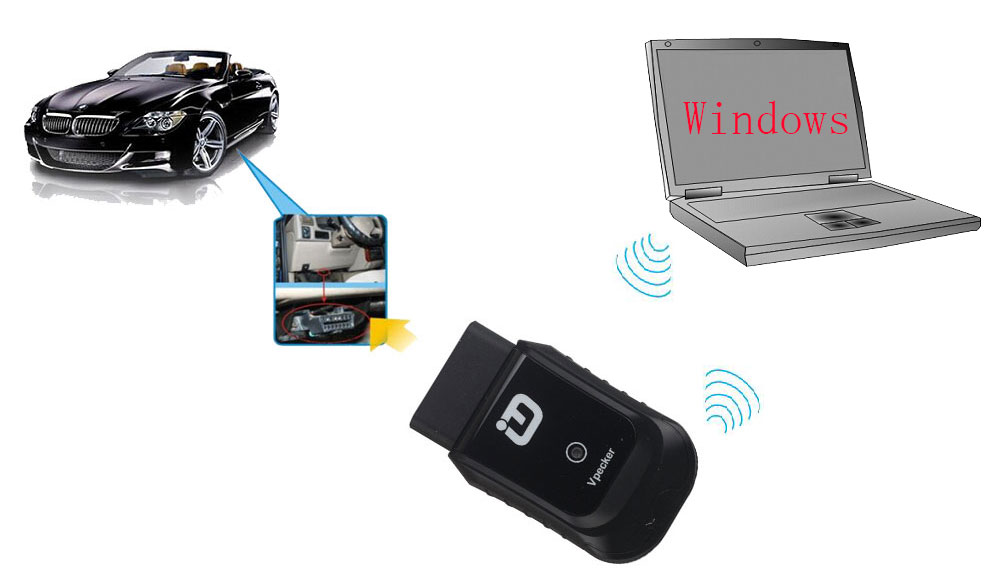

VPECKER Easydiag Connect to Laptop:

Warranty: Two years free for VPECKER hardware replacement and lifetime maintenance.

VPECKER Easydiag Specifications:

Operating System: Windows XP~windows 10
Processor: ARM 32-bit Cortex processor
Communications: 802.11 b/g Wireless LAN
Input Voltage: DC 8-18V
Operating Temperature: -10 to 70 ℃(14 to 158 ℉), Relative Humidity: <90%
Storage Temperature: -30 to 120 ℃(-22 to 248 ℉), Relative Humidity: <90%
Dimension: 150mm (5.91”) * 94mm (3.70”) * 40mm (1.57”)
Unit Weight: NW:0.07kg (O.154lb) GW:0.166kg (O.366lb)
Protocols: UDS, ISO 9141-2, K/L lins, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898
ISO 15765-4, High speed, Middle speed, Low speed and Single wire CAN.

VPECKER Easydiag Support Vehicle list has been updated already, if you bougth this before, update your tool online

VPECKER Easydiag Support Vehicle list Display

VPECKER Easydiag Vehicle Coverage:

1. USA
Chrysler, Ford, USA GM, Jeep, Scion

2. European:
Abarth, para Alfa, para Aston, Audi, Bentley, Mercedes Benz, BMW, Bugatti, para Citroen, Dacia, Ferrari, Fiat fordeu, Jaguar, Lamborghini, Lancia, Landrover, Maserti, Mini Cooper, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, elegante, Vauxhall, Volvo, VW

3. Asia:
Acura, ASIA GM, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Para Mazda, Mitsubishi, Nissan, Perodua, Protón, Ssangyong, Subaru, Suzuki, Toyota

Notice: The version for proton car type has updated to V13.0

VPECKER PROTON V13.0
1. Add PERSONA ENGINE Easy-U 1.0
2. Add New SAGA 2008~ 1.3L Engine,Transmission,Airbag.
3. Add New SAGA 2009~ 1.6L Engine,ABS,Transmission,Airbag.
4. Add EXORA 2009~ 1.6L Central electronic.
5. Add EXORA BOLD 2009 1.6L Engine,Transmission,ABS,Airbag,Central electronic and ESP.
6. Add PREVE 2012 1.6L Engine,Transmission,Airbag,Central electronic and ESP.
7. Add SUPRIMA 2013~ 1.6L Engine,ABS,Transmission,Airbag,Central electronic.

4. Australia:

Holden, Ford (australia)

5. Chinese:

BYD, Changan, Changhe, Chery, Emgrand, Englon, Foton, Geely, GLEAGLE, GWM, HBSH, Huachen, Lifan Wuling, de yuanes

6. OBD-II:

Chrysler, Ford, USA GM, Toyota, Lexus, Honda, Hyundai, Kia, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Abarth, Aston Martin, Bugatti, Ferrari, Lamborghini, Maserti, Benz, BMW,
VW, Audi, Seat, Skoda, Porsche, Jaguar, Land Rover, Volvo, Saab, Alfa

VPECKER Easydiag System Coverage:

ME-Motor electronics, CDI-Common Rail Diesel Injection, ETC-Electronic transmission control, ESM-Electronic selector module, SBC- Sensotronic Brake Control,
ESP-Electronic stability program, BAS-Brake assist, Suspension, TPC-Tire pressure monitor, Airbag, CGW-Central gateway, EIS-Electronic ignition switch,
OCP-Overhead control panel, UCP-Upper control panel, XALWA-Xenon headlamp, HRA-Headlamp range control, ATA-Anti-theft alarm system, IC-Instrument cluster,
ASSYST-Active Service System,  SCM-Steering column module,  EPS-Electrical power steering, PTS- Parktronic system,  EPB-Electric parking brake,  COMAND/AUDIO, CD/DVD, TV tuner, CTEL-Cellular telephone, DCM-Door control module, ESA driver-Electric seat adjustment driver, ESA passenger-Electric seat adjustment passenger, AAC-Air conditioning, WSS-Weight sensor system, SVMCM-Special vehicle multifunction control module, etc.

VPECKER Easydiag Function Coverage:

Quick Test, Read ECU Info., Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations, Read freeze frame data, Read/Write VIN, Basic Reset, Control unit adaptations, Throttle adaptations, Air bleeding, Level calibration, Theft alarm Reset, Key programming, Oil change, Idle speed learning, Idle speed Adjustment,  Ignition timing adjustment,  Camshaft timing control learning, Maintenance functions, ECU Initial startup, ECU initialization, etc.

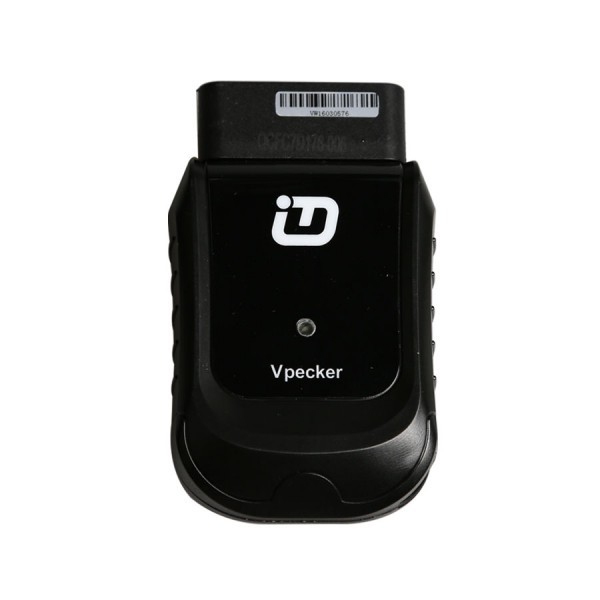

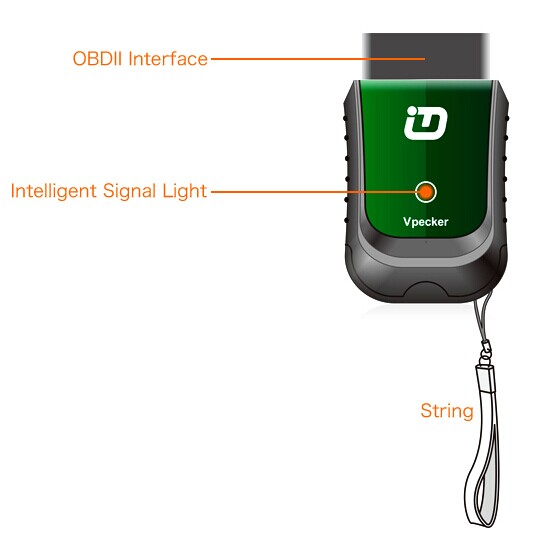

VPECKER Easydiag Wireless OBDII Full Version Diagnostic Tool Profile:

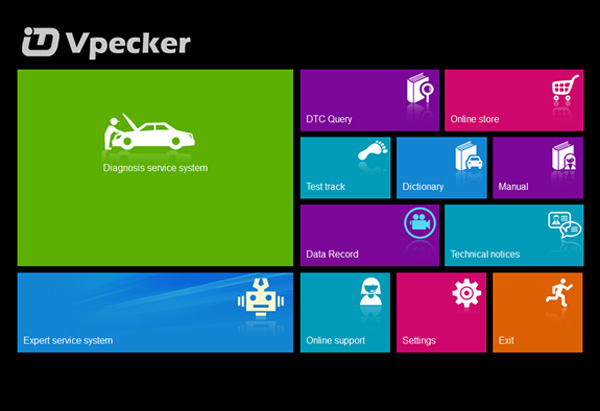

VPECKER Easydiag Software:

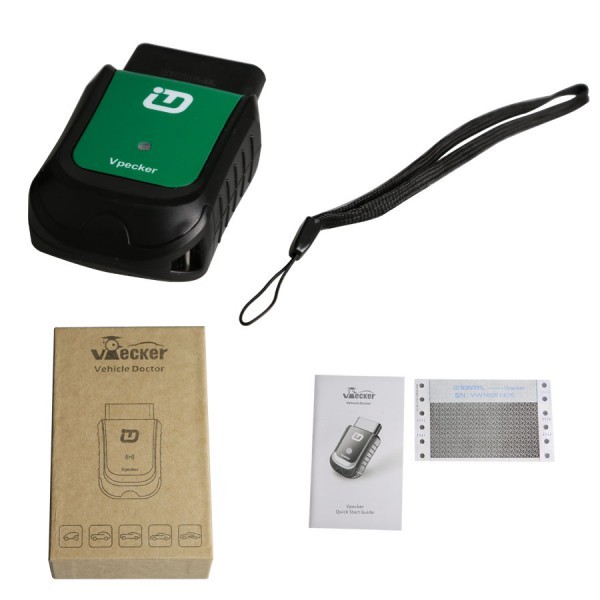

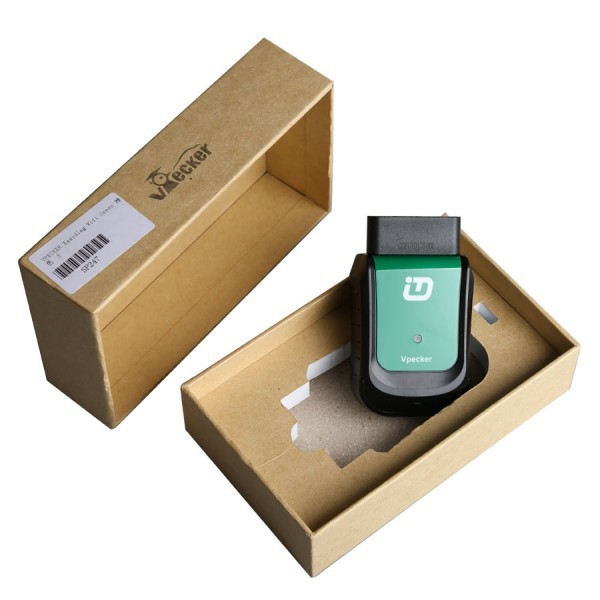

Package including:

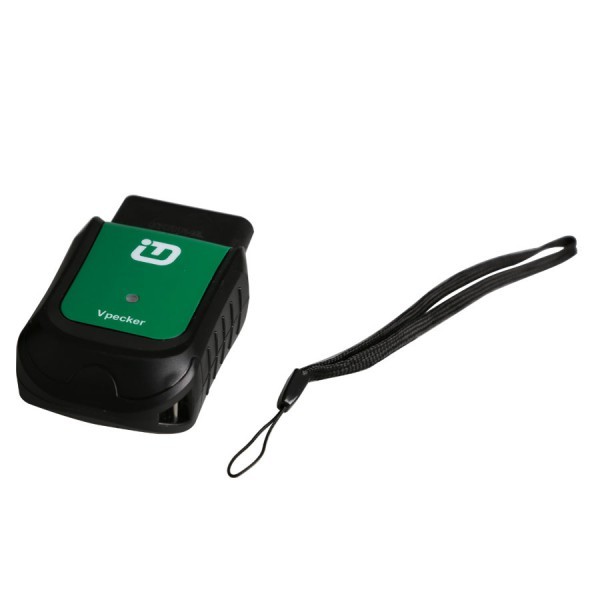

1pc x VPECKER EASYDIAG
