Product Description

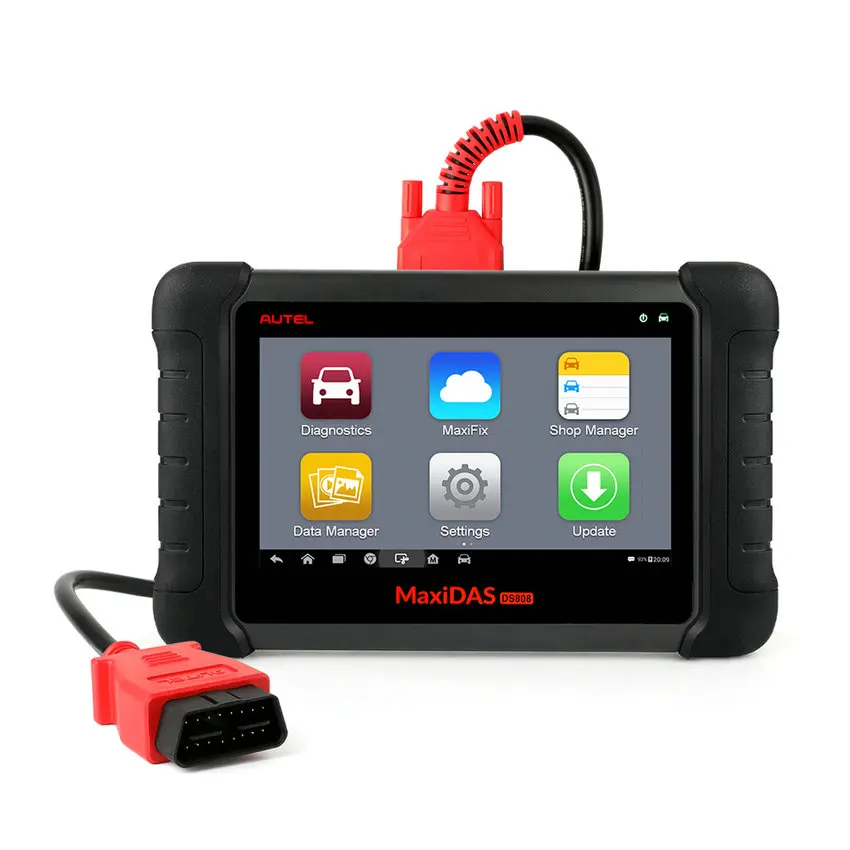

Latest AUTEL MaxiDAS DS808K (With Conkit) full set Handheld Touch Screen Autel Diagnostic Tools Update Online







AUTEL MaxiDAS DS808K full set VS MaxiDAS DS808:

The only difference: DS808K is full set, MaxiDAS DS808 is standard set. Please confirm by checking their packge list.
Same: same functions and same MUX specification

Autel Maxidas DS808K Support Customized Languages besides English. If you need to change device languge, please send us serial number and your location first. And it will cost usd110.
We can authorize other language like Korean,  Russian,  Portuguese, Italian, Dutch & Swedish.

Free Update Online for One Year, after one year, it will cost 349.5usd per year.

MaxiDAS DS808K (With Conkit) Features:

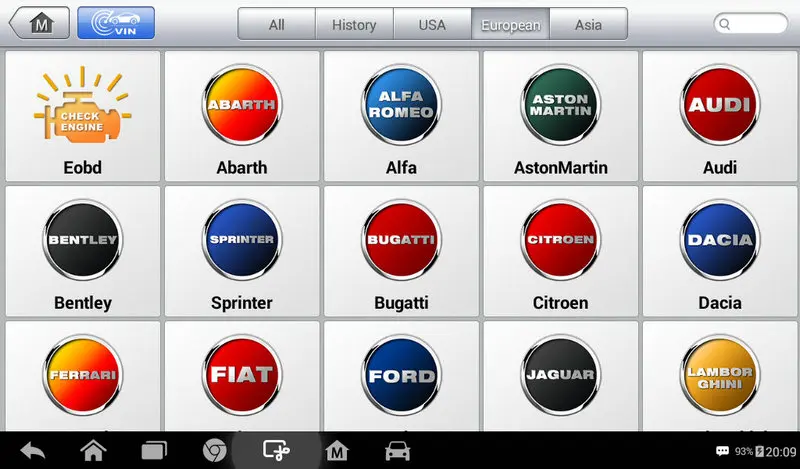

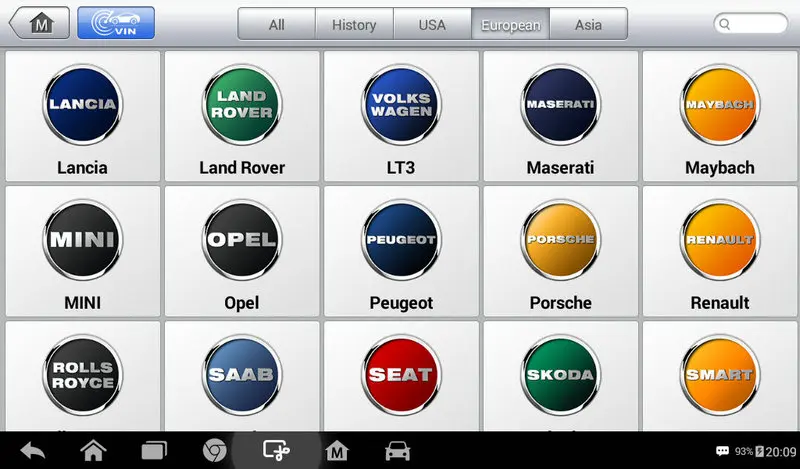

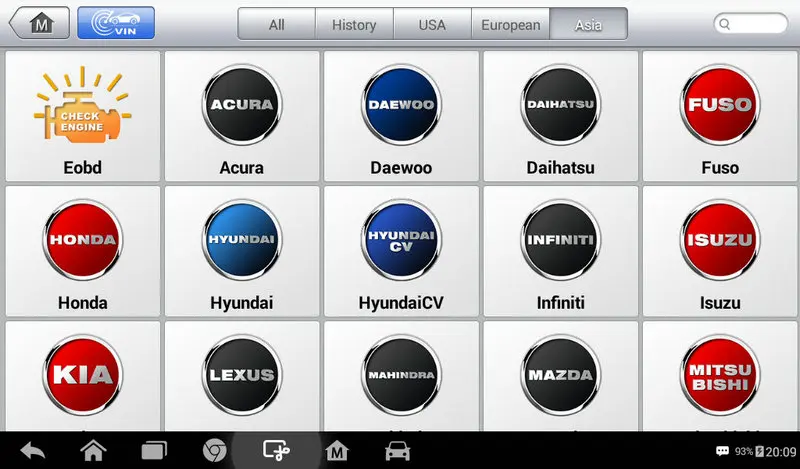

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

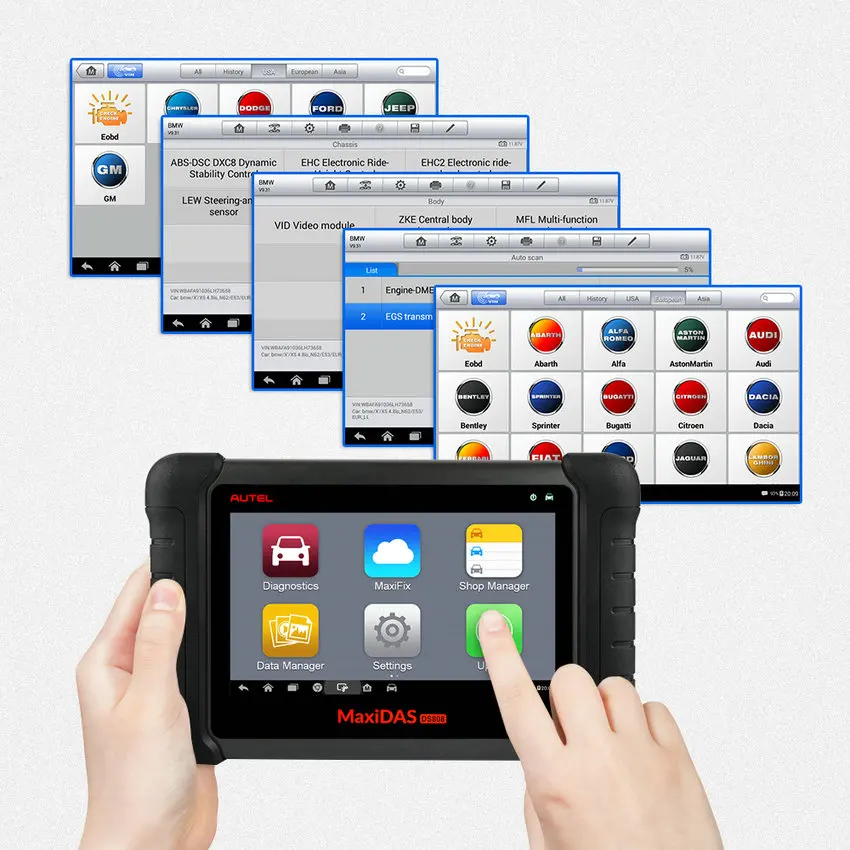

Note: There are two options available when accessing the Diagnosis section:

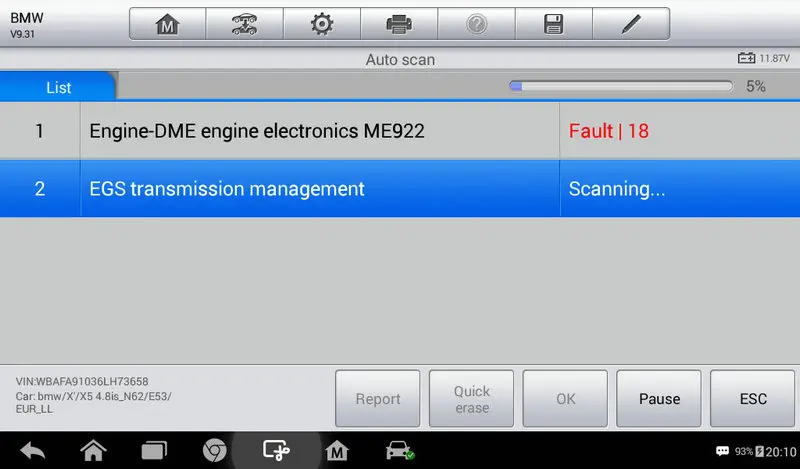

1. Auto Scan – starts auto scanning for all the available systems on the vehicle.

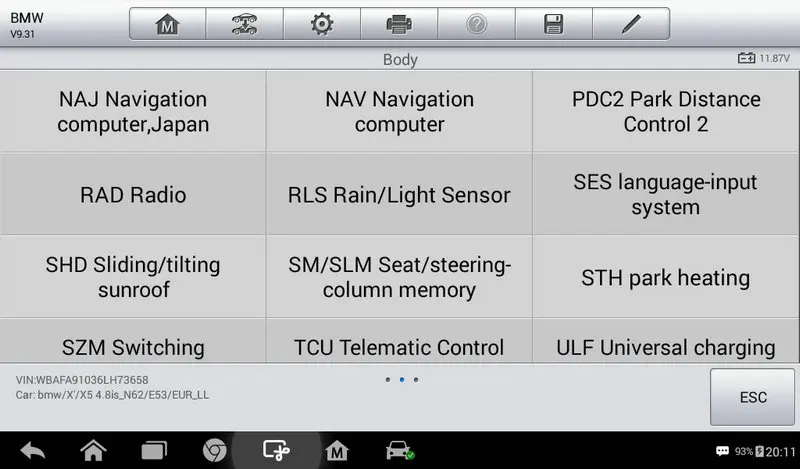

2. Control Units – displays a selection menu of all available control units of the test vehicle.
After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.
Supported Automotive Protocols:

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

How to update Autel DS808K (With Conkit) software:

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.

2. Tap the Update application button from the MaxiDAS Job Menu;
or tap the update notification message when received one;
or tap the Update icon on Vehicle Menu in Diagnostics application.
The Update application screen displays.

3. Check all available updates:
If you decide to update all the items, tap the Update All button.
If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume
from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

MaxiDAS DS808K (With Conkit) Specifications:

Operating System:Android™ 4.4.4
Processor:Cortex-A9 processor (1.5 GHz)
Memory :32GB

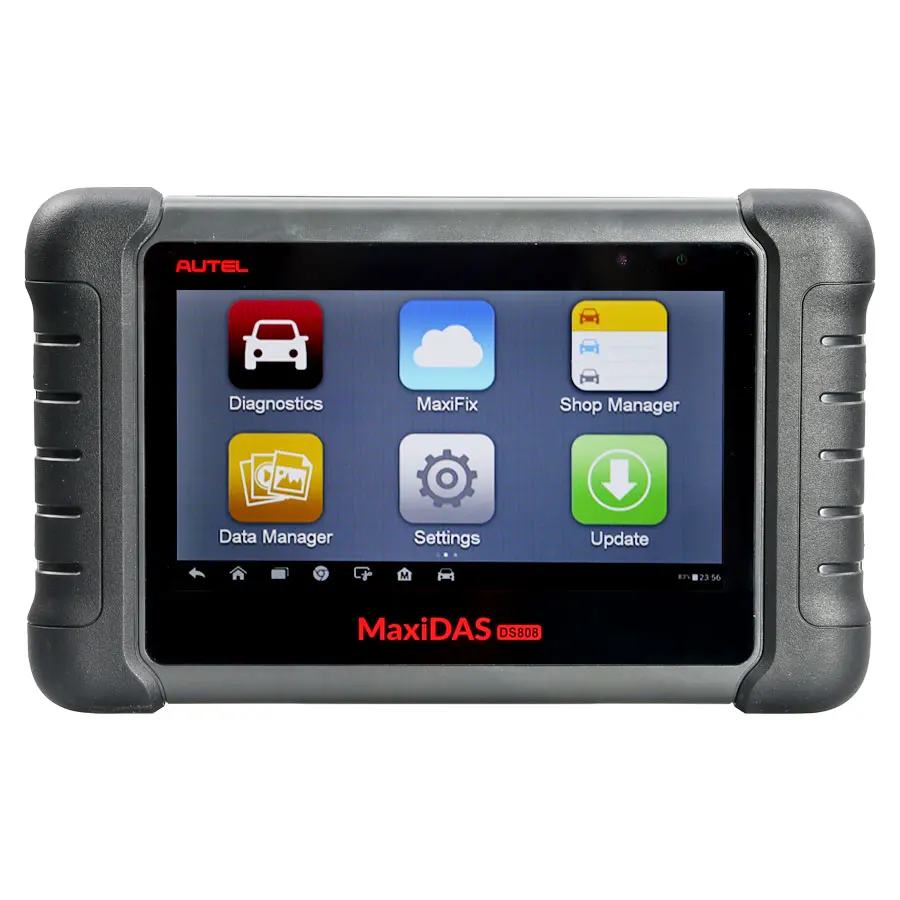

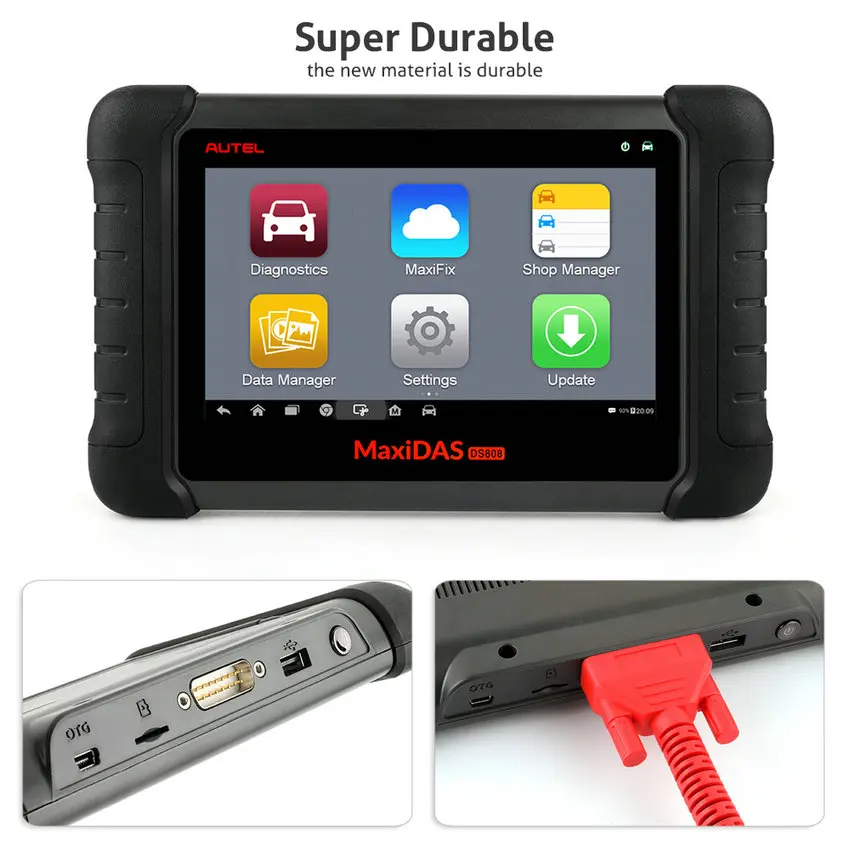

Display:7-inch LCD capacitive touchscreen with 1024x600 resolution

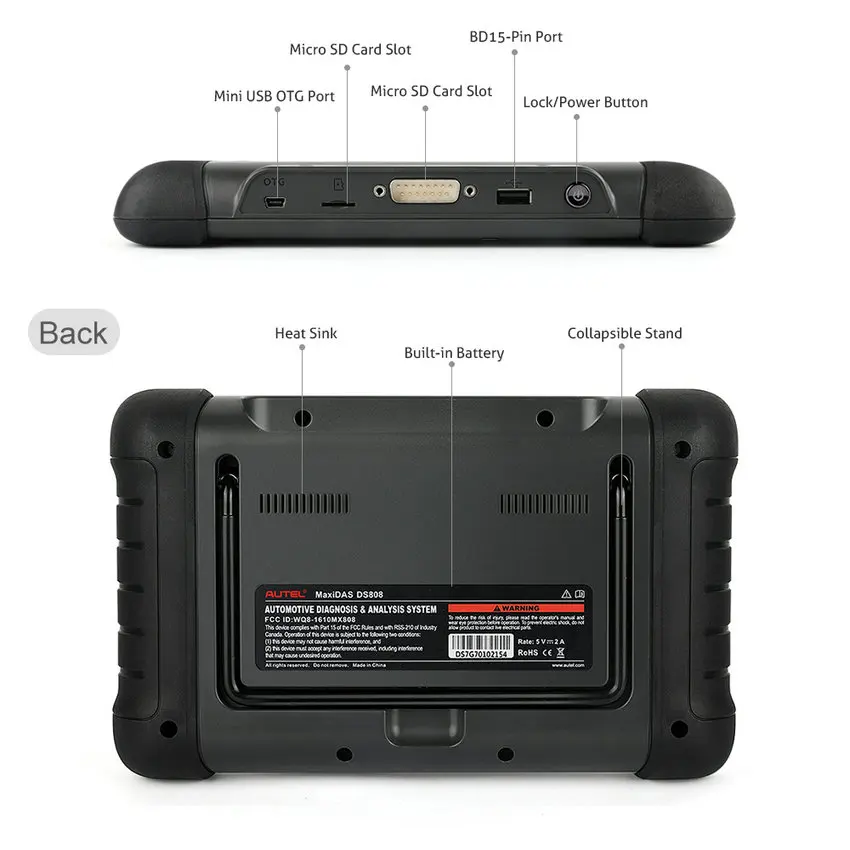

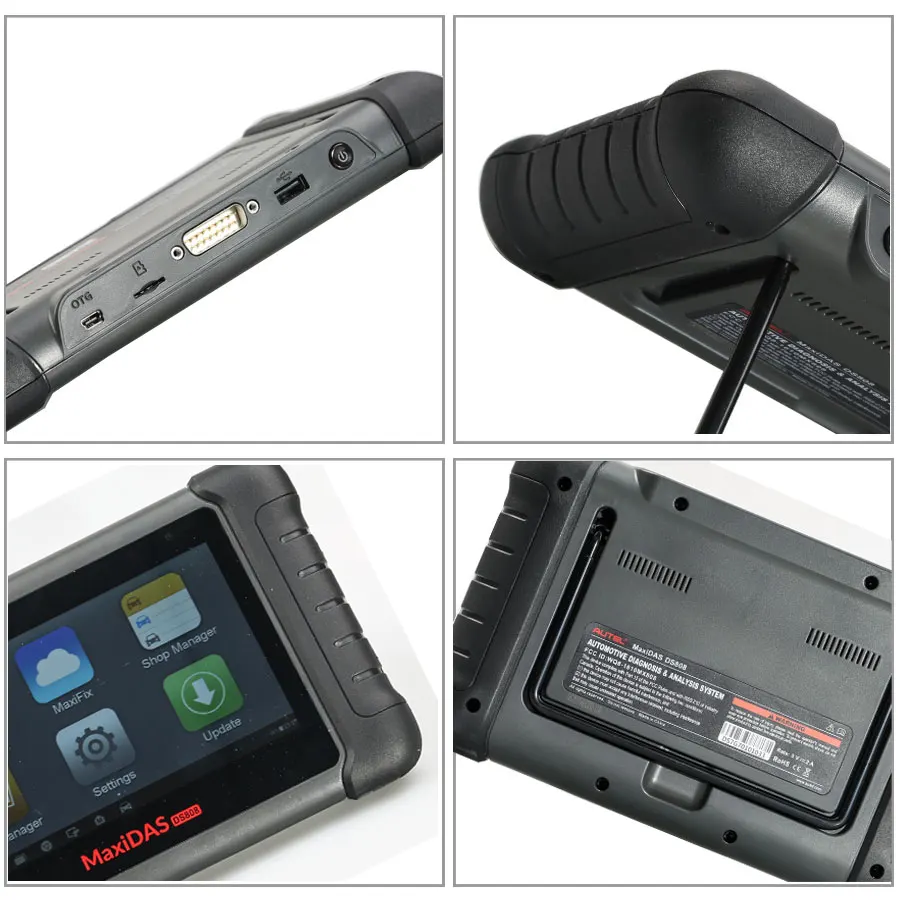

Connectivity:• Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors:Ambient light sensor for brightness auto changing
Audio Input/Output:• Input: N/A • Output: buzzer
Power and Battery:• 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life:Around 4.5 hours of continuous use
Battery Charging Input:5 V/1.5 A
Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp:-10 to 60°C(14 to 140°F)
Storage Temp:-20 to 70°C (-4 to 158°F)
Operating Humidity:5% - 95% non-condensing

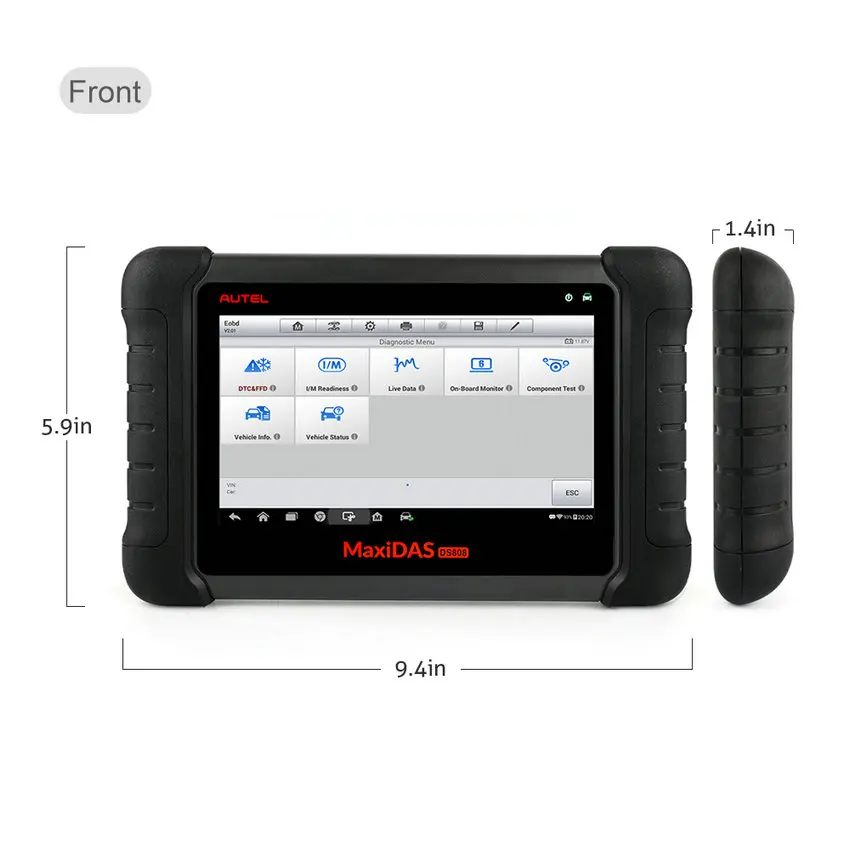

Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight:788 g (2.42 lb.)

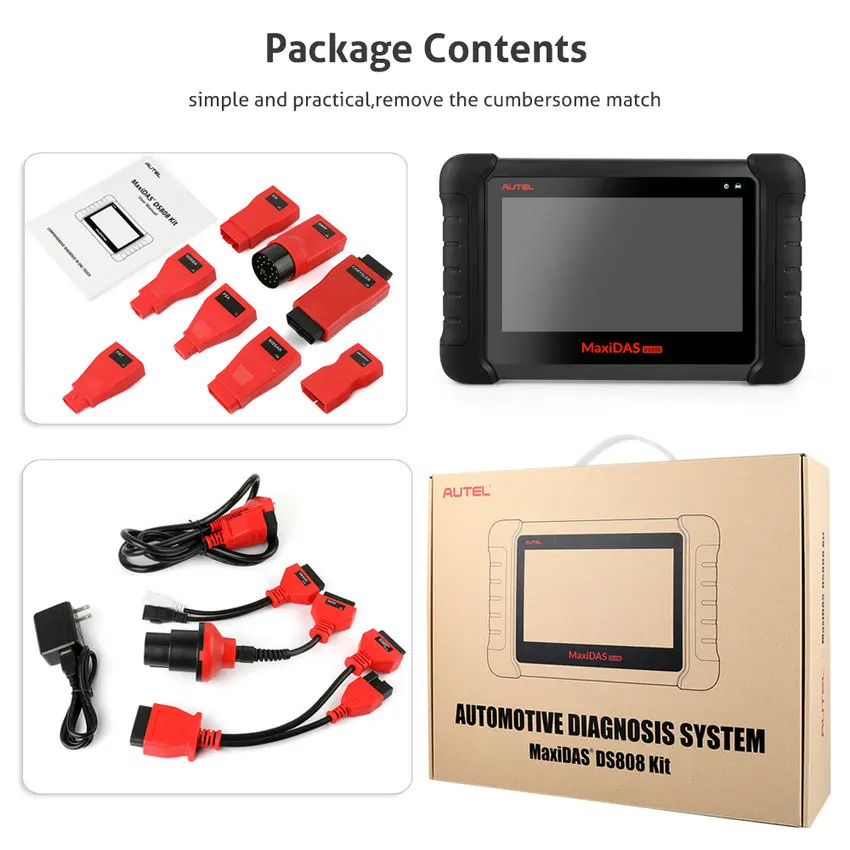

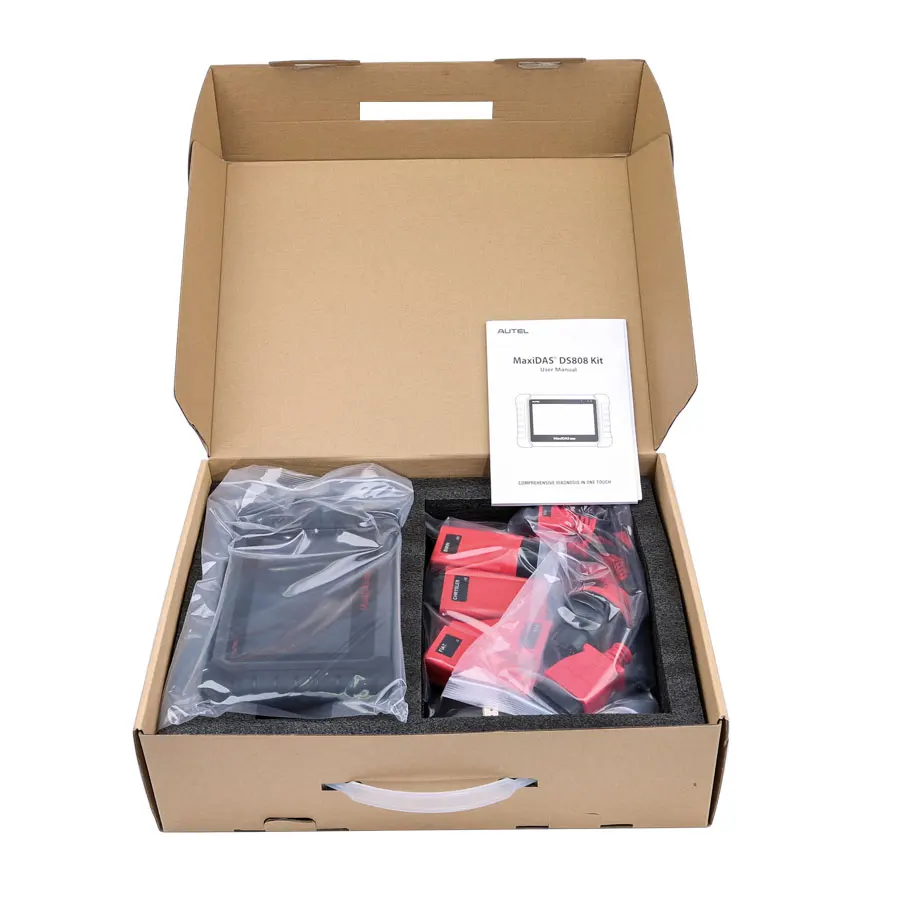

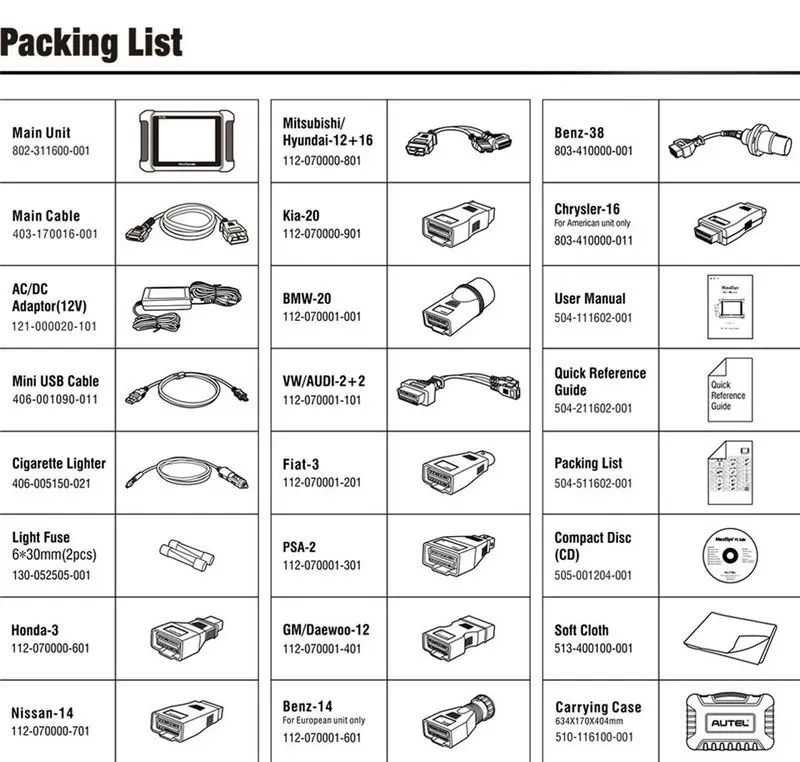

Package Includes:

1pc x USB External
1pc x Power Adapter
1pc x USB External Power AdapterUser

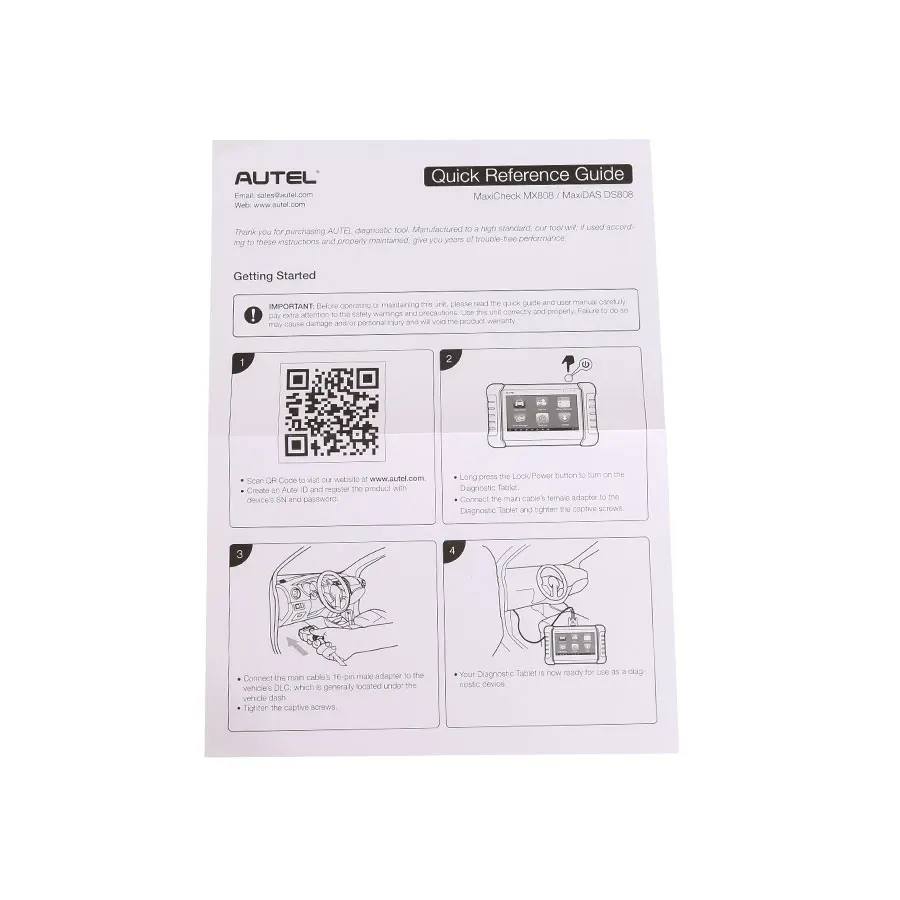

1pc x ManualQuick reference guide

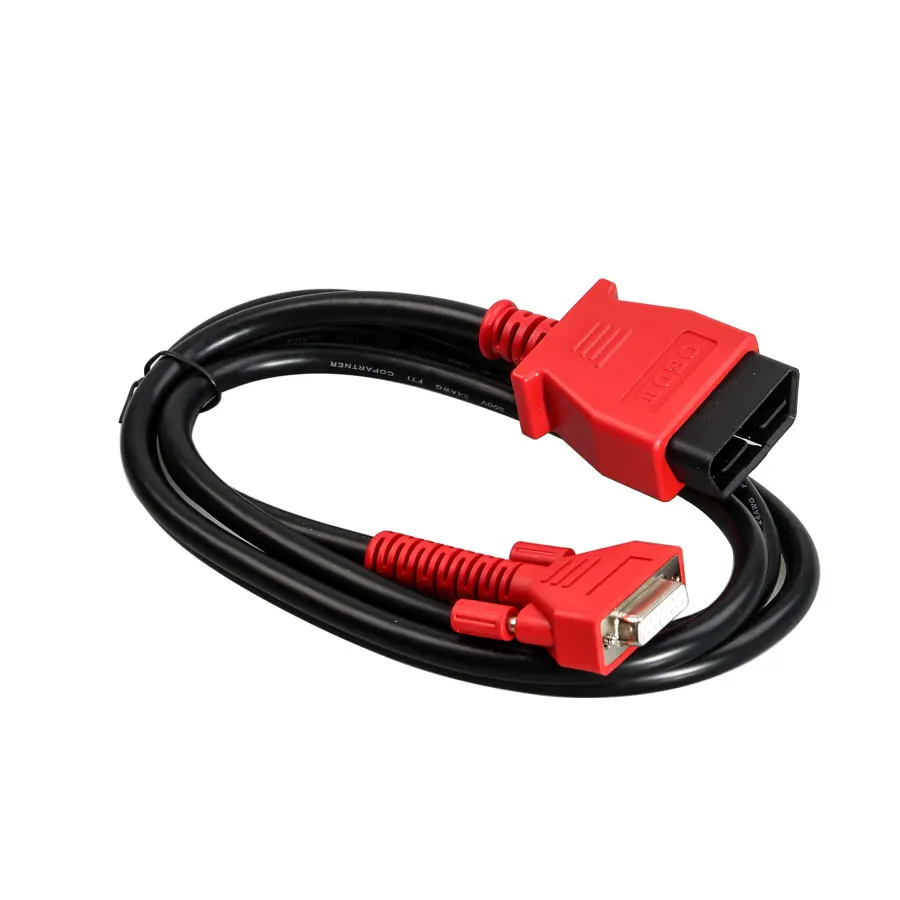

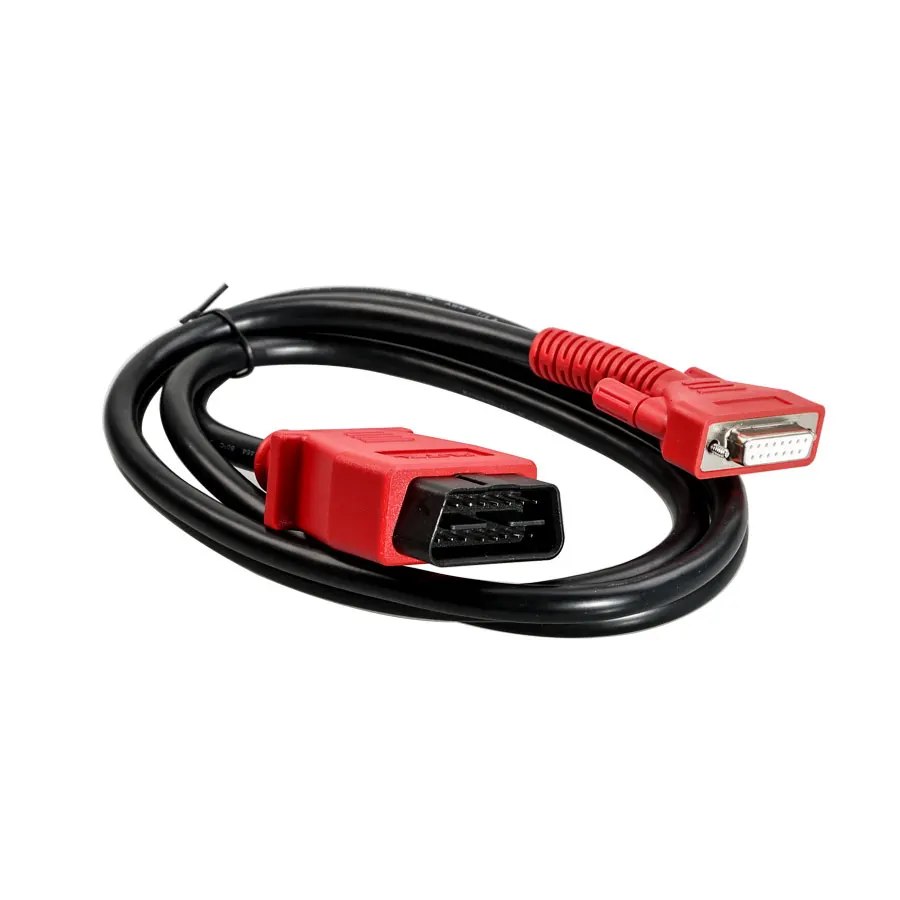

1pc x Main cableCarry case
1pc x Mini USB Cable
1pc x User Manual
1pc x Quick Guide
1pc x Benz-14
1pc x Chrysler-16
1pc x BMW-20
1pc x Kia-20
1pc x Nissan-14
1pc x GM/Daewoo-12
1pc x Honda-3
1pc x VW/AUDI-2+2
1pc x Mitsubishi/Hyundai-12+16
1pc x Benz-38
1pc x PSA-2
1pc x Fiat-3
