Product Name:EUCLEIA S7 OBD2 Diagnostic Tool Auto Full System Scanner with ABS EPB CVT TPMS Oil Service Reset ABS Bleeding
Product Type:EUCLEIA S7
Product Category:Car Diagnostic Tool
View Count:
Product Description
_01_02_03_04_05_06_07

TabScan S7 Features:

  1. 7-inch LCD 1024x600 IPS touch screen, viewing angle wide, showing clear, interface identifier is obvious, and easy to operate;

  2. Android operating system interface with 1.3 GHz quad-core ARM Cortex-A7 processor, it guarantees an extraordinarily short boot-up speed, highly data processing capacity;

  3. Built-in Wi-Fi for accurate online case and information search;

  4. Intelligent automatic OBD system-wide diagnostic detection;

  5. Supports all 5 OBD communication protocol and 10 test mode;

  6. Supports OBD fault code database query and maintenance database search;

  7. Support basic diagnosis and vehicle maintenance for all electric control systems;

  8. Diagnostic report sharing feature;

  9. Bluetooth and Wi-Fi printer connectivity support;

  10. Single-button software updates;

  11. Multi-language support.

4352



TabScan S7 Function:

Diagnostics + Special functions + System functions

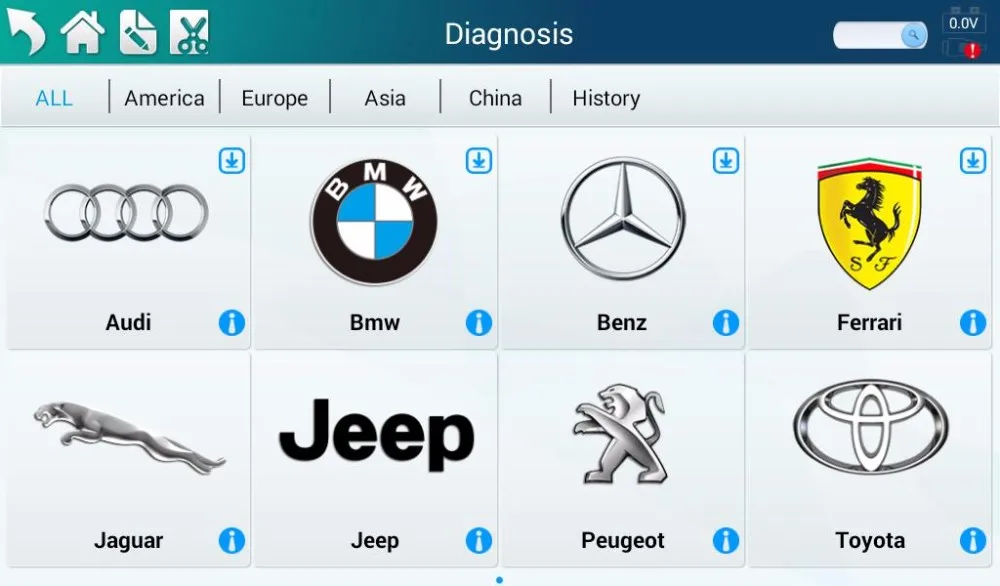

Diagnostics

Supports 12V vehicles with Europe, America, Japan and South Korea  mainstream models;

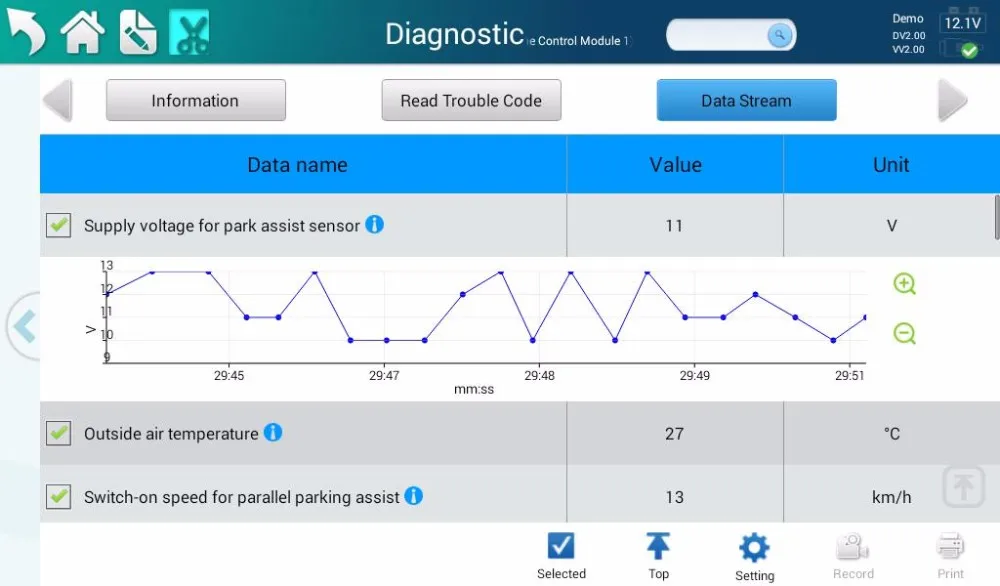

Read DTCs, clear DTCs, read data stream;
Support all electric control systems.

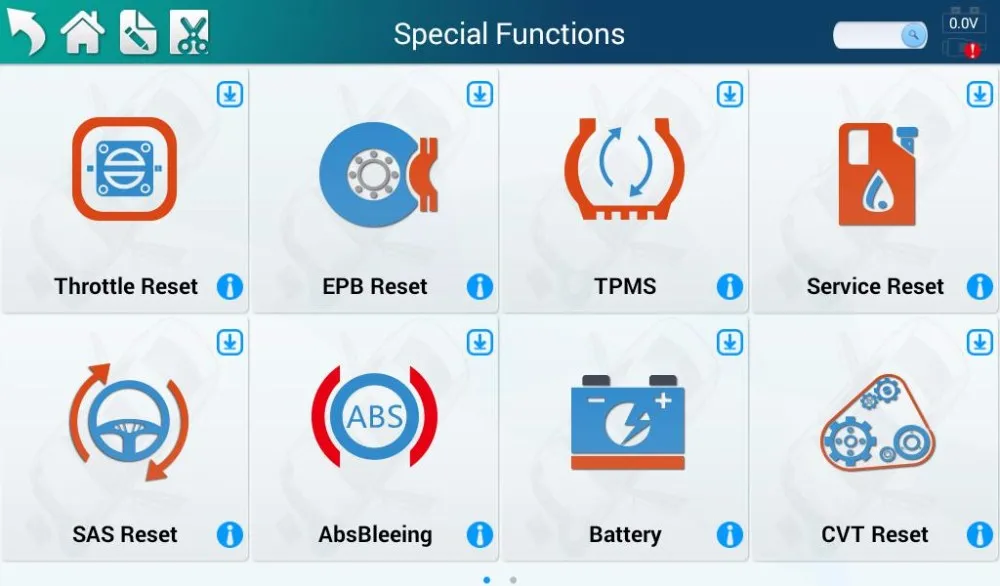

Special functions

ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset, SAS Reset, Battery, CVT Reset, TPMS, etc.

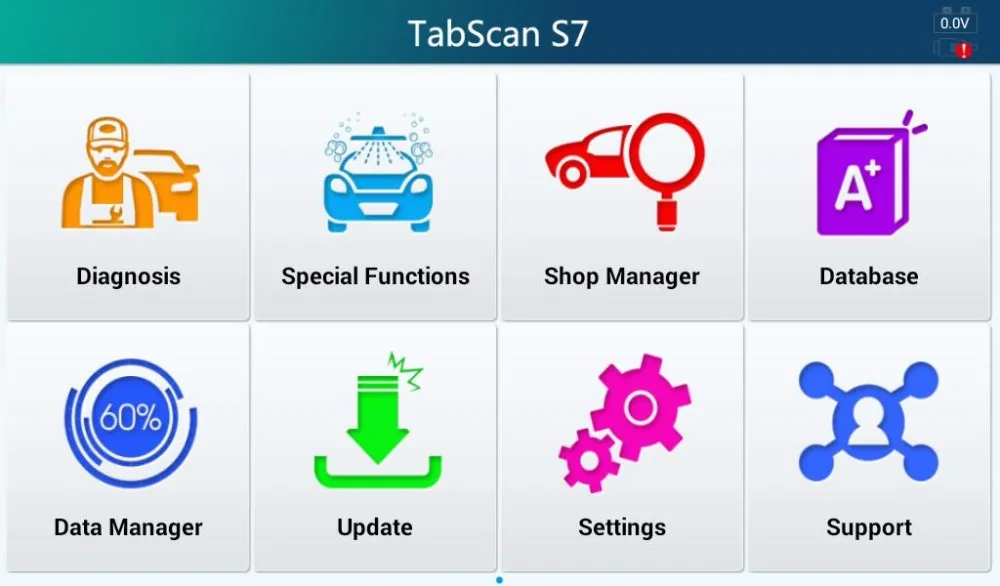

System functions

The system also includes the most recent auto-VIN technology, to identify vehicles with one touch, and the exclusive auto-Scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.

12110111

TabScan S7 Specification :

Operating system Android 4.4.2
Processor MTK6582 1.3 GHz quad-core ARM Cortex-A7
Memory 1 GB RAM and 8 GB ROM
Display 7-inch capacitive touch screen with 1024x600p resolution
Connectivity Wi-Fi (802.11 b/g/n), Bluetooth 3.0, USB 2.0 (micro-USB), Micro-SD (up to 32 GB)
Battery capacity 3000mAh lithium-polymer
Input voltage 12V DC
Operating temperature -20~60 degrees Celsius
Storage temperature -30~70 degrees Celsius
Storage humidity <80%
Housing Rubberized external and rugged internal protection
Dimension 225x138x32mm
Weight 690g

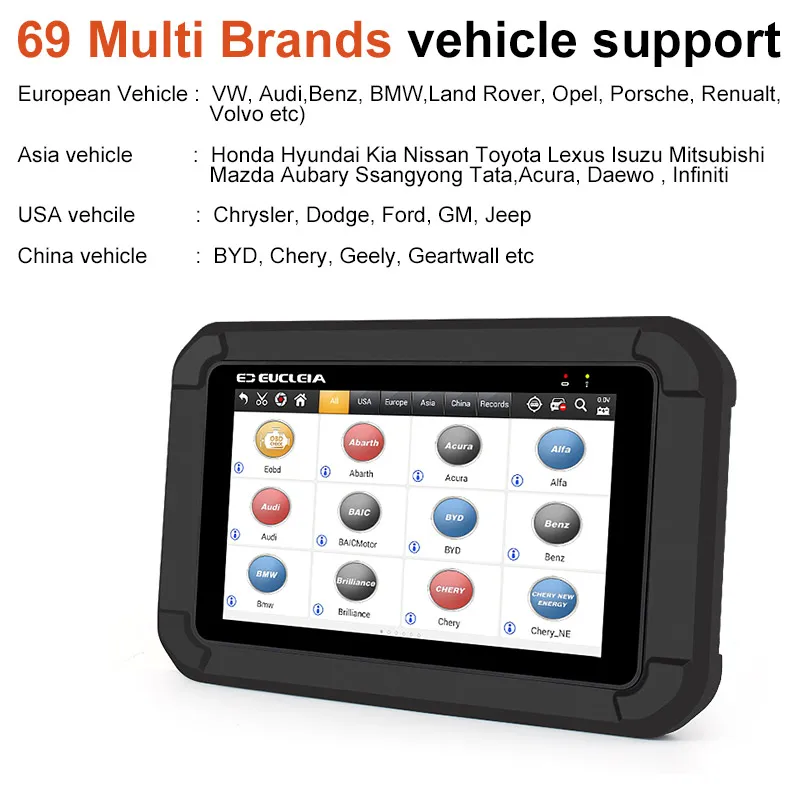

TabScan S7 Car brand support :
For Abarth,  For Acura, For Alfa, For Audi, For Benz, For Bmw,  For Chrysler,  For Dodge, For Eobd, For Ferrari, For Fiat, For Ford, For GM, For Honda, For Hyundai, For Hyundai_CV, For Jaguar, For Jeep, For Kia, For Lancia, For LandRover, For Lexus, For Mazda, For Mini, For Mitsubishi, For Peugeot, For Porsche, For Renault, For Scion, For Seat, For Skoda, For Subaru, For Suzuki, For Toyota, For Volvo, For Vw, For Vw_CV.

10345678
