Product Description

OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile
intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.



OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

OBDSTAR X300 DP Plus Hardware Features:

1. The built-in VCI box offers more stable communication.

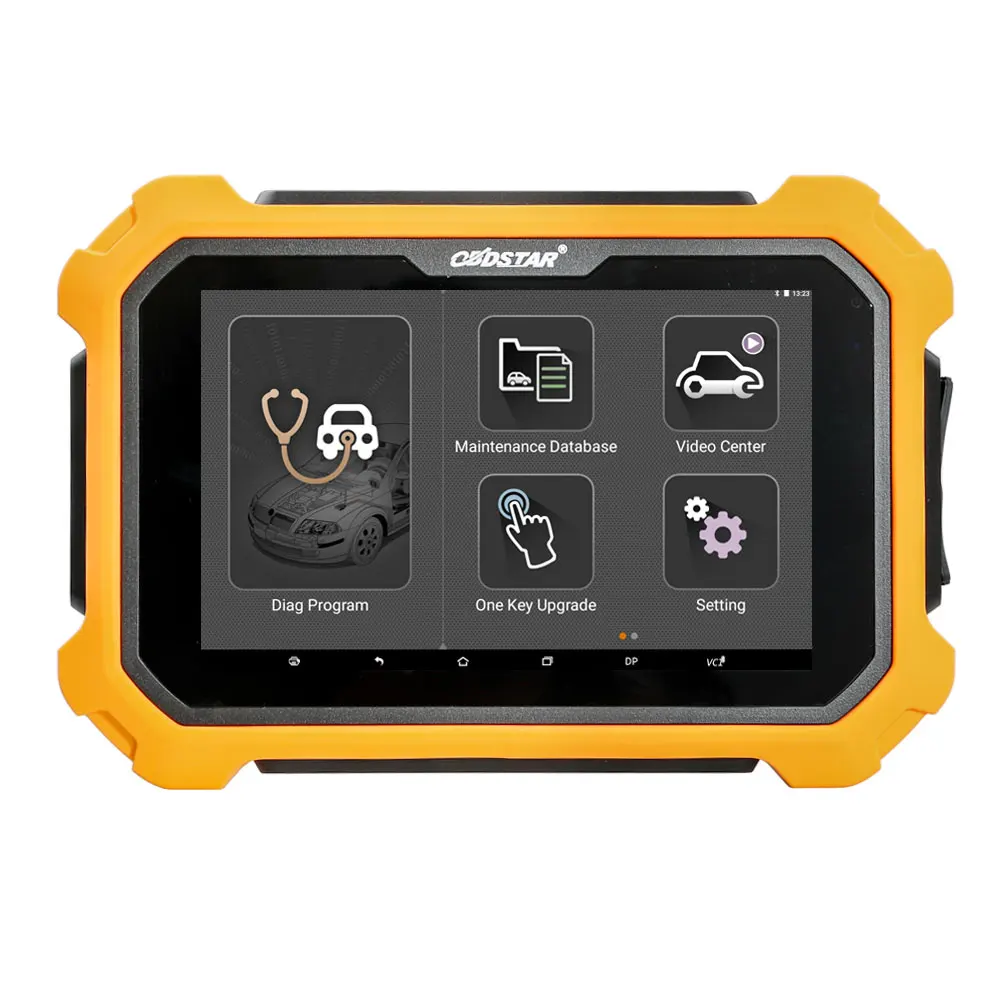

2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.

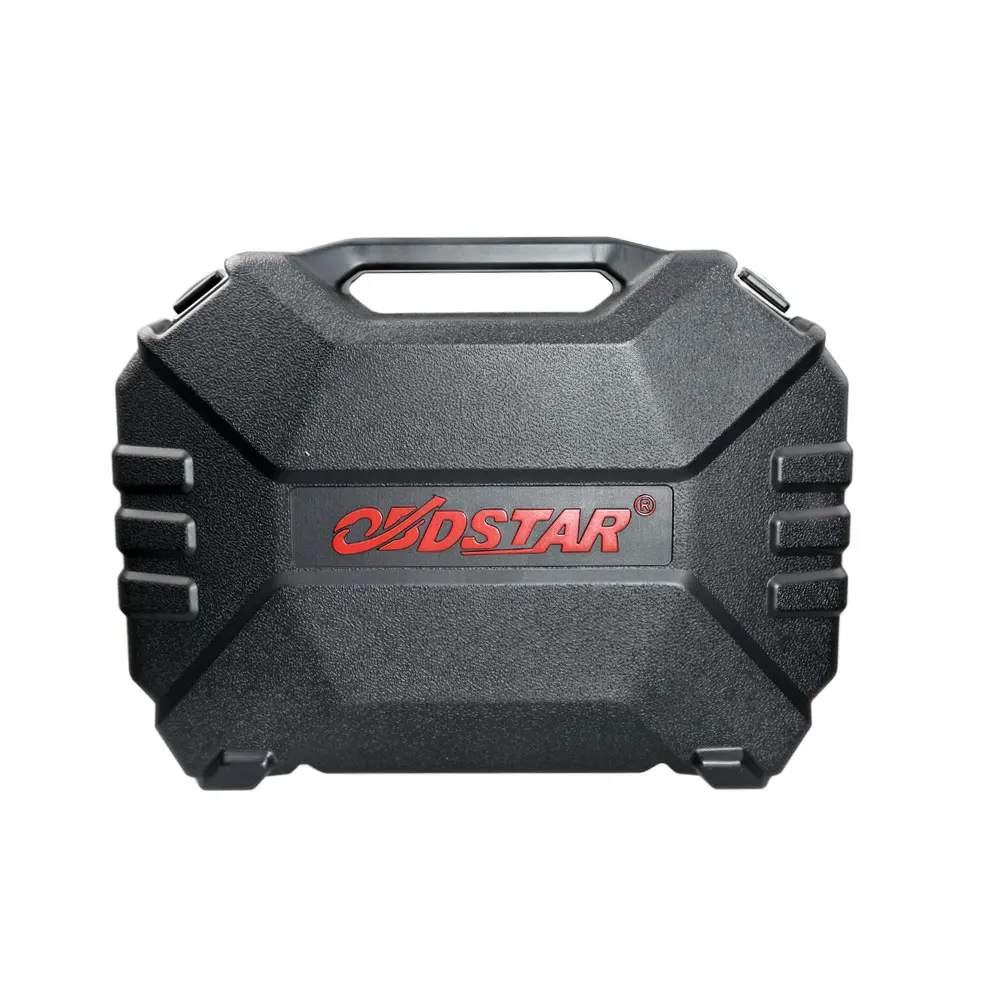

4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve

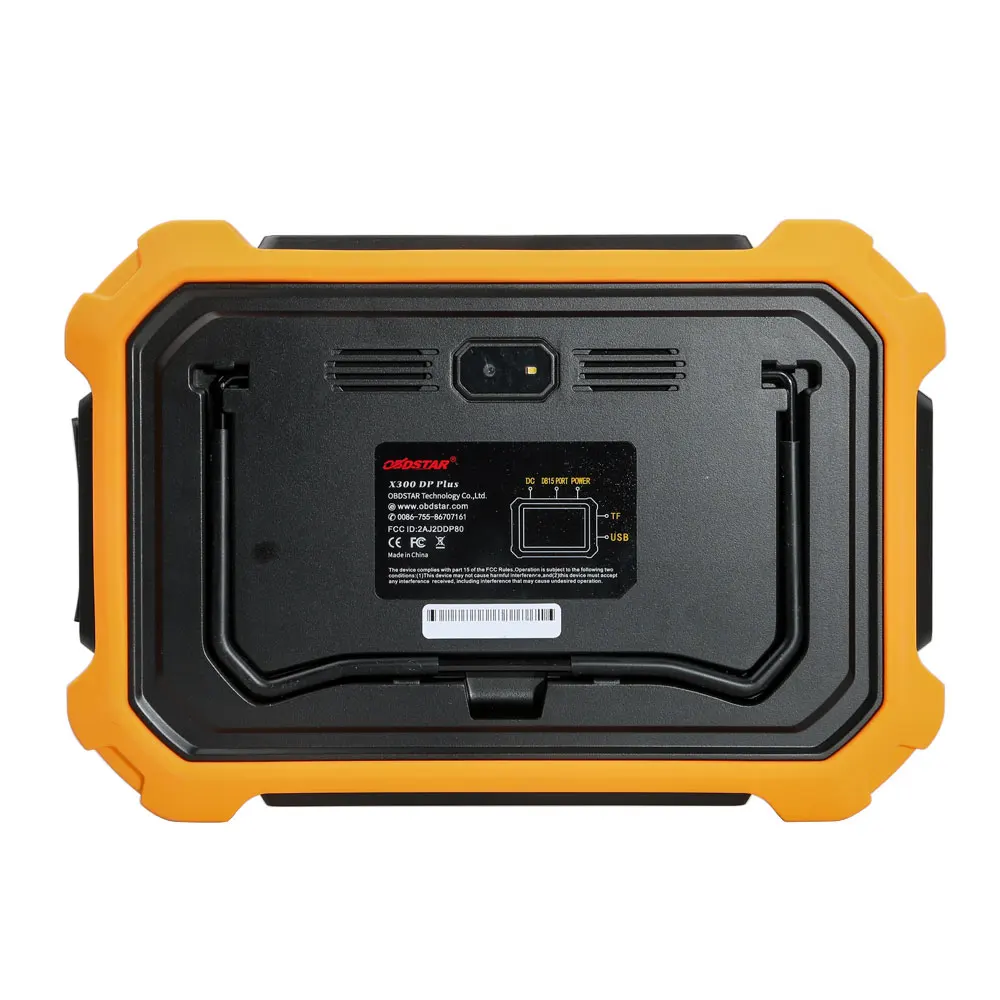

6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

OBDSTAR X300 DP Plus Software Features:

1. Clone ECU
Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
ECU clone Pros :
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

2. Switch activation function
Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

4. Maintenance database: equipped with powerful database.
5. Video center: large amount of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.
10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection.

OBDSTAR X300 DP Plus Technical Parameter:

 ● Operation system: Android 5.1.1
 ● CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz
 ● Battery: 3700mA, rechargeable polymer lithium battery

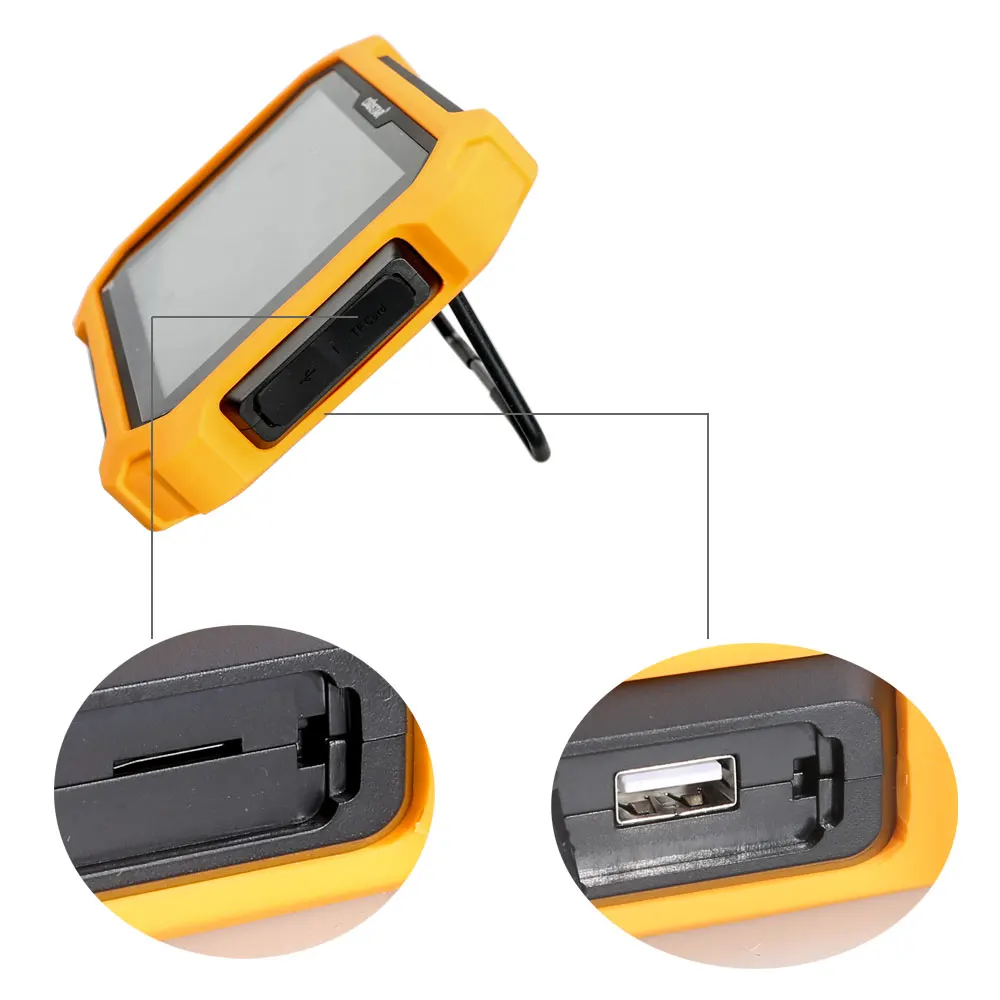

 ● Extension memory card: 32G Micro SD (TF) card supported
 ● Memory capacity:1GB
 ● Storage capacity: 32GB
 ● LCD: 8.0 inch
 ● LCD resolution: 1280*800
 ● Touch screen: Capacitive touch screen
 ●  Camera: 5 mega rear view camera
 ● Wi-Fi: supported
 ● Working temperature: -10℃  ~  55℃（14℉  ~  131℉ ）
 ● Storage temperature: -20℃  ~  70℃（-4℉  ~ 158℉ ）
 ● Weight: about 1.0 Kg
 ● Dimension: 254mm*174*mm*35mm
ead post:  Why OBDSTAR X300 DP Plus is a good investment even expensive
OBDSTAR Update Information:

Update Announcement on July 2018 2018-07-02 First Released

GM ECU Clone (Key Master DP Plus C Configuration)

1. Increased BOSCH 70F3558+24C32 read and write EEPROM、read and write FLASH
2. Increased BOSCH 70F3385+24C16 read and write EEPROM、read and write FLASH
3. Increased BOSCH 70F3469+24C16 read and write EEPROM、read and write FLASH
4. Increased DELPHI 70F3238+93C86 read and write EEPROM、read and write FLASH
5. Increased DELPHI 70F3379+93C86 read and write EEPROM、read and write FLASH
6. Increased CONTINENTAL 70F3469+95160(25160) read and write EEPROM, read and write FLASH
7. Increased CONTINENTAL 70F3558+95320(25320) read and write EEPROM, read and write FLASH

IMMO

Renault (Key Master DP/Key Master DP Plus)
Increased Koleos 11-16 key programming

Bentley (Key Master DP/Key Master DP Plus)
Support P001 programmer

GM Key Master DP/Key Master DP Plus
Support P001 Programmer

Key Master/Key Master DP/Key Master DP Plus
Optimize the text tips with‘obdstar’to be‘The third-party platform’

Porsche (Key Master/Key Master DP/Key Master DP Plus)
Solved the flash back in Cayenne type2 pincode reading and key programming

Changan (Key Master/Key Master DP/Key Master DP Plus)
Optimize Changan X70A car body system

FORD (F100/H100/Key Master/Key Master DP/Key Master DP Plus)
Solved the repeat request of security verification in Ford Explorer 11-15 key programming

BAIHC (Key Master/Key Master DP/Key Master DP Plus)
Increased Weiwang M50F 2017 smart key system

BMW (Key Master DP/Key Master DP Plus)
1. Solved the unstable problems in key learning
2. Updated the SWFL version to be ISTA64

Rongwei/MG (Key Master/Key Master DP/Key Master DP Plus)
1. Optimize the Rongwei I6 smart key system
2. Increased Rongwei 950(2012-) pincode reading

Nissan/Infiniti (F102/Key Master DP/Key Master DP Plus/Key Master
Optimize Nissan Note smart key system(cancel the byte judgement for 03 31 01 01)

VW/AUDI/SKODA/SEAT (Key Master DP/Key Master DP Plus)
Support P001 programmer

Toyota/Lexus (Key Master DP/Key Master DP Plus)
1. Released 4 Toyota simulation smart keys
2. Optimize the No.1 Toyota simulation smart key acquire IMMO data via internet(write key data)

Suzuki (F109/Key Master/Key Master DP/Key Master DP Plus)
Optimize the JIMNY menu in IM_JIMNY system

Opel (Key Master/Key Master DP/Key Master DP Plus)
1. Increased the pincode reading from BCM system
2. Increased Combo/Meriva remote system
3. Increased Astra G/Astra K/Cascada 2013/Combo 2012/Corsa-D 2005-/Frontera 1998-/Monteray 1996-/Signum /VX220/Zafira-B
Cavalier 1995-2004/Agila B -2009、2009-/Movano 2005-2010、2010- IMMO system

Baojun (Key Master/Key Master DP/Key Master DP Plus)
Optimize the text tips with‘obdstar’to be‘The third-party platform’

Mazda (F100/H100/Key Master/Key Master DP/Key Master DP Plus )
Optimize the text tips with‘obdstar’to be‘The third-party platform’

Traum (Key Master/Key Master DP/Key Master DP Plus)
Increased S70 car body system and smart key system

Lamborghini (Key Master DP/Key Master DP Plus)
Support P001 programmer

Key Renew (Key Master DP/Key Master DP Plus)

1. Support P001 programmer
2. Updated the ‘Help’text

Cluster Calibrate

VW (H110/VAG Pro/X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
Increased security calculation types

GM (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
Optimize GMC Sierra 2015 communication time

Fiat / Ferrari (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
Increased the ‘Other’menu

Porsche (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/ C Configuration)
Solved security verification problems in EEPROM reading of 2015 panamera

FORD
F100/H100/X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/ C Configuration
1. Increased Ranger2015-dashboard type SPC5645S+93C86
2. Optimize SPC5645S+93C86 type cluster calibrate

X300M/H100/Key Master DP/Key Master DP Plus B Configuration/ C Configuration
Increased KA R5F10 V1/KA R5F10 V2/KA R5F10 V3/Figo/Aspire 2016-2018 cluster calibrate

BMW (Key Master DP/Key Master DP Plus)
Increased FEM/BDC odometer reset

ECU Programming

BMW (Key Master DP Plus C Configuration)
1. First release EGS 8HP reset function
2. Increased FEM/BDC ECU programming

ECU Clone

Peugeot (Key Master DP Plus C Configuration)
1. Increased EOX EEPROM reading and writing
2. Increased H0X/K0X/KEX/N0X/P0X/Q0X/S0X/X0X BSI EERPOM and FLASH reading and writing

Switch Activation

Key Master DP Plus C Configuration
1. Increased VOLVO S60 2011 and Land Rover Evoque 2016 dashboard activation
2. Revised all the wiring instruction
3. Improved ‘Help’section

EPB

VAG Pro/X200 Pro/Key Master Full Configuration/Key Master DP Full Configuration/Key Master DP Plus C Configuration
Increased vehicles as follow:
Bentley/Seat/Skoda/VW/FAW-VK/Shanghai Volkswagen
Zotye：SR9、SR7(2017)、E200、T300、T700、T600_COUPE、T600 sports
Changcheng：Hover H6 COUPE、Hover M6
JAC：Ruifeng A60、Ruifeng S7、Ruiying
Geely：Vision X6、EC7 series(emgrand、new emgrand)、emgrand EV、emgrand EV300、emgrand HEV、emgrand PHEV
Changan Ford： EDGE\GALAXY\S-MAX、Fiesta MY2013、Transit Connect、Transit Connect\Tourneo Connect、Transit\Courier
Citroen：C4、C4 SEDAN、C4 (B7)、C4 PICASSO、DS 4-DS 4 Crossback、DS 4S

APK Optimization

1. Solved the calculation bug
2. Clear login cache

OBDSTAR X300 DP Plus X300 PAD2 Package List:

 Key Master DP Plus Unit

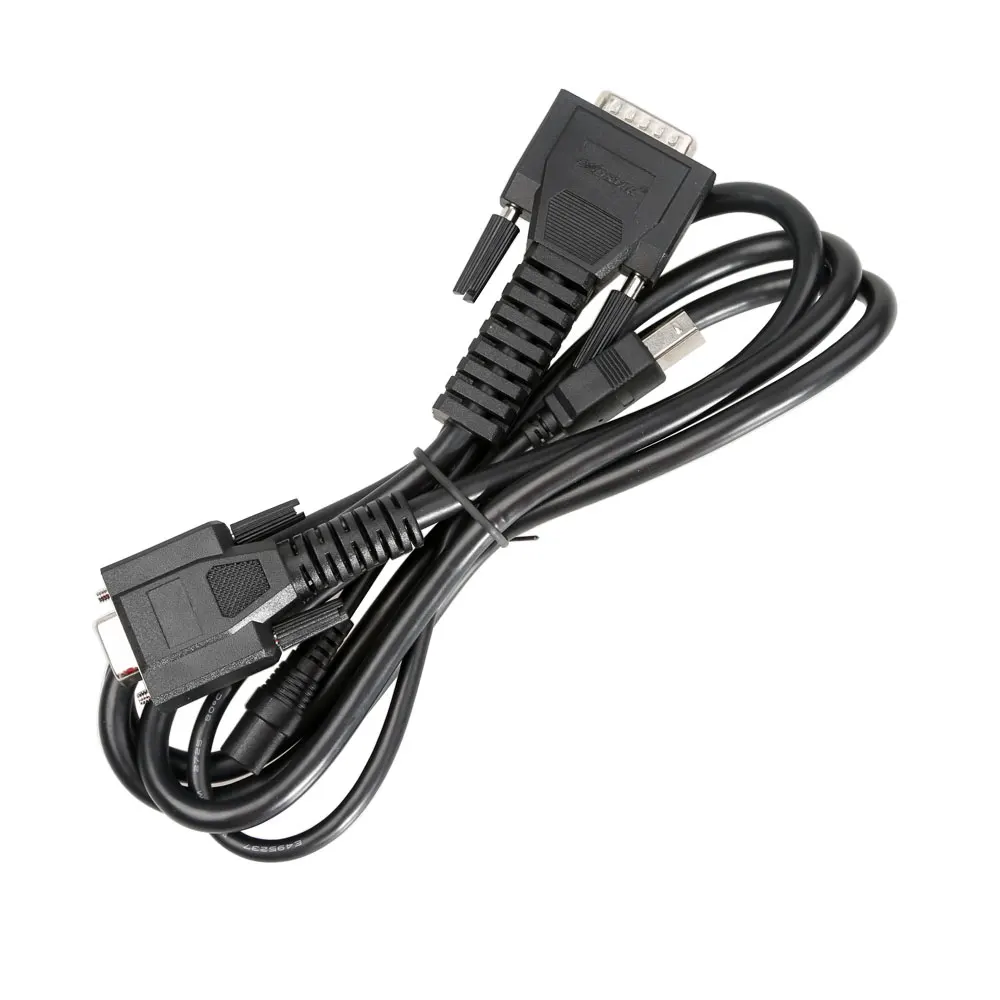

 Main Wire

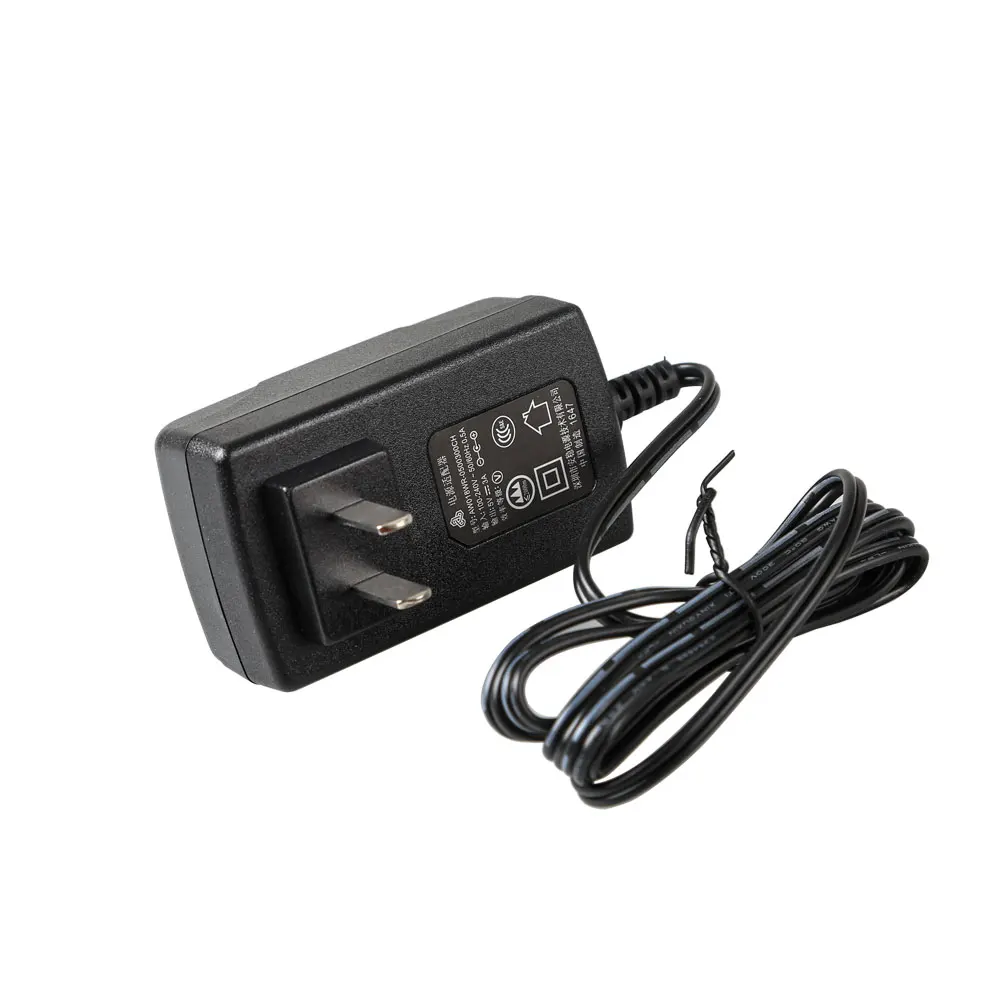

 12V2A DC Charger
 KIA-20
 OBD II-16 Connector
 HAIMA-17
 HONDA-3
 HYUNDAI/KIA-10

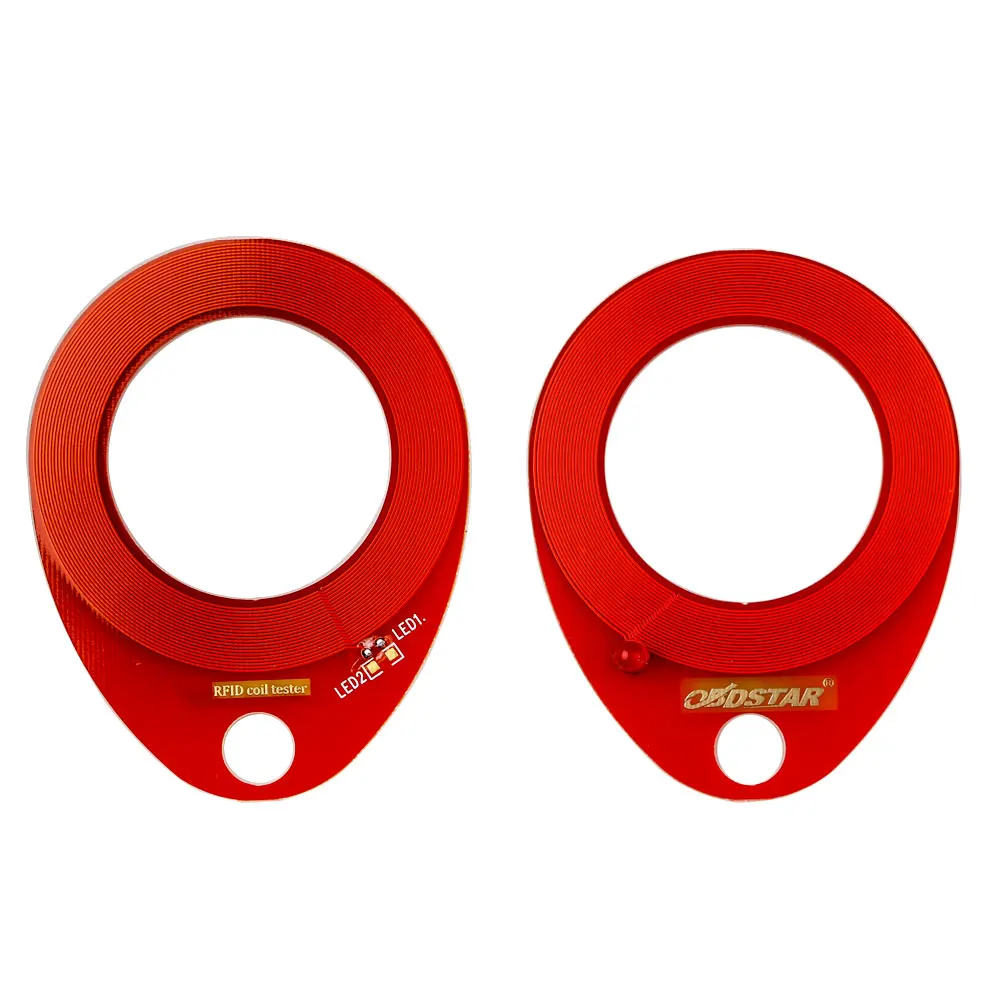

 IMMO Induction Coil

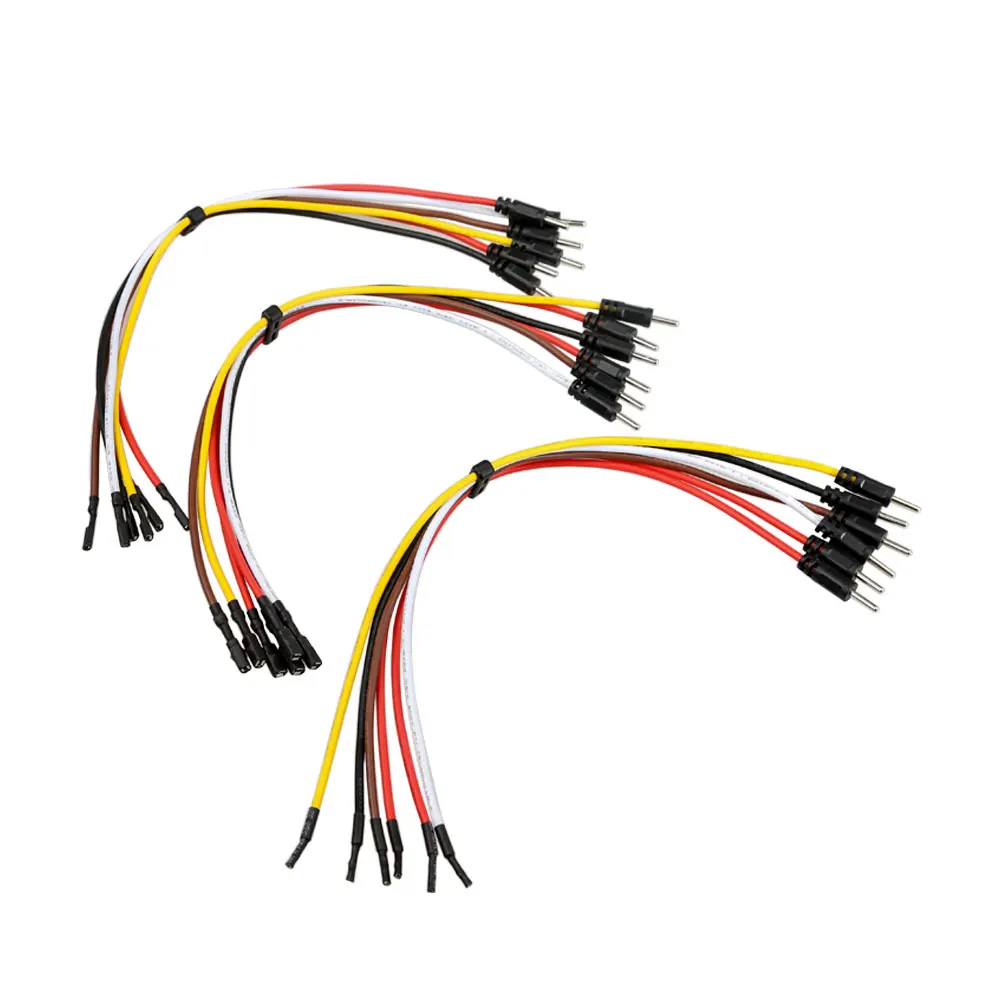

 Muti-functional Jumper

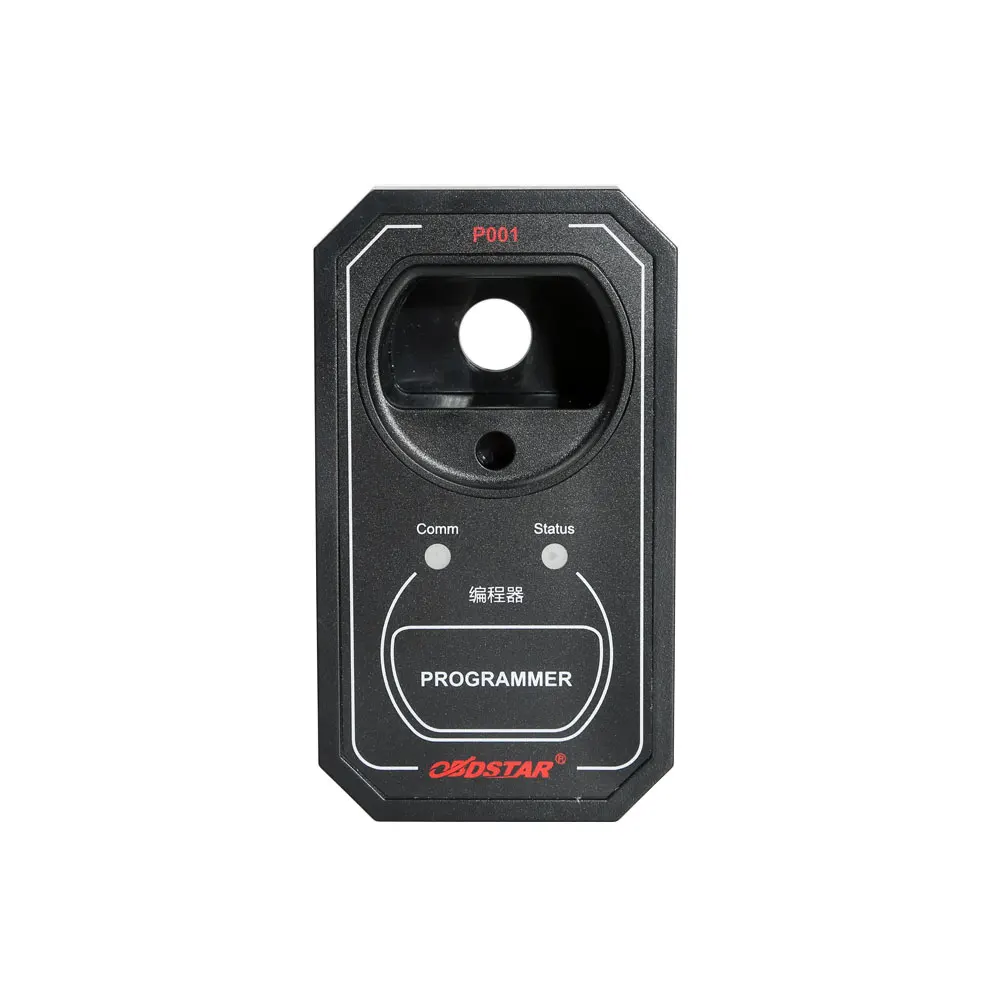

 P001 Programmer Unit

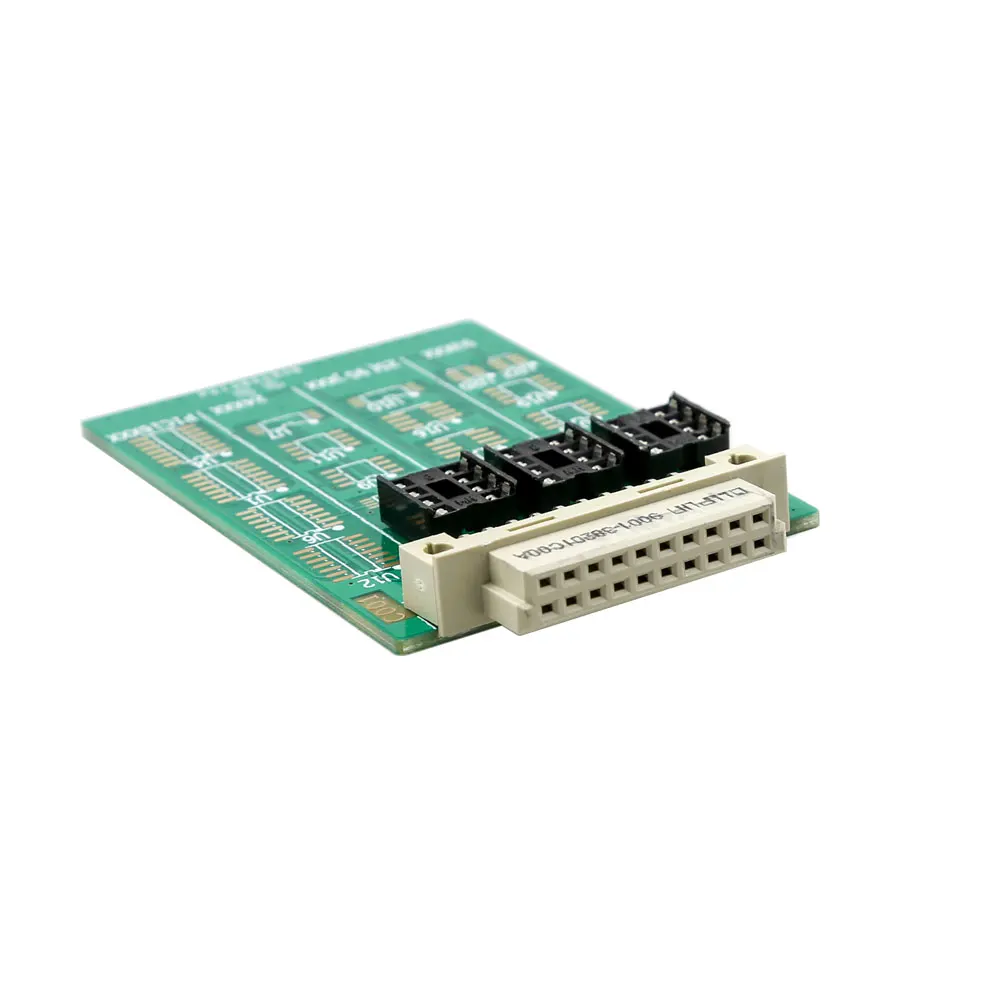

 C001/C002 Circuit Board
 W001
 W002
 W003
 RT100
 TOYOTA Simulation Smart Keys
 Configuration List/Certificate/Quick Start Guide Fold

OBDSTAR X300 DP Plus Software Update Instruction:

Tap "One Key Upgrade"  to enter one key upgrade page, as following picture shown:

obdstar x300 dp pad2 plus update-1

Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:
