Product Name:Launch X431 PAD New Version
Product Type:Launch X431 PAD
Product Category:Car Diagnostic Tool
View Count:
Product Description

1.Original:100% Original Launch X431 PAD

2.Update:Free update on Launch official website

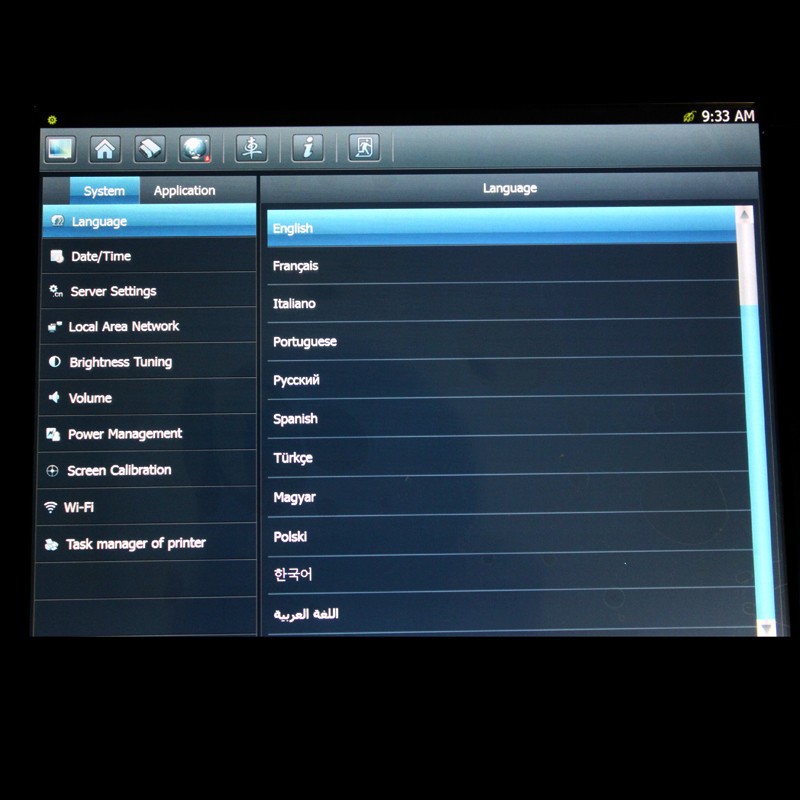

3.Language:Chinese,English,Spanish,Portuguese,German,Turkish,Russian,Italian,Japanese

4.Warranty:3 Years warranty


FQA: What is the difference with the old version one? is it the original?

1, the color have little different with old version

2, the new one without the printer

3,100% original launch x431 pad. Our dealer code is 86A. it is come with the

    password paper. you need use it to rigister on launch official website.


FQA: There is the old version on the market?

  NO, that old version stoped produce for long time. don't have old version anymore.

Introduction:

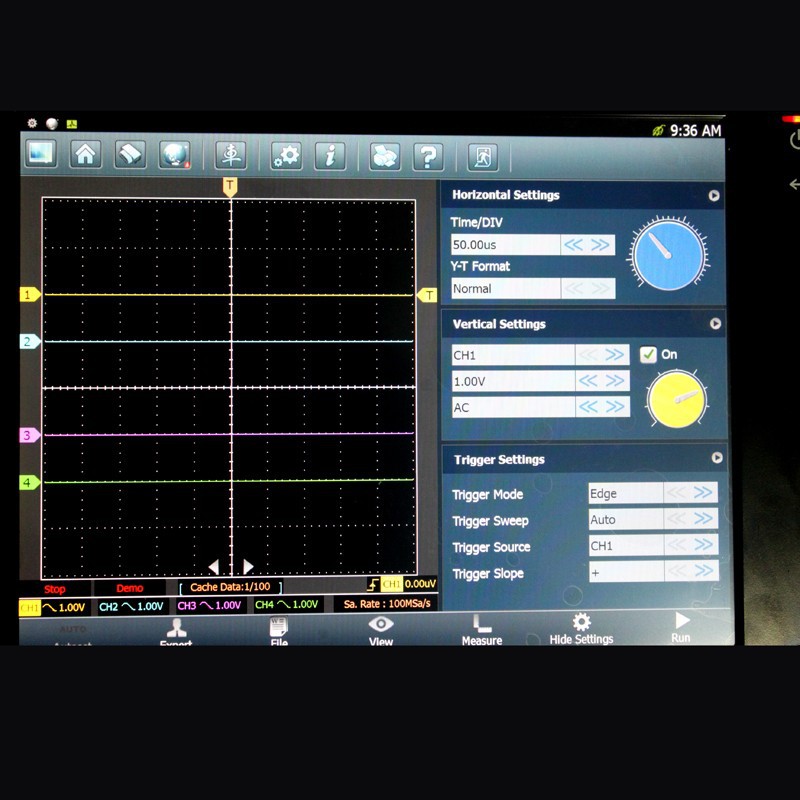

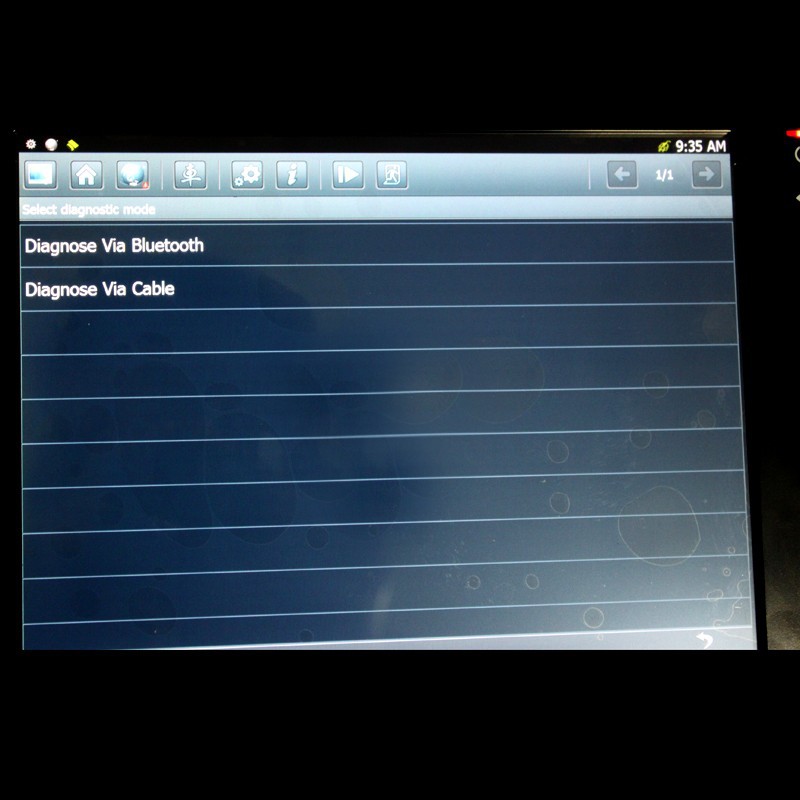

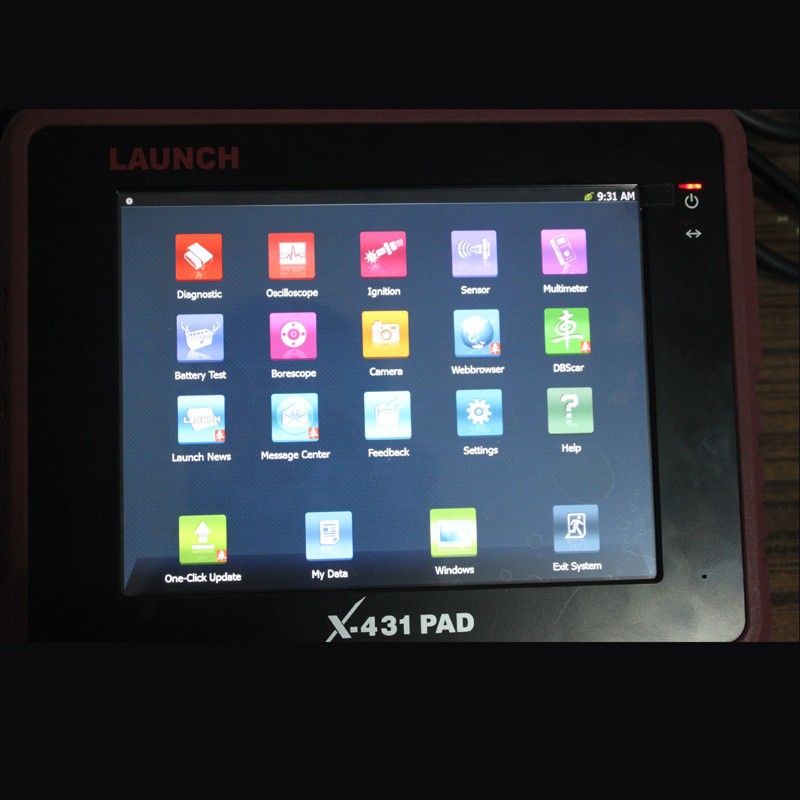

Launch X431 PAD is the new generation tablet diagnostic scanner of LAUNCH for DBS (Diagnosis Based Solution) car system; configured with Windows Embedded Standard 7 OS, built-in printer and Pluggable DBScar connector; With wireless (3G, Wi-Fi) and Wired Network, One-key update and vehicle diagnostic functions (via Bluetooth communication);Extended functions: VGA/HDMI projection, Oscilloscope, Engine ignition analysis, Sensor simulation and test, Multimeter, Battery test, endoscope.Color touch screen, Easy operation.

Features:
-Compact structure ,powerful hardware configuration
-Rich multimedia
-Twelve groups of data flow oscillogram displayed on one screen
-Customized remote collaboration
-The first high-end diagnostic product based on the car networking appllcation of -LAUNCH Company ,combined with modern communication technology
-Diverse internet applications
-Various convenient one-key shortcuts
-Convenient and flexible in use

Specification:
-Window Embedded Standard 7 Operating System
-7000mAh Rechargeable battery, can work for 7 hours
-1.6 GHz dual-core CUP
-9.7inch Hd with touch screen
-2 GB memory
-16 GB SSD drive
-1.3 million pixel camera
-Support 802.11 b/g/n WIFI
-Storage temperature:-20-70°C (-4-158°F)
-Working temperature: -10-55°C (14-131°F)
-Size: 309*216*69mm
-VGA: Support 800 x600 and 1024 x768 two kind of resolution

Package Including:

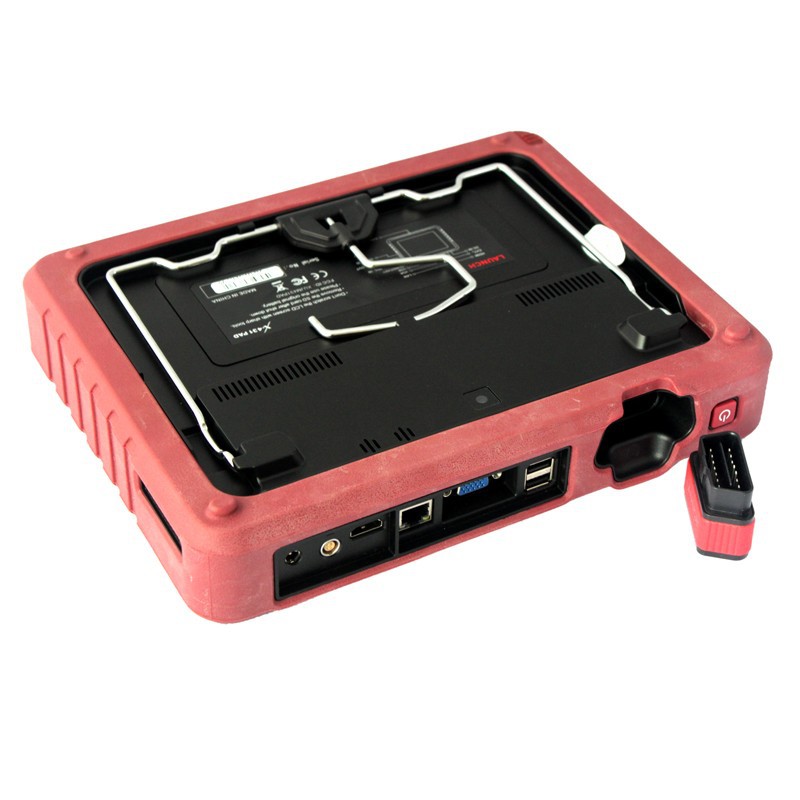

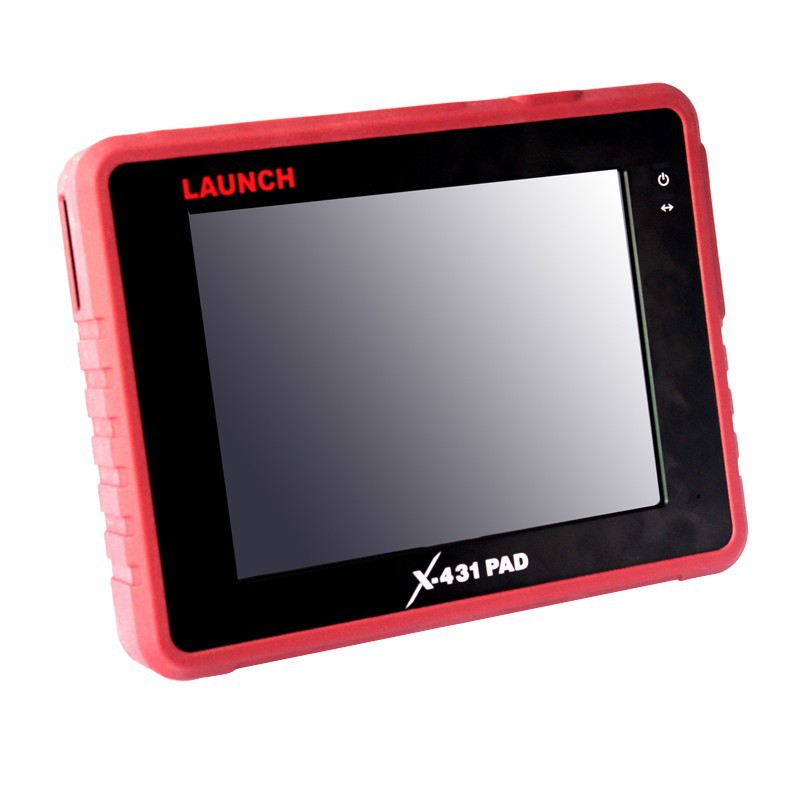

1, X-431 PAD main unit
2, DBScar diagnostic connector
3, DBScar USB cable

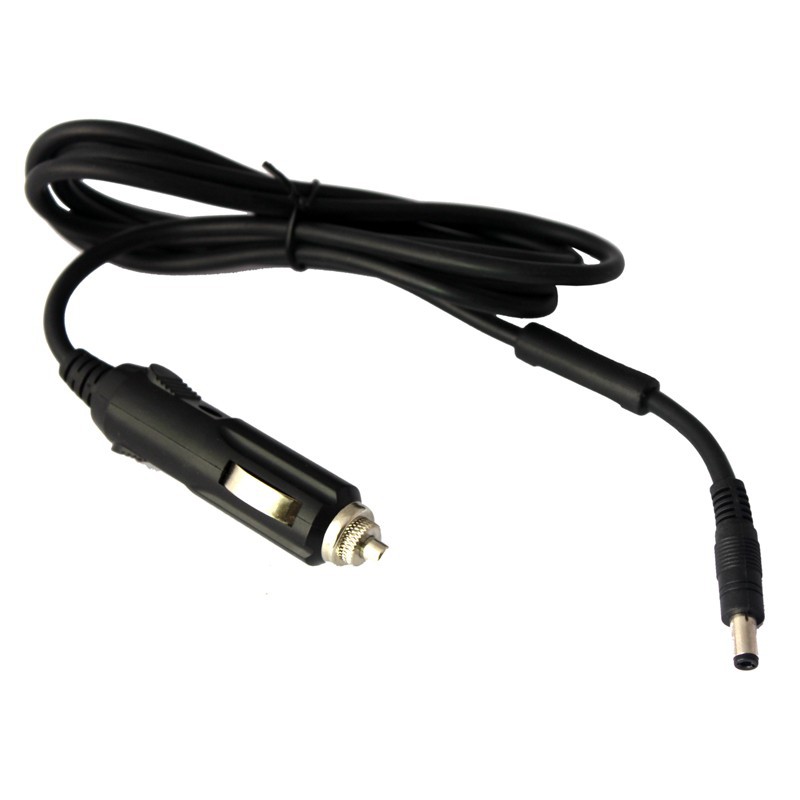

4, Cigarette light cable

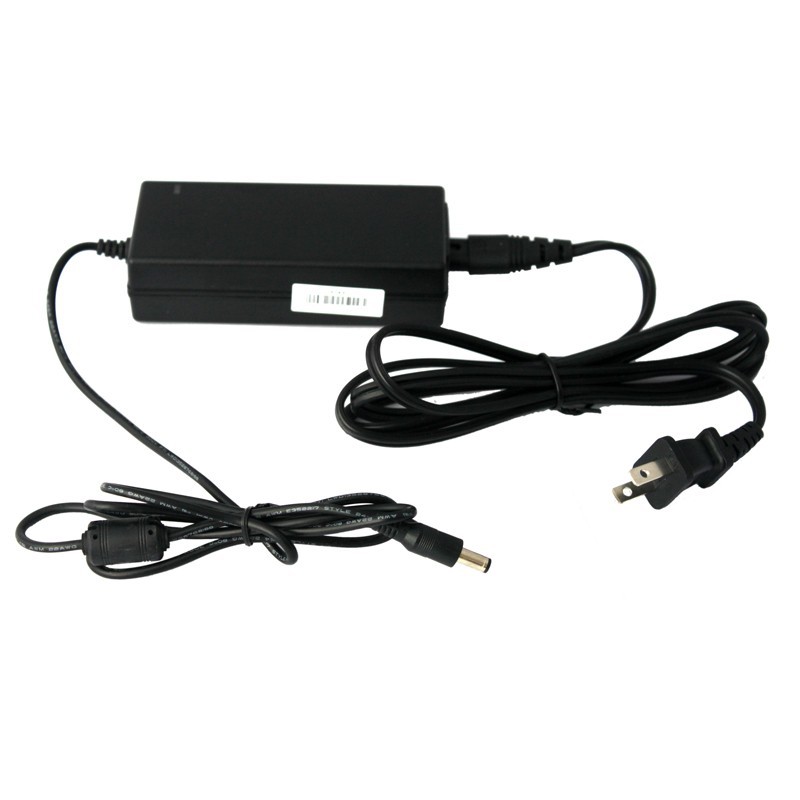

5, Power adaptor
6, Stylus

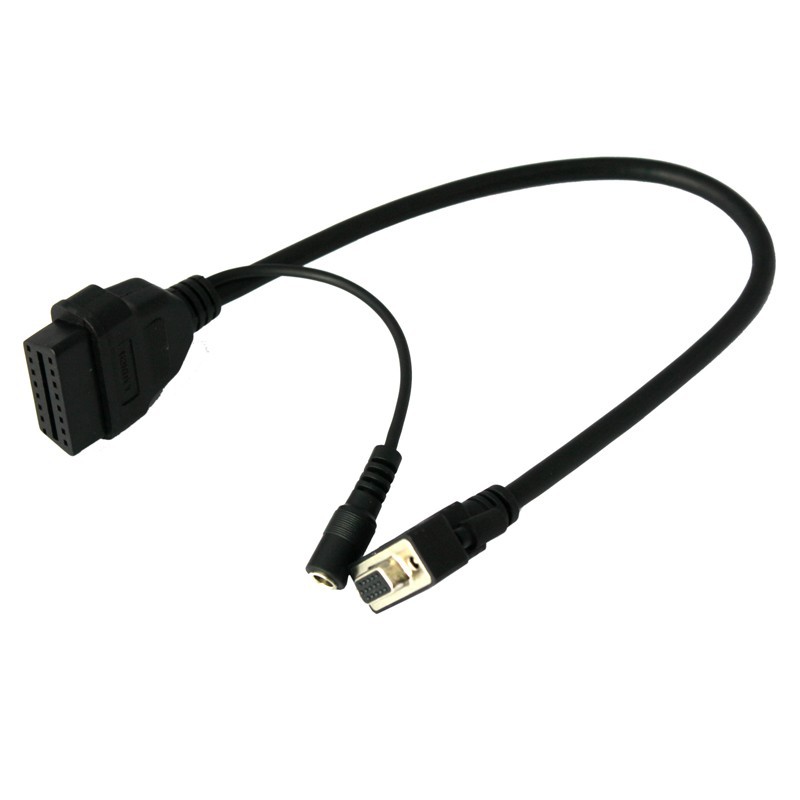

7, OBD II extension cable
8, Non-16 PIN connector Printer paper roll
9, Connectors:
Toyota 17-pin
Toyota 22-pin
Toyota 16-pin
BMW 16-pin
BMW 20-pin
Mercedes 38-pin
printer 14-pin
Universal 3-pin
Honda 3-pin
Chrysler 6-pin
Chrysler 16-pin
VW/Audi 2x2-pin
GM/Daewoo 12-pin
Fiat 3-pin
Smart OBDII
Mazda 17-pin
Ford 6+1-pin
Kia 20-pin
Mitsubishi/Hyundai 12+16-pin
Nissan 14+16-pin
Audi 16 (KKL) adapter

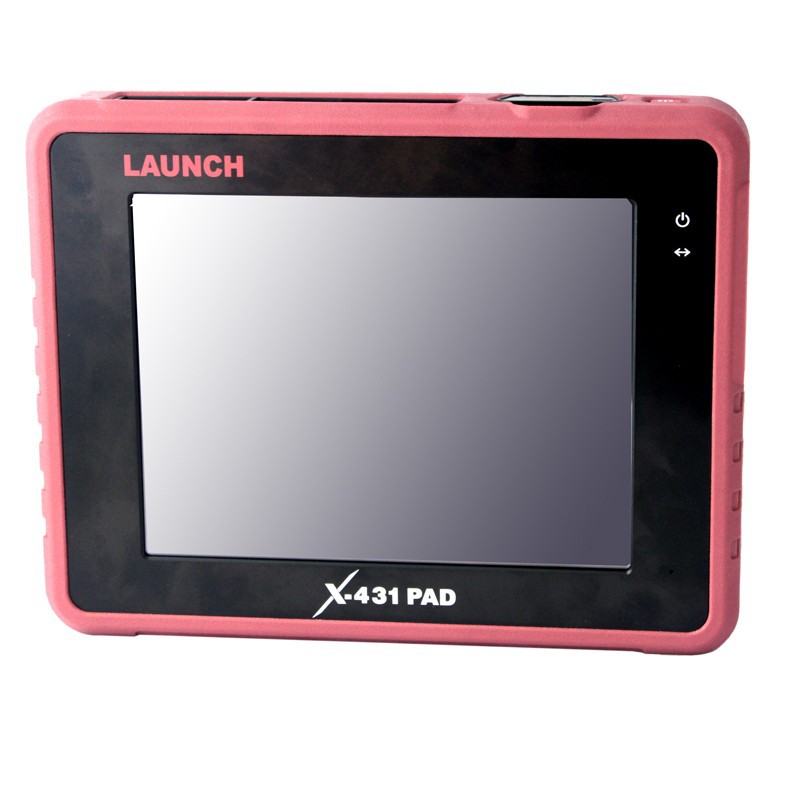

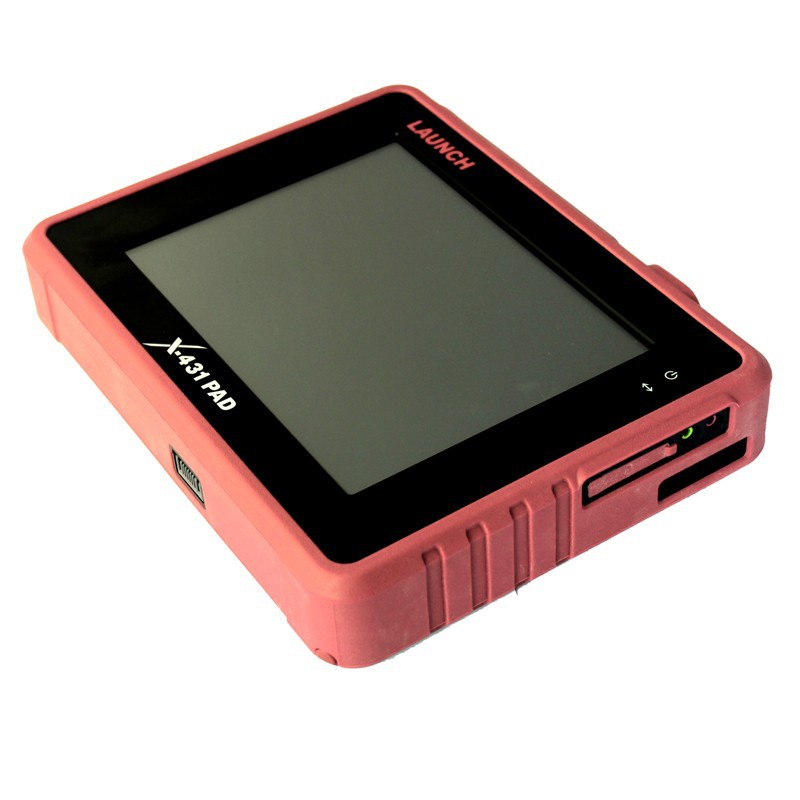

IMG_1386IMG_1389

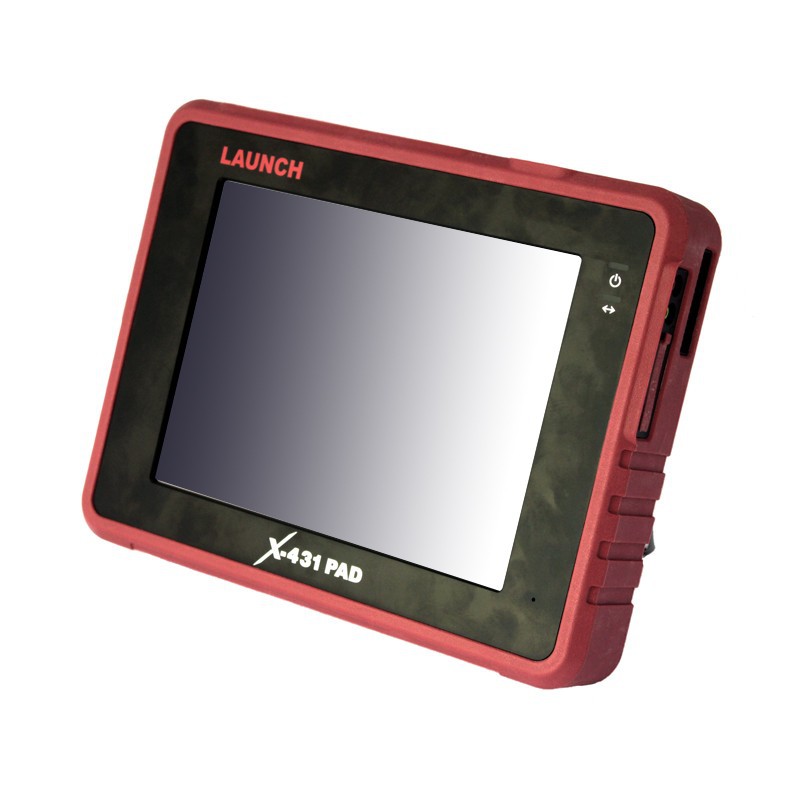

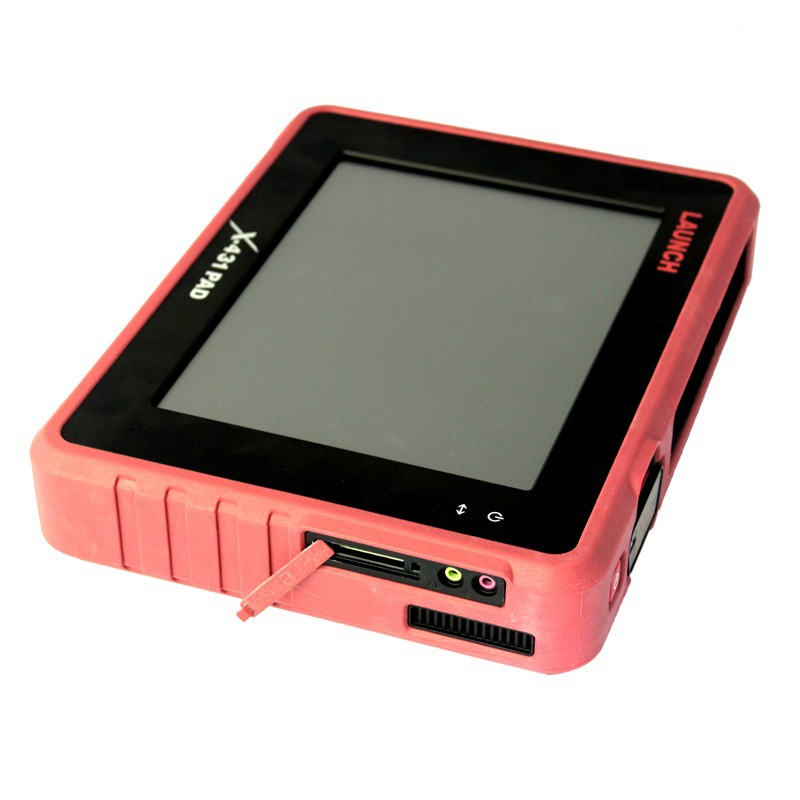

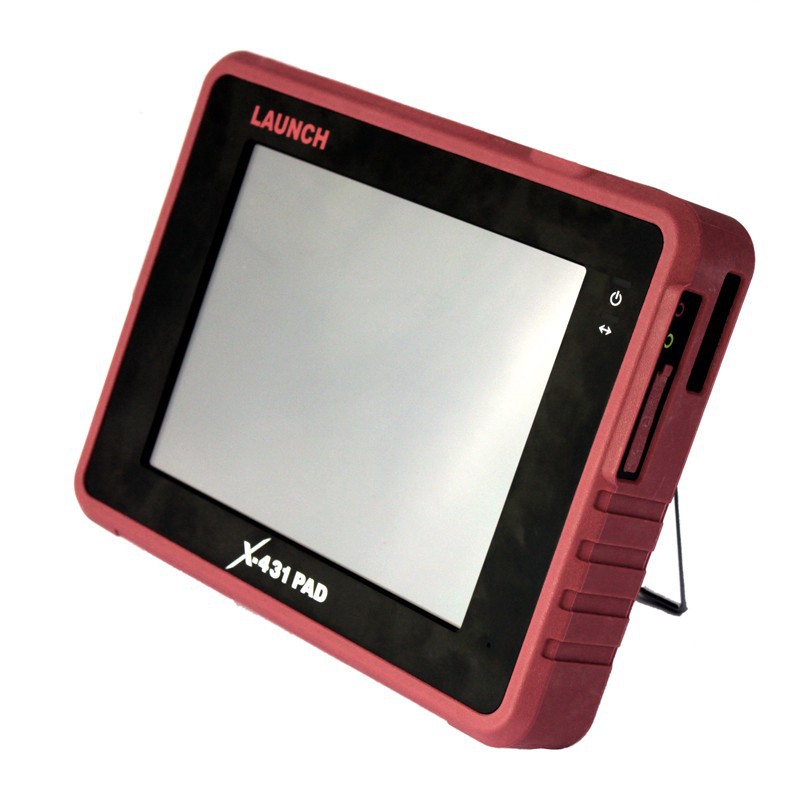

IMG_1403IMG_1401IMG_1406IMG_1407

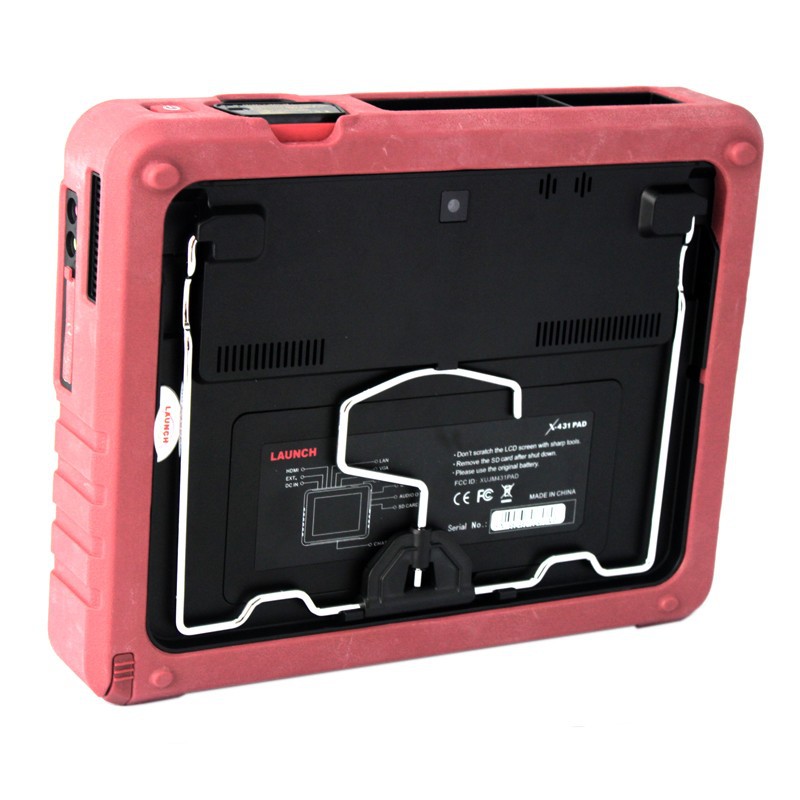

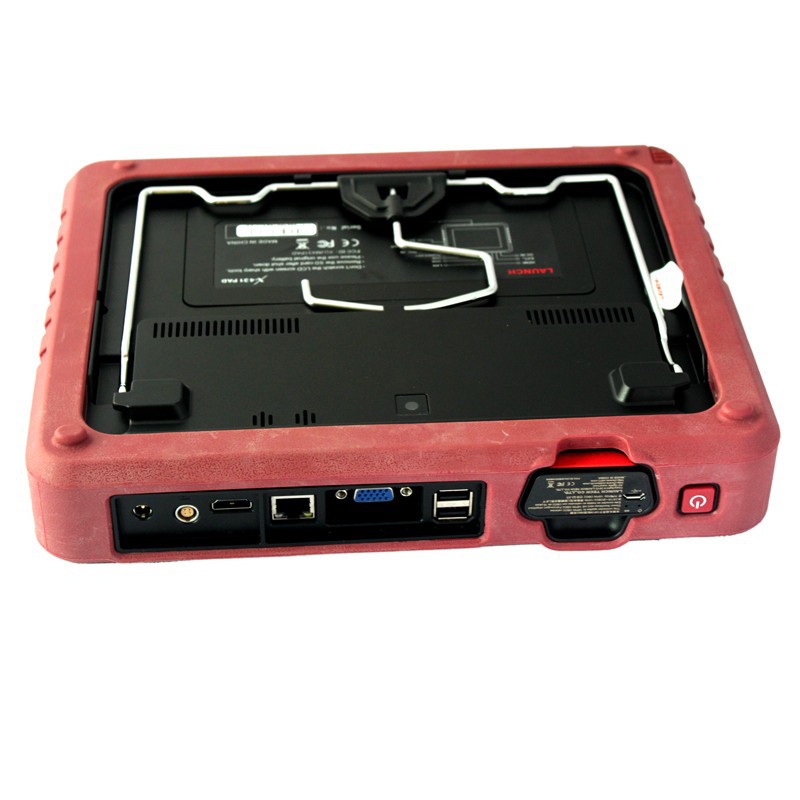

IMG_1400IMG_1396IMG_1387

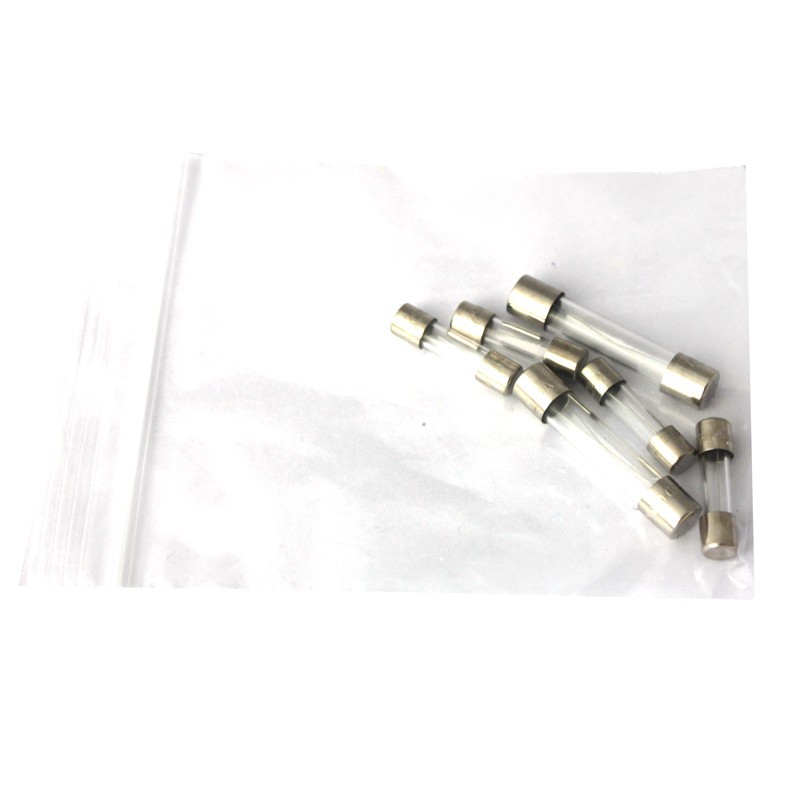

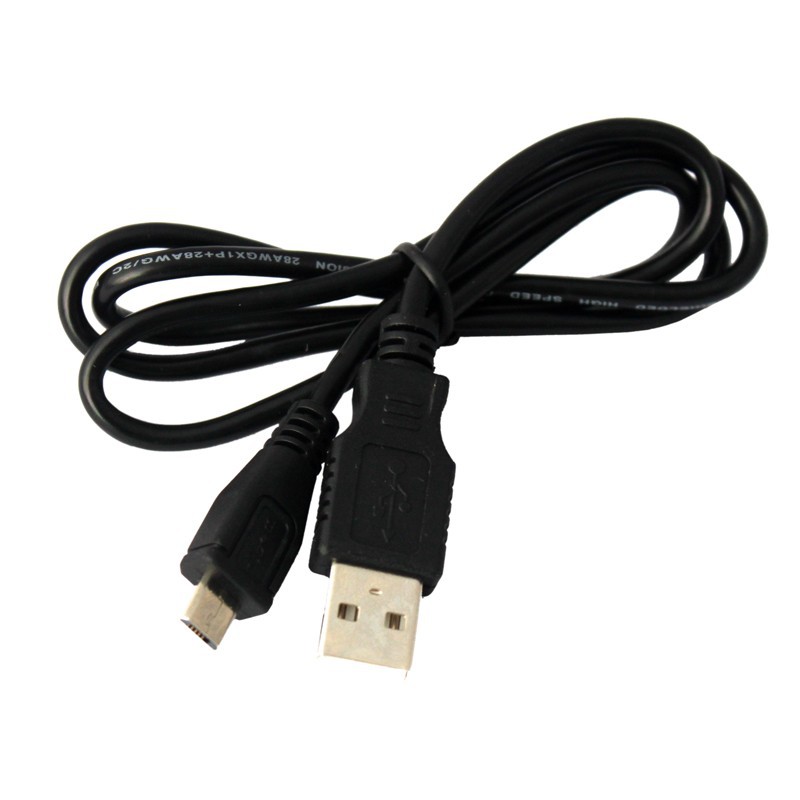

IMG_1423IMG_1421IMG_1425IMG_1409IMG_1413IMG_1415IMG_1418IMG_1422

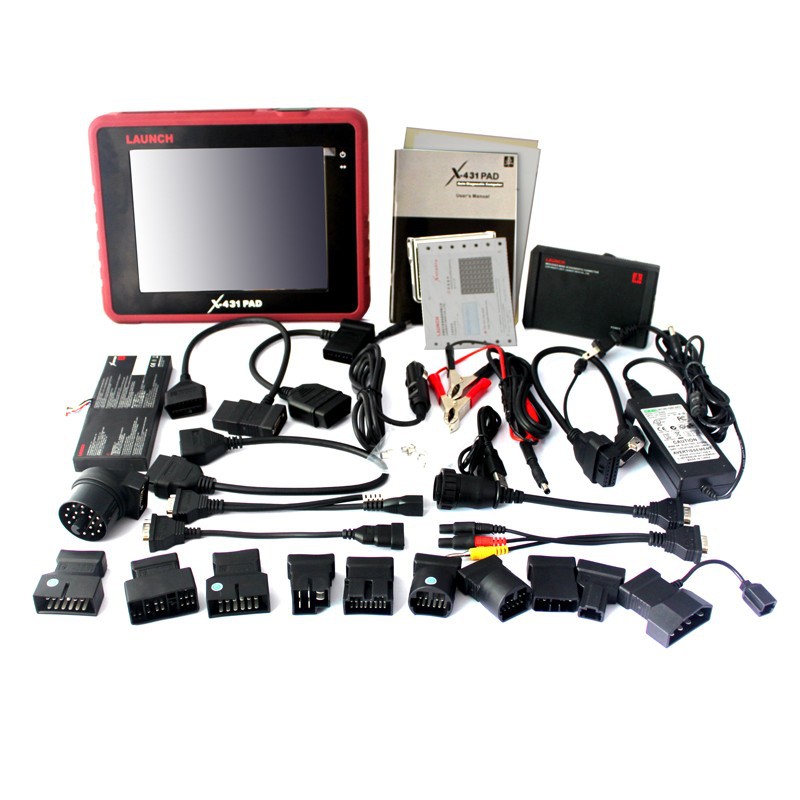

IMG_1481

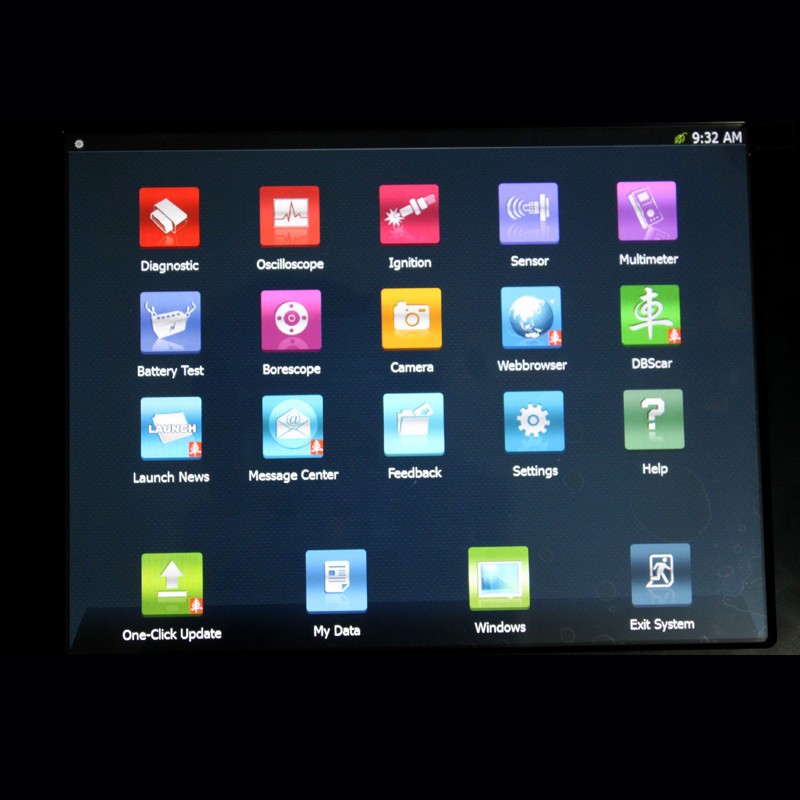

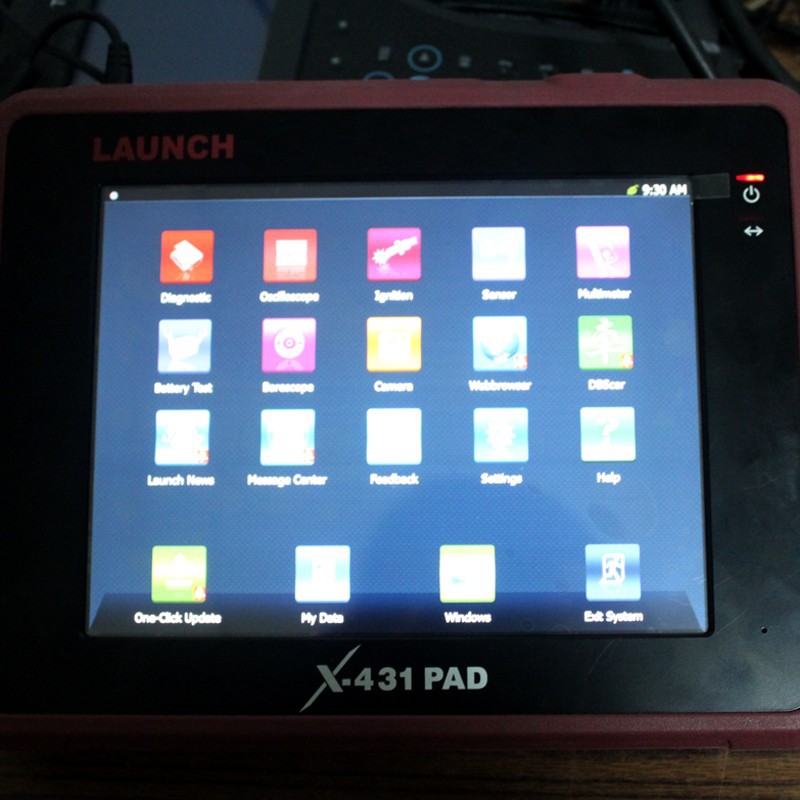

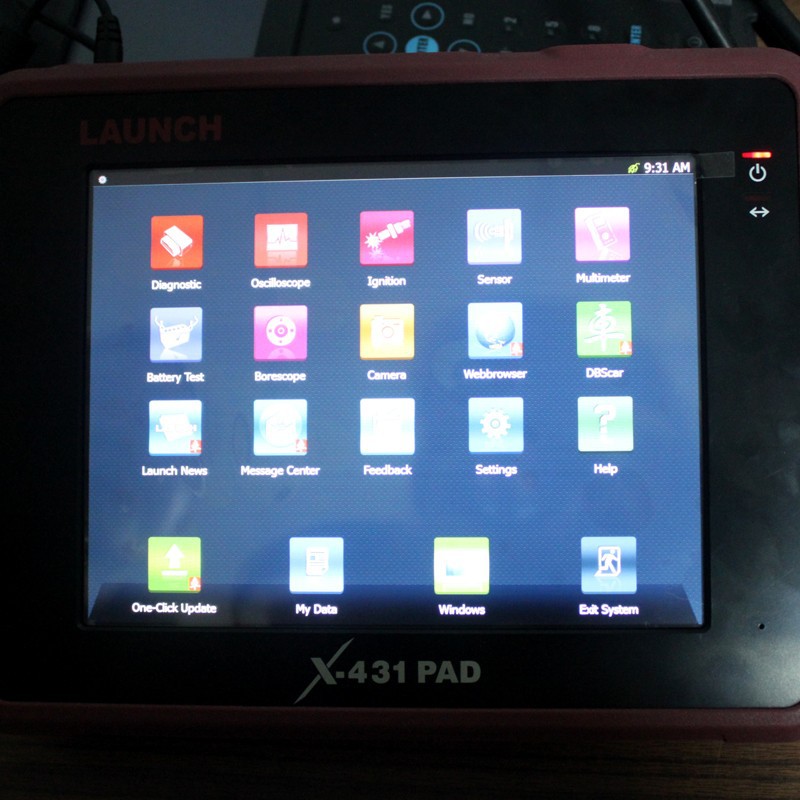

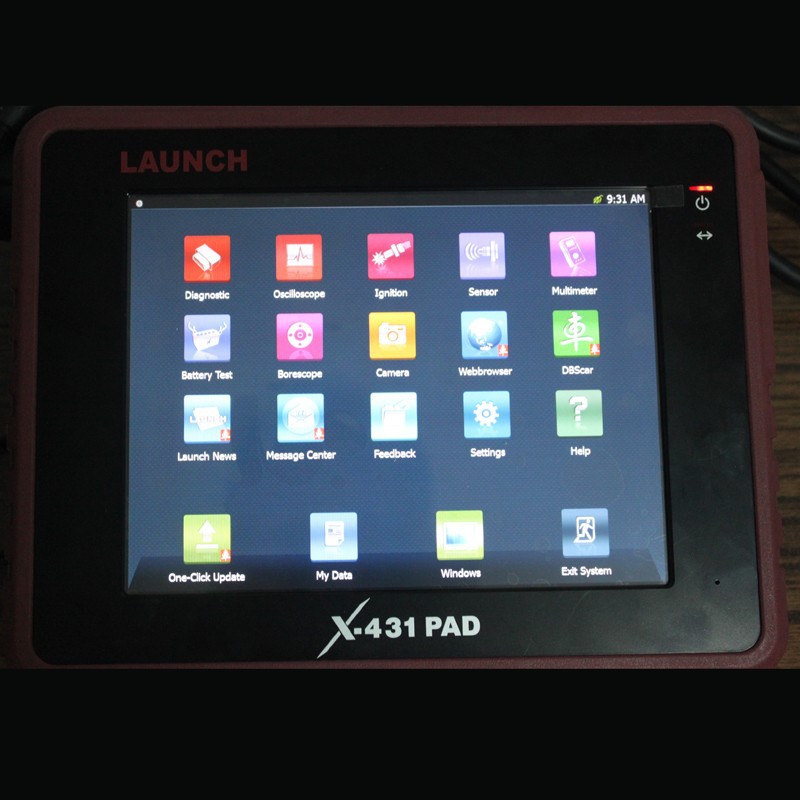

IMG_1376IMG_1370IMG_1373IMG_1374IMG_1375

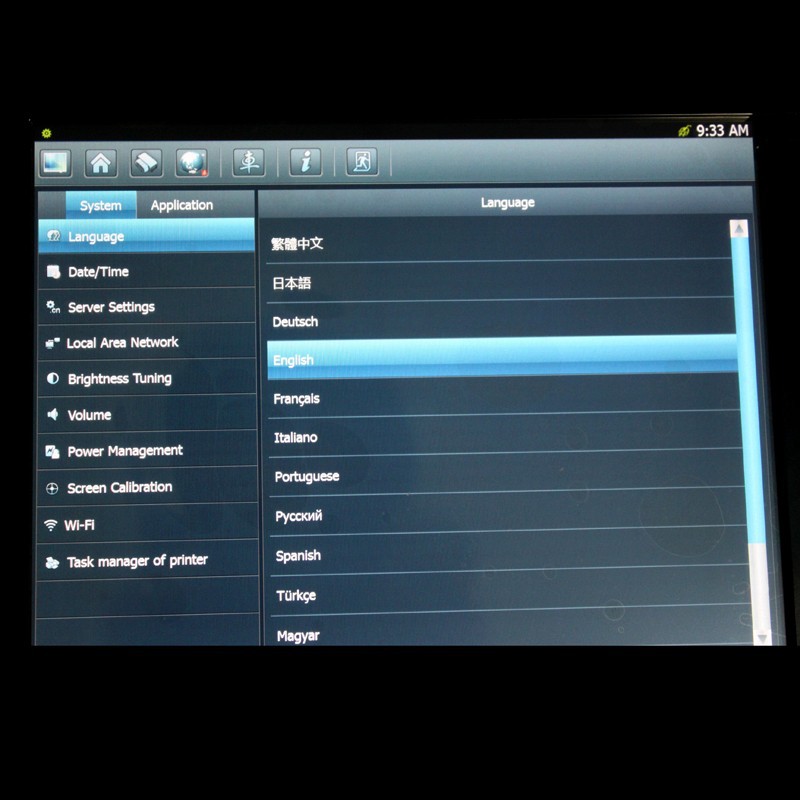

IMG_1381IMG_1379IMG_1378IMG_1383
