Product Name:Original Xhorse VVDI PROG Programmer V3.4.0
Product Type:Xhorse VVDI PROG Programmer V3.4.0
Product Category:ECU Chip Tunning
View Count:
Product Description

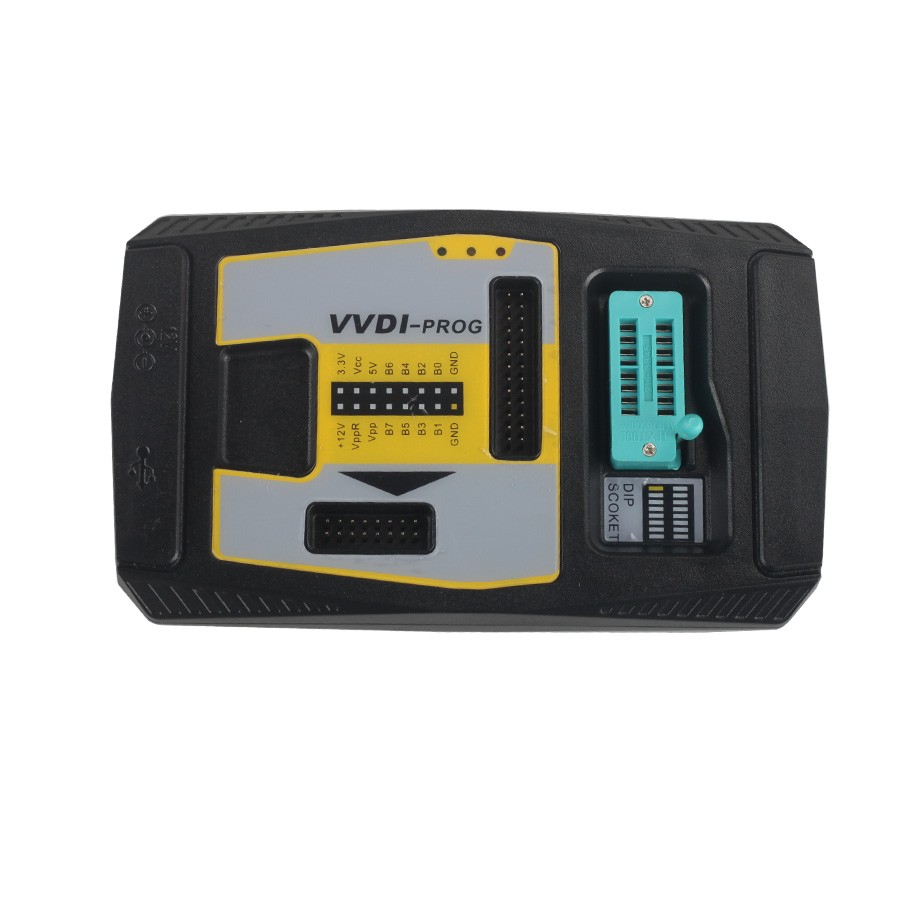

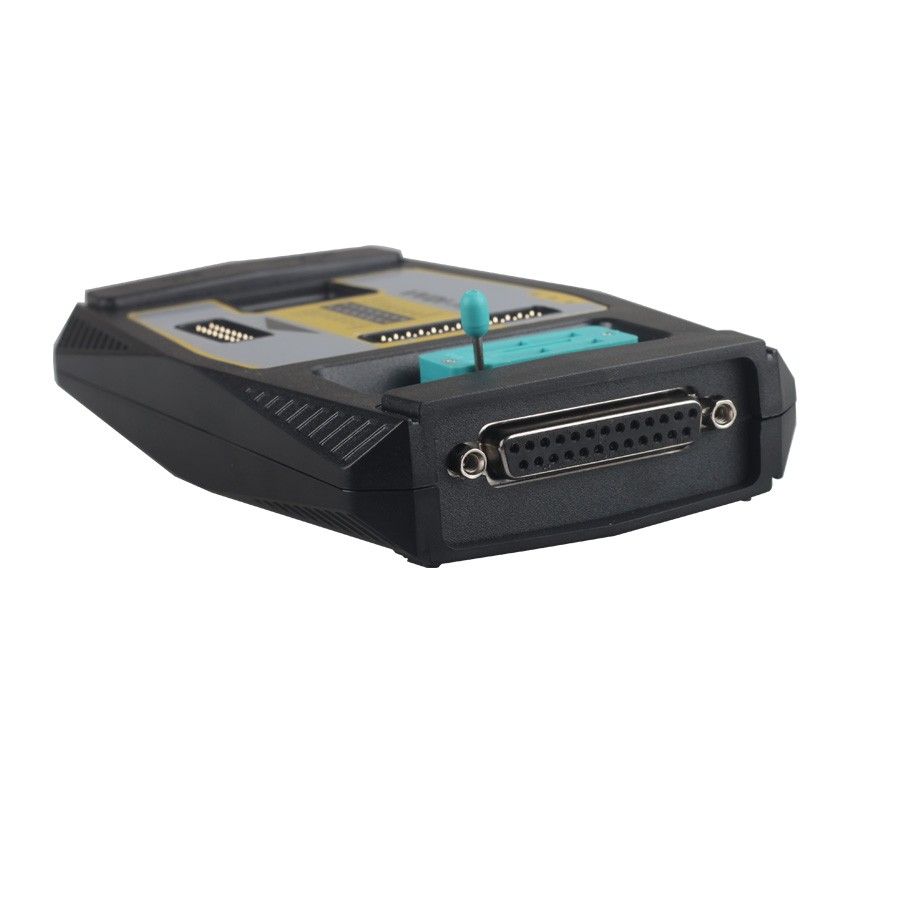

VVDI PROG Programmer

Buy VVDI-Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service

Latest Software Version: V3.4.0
Firmware Version: 1.2.2

vvdi-prog

Main Feature:

1. The built-in update software allows user to update VVDIProg firmware timely.
2. High-speed USB communication interface enable the software automatically connect.
3. Smart operation mode: the possible causes of error will be listed
4. Reserve ports: for future update.
5. The self-test function enable you check if the machine works well.
6. Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.

Update Information:

V3.4.0  Update            (2015-09-10):
* This version DON't need update firmware
+ Add Porsche BCM (1L15Y/2M25J/5M48H) options
+ Add MC9S12XEQ512,MC9S12XET512 options in <2-MCU>-->Motorola
+ Add BENZ EIS-W203 in <4-IMMOBILIZER>
* Fix some display BUGs in EnglishVersion
* Change the name of upgrade button as "Start Firmware Upgrade"
* Change the Voltage name as "VCC" "VPP"

20150911414479252015091141447927



Adapters Detailed Description:

16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip by following the below picture.

VVDI PROG Programmer-1

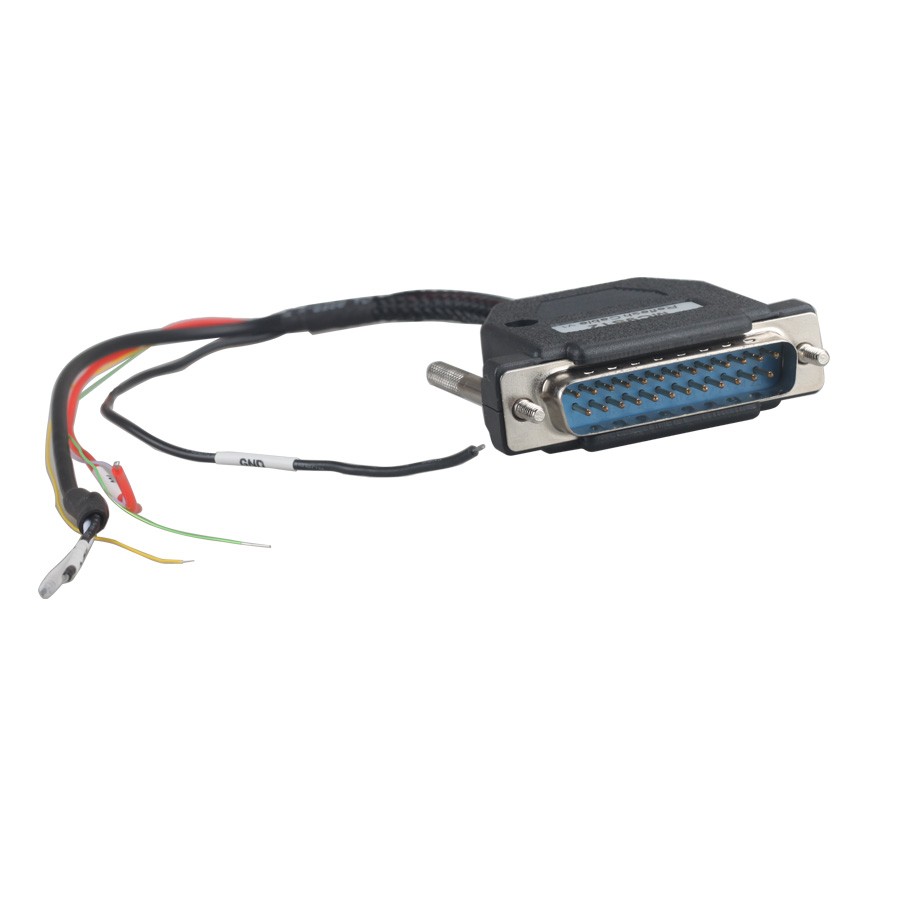

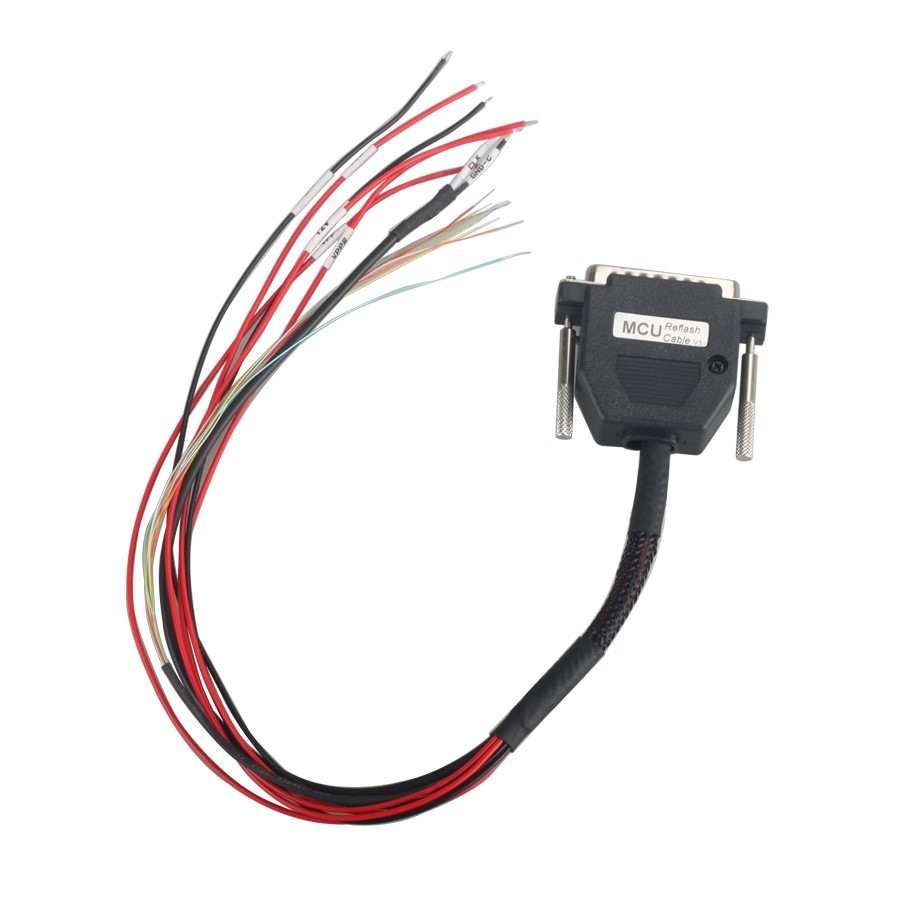

1.3.2 MCU Reflash Cable
Used to program MCU on board

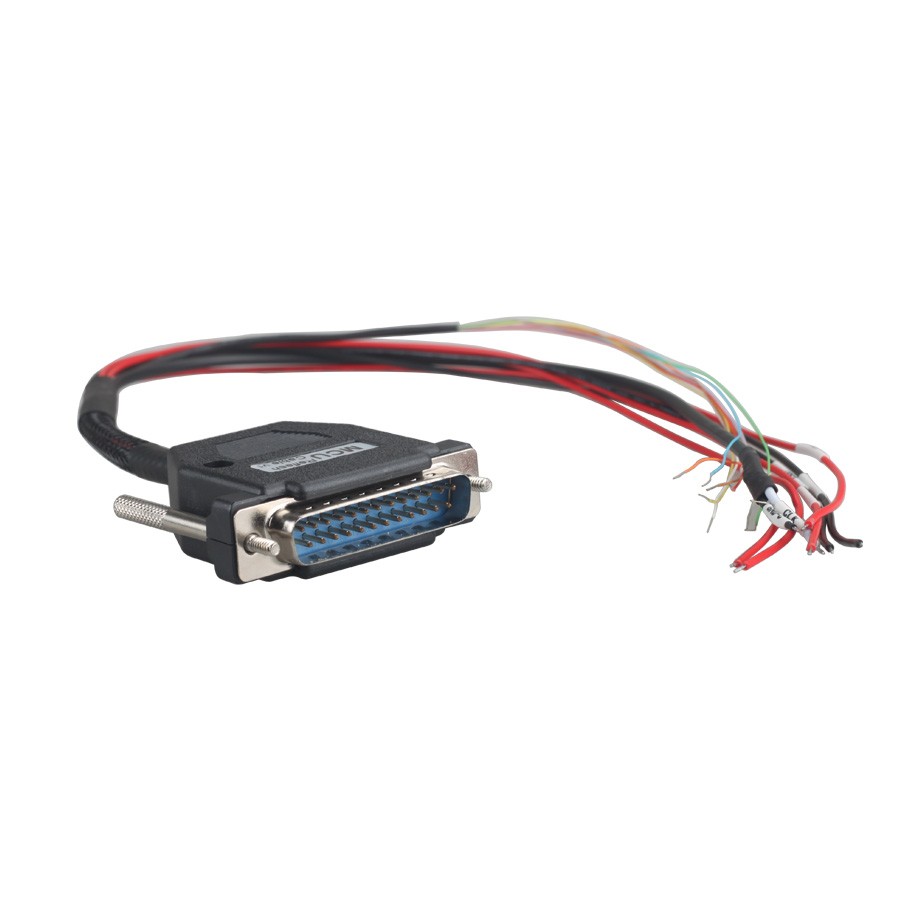

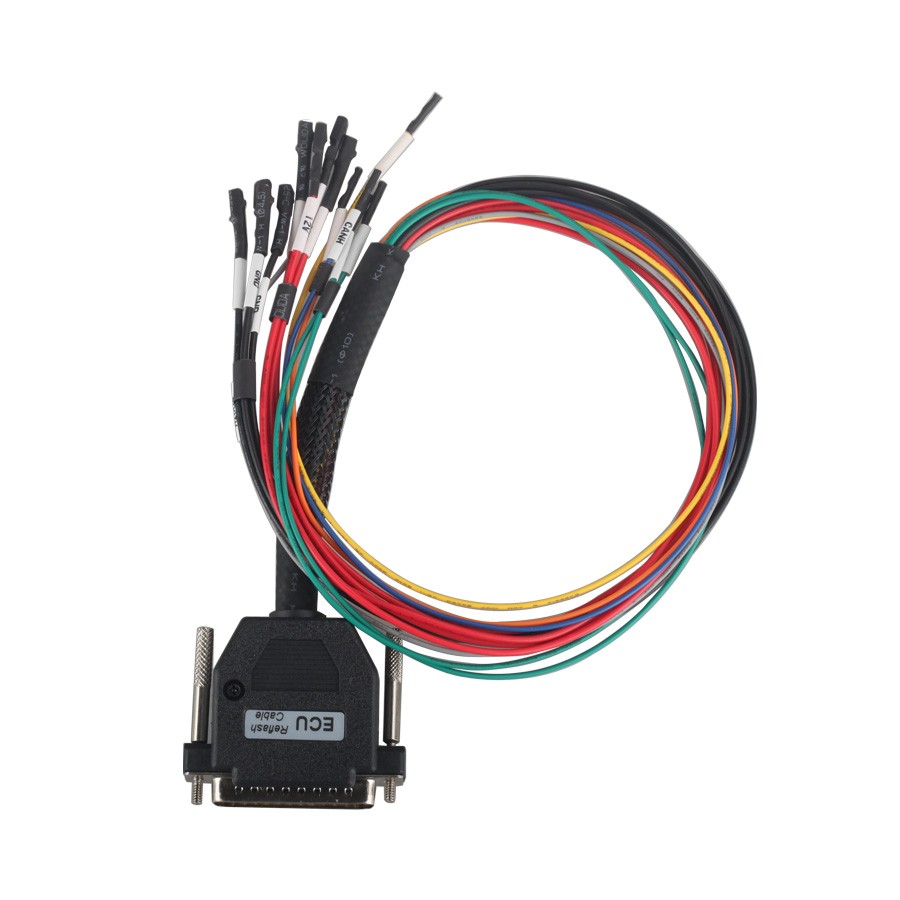

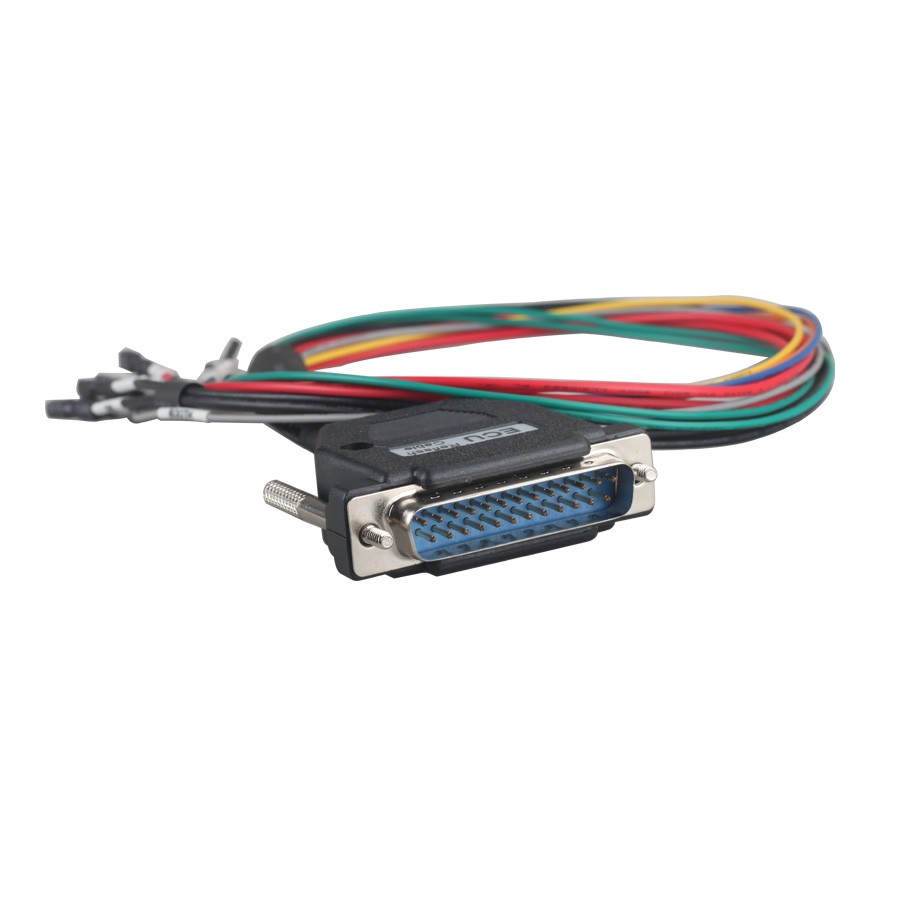

1.3.3 ECU Reflash Cable
Used to program ECU

VVDI PROG Programmer-3

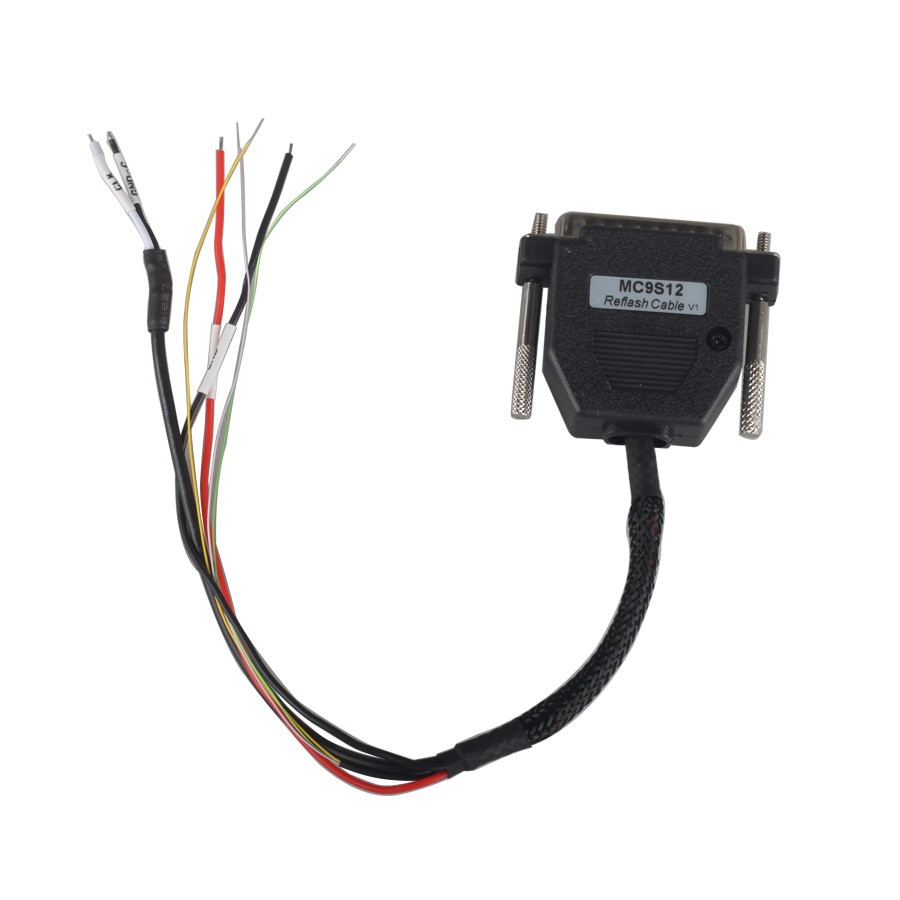

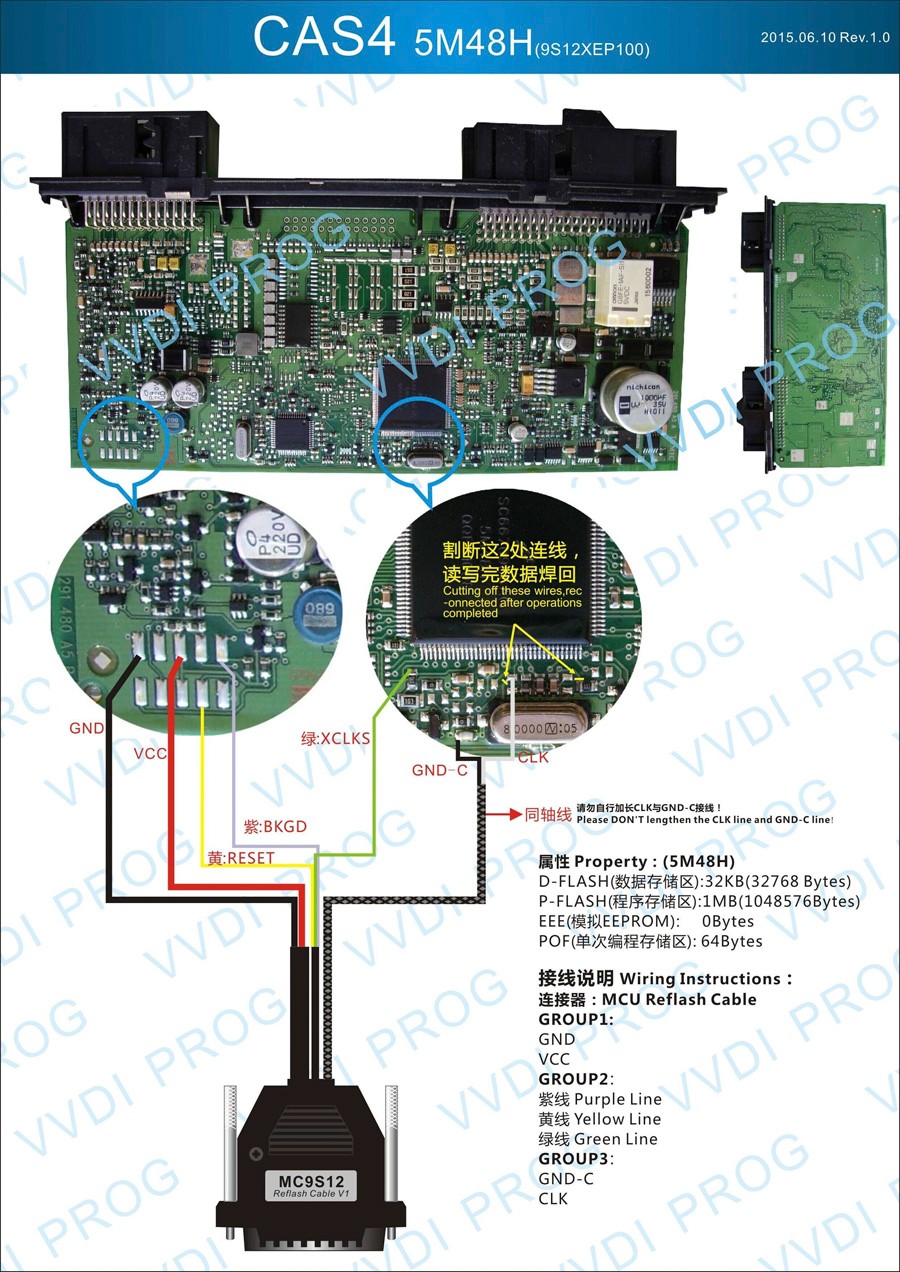

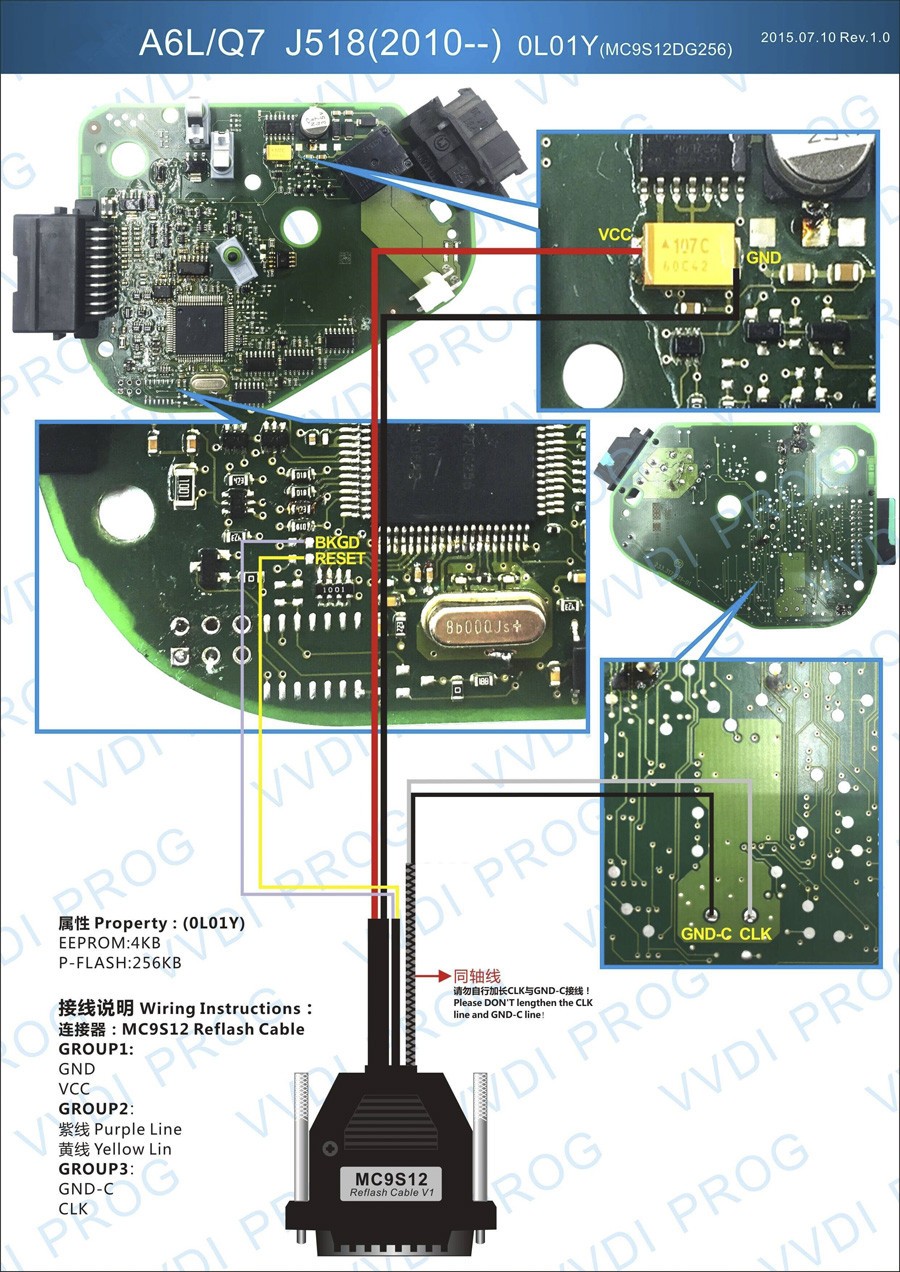

 1.3.4  MC9S12 Reflash Cable
Used to program MC9S12 series chip

VVDI PROG Programmer-4

Supported chip list
EEPROM

Manufactures  Types  Support  Remark
ATMEL  AT24CXX  R
AT25XXX  R
AT93CX6  R
BOSCH  B3XX  R
B4XX  R
B5XX  R
B58XXX  R
CATALYST  CAT24CXX  R
CAT24WXX  R
CAT93CX6[A]  R
EXEL  XL[S]24CXX  R
   XL[S]93CX6  R
FAIRCHILD  FM24CXX  R
NM24CXX  R
NM93CX6  R
GRUNDIG  GRXX  R
HOLTEK  HT93CX6  R
MICROCHIP  24AAXX  R
24[L]CXX  R
93[L]CX6  R
93AAX6  R
MITSUBISHI  M6M800X1  R
SEIKO  S-24CXX  R
S-93CX6  R
ST  D80/D160  R  Can erase the first 32 bytes
M35080  R  Can erase the first 32 bytes
NEC  M24CXX  R
ST  ST24CXX  R
ST24EXX  R
ST24WXX  R
ST25CXX  R
ST25EXX  R
ST95P0X  R
Note: R means the type is supported, £ means the type will be supported soon in the future

MCU

Manufactures  Types   Support  Remark
MOTOROLA  MC9S12XEP  R  Can automatically determine D-FLASH/EEE space
MC9S12XA  R
MC9S12XB  R
MC9S12XD  R
MC9S12XDT  R
MC9S12XDP  R
MC9S12XDQ  R
MC9S12DG  R
MC9S12DT  R
MC9S12P  R
MC9S12H  R
MC9S12HY  £
MC9S12HA  £
MC9S12HZ  £
MC9S12XHZ  £
MC9S12B  £
MC9S12GC  £
MC9S12XS  £
MC9S12K  £
MC9S12Q  £
MC9S12C  £
MC9S12P  £
MC9HC(9)08  £
ATMEL  ATTINY  £
ATMEGEA  £
NEC  uPD70F  £
ST  TMS370  £
Note: R means the type is supported £ means the type will be supported soon in the future.

 ECU

Manufactures  Types  Support  Remark
VAG  MED17.1-TC1796  £
MED17.11-TC1796  £
VAG MEG17.5-TC1766  £
VAG MED17.5.1-TC1796  £
VAG MED17.5.2-TC1767  £
 VAG MED17.5.5-TC1766  £
VAG MED17.5.20-TC1766  £
VAG EDC17 CP14/CP20-TC1796  £
VAG EDC17 CP04-TC1796  £
VAG EDC17 C46-TC1767  £
VAG EDC17 CP24-TC1796  £
VAG EDC17 CP44-TC1797  £
VAG EDC17 U01-TC1766  £
VAG EDC17 U05-TC1796  £
VAG/Porsche Siemens Continental SDI 3-
TC1796

£
BMW  MEVD172(N55)  R
MEVD172P(N20)  R
MEVD172G(N55)  R
MEVD172S(N55)  R
MEVD1724(N20)  R
MEVD1725(N13)  R
MEVD1726(N55)  R
MEVD1729(N20)  R
MEVD1728(N63/S63)  R
Note: R means the type is supported £ means the type will be supported soon in the future.

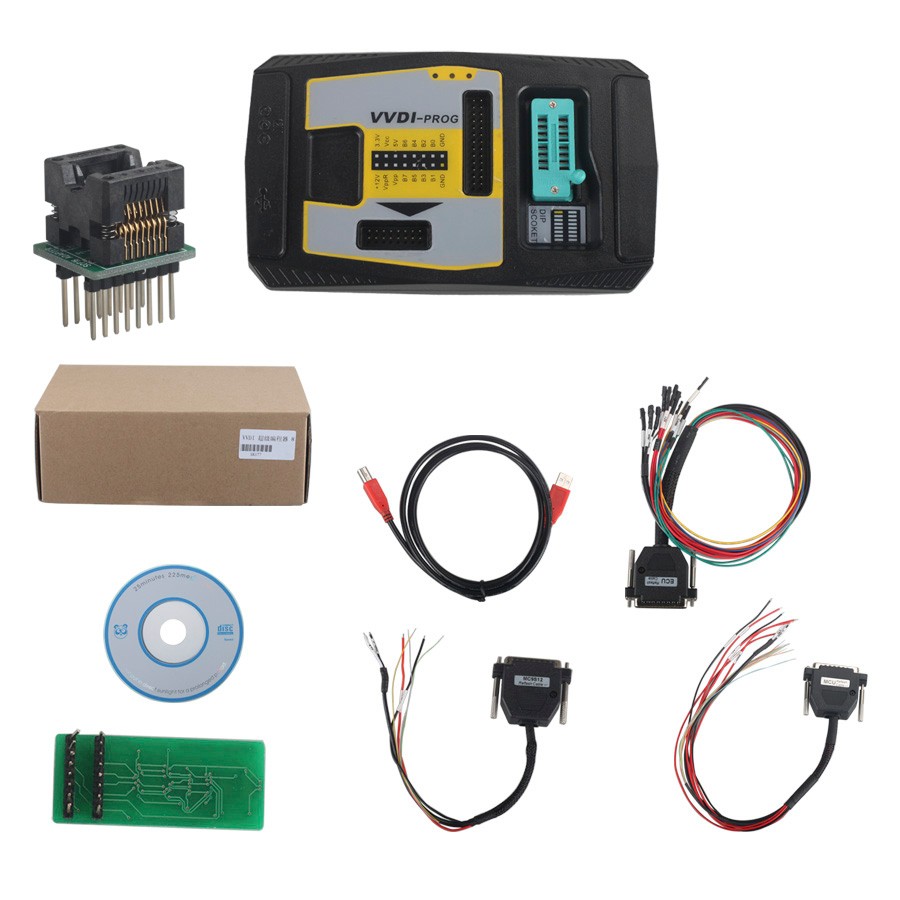

Package List:

Parts  Number  Remark
Programmer multiplexer  1

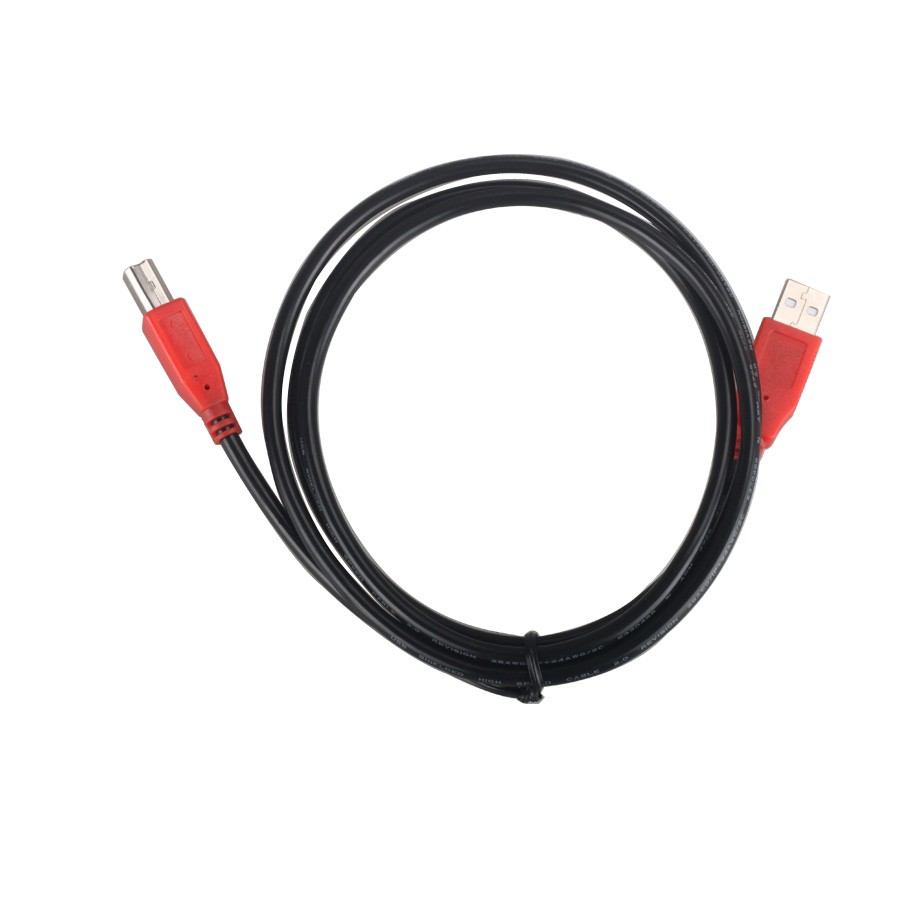

Square USB cable  1

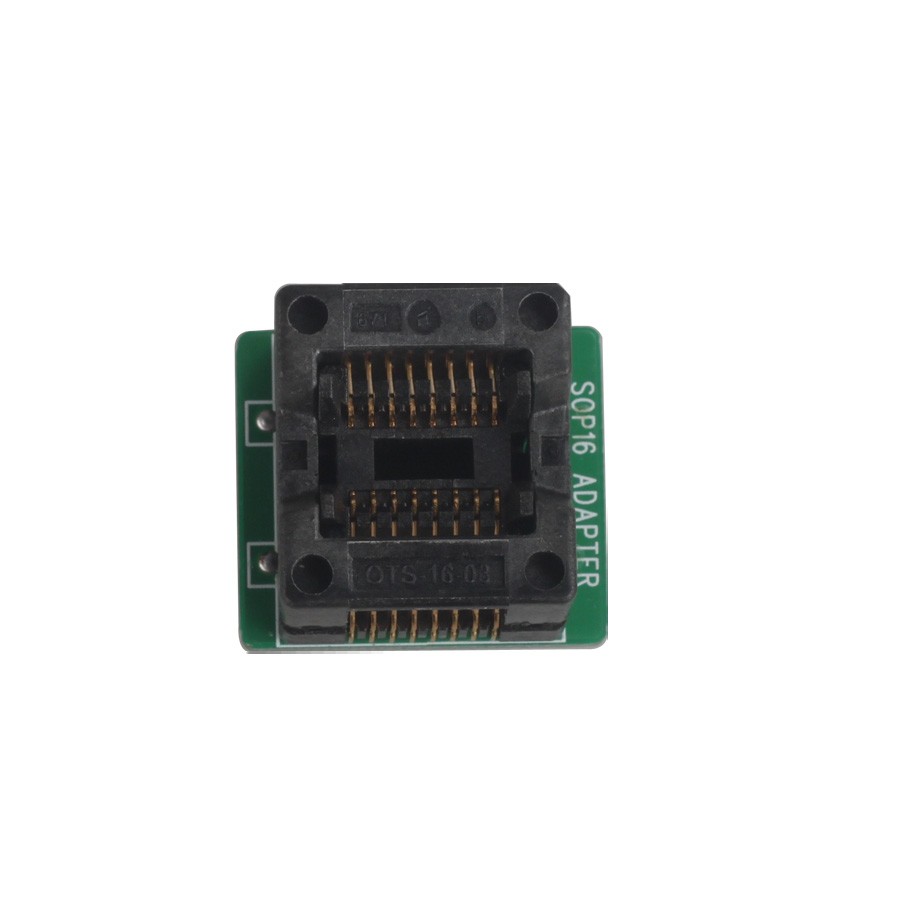

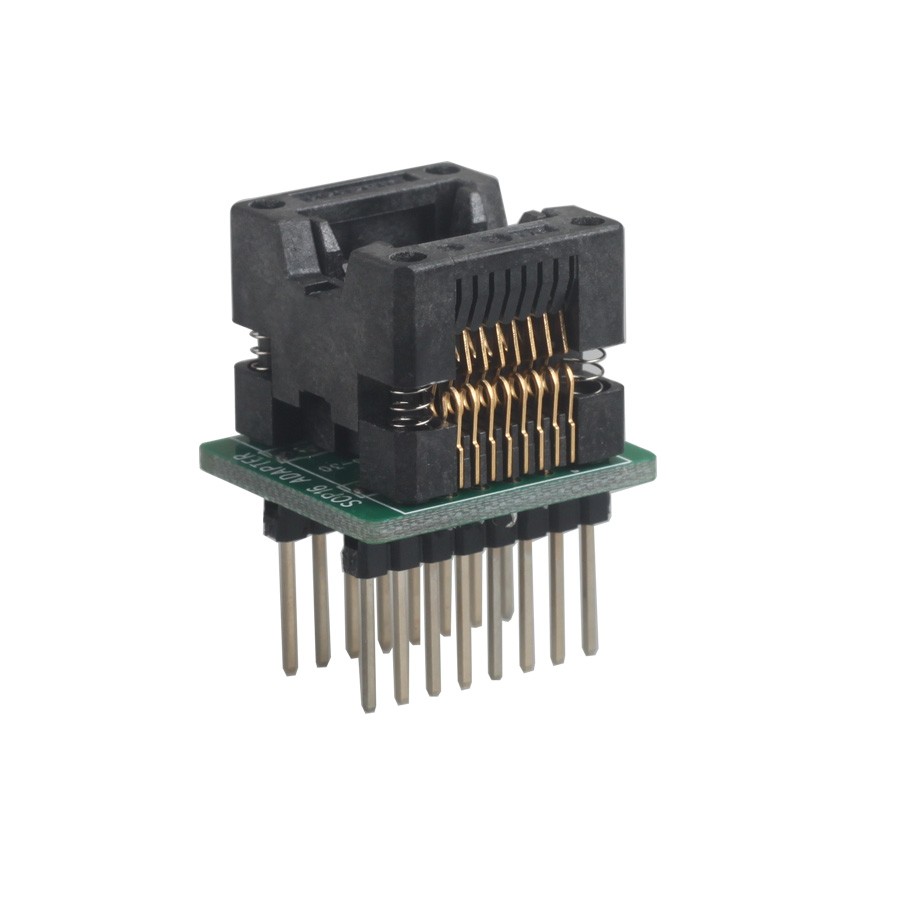

SOP16 test socket  1

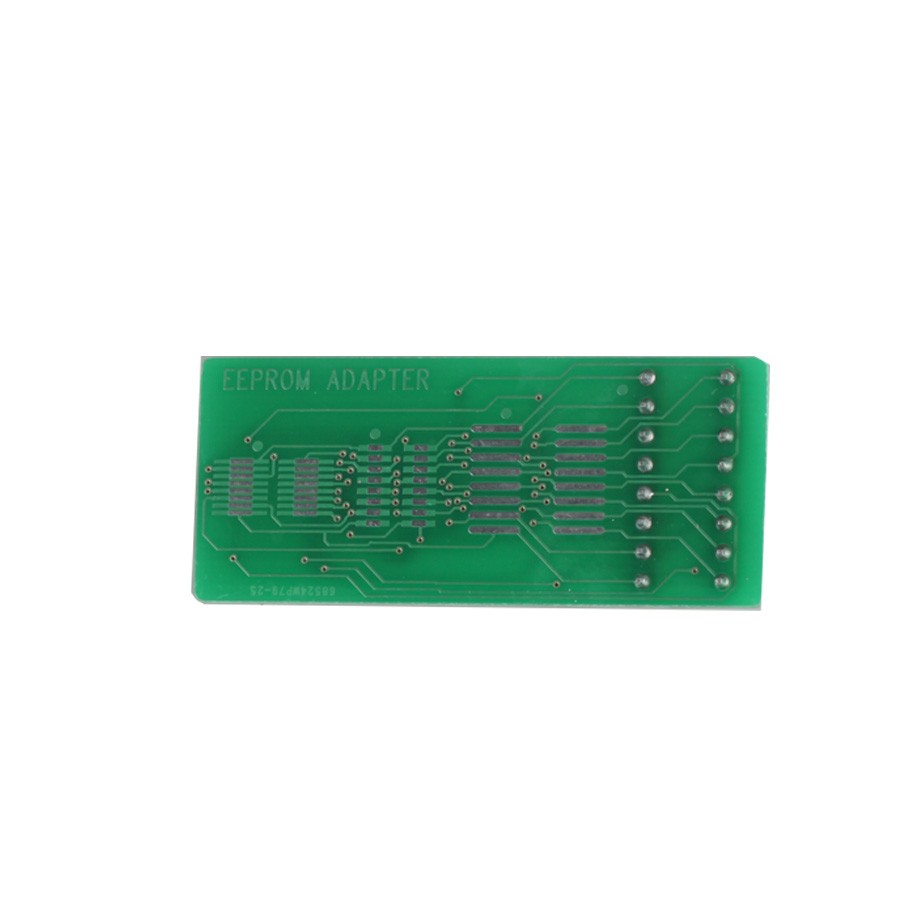

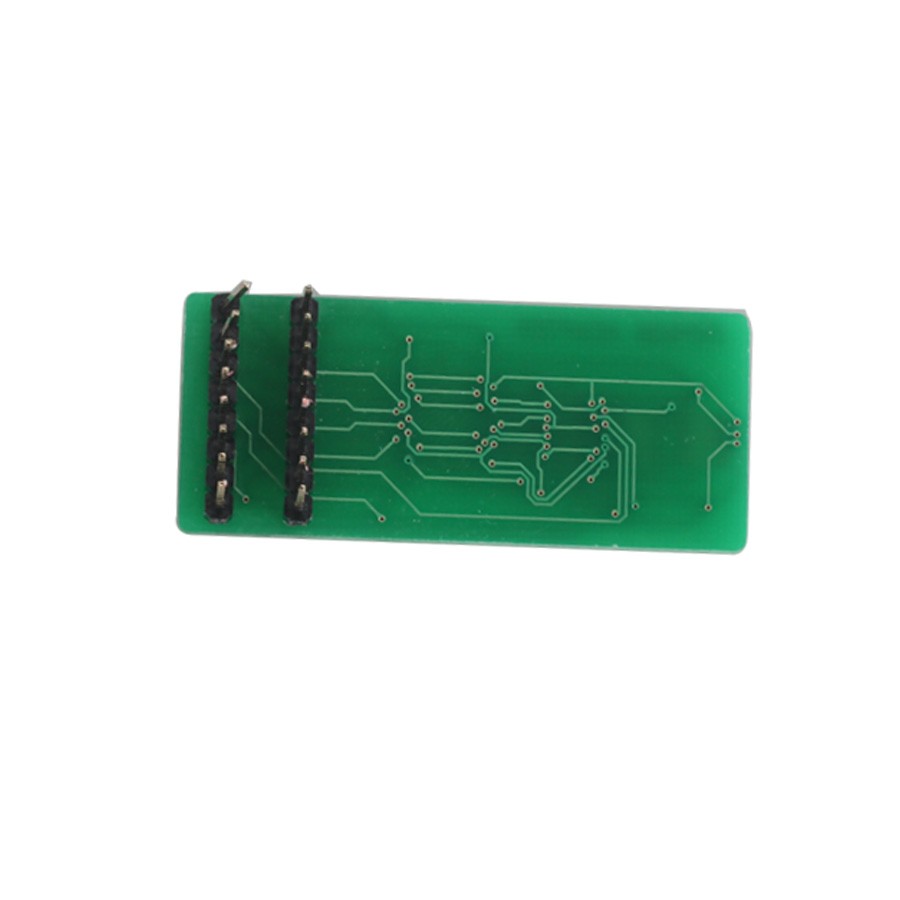

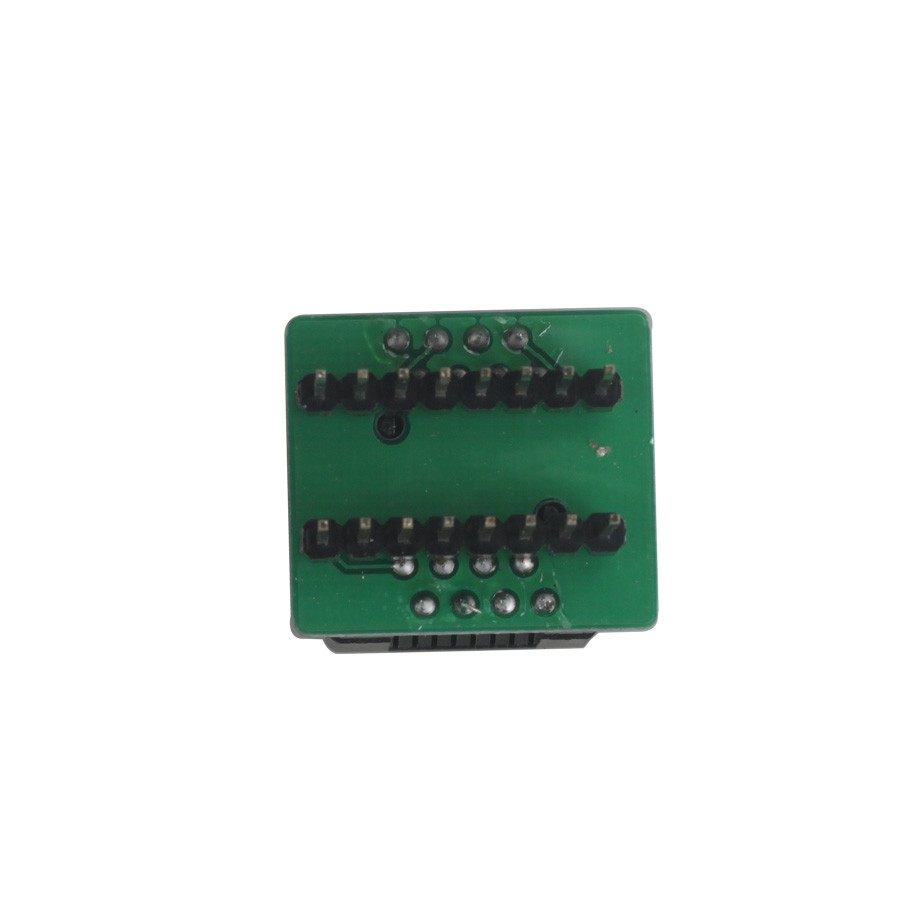

16pin converter  1  Support SOP/SOT/SSOP
MCU reflash cable  1
ECU reflash cable  1
MC9S12 reflash cable  1  Used to program MC9S12 series chip
12V3A power adapter  1  High quality power supply



20150910386002612015081932184222201508193218422320150819321842242015081932184225201508193218422620150819321842272015081932184228

20150819321842292015081932184230201508193298711120150819329871122015081932987113201508193298711420150819329871152015081932987116

201509103860026220150910386002632015091038600264
