Product Description

Launch CReader 5001 Code Reader Full OBDII/EOBD Diagnostic Functions Scan Tool

Launch CReader 5001 Introduction:
Launch CReader 5001 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.
It features a 2.8-inch color display, graphical data streams, and USB interface internet update, which facilitates car maintenance.



Launch CReader 5001 Languages:
English, French, Spanish, German, Italian, Russian, Polish, Portuguese, Turkish, Czech, Chinese Simplified, Chinese Traditional

Launch CReader 5001 Feature:
Brand-new process design:
Color screen and light weight

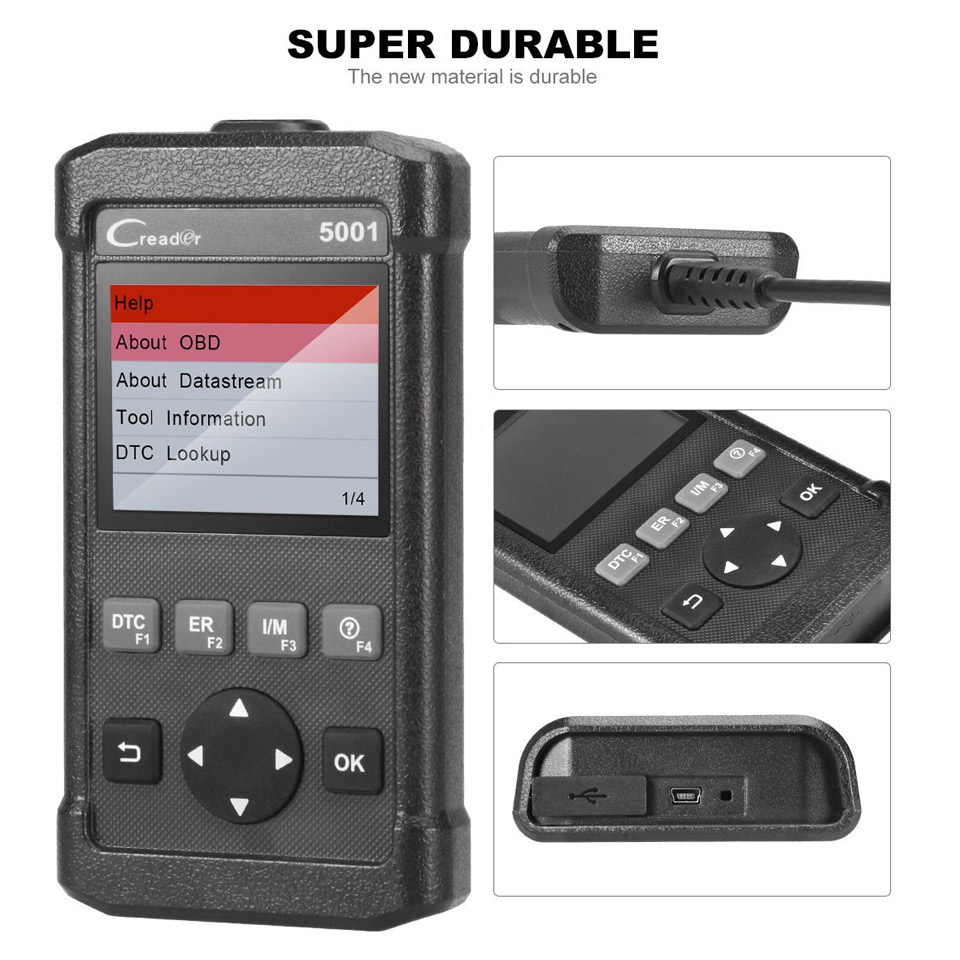

Connector with unique protection design to prevent fracture

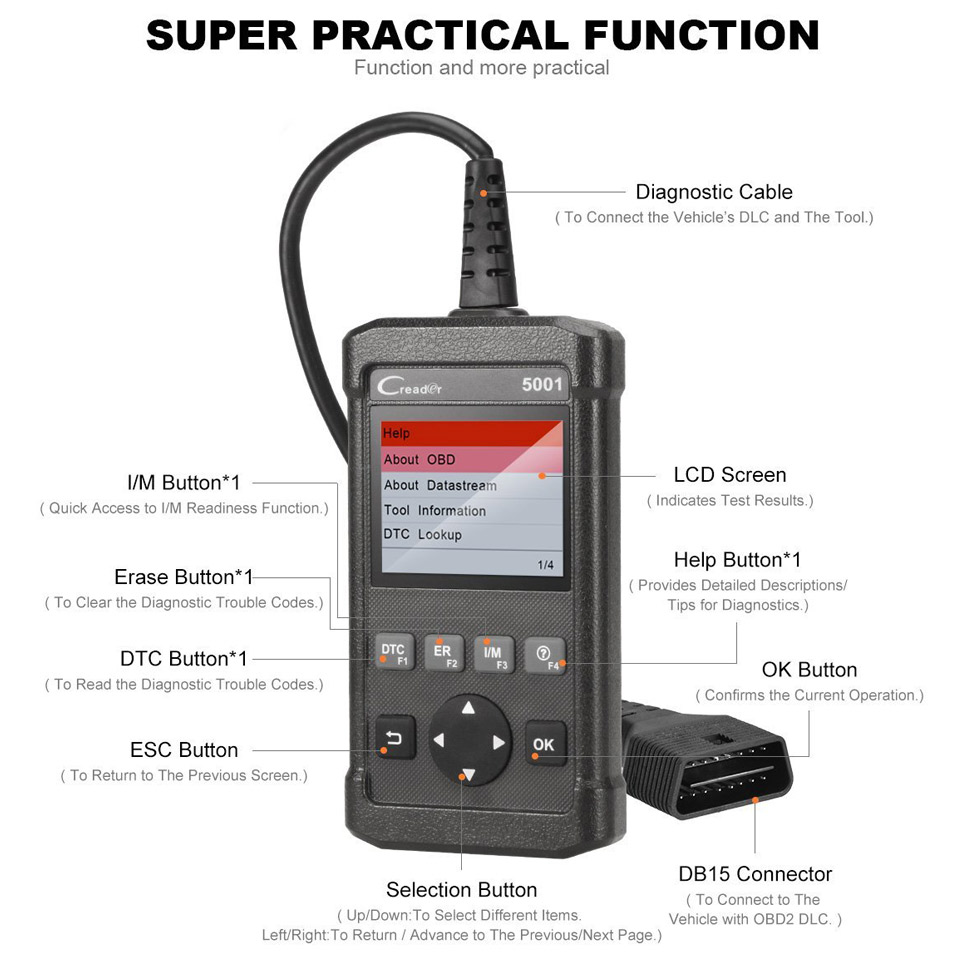

User-friendly shortcut keys to enhance the work efficiency
1. Support all 10 test modes of OBD II
Read dynamic data streams and MIL
Read readiness status
Read freeze frame data
Read current DTCs
Clear DTCs
O2 sensor test
On-board monitor test
Read pending DTCs
On-board system or component control
Read vehicle information
Read permanent DTCs
2. Color graphical display of data streams
3. Built in DTC help information
4. Free PC upgrade via internet
5. Multilingual support

Launch CReader 5001 Specifications:
Screen: 2.8" TFT 320*240 dpi
Voltage range: 9-18V
Operating Temperature: 0℃~ 50℃(32℉-122℉)
Environment Temperature: -20℃~70℃(-4℉-158℉)

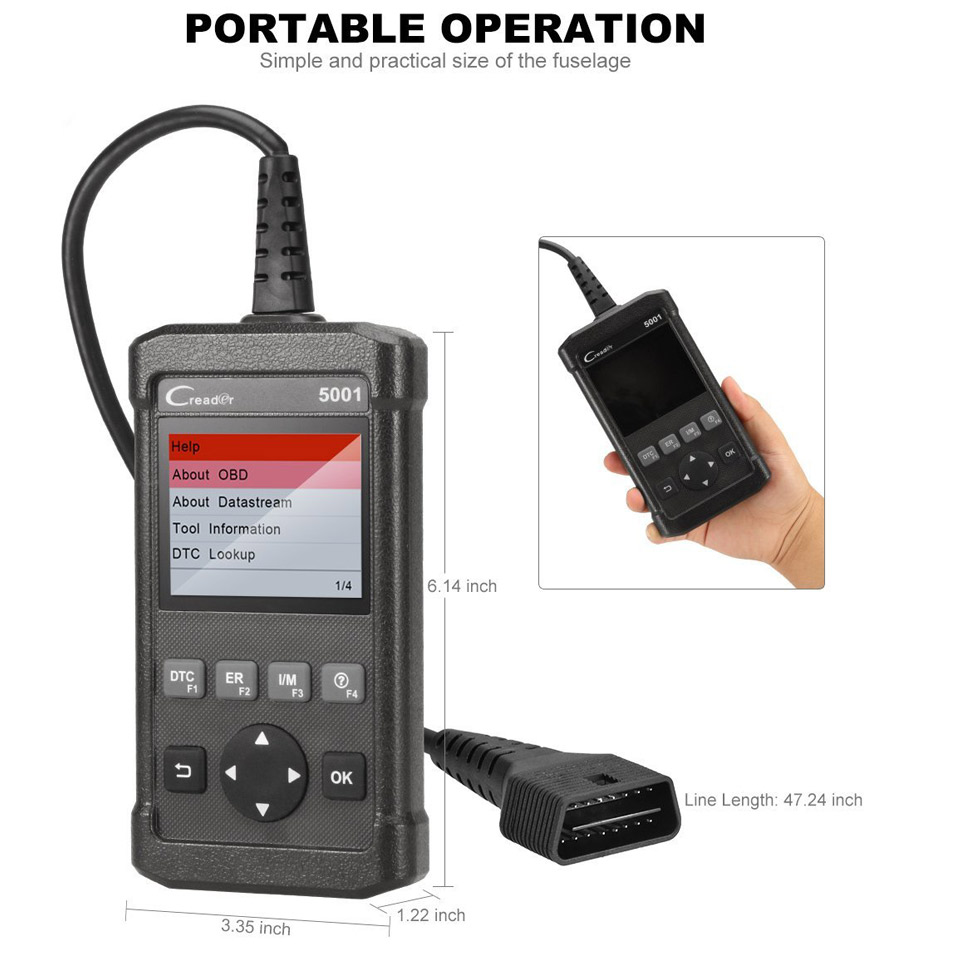

Dimension: 142mm*85mm*30 mm (5.6 " *3.4" *1.2")
Weight: <320g

Launch DIY Code Reader Products Comparison:

Package Includes:

1pc x Launch CReader 5001 Code Reader
